The Carb Is Off!!
So here were my issues.......difficult time starting, pouring gass down the carb would start her up.....and loss of power above 4K. So i took the carb off...
I tilted the carb and played with the throttle..i can see the secondary linkage activate the spring...now should the secondary flaps open up with the throttle fully engaged??

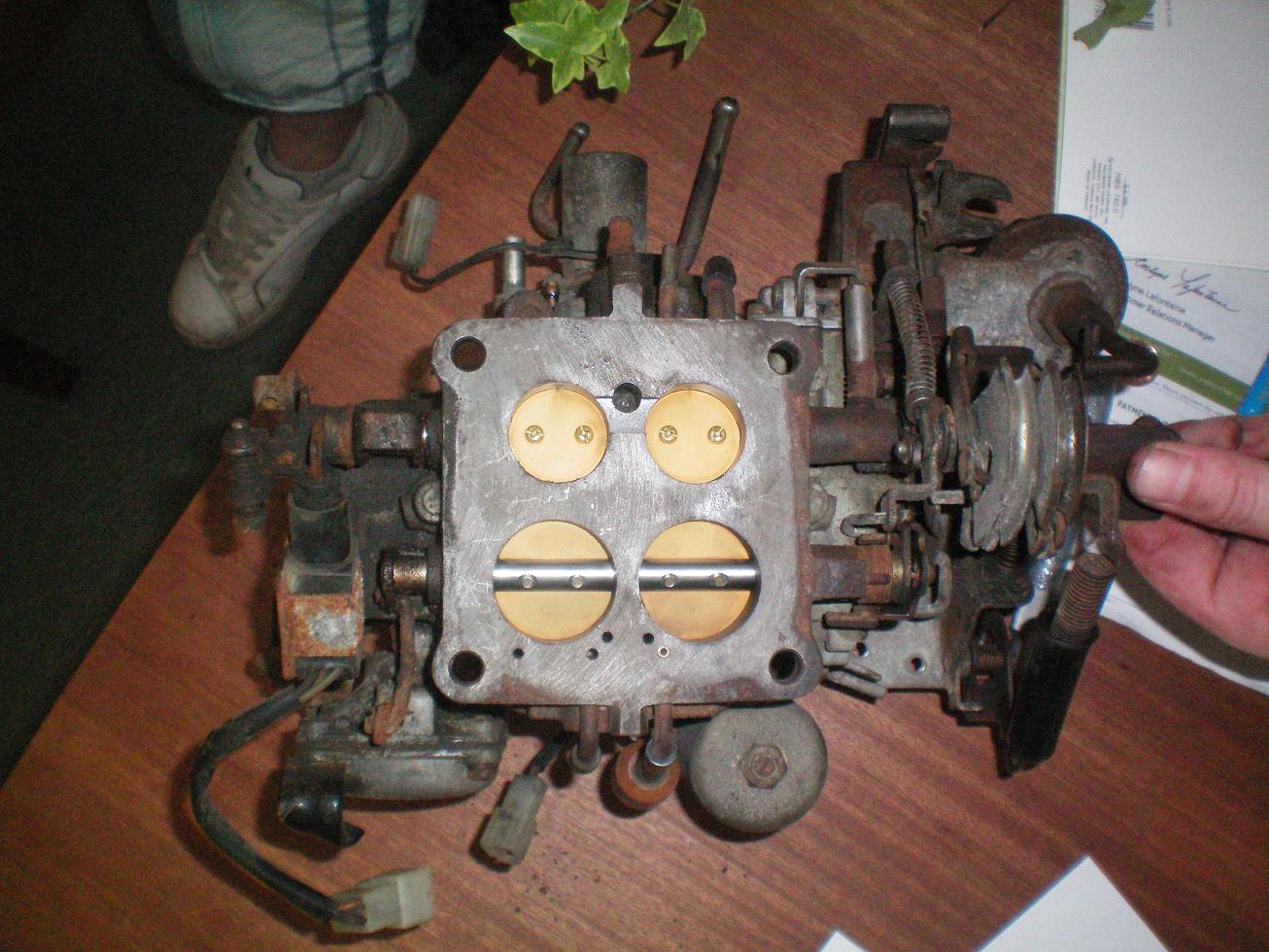

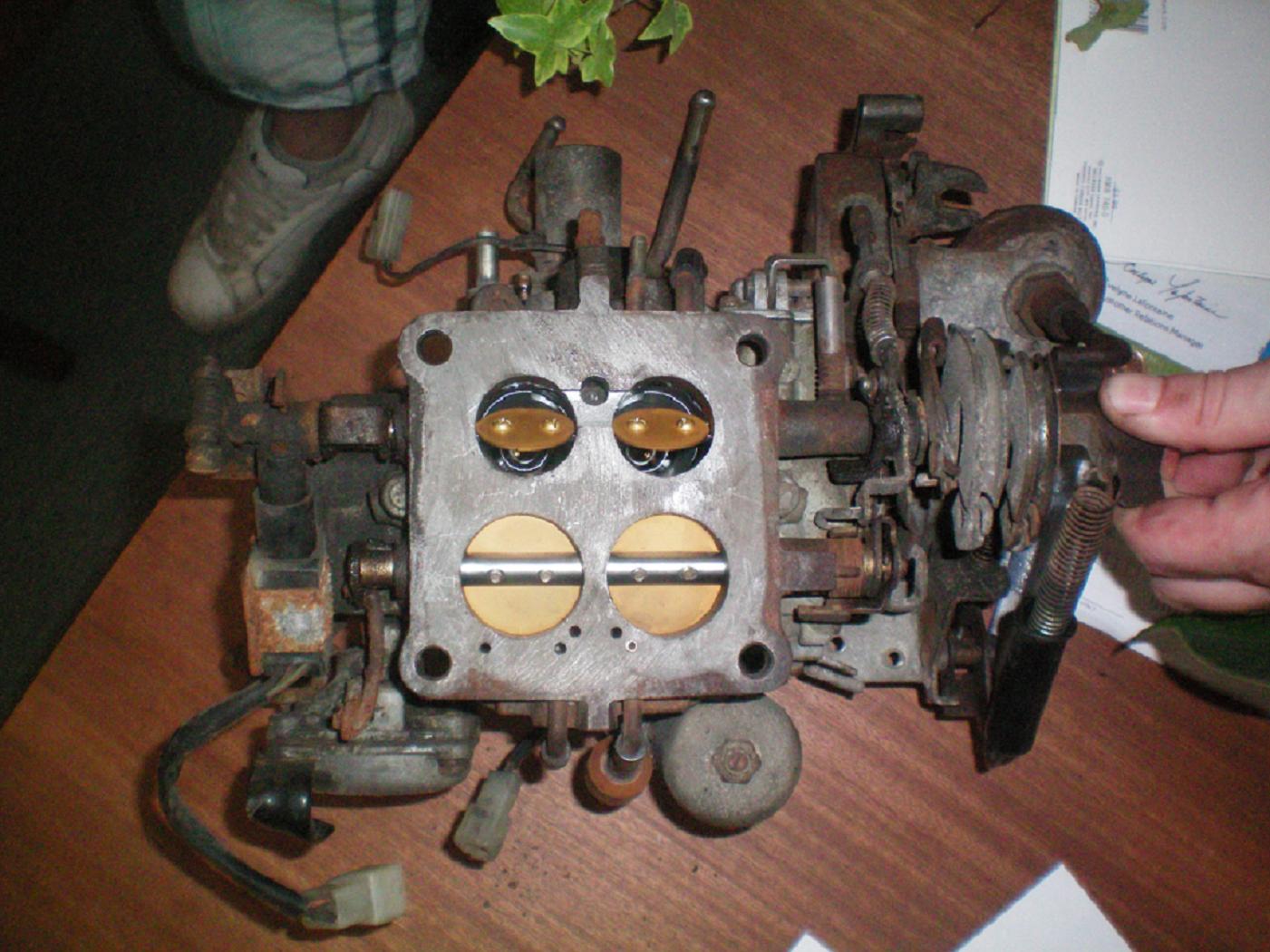

I have some pics at no throttle half throttle and full
And for the no start, should i take the jets out (remembering where they were) and clean them with air??

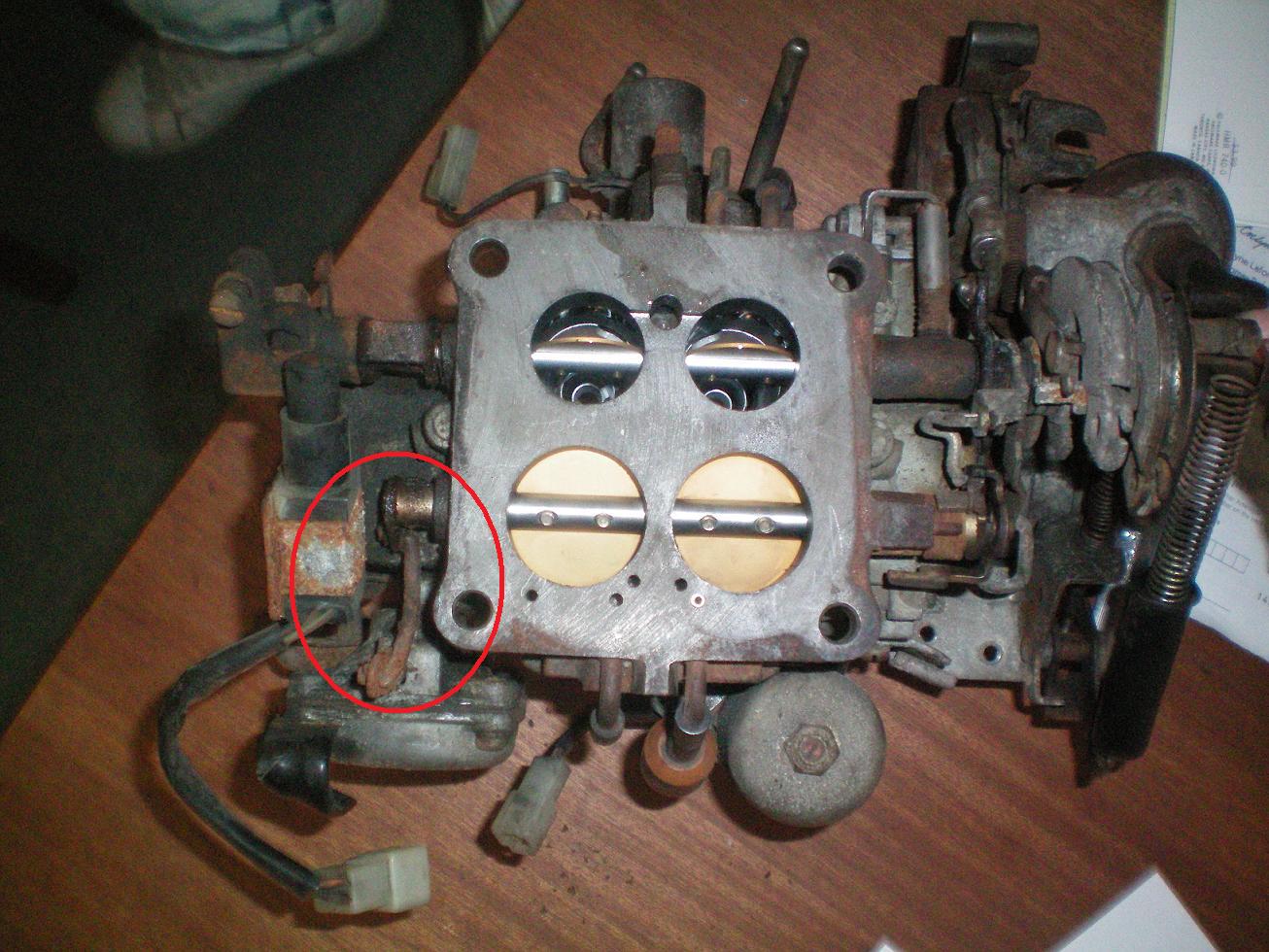

Also, could someone tell me what the thing is i circled in the pic??
I tilted the carb and played with the throttle..i can see the secondary linkage activate the spring...now should the secondary flaps open up with the throttle fully engaged??
I have some pics at no throttle half throttle and full
And for the no start, should i take the jets out (remembering where they were) and clean them with air??
Also, could someone tell me what the thing is i circled in the pic??
#4
1st-Class Engine Janitor
iTrader: (15)
You can normally open them by hand with no vacuum (pull the throttle, then turn the secondary shaft), but they won't open just in response to the throttle cable link without vacuum.
Circled item is the vacuum actuator link for the secondaries. withthe primaries at WOT, you should be able to move that by hand (with some vacuum resistance) and open the secondaries.
Circled item is the vacuum actuator link for the secondaries. withthe primaries at WOT, you should be able to move that by hand (with some vacuum resistance) and open the secondaries.
#6
Full Member
Thread Starter
Join Date: Sep 2007
Location: St Catharines, ON, Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
ok, so the secondary shaft was not moving so i little WD40 unjammed it,, that beautiful,,,could this have caused a no start issue for me.or is that something else?
#7
Lives on the Forum
Probably wouldn't contribute to a no start condition. Down in the bottom of the fuel bowls, screwed in to the side wall, you will find the fuel jets. Remove those, and make sure that they are nice and clean. Then, procede with a rebuild. The kits are only about 30 bucks, and it will be worth the effort.
Also, lots of reading material on these carbs, and how to adjust them to run correctly, can be found over at www.sterlingmetalworks.com
Good luck...
.
Also, lots of reading material on these carbs, and how to adjust them to run correctly, can be found over at www.sterlingmetalworks.com
Good luck...
.
Trending Topics
#8
Round and Round
iTrader: (10)
If you decide to rebuild. I like to soak the parts overnight in Gunk cold parts cleaner in some foil basting pans. I have some pictures here.
http://intertron.com/ron/carb.html
79-85 Carb manual is here.
http://wright-here.net/files/manuals...01979-1985.pdf
http://intertron.com/ron/carb.html
79-85 Carb manual is here.
http://wright-here.net/files/manuals...01979-1985.pdf
