Can't Find Inhibitor Switch/Neutral Safety Switch
06-22-20, 01:42 AM
#1
Newbie
Thread Starter
Join Date: Jun 2020
Location: California
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Can't Find Inhibitor Switch/Neutral Safety Switch

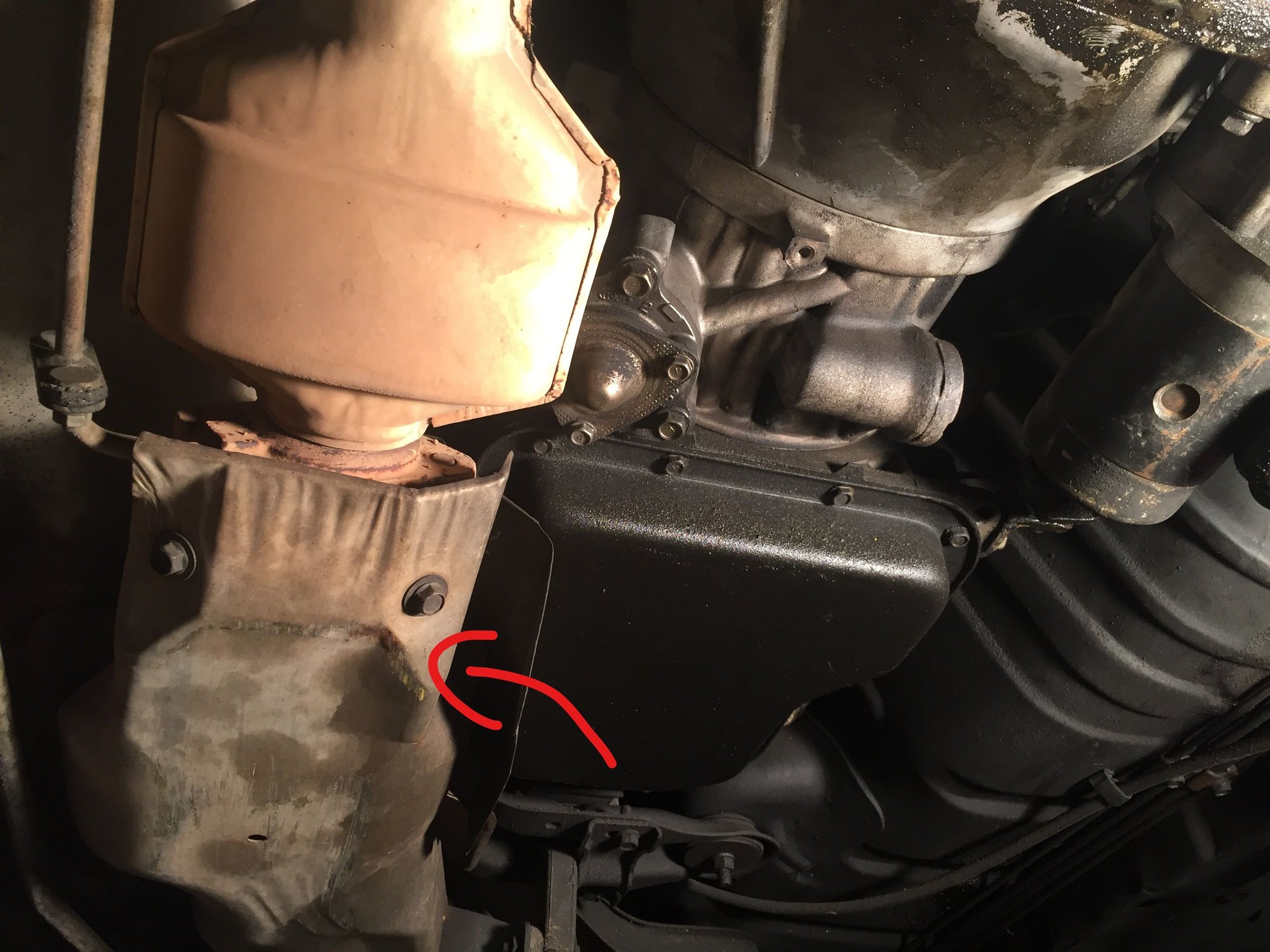

I need to adjust the inhibitor switch on my 1985 FB since it only starts in neutral. I'm looking on the left, divers side by the oil pan of the transmission but I can't find it.
06-22-20, 09:44 AM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts

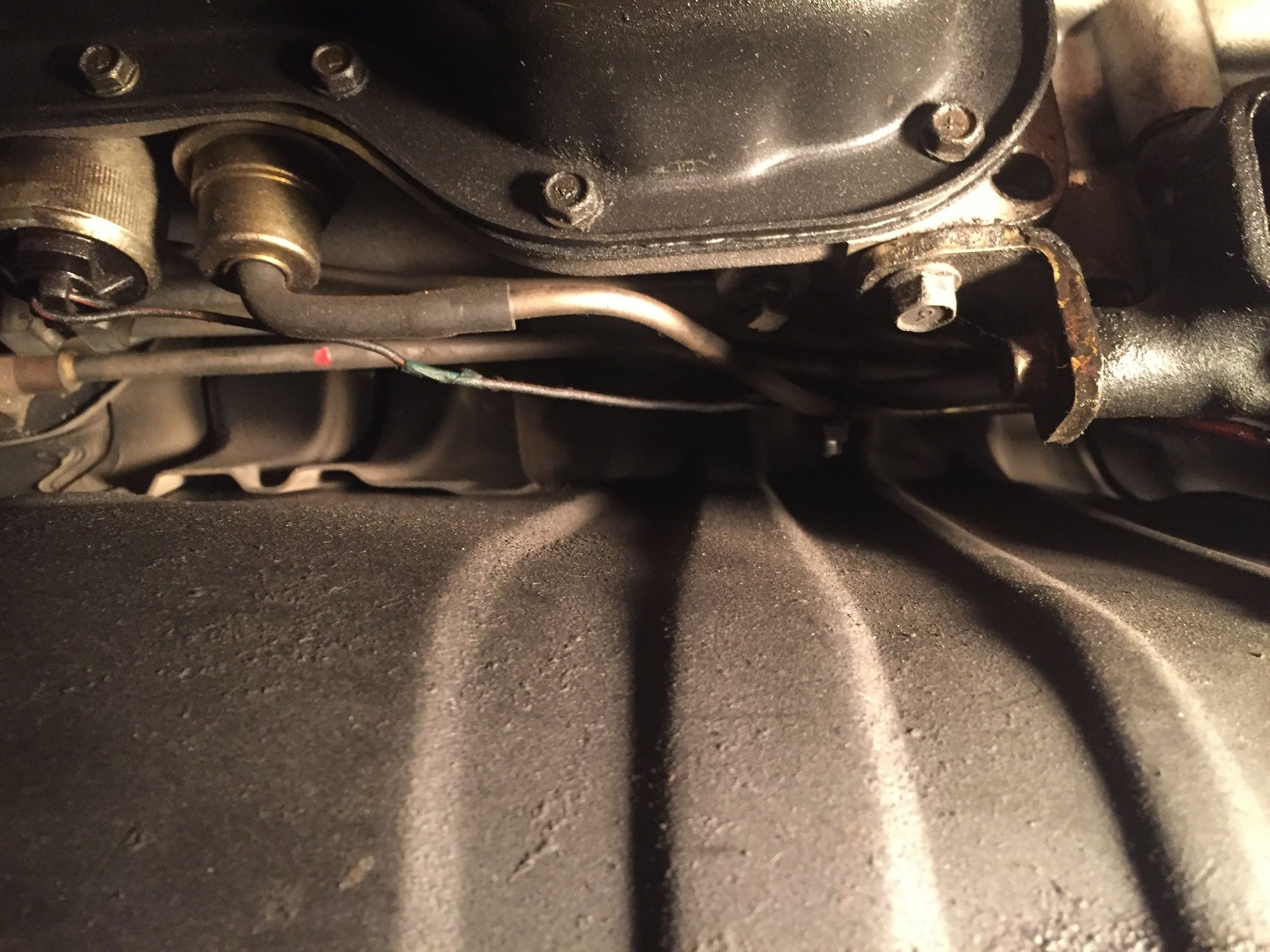

the pic is bad, but it is literally bolted to the transmission, it looks like on the right side?
its kind of a half moon thing with wires sticking out of it
its kind of a half moon thing with wires sticking out of it
06-22-20, 02:14 PM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts
don't know, i would hope not
it looks like this
it looks like this
06-22-20, 03:34 PM
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts

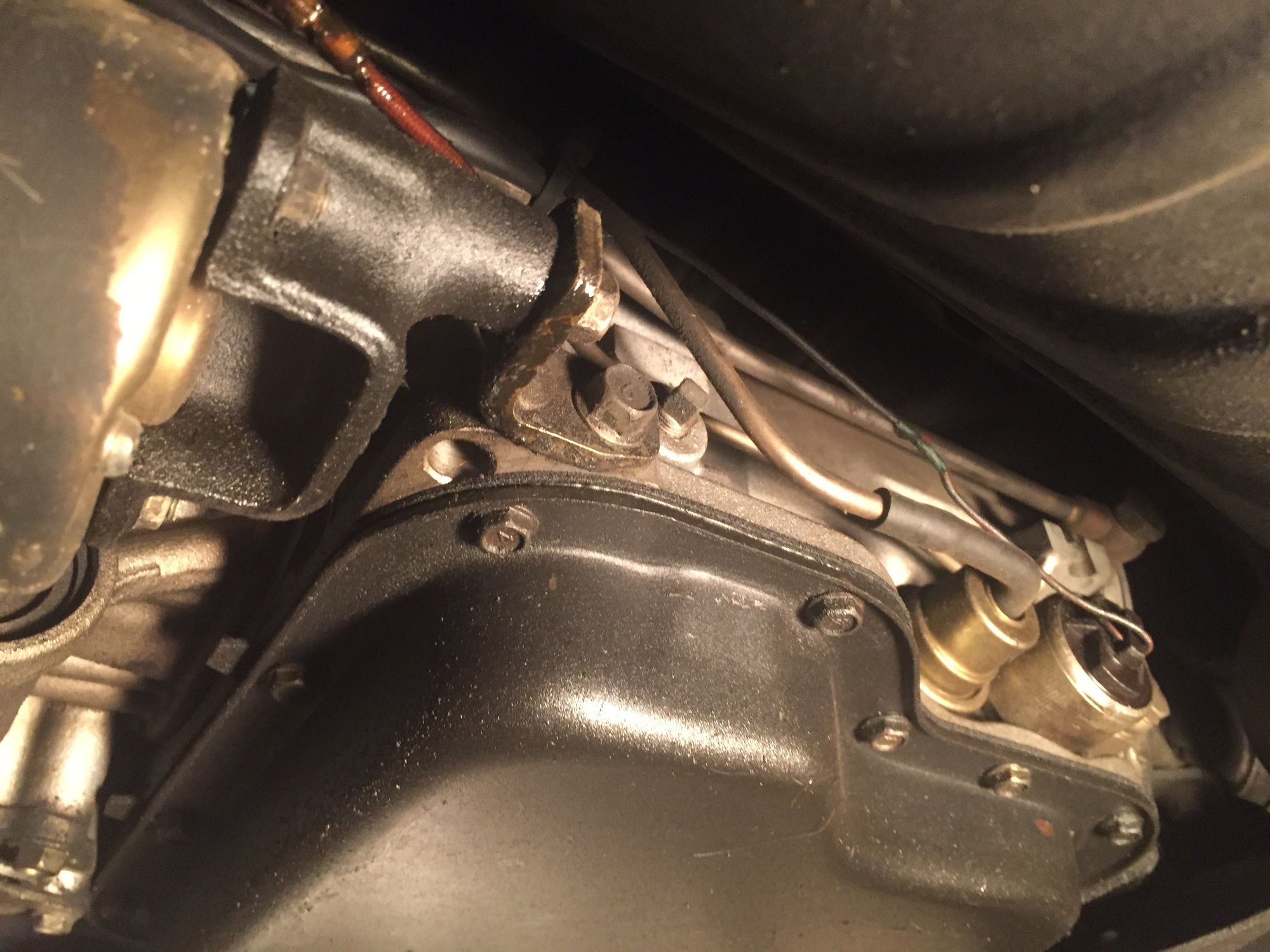

what is that rod? its bolted to the trans, but the other side is bolted to the shifter, and there will be some kind of linkage
Trending Topics
06-22-20, 09:27 PM
#8
ancient wizard...
Steel tubing on left side of trans are cooler lines. PRNDL range switch is on right side of trans and with a cool engine/exhaust can reach over top of exhaust parts in place to access adjustment bolts. A mirror/light may be helpful.
