Can a Nikki carb be tuned to meet the holly and weber.
Can a Nikki carb be tuned to meet the holly and weber.
03-18-06, 03:57 AM
#2
http://www.pbandjracing.com/
The Nikki-mod Gods...
Stu Aull
80GS
Alaska
The Nikki-mod Gods...
Stu Aull
80GS
Alaska
Originally Posted by Nicholas P.
Can you match the HP to the weber and the holly by tuning it?
03-18-06, 04:28 AM
#3
backyard tuner
iTrader: (1)
Join Date: Sep 2002
Location: BC, Canada
Posts: 1,265
Likes: 0
Received 0 Likes
on
0 Posts
from what i've read its entirely possible, however maybe some people on the site just want to make some $$$
i'd rather stick with a nikki if i still had a 12a, holleys can be a friggin' pain in the ****..
i'd rather stick with a nikki if i still had a 12a, holleys can be a friggin' pain in the ****..
Trending Topics
03-18-06, 11:43 AM
#8
Yep. Tuned from his shop for street use, but also it is engineered with the ease of being able to change jets within minutes on the track.
It is honestly the best bolt on available for us aside from a header.
Hell combine the two and you don't have to do **** until you decided to turbo or port.
It is honestly the best bolt on available for us aside from a header.
Hell combine the two and you don't have to do **** until you decided to turbo or port.
03-20-06, 12:23 PM
#13
Nikki-Modder Rex-Rodder
Join Date: Feb 2001
Location: Trying to convince some clown not to put a Holley 600 on his 12a.
Posts: 2,890
Likes: 0
Received 14 Likes
on
6 Posts
Tranquil is correct.
I suggest that a Sterling Nikki can be tuned to out perform a Weber or Dellorto, or just about anything else, but I don't have enough compiled data.
I base it on physics for now; -A theory to be tested.
The carb flows 465 cfm. As Tranquil stated, that's the "yippee-skippy, my speedo goes to 200 MPH!!!" number. In other words, the number that sells the carb to people that like bigger numbers, but don't realize that bigger numbers don't always mean everything!
If you do the math for a 13B 80 cid engine, multiplied by 10,000 RPMs, at 100%Volumetric Efficiency, you find that it can't possibly eat more than 463 cfm!
Now there are plenty of other factors involved, including pulsing harmonics, how well the air flows in due to exhaust gas expansion back pressure, the flowability of the manifold and the intake port...But these all detract from the VE number.
There are rare, and very specific situations where the intake pulse rate, engine RPM, exhaust pulse rate, temperature, and perfect alignment of the planets can cause such a perfect harmony in an NA engine that the VE actually exceeds 100%, but it's only for a brief second, and considered a rare anomaly.
But flow alone doesn't make the carburetor. Not at all.
In fact, a carb too small for the rotary will often out perform a carb that's too big on the street, because the big carb only has a very narrow RPM band, way up high, when the velocity is actually fast enough to create a strong, and therefore tunable, signal to the main circuit where the fuel delivery can be properly metered and atomized.
I love the Nikki, and here's why;
VELOCITY is key. It's the single most important part of having a tunable carburetor.
The Holley carbs have 4 venturis that are the same diameter. That's V8 stuff!
The rotary engine has such a terrifically wider RPM range, that it really needs two carbs; a tiny one that will provide high intake velocity for the lower part of the band, and a much bigger one for the higher end of the band for when the little high velocity carb gets maxed out.
A 4 bbl carb does exactly that. The smaller the primary carb is, the lower in the engine RPMs that high velocity air flow will effect the carb. That's good, because you want that strong signal to the main fuel circuit to pull up fuel into the air. But too small, and it will max out the air it can flow too soon. Then the secondary carb has to come on.
...Well, that's not really too much of a problem. Even uncut Nikki primary venturis will suffice as far as air flow for a performance primary carb's duties. But then the secondaries would have to be cut more than we do.
The Nikki secondaries don't have enough material to remove that much without starting to disrupt the critical inlet & outlet angles that are so crucial to making a venturi have such high velocity at it's apex, so we have no choice but to do most of the removal to the primaries. Still, when they are done they flow far less overall than the Holley primaries, which translates into higher velocity by comparison. MUCH higher. This combined with the fact that Holley venturi geometry leaves much to be desired has me scratching my head at Holley, saying "WTF?"
The fuel signal primary half of a Holley, just like any Weber or other 2 bbl, could be air jet regulated a bit on the delicate side so that it has a high signal low in the RPMs, at relatively low velocity. But at low air velocity the fuel won't atomize very well and will be more like it's dribbling in, compared to the good atomization that comes from high velocity. Also, by the time the primary circuit is maxed out in it's air flow, the velocity is sucking too hard on the fuel circuit for that calibration, and you'll have to limit the fuel by the primary jets. This can cause a flat spot that pops up on you seemingly at random, when in fact it's occurring when you're under load. (The flat spot should ordinarily be hard to notice except that it will come on directly after a point where the air velocity is very high, and the fuel mixture is just perfect for that tiny window of the RPM band. -That happens in all carbs and is what you're always working to tune out by finding the perfect circuit transition...whole 'nother chapter...)
All this can be applied to the secondary portion of any carb, too, though there is almost always enough air flow velocity by the time the secondaries kick in, mechanical or vacuum, that the fuel is from that fuel circuit gets well atomized.
So to find the best carb set up for a rotary, do this;
Calculate the maximum flow of your engine.
Choose an appropriate carb based on this number.
You want one that will give the maximum air flow velocity possible...the smallest venturis you can get that will deliver your air, but at the same time you don't want one you're going to max out at your high RPM.
Then divide that number up between two carbs, -One big, and one little.
Combine them into a single two stage 4 bbl.
Make the two circuits completely tunable so that you can control maximum fuel they get, bleed off the signal to the main circuit with air bleeds, and control when the second one begins to work.
Now add an accelerator pump that will squirt fuel not only to get you going from an idling dead stop, but will also squirt fuel as the second carb is opening. ...And make that tunable.
Now you have a Sterling Nikki.
Nevermind what it looks like, and nevermind what brand name it sports.
Just undertand that it was engineered by Nikki, and modded by me & Carl based on physics.
-And make no mistake about it, this is NOT a "bolt-on & go" performance part.
Those folks who have done so and have had good results either have been extremelt lucky, or most likely, are not running their Sterlings @ full performance potential.
Everyone's application is different due to environment, altitude, and driving style.
It really does need to be regarded as a fully tunable carb in a "driver's application customisable" way.
I suggest that a Sterling Nikki can be tuned to out perform a Weber or Dellorto, or just about anything else, but I don't have enough compiled data.
I base it on physics for now; -A theory to be tested.
The carb flows 465 cfm. As Tranquil stated, that's the "yippee-skippy, my speedo goes to 200 MPH!!!" number. In other words, the number that sells the carb to people that like bigger numbers, but don't realize that bigger numbers don't always mean everything!
If you do the math for a 13B 80 cid engine, multiplied by 10,000 RPMs, at 100%Volumetric Efficiency, you find that it can't possibly eat more than 463 cfm!
Now there are plenty of other factors involved, including pulsing harmonics, how well the air flows in due to exhaust gas expansion back pressure, the flowability of the manifold and the intake port...But these all detract from the VE number.
There are rare, and very specific situations where the intake pulse rate, engine RPM, exhaust pulse rate, temperature, and perfect alignment of the planets can cause such a perfect harmony in an NA engine that the VE actually exceeds 100%, but it's only for a brief second, and considered a rare anomaly.
But flow alone doesn't make the carburetor. Not at all.
In fact, a carb too small for the rotary will often out perform a carb that's too big on the street, because the big carb only has a very narrow RPM band, way up high, when the velocity is actually fast enough to create a strong, and therefore tunable, signal to the main circuit where the fuel delivery can be properly metered and atomized.
I love the Nikki, and here's why;
VELOCITY is key. It's the single most important part of having a tunable carburetor.
The Holley carbs have 4 venturis that are the same diameter. That's V8 stuff!
The rotary engine has such a terrifically wider RPM range, that it really needs two carbs; a tiny one that will provide high intake velocity for the lower part of the band, and a much bigger one for the higher end of the band for when the little high velocity carb gets maxed out.
A 4 bbl carb does exactly that. The smaller the primary carb is, the lower in the engine RPMs that high velocity air flow will effect the carb. That's good, because you want that strong signal to the main fuel circuit to pull up fuel into the air. But too small, and it will max out the air it can flow too soon. Then the secondary carb has to come on.
...Well, that's not really too much of a problem. Even uncut Nikki primary venturis will suffice as far as air flow for a performance primary carb's duties. But then the secondaries would have to be cut more than we do.
The Nikki secondaries don't have enough material to remove that much without starting to disrupt the critical inlet & outlet angles that are so crucial to making a venturi have such high velocity at it's apex, so we have no choice but to do most of the removal to the primaries. Still, when they are done they flow far less overall than the Holley primaries, which translates into higher velocity by comparison. MUCH higher. This combined with the fact that Holley venturi geometry leaves much to be desired has me scratching my head at Holley, saying "WTF?"
The fuel signal primary half of a Holley, just like any Weber or other 2 bbl, could be air jet regulated a bit on the delicate side so that it has a high signal low in the RPMs, at relatively low velocity. But at low air velocity the fuel won't atomize very well and will be more like it's dribbling in, compared to the good atomization that comes from high velocity. Also, by the time the primary circuit is maxed out in it's air flow, the velocity is sucking too hard on the fuel circuit for that calibration, and you'll have to limit the fuel by the primary jets. This can cause a flat spot that pops up on you seemingly at random, when in fact it's occurring when you're under load. (The flat spot should ordinarily be hard to notice except that it will come on directly after a point where the air velocity is very high, and the fuel mixture is just perfect for that tiny window of the RPM band. -That happens in all carbs and is what you're always working to tune out by finding the perfect circuit transition...whole 'nother chapter...)
All this can be applied to the secondary portion of any carb, too, though there is almost always enough air flow velocity by the time the secondaries kick in, mechanical or vacuum, that the fuel is from that fuel circuit gets well atomized.
So to find the best carb set up for a rotary, do this;
Calculate the maximum flow of your engine.
Choose an appropriate carb based on this number.
You want one that will give the maximum air flow velocity possible...the smallest venturis you can get that will deliver your air, but at the same time you don't want one you're going to max out at your high RPM.
Then divide that number up between two carbs, -One big, and one little.
Combine them into a single two stage 4 bbl.
Make the two circuits completely tunable so that you can control maximum fuel they get, bleed off the signal to the main circuit with air bleeds, and control when the second one begins to work.
Now add an accelerator pump that will squirt fuel not only to get you going from an idling dead stop, but will also squirt fuel as the second carb is opening. ...And make that tunable.
Now you have a Sterling Nikki.
Nevermind what it looks like, and nevermind what brand name it sports.
Just undertand that it was engineered by Nikki, and modded by me & Carl based on physics.
-And make no mistake about it, this is NOT a "bolt-on & go" performance part.
Those folks who have done so and have had good results either have been extremelt lucky, or most likely, are not running their Sterlings @ full performance potential.
Everyone's application is different due to environment, altitude, and driving style.
It really does need to be regarded as a fully tunable carb in a "driver's application customisable" way.
Last edited by Sterling; 03-20-06 at 12:32 PM.
03-20-06, 01:23 PM
#14
MattG FTW!!!!!
iTrader: (2)
Join Date: Feb 2005
Location: South Windsor, CT
Posts: 2,733
Likes: 0
Received 0 Likes
on
0 Posts
Oh my god that was perfect, If this doesnt get archived it would be a shame.
To be honest I have been dealing with problems with my dellorto set up. I have always in the back of my head told myself I should have got a sterling. Now it is no longer a should it is a 110% postive fact that I will get one.
Thank you Sterling for putting some facts to back it up, Every where you go its here say.
-Matt
03-20-06, 08:37 PM
#18
Lives on the Forum
Sterling- sorry if I was out of line stating that your carbs just "bolt on and go". I suppose I shouldn't judge all Sterling carbs based on my one example. Very nice work by the way!
03-20-06, 08:52 PM
#19
Banned. I got OWNED!!!
looks like it runs!!

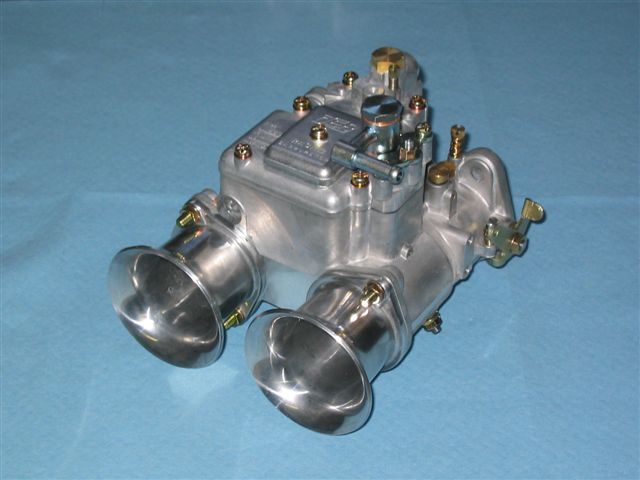

ill take the pepsi challenge with one of the sterling carbs against one of my 48 mm sidedraft carb kits any day!! it wouldnt be fair to use an ida weber wackyracer, wherew are you... lol
all the carb kits work good, its up to the consumer to pick the one that is right for them...
i personally like something that looks bad *** and runs bad ***!! but thats just me...
wackyracer, wherew are you... lolall the carb kits work good, its up to the consumer to pick the one that is right for them...
i personally like something that looks bad *** and runs bad ***!! but thats just me...
03-20-06, 08:59 PM
#21
Senior Member
Join Date: Mar 2006
Location: Canada
Posts: 634
Likes: 0
Received 0 Likes
on
0 Posts
YA i agree..i want something totally badass. So what are we looking at for prices when it comes to kits.
Wow those carbs are awsome, skeet skeet skeet
Wow those carbs are awsome, skeet skeet skeet
Last edited by chedda_j; 03-20-06 at 09:03 PM.
03-20-06, 09:03 PM
#22
Originally Posted by Kentetsu
Sterling- sorry if I was out of line stating that your carbs just "bolt on and go". I suppose I shouldn't judge all Sterling carbs based on my one example. Very nice work by the way!
03-20-06, 09:08 PM
#23
Oh and while browsing RotaryShack's website I found this for the IDA carbs
"Prices starting at $700.00 and up"
That's twice the price of a Sterling. Now, also the Sterling carb is cheaper than its MAIN competitor, the Racing Beat carbs, too.
Hmmm, I think dollar per power ratio wins on this one for me.
"Prices starting at $700.00 and up"
That's twice the price of a Sterling. Now, also the Sterling carb is cheaper than its MAIN competitor, the Racing Beat carbs, too.
Hmmm, I think dollar per power ratio wins on this one for me.
03-20-06, 09:15 PM
#24
Banned. I got OWNED!!!
Originally Posted by chedda_j
YA i agree..i want something totally badass. So what are we looking at for prices when it comes to kits.
all of the rotaryshack intake kits are custom made to order so there is no exact kit price.. for a personal intake quote e mail me robert@rotaryshack.com
03-20-06, 09:24 PM
#25
Banned. I got OWNED!!!
Originally Posted by Tranquil

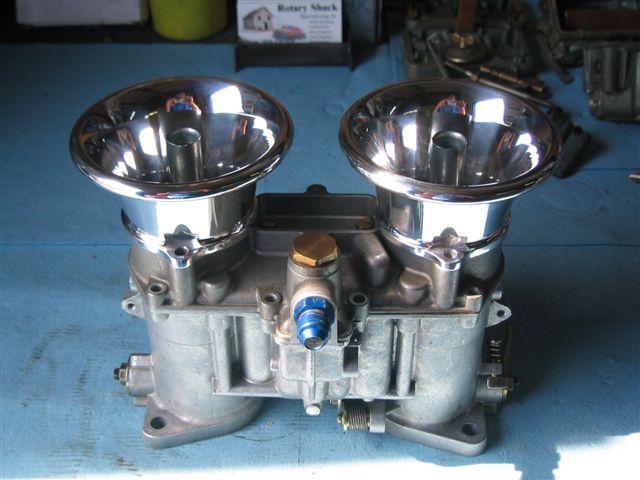

Oh and while browsing RotaryShack's website I found this for the IDA carbs
"Prices starting at $700.00 and up"
That's twice the price of a Sterling. Now, also the Sterling carb is cheaper than its MAIN competitor, the Racing Beat carbs, too.
Hmmm, I think dollar per power ratio wins on this one for me.
"Prices starting at $700.00 and up"
That's twice the price of a Sterling. Now, also the Sterling carb is cheaper than its MAIN competitor, the Racing Beat carbs, too.
Hmmm, I think dollar per power ratio wins on this one for me.
uhh,,, the carburators i sell are "NEW" so yes they cost more ...
oh also on any weber carb, venturies are easily removable and jet changes take 1-2 minutes tops, (for quick jet changing), unlike a holley or nikki
i dont compete with anybody, you can get whatever you like from where ever you like....
