black magic fan wiring
09-26-02, 10:24 PM
#1
black magic fan wiring
One of the wires that needs to be wired is to a source thats on only when the key is turned on. What can I hook this to under the hood? If thats not an option what else can I do? Is there some way to hook it up to the fuse box? Thanks
09-26-02, 10:28 PM
#2
Re: black magic fan wiring
Originally posted by 82transam
One of the wires that needs to be wired is to a source thats on only when the key is turned on. What can I hook this to under the hood? If thats not an option what else can I do? Is there some way to hook it up to the fuse box? Thanks
One of the wires that needs to be wired is to a source thats on only when the key is turned on. What can I hook this to under the hood? If thats not an option what else can I do? Is there some way to hook it up to the fuse box? Thanks
Mike-P should be able to chime in too.
09-26-02, 10:34 PM
#4
It has a built in thermostat and the power will come directly from the battery. Which raises an intersting point, whats the point in having a wire that tells it when the car is on? According to badassrx-7 the fan runs for a few minutes even after you turn the car off. So what the hell is the point? can I just not run that wire and still make it work?
09-26-02, 10:38 PM
#5
Originally posted by 82transam
It has a built in thermostat and the power will come directly from the battery. Which raises an intersting point, whats the point in having a wire that tells it when the car is on? According to badassrx-7 the fan runs for a few minutes even after you turn the car off. So what the hell is the point? can I just not run that wire and still make it work?
It has a built in thermostat and the power will come directly from the battery. Which raises an intersting point, whats the point in having a wire that tells it when the car is on? According to badassrx-7 the fan runs for a few minutes even after you turn the car off. So what the hell is the point? can I just not run that wire and still make it work?
The other way, the fan will still work the same, but only with the key in the ignition.
09-26-02, 10:45 PM
#7
Originally posted by 82transam
I would prefer it to run for a bit after the car is off just to cool it off more. So can i just ignore that one wire?
I would prefer it to run for a bit after the car is off just to cool it off more. So can i just ignore that one wire?
Downloadable instructions in PDF format here
Trending Topics
09-26-02, 11:12 PM
#10
Originally posted by 82transam
Ok, thanks. If I want do want to use that wire, what is a good source to hook it too? I guess I'm just brain dead right now, cause I can't think of what would be usable under the hood.
Ok, thanks. If I want do want to use that wire, what is a good source to hook it too? I guess I'm just brain dead right now, cause I can't think of what would be usable under the hood.
09-27-02, 12:37 PM
#12
add to cart
Join Date: Jun 2002
Location: Saskatoon, SK & Montreal, PQ
Posts: 4,180
Likes: 0
Received 0 Likes
on
0 Posts
just FYI, the twin electric fans on an Iltis (volkswagen/audi jeeplike thingy) are wired to turn on whenever the coolant is warm enough to need it - meaning they're typically on for 15-20 mins after engine shutoff.
09-27-02, 01:00 PM
#13
Full Member
Join Date: Apr 2002
Location: Riverside and La Jolla, CA
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
how does that affect the battery? i'm all for a cool engine but whats the point if it kills my battery every time i shut it off and leave? if theres one thing i hate its a dead battery.....
09-27-02, 01:12 PM
#14
Originally posted by nopistonsforjoe
how does that affect the battery? i'm all for a cool engine but whats the point if it kills my battery every time i shut it off and leave? if theres one thing i hate its a dead battery.....
how does that affect the battery? i'm all for a cool engine but whats the point if it kills my battery every time i shut it off and leave? if theres one thing i hate its a dead battery.....
The Radiator ones worked of temperture only, and would run for approximately 10 minutes after the car was shut off.
Worked fine, nothing special, stock alternator, good battery.
09-27-02, 03:23 PM
#15
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
Originally posted by Manntis
just FYI, the twin electric fans on an Iltis (volkswagen/audi jeeplike thingy) are wired to turn on whenever the coolant is warm enough to need it - meaning they're typically on for 15-20 mins after engine shutoff.
just FYI, the twin electric fans on an Iltis (volkswagen/audi jeeplike thingy) are wired to turn on whenever the coolant is warm enough to need it - meaning they're typically on for 15-20 mins after engine shutoff.
As for the wiring... if you'd like to have the fans come on with ignition only run the trigger wire to one of the ignition coils. If you want them on after shut down (waste of time) run it straight to the battery. Note, if you just leave it disconnected your fans will never come on!
09-27-02, 04:49 PM
#20

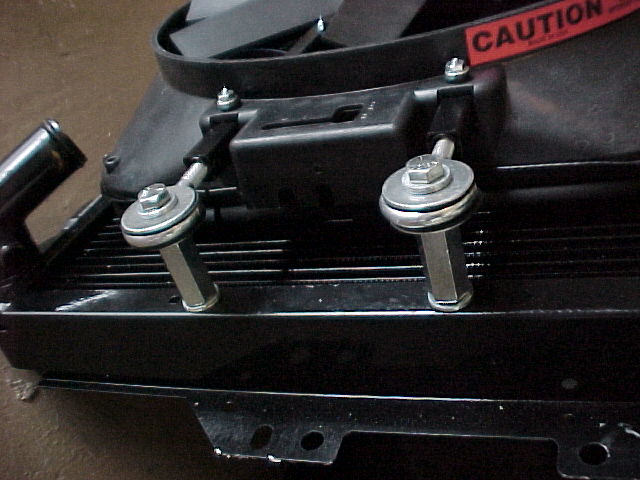

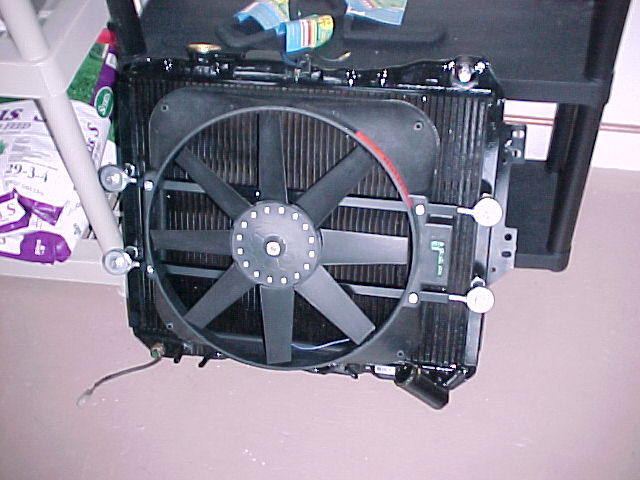

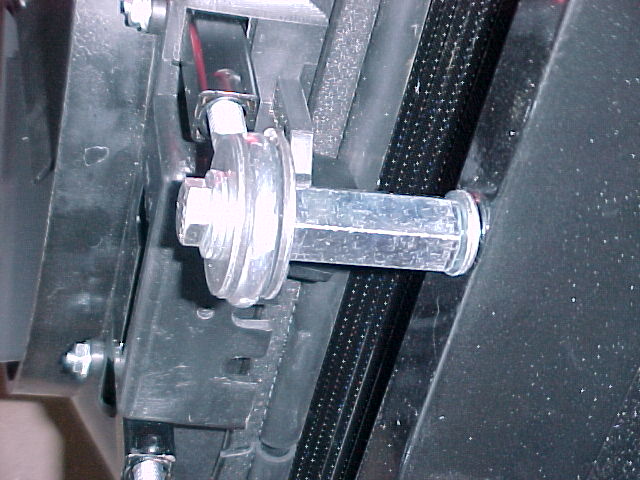

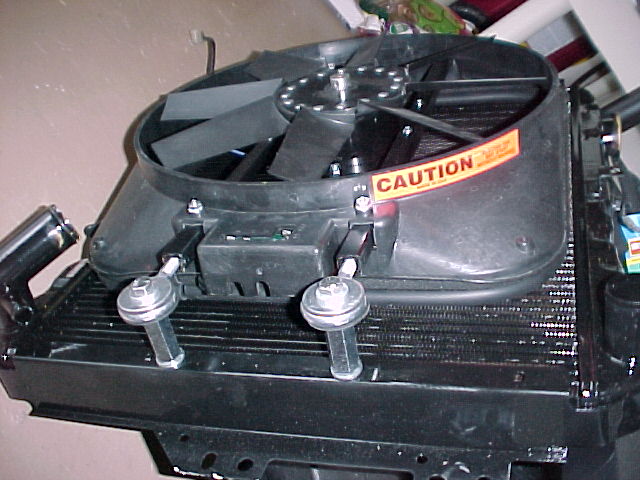

Thanks directfreak, that looks really good. I'll have to get a pic of the custom brakets i made. I'm using a used rad out of a 82 so I just mounted it to the fan shroud mounting holes with some pieces of aluminum I bent. It looks really nice.
09-27-02, 10:32 PM
#23
Re: Re: black magic fan wiring
Originally posted by Directfreak
Use a relay, and use an "ignition-hot" line to trigger the relay to the fan, if you want to have it always run when the key is in the on position. You can get that from the fuse panel, but there are better ways to do it.
Mike-P should be able to chime in too.
Use a relay, and use an "ignition-hot" line to trigger the relay to the fan, if you want to have it always run when the key is in the on position. You can get that from the fuse panel, but there are better ways to do it.
Mike-P should be able to chime in too.
You can get an igntion power source from a lot of places in the engine compartment. There are 2 on the coils , 1 per coil..
Ok heres what you do:
Ground the fan lead to the frame rail.
Connect a wire from an ignition source to a relay.
Heres how to wire it..
85 goes to ground
86 goes 12V ign
87 to 12V battery w/appropriate fuse inline within 6 inches of the battery1 (very important)
30 goes to the fans hot wire
If you want to wire a switch to control the fan, run the 85 wire for the relay to the switch and ground the other end. But take not fan will only work when switch is on (duh
) And since your using a relay, you wont need no MASSIVE mondo switch. A regular SPDT 1A switch will be fine
09-27-02, 10:46 PM
#24
Originally posted by 82transam
dumb question: which wire is the one to hook it to on the coils? a pic would be helpful. thanks for all the help everyone btw
dumb question: which wire is the one to hook it to on the coils? a pic would be helpful. thanks for all the help everyone btw
Man to do any electrical work you need to purchase a DVM (digital volt meter) You can buy an el cheapo special at advance or autozone.. They work good for resistance/voltage etc. But I prefer my Fluke meter, does Tach and all kinds of fun stuff
