aright, i am offically stumped, need a nikki guru
hey all
I've been trying to locate the cause of the high idle (1200rpm) on my 83 gsl, i've gone through at least 300 threads and tried just about everything. i rebuild the carb, (pulled the shutter valve out while i was at it(filled all holes with jb weld)), upon reinstalling i found it would be idling to high, i replaced all the vacuum tubes, i recetly pulled the carb off again and put a thin coat of silicon on both sides of the plastic shield at the base of the carb. i've sprayed carb cleaner on all of the connections (no response), the secondaries are closed, the primarys are also completly closed. the idle mix is set at 2 turns out. i checked the bigger hose that runs from the carb to the base of manifold. so i'm out of ideas, if anyone has anything please let me know, this is driving me crazy
thanks in advance
I've been trying to locate the cause of the high idle (1200rpm) on my 83 gsl, i've gone through at least 300 threads and tried just about everything. i rebuild the carb, (pulled the shutter valve out while i was at it(filled all holes with jb weld)), upon reinstalling i found it would be idling to high, i replaced all the vacuum tubes, i recetly pulled the carb off again and put a thin coat of silicon on both sides of the plastic shield at the base of the carb. i've sprayed carb cleaner on all of the connections (no response), the secondaries are closed, the primarys are also completly closed. the idle mix is set at 2 turns out. i checked the bigger hose that runs from the carb to the base of manifold. so i'm out of ideas, if anyone has anything please let me know, this is driving me crazy
thanks in advance
04-03-05, 07:57 PM
#3
Throttle linkage may need adjustment to where the cable connects. Maybe there is tension remaining on the cable pull. Also, check the return spring on the actual foot-lever to make sure the throttle cable is returning on idle after acceleration.
04-03-05, 08:01 PM
#5
sprayfoam autobody expert
Thread Starter
Join Date: Jul 2004
Location: Fergus Ontario
Posts: 366
Likes: 0
Received 0 Likes
on
0 Posts
aright i set the throttle cable so it's loose, and its still idling high, forcing the linkages shut by hand doesn't do anything either
04-03-05, 08:03 PM
#6
Eats, Sleeps, Dreams Rotary
Join Date: Jul 2004
Location: Allentown, PA - Paterson, NJ
Posts: 3,247
Likes: 0
Received 2 Likes
on
2 Posts
after the engine is warm try disconnecting the throttle and choke cables to see if thats the culprit. Did you check for any air leaks around the intake manifold?
04-03-05, 08:14 PM
#7
sprayfoam autobody expert
Thread Starter
Join Date: Jul 2004
Location: Fergus Ontario
Posts: 366
Likes: 0
Received 0 Likes
on
0 Posts
did that, didn't help, and i put the silicon on the base gaskets, so it's not coming in from their. for the shutter valve, do i need to remove that little yellow plug thing from the rats nets?
Trending Topics
04-03-05, 08:22 PM
#8
Lorem ipsum dolor sit ame
Why would he check for vacuum leaks in the first place? a vacuum leak doesn't cause a high idle. It causes a lumpy, hunting idle, forcing the driver to raise the idle so the engine won't die.
What you describe tempusfugitive is gotta have to be related to the linkage. It is possible to deform it by accident during handling for carb rebuild purposes. so when you are pushing the linkage up and towards the front of the car, the engine still won't idle below 1200 rpm? Do you have any pics of the linkage area?
What you describe tempusfugitive is gotta have to be related to the linkage. It is possible to deform it by accident during handling for carb rebuild purposes. so when you are pushing the linkage up and towards the front of the car, the engine still won't idle below 1200 rpm? Do you have any pics of the linkage area?
Last edited by cdrad51; 04-03-05 at 08:29 PM.
04-03-05, 08:28 PM
#9
sprayfoam autobody expert
Thread Starter
Join Date: Jul 2004
Location: Fergus Ontario
Posts: 366
Likes: 0
Received 0 Likes
on
0 Posts

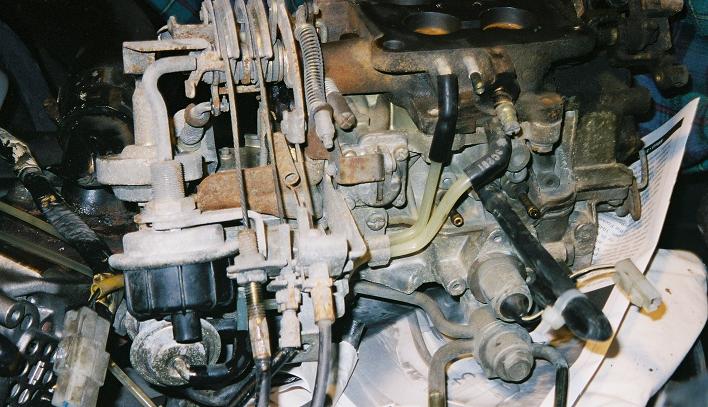

thats correct, no after pics, just before pics, but i made sure it all went back the right way
give me 10 min i'll go borrow the roommates camera
give me 10 min i'll go borrow the roommates camera
Last edited by tempusfugitive; 04-03-05 at 08:31 PM.
04-03-05, 08:45 PM
#12
Lorem ipsum dolor sit ame
Hmm, I think I found the problem. Your carb is upside down!
Seriously though, also check the dash pot and make sure it's not preventing the linkage from fully returning to idle position.
Edit: n/m, you removed it.
Seriously though, also check the dash pot and make sure it's not preventing the linkage from fully returning to idle position.
Edit: n/m, you removed it.
Last edited by cdrad51; 04-03-05 at 08:48 PM.
04-03-05, 09:02 PM
#15
sprayfoam autobody expert
Thread Starter
Join Date: Jul 2004
Location: Fergus Ontario
Posts: 366
Likes: 0
Received 0 Likes
on
0 Posts

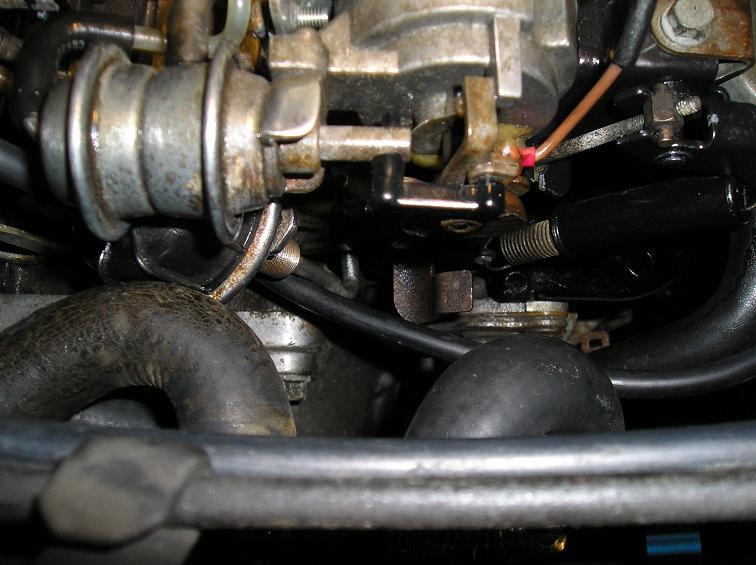

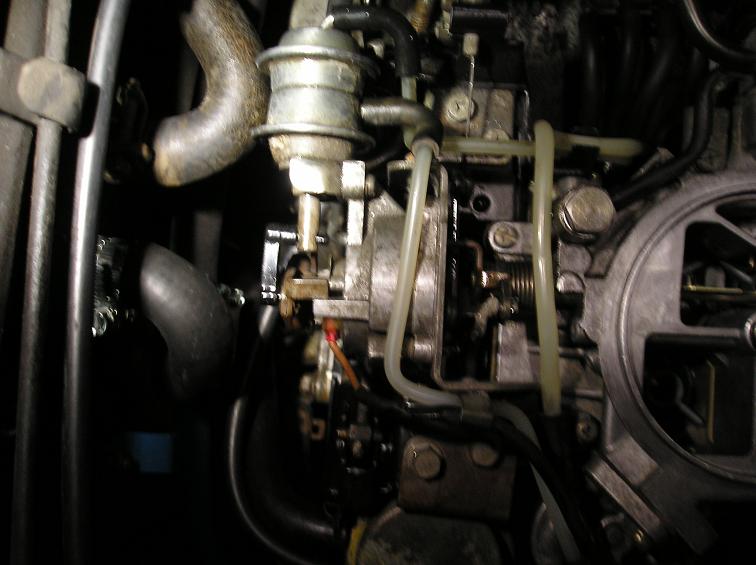

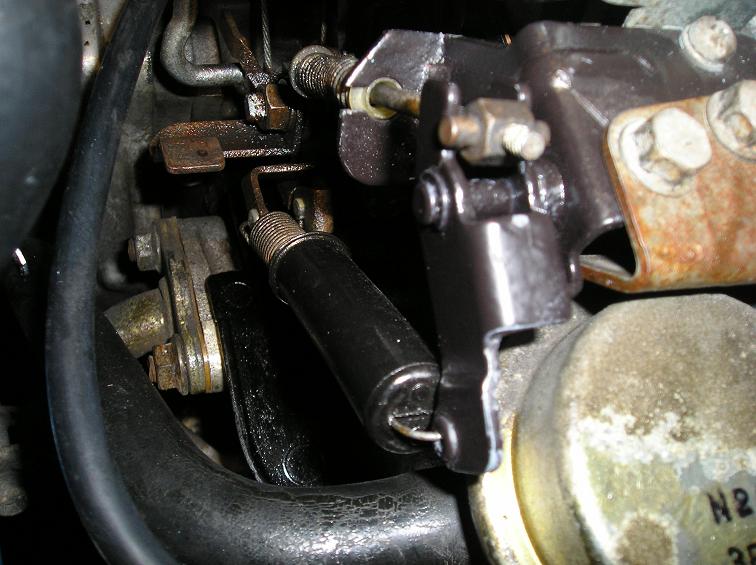

aright heres the new one, sorry couldn't get a clear shot of straight down the carb barrels, but the secondarys are definetly closed, as well as the primarys.
04-03-05, 09:59 PM
#17
tempusfugitive, you're in Ottawa, I just noticed.
I spent 3 years tracking sources of high idle. PM me and we'll meet up. I've gotten it down to a science, and I'm sure we can find the source of yours
I live in Aylmer and would be MORE than willing to help out a local first gen owner. We really need more of us because of all the cocky 2nd gen owners in the local Ottawa guys
PM me, I'll help any way I can.
Jon
I spent 3 years tracking sources of high idle. PM me and we'll meet up. I've gotten it down to a science, and I'm sure we can find the source of yours
I live in Aylmer and would be MORE than willing to help out a local first gen owner. We really need more of us because of all the cocky 2nd gen owners in the local Ottawa guys PM me, I'll help any way I can.
Jon
04-05-05, 07:47 AM
#19
Nikki-Modder Rex-Rodder
Join Date: Feb 2001
Location: Trying to convince some clown not to put a Holley 600 on his 12a.
Posts: 2,890
Likes: 0
Received 14 Likes
on
6 Posts
Originally Posted by cdrad51
Why would he check for vacuum leaks in the first place? a vacuum leak doesn't cause a high idle. It causes a lumpy, hunting idle, forcing the driver to raise the idle so the engine won't die.
04-05-05, 11:07 AM
#21
counting the days...
Join Date: Mar 2005
Location: Canaan, CT
Posts: 186
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by cdrad51
What are you talking about ******?
Your miss information...a vaccum leak can/ will cause a high idle, trust me...depends on the leak wether it will still run smooth or not...******
04-05-05, 12:26 PM
#25
Senior Member
Join Date: Feb 2004
Location: NE Ohio
Posts: 739
Likes: 0
Received 0 Likes
on
0 Posts
Could you pretty please post the cause of the problem when you find it?
My 85 GS has been idling at 2k since I got her a year ago, and Ive had some of the best Ohio has to offer look her over (thanks Pete, Denny, Paul, Marc, and Mark!) to no avail.
My 85 GS has been idling at 2k since I got her a year ago, and Ive had some of the best Ohio has to offer look her over (thanks Pete, Denny, Paul, Marc, and Mark!) to no avail.
