Any hints on how to remove door panels?
#1
Full Member
Thread Starter
Join Date: Oct 2005
Location: San Diego
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
Any hints on how to remove door panels?
I am removing my doors panels and installing electric locks. Any helpful tricks to removing the door panels? Note that I have manual windows.
#3
Rotary Enthusiast
iTrader: (1)
open the door. leave it open lock the thing because itll get in the way.
unscrew all the screws . door puller. handle all that.
be gentle on the door puller. itll break up.
gently pull the top out and the bottom out. its held on by door clips. fairly simple but hard to put back on.
then do the left and the right and its on
putting it back on. bend teh clips outward a little if they wont stay in. and push them in with a screwdriver thats all.
p,s, this is for an 84
unscrew all the screws . door puller. handle all that.
be gentle on the door puller. itll break up.
gently pull the top out and the bottom out. its held on by door clips. fairly simple but hard to put back on.
then do the left and the right and its on
putting it back on. bend teh clips outward a little if they wont stay in. and push them in with a screwdriver thats all.
p,s, this is for an 84
#4
Full Member
Thread Starter
Join Date: Oct 2005
Location: San Diego
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
I just wanted to make sure that I did not need one of those door panel pullers.

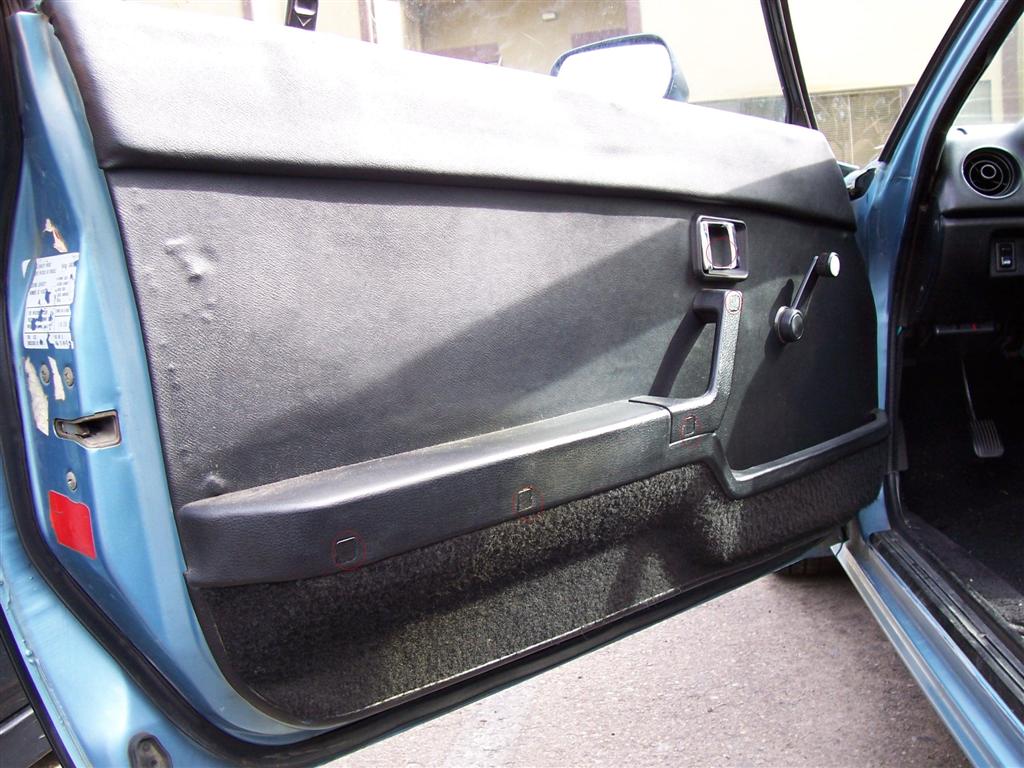

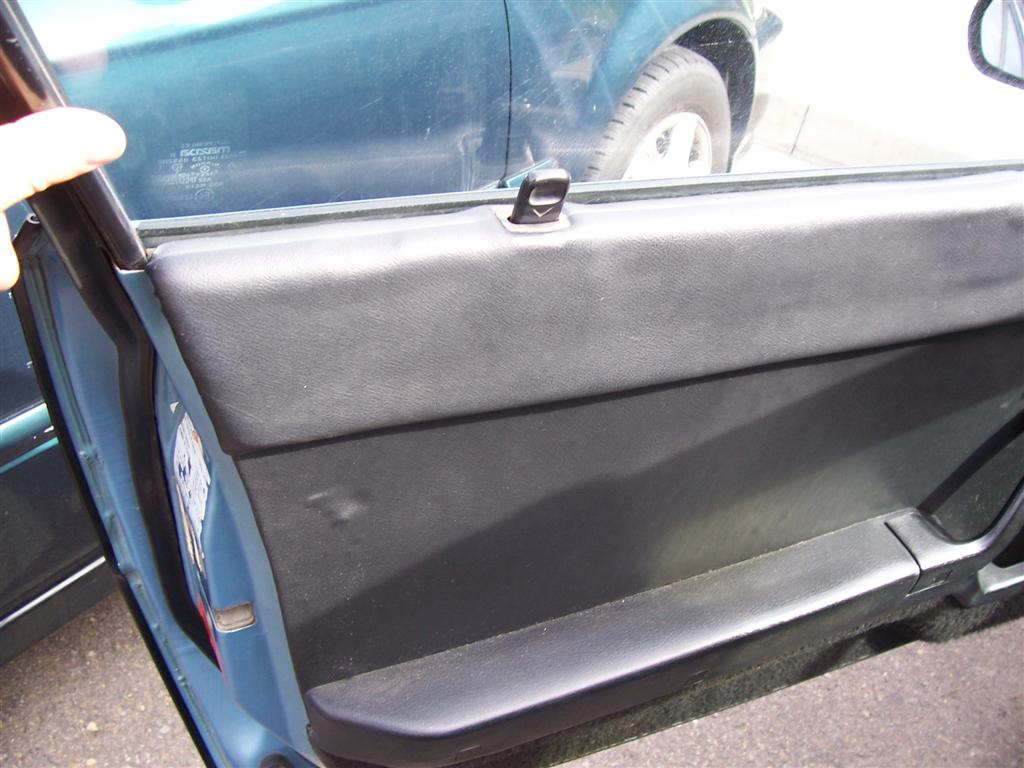

Here are some pics of my door, they have been redone so I am not sure if they differ from stock
Thanks
Here are some pics of my door, they have been redone so I am not sure if they differ from stock
Thanks
#5
The centers of a stock are usually cloth. You should have used some 1/8" foam before vinyling. I'll be doing mine simialar to that very soon. Only the center will be faux suede. Looks okay otherwise man.
#7
Full Member
Thread Starter
Join Date: Oct 2005
Location: San Diego
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by capt murph
Hell yes they differ from stock. Yours look like ****.
I bought material to do mine.
That's all I 'm gonna sa about that.
I bought material to do mine.
That's all I 'm gonna sa about that.
Trending Topics
#8
Old Fart Young at Heart
iTrader: (6)
Once you have removed the plugs in the arm rest and window crank, then the screws, slip a putty knife between the panel and door, slide until you feel a clip, pry up. If the door card has had water damage, there is a good chance the clips will tear out of the backer panel.
Once everything is loose, pull bottom of panel away from door and push up to clear the top of the door.
Once everything is loose, pull bottom of panel away from door and push up to clear the top of the door.
#10
Resident Weasel
Originally Posted by capt murph
Hell yes they differ from stock. Yours look like ****.
I bought material to do mine.
That's all I 'm gonna sa about that.
I bought material to do mine.
That's all I 'm gonna sa about that.
#12
On the prowl for an FB
iTrader: (1)
Join Date: Sep 2002
Location: Surrounded by Sebey parts, Rhode Island
Posts: 2,932
Likes: 0
Received 6 Likes
on
4 Posts
Originally Posted by mbaha
I just wanted to make sure that I did not need one of those door panel pullers.
Here are some pics of my door, they have been redone so I am not sure if they differ from stock
Thanks
Here are some pics of my door, they have been redone so I am not sure if they differ from stock
Thanks
Then, pull away the bottom of the panel first. Depending on how tight your clips are, you might need to wedge a flathead screwdriver in there. Anyway, work you way up from the bottom. When all the clips are popped, then lift up and away from the door.
Ahh, the hell with it, here, I'll do something in paint for you:
The red circles are the screws, the blue is the location of all the clips.
Last edited by $100T2; 03-29-06 at 08:16 AM.
#13
On the prowl for an FB
iTrader: (1)
Join Date: Sep 2002
Location: Surrounded by Sebey parts, Rhode Island
Posts: 2,932
Likes: 0
Received 6 Likes
on
4 Posts
Originally Posted by capt murph
Hell yes they differ from stock. Yours look like ****.
I bought material to do mine.
That's all I 'm gonna sa about that.
I bought material to do mine.
That's all I 'm gonna sa about that.
