Another FMOC install option for FB's

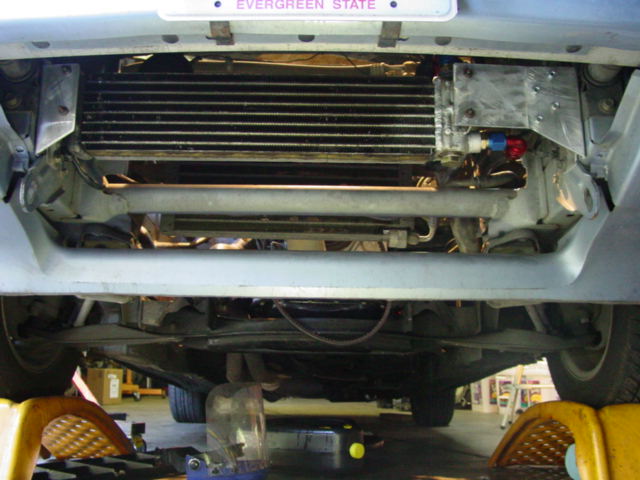

I installed a FC Oil cooler and replaced the Beehive on Pinoyremix's car this weekend.

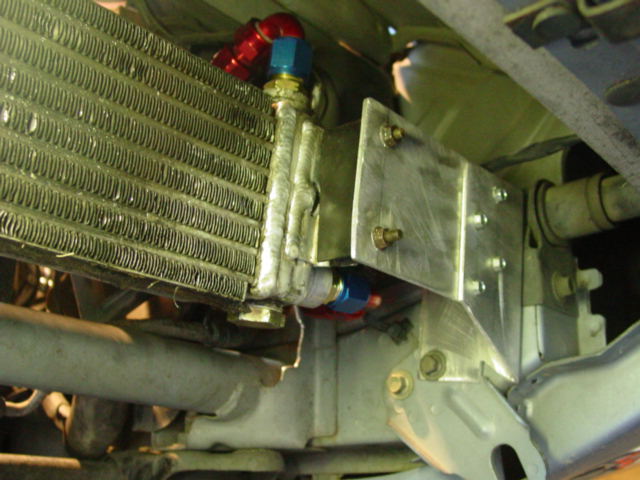

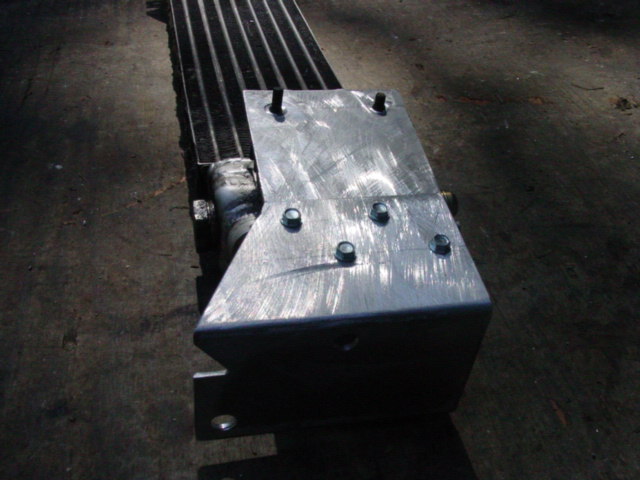

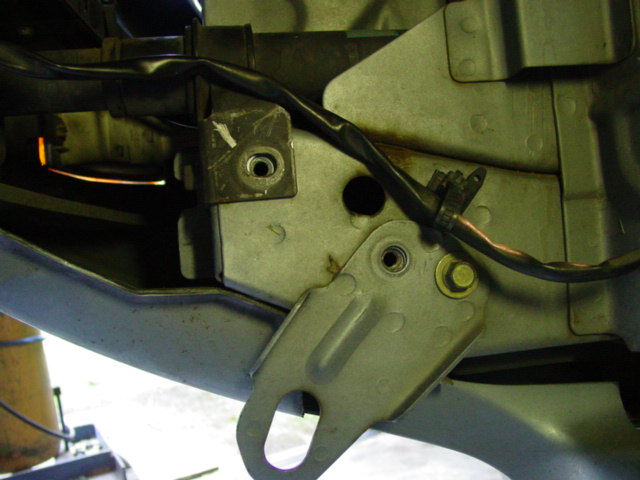

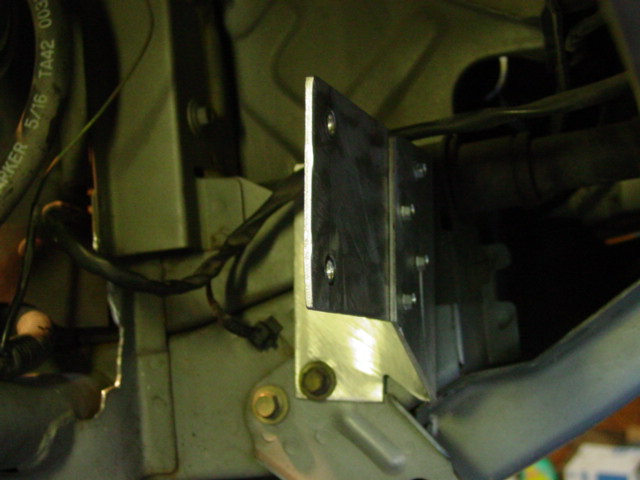

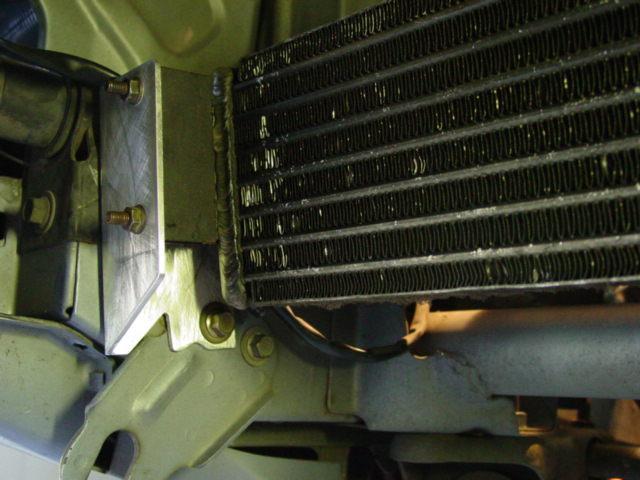

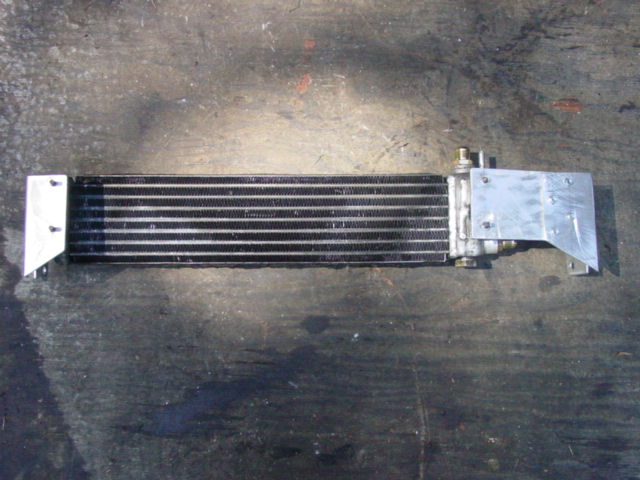

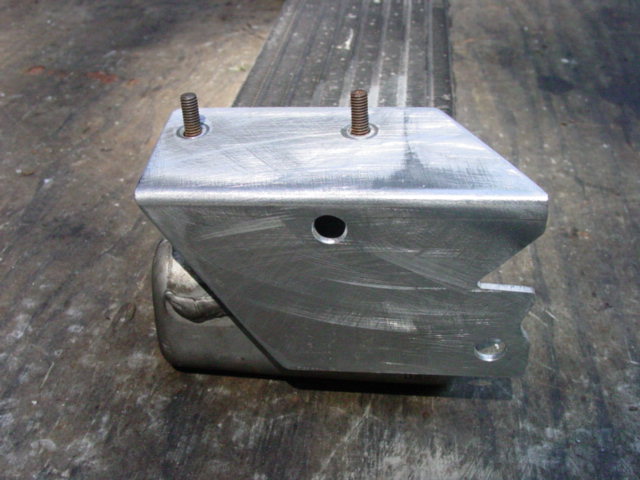

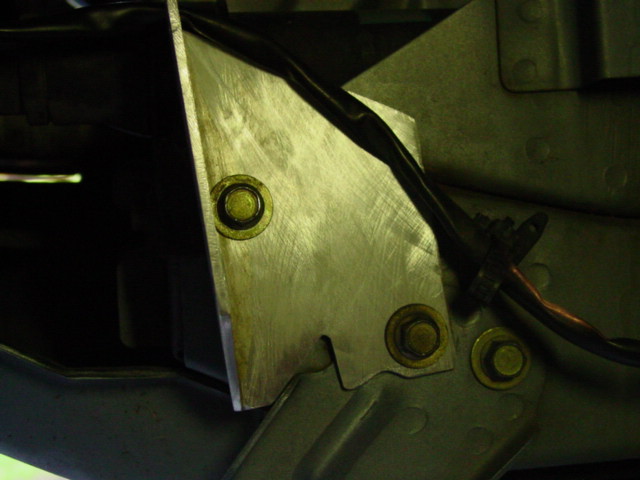

I used existing bolt locations in the front using aluminum angle stock.

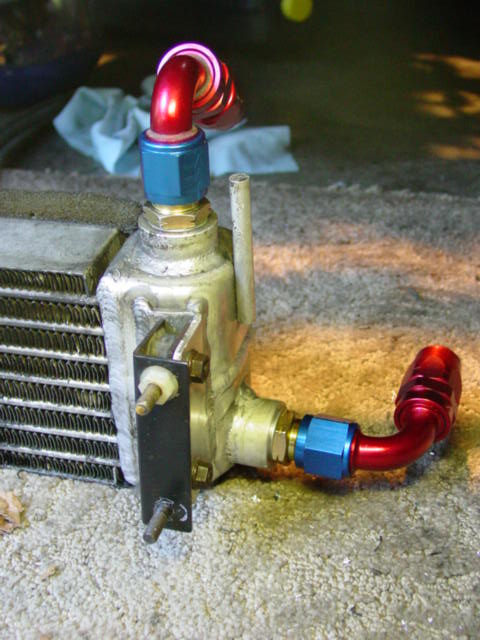

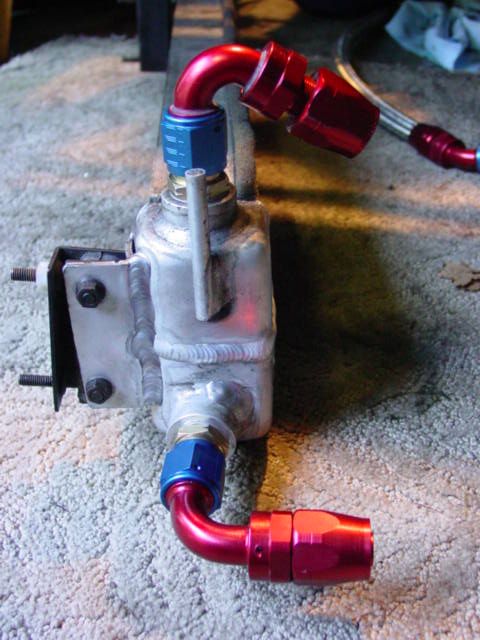

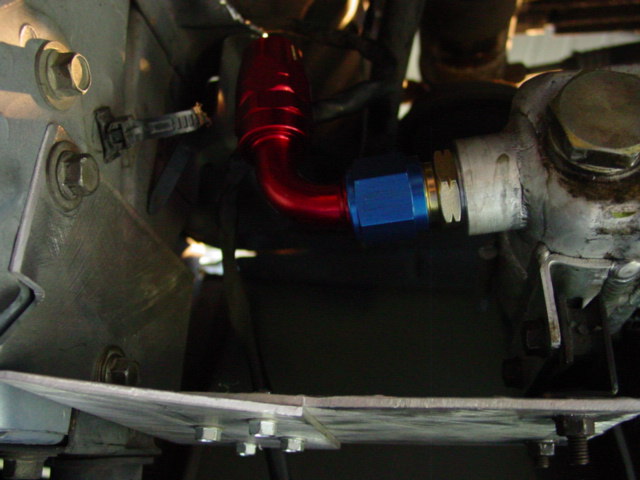

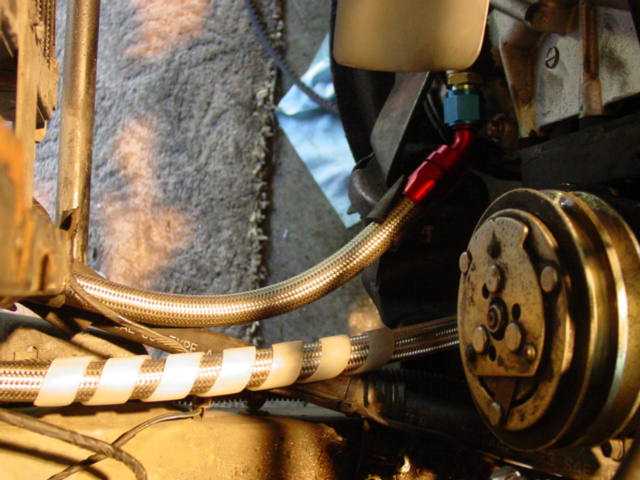

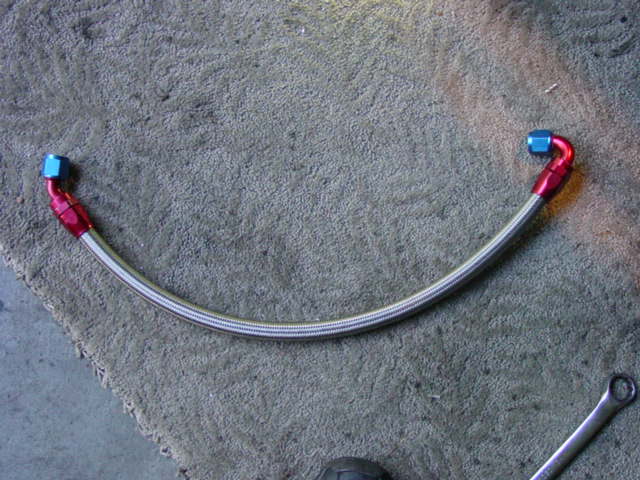

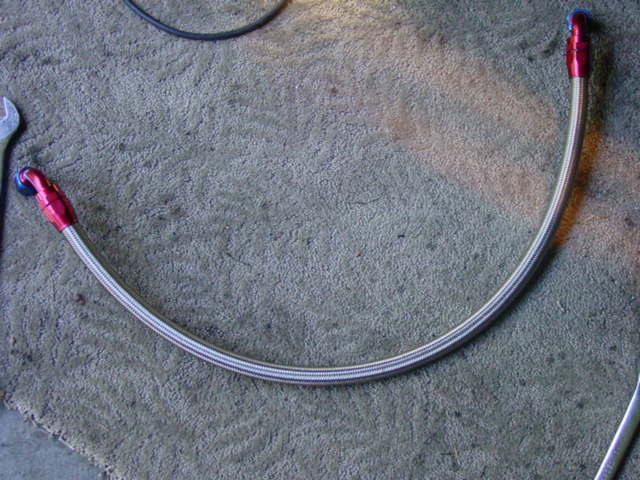

Fabbed up the lines using -10an Aeroquip fittings and SS hose.
Note: This is a AC equiped car not as easy as a normal car.

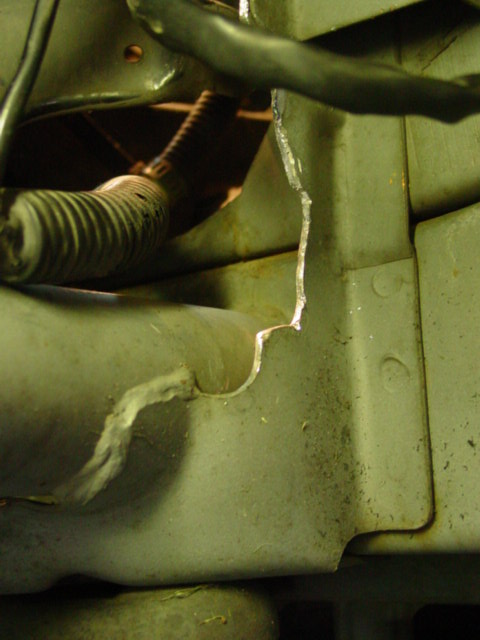

...word to the wise, if you are going to use a die grinder close to the radiator, place a shield inbetween your work area and the grinder or just remove it......one bump and I cut the radiator, needed to remove it any way and it cost $20 bucks to repair.
Pics of the install...
I used existing bolt locations in the front using aluminum angle stock.
Fabbed up the lines using -10an Aeroquip fittings and SS hose.
Note: This is a AC equiped car not as easy as a normal car.
...word to the wise, if you are going to use a die grinder close to the radiator, place a shield inbetween your work area and the grinder or just remove it......one bump and I cut the radiator, needed to remove it any way and it cost $20 bucks to repair.
Pics of the install...
Trending Topics
05-10-09, 03:13 PM
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,604 Likes
on
1,847 Posts
05-10-09, 11:58 PM
#10
Rotary Enthusiast
Thread Starter
iTrader: (14)
Join Date: May 2004
Location: Drifting a Roundabout near you!
Posts: 1,366
Likes: 0
Received 10 Likes
on
10 Posts
Well the first leak check went bad, I put the FC oil pedestal on 180 degrees backwards..doesn't seal well when you do that....
Second leak check revealed a pinprick hole in the oil cooler.........20 minutes later with a 2nd FC oil cooler installed leak check'd good.
Not how I planned it but it works, Ron is happy and on his way home right now.
Another FMOC install for the books........
Mods, can you change the title of this thread, some dork put FOMC instead of FMOC..can't figure out who....;-)
Thanks!
Second leak check revealed a pinprick hole in the oil cooler.........20 minutes later with a 2nd FC oil cooler installed leak check'd good.
Not how I planned it but it works, Ron is happy and on his way home right now.
Another FMOC install for the books........
Mods, can you change the title of this thread, some dork put FOMC instead of FMOC..can't figure out who....;-)
Thanks!
05-11-09, 06:46 AM
#11
Say What?
Join Date: Jun 2007
Location: Oak Harbor,WA and Santa Maria, CA
Posts: 1,239
Likes: 0
Received 0 Likes
on
0 Posts
05-11-09, 12:59 PM
#13
Ron, if you can find a stock oil line holder, you can use it to keep the long line from rubbing. It bolts to the bottom leg of the front iron in the small threaded hole and extends out about 3 inches. Slammed could probably fab one out of that aluminum stock and top it off with a rubber wrap to lift the hose and keep it from rubbing anything. Maybe fab up some sort of clamp like stock.
05-11-09, 07:22 PM
#16
Rotary Enthusiast
Thread Starter
iTrader: (14)
Join Date: May 2004
Location: Drifting a Roundabout near you!
Posts: 1,366
Likes: 0
Received 10 Likes
on
10 Posts
Ron, if you can find a stock oil line holder, you can use it to keep the long line from rubbing. It bolts to the bottom leg of the front iron in the small threaded hole and extends out about 3 inches. Slammed could probably fab one out of that aluminum stock and top it off with a rubber wrap to lift the hose and keep it from rubbing anything. Maybe fab up some sort of clamp like stock.
Thanks Addict for the "Title fix"!
05-11-09, 09:48 PM
#19
Rotary Enthusiast
Thread Starter
iTrader: (14)
Join Date: May 2004
Location: Drifting a Roundabout near you!
Posts: 1,366
Likes: 0
Received 10 Likes
on
10 Posts
You are correct, it's just a FMOC bracket idea thread.
Us old farts got to stick together and set the bar high for these kids or else they won't learn anything.
Peace bro!
05-12-09, 10:14 AM
#22
Say What?
Join Date: Jun 2007
Location: Oak Harbor,WA and Santa Maria, CA
Posts: 1,239
Likes: 0
Received 0 Likes
on
0 Posts
so I did another leak check..and its pretty good...definately..seeing a change in the oil temps...and also coolant temps..running a lot cooler...
05-12-09, 10:18 AM
#23
Say What?
Join Date: Jun 2007
Location: Oak Harbor,WA and Santa Maria, CA
Posts: 1,239
Likes: 0
Received 0 Likes
on
0 Posts
1. Cleaning and Installing a sidedraft and getting it to work the first start up includes fabrication of throttle linkage..
2. install a full gslse fuel setup
3. now a new brackets for placement for a fmoc that has a/c still in..
Ron
P.S. like he said earlier..don't forget to take the radiator out before using a cutting wheel..otherwise you will poke holes...radiator guy said i was lucky..it was an easy fix because it was a new radiator..about 10 months old..
