Alternator Bracket
I did a Stupid after Alternator Upgrade.
Friday I upgraded My 84GSL Alternator to a S5 Style, no problems with Wireing or Spacer issues (Thanks to all you Guru's).
Here is the issue!
Went thru my box of different Mounting Brackets to find one to be Painted i.e. no Rust easy to clean up and Paint.
Problem is that I Got Them All Mixed Up. Everthing from Smog Pumps to 80-85 Alternator Brackets.
They are from 6- 1st Gen's that I have owned in the past.
There are 2 that are simular in shape.
1- (7"s Long) Top Bolt = 1/2" Gap from Alternator to Bracket.
1- (8"s Long) Top Bolt = I would have to bend the top of it toward the front of the car to get the Alternator top bolt to Mate Up Properly.
I know that Mazda Changed the Alternator Bracket #'s from the 80 Model and later dates looking threw my FSM's.
I just need to know what size is the correct one for my 84???
7" or 8" Heellpp Meee?
God I Feel {Dumb & Dummer}
sgieldon
steve
Friday I upgraded My 84GSL Alternator to a S5 Style, no problems with Wireing or Spacer issues (Thanks to all you Guru's).
Here is the issue!
Went thru my box of different Mounting Brackets to find one to be Painted i.e. no Rust easy to clean up and Paint.
Problem is that I Got Them All Mixed Up. Everthing from Smog Pumps to 80-85 Alternator Brackets.
They are from 6- 1st Gen's that I have owned in the past.
There are 2 that are simular in shape.
1- (7"s Long) Top Bolt = 1/2" Gap from Alternator to Bracket.
1- (8"s Long) Top Bolt = I would have to bend the top of it toward the front of the car to get the Alternator top bolt to Mate Up Properly.
I know that Mazda Changed the Alternator Bracket #'s from the 80 Model and later dates looking threw my FSM's.
I just need to know what size is the correct one for my 84???
7" or 8" Heellpp Meee?
God I Feel {Dumb & Dummer}
sgieldon
steve
#3
Senior Member
Thread Starter
Join Date: Oct 2002
Location: Eugene, Oregon
Posts: 501
Likes: 0
Received 0 Likes
on
0 Posts
Good Morning Wacky;
I have the right Bottom Spacer. No problem there.
The ? of the day is (Which Bracket is the Later FB Alternator 1).
7" or 8" ??
Thanks for the quick response.
sgieldon
steve
I have the right Bottom Spacer. No problem there.
The ? of the day is (Which Bracket is the Later FB Alternator 1).
7" or 8" ??
Thanks for the quick response.
sgieldon
steve
#4
Senior Member
Thread Starter
Join Date: Oct 2002
Location: Eugene, Oregon
Posts: 501
Likes: 0
Received 0 Likes
on
0 Posts
Can someone with a 83-85 take a Picture of there Alternator Tension Bolt Area.
That will solve my Question.
AnyOne Please Help Me.
Thanks
sgieldon
steve
That will solve my Question.
AnyOne Please Help Me.
Thanks
sgieldon
steve
#5
Lapping = Fapping
iTrader: (13)
The bracket must match the waterpump. S4 and S5 are longer because the bolt that holds it tot he waterpump (and engine) is a little lower. The earlier style is shorter and the bolt that holds it to the waterpump (only) is a little higher up. The alternators should be interchangeable regardless of the engine/waterpump combination — as long as the combination is correct.
The air pump bracket has a different shape and it shouldn't be too difficult to see the differences when compared to an alternator bracket.
The air pump bracket has a different shape and it shouldn't be too difficult to see the differences when compared to an alternator bracket.
#6
Senior Member
Thread Starter
Join Date: Oct 2002
Location: Eugene, Oregon
Posts: 501
Likes: 0
Received 0 Likes
on
0 Posts
Jeff20B;
Thankyou Thankyou!
Exactly what I needed to know.
(1) Tension Bracket was Shorter than the other and Curved alittle differently.
When I tried to install the shorter one I only had about a half inch left to tighten up the Belts i.e. (Higgi Dual Belt Pulley).
That is not how it looked before my Alternator Upgrade.
Nothing like starring @ 10 different Brackets and trying to figure out which one is supposed to work correctly
I usually mark all my spare parts so I know what goes where.
Thanks again.
sgieldon
steve
Thankyou Thankyou!
Exactly what I needed to know.
(1) Tension Bracket was Shorter than the other and Curved alittle differently.
When I tried to install the shorter one I only had about a half inch left to tighten up the Belts i.e. (Higgi Dual Belt Pulley).
That is not how it looked before my Alternator Upgrade.
Nothing like starring @ 10 different Brackets and trying to figure out which one is supposed to work correctly
I usually mark all my spare parts so I know what goes where.
Thanks again.
sgieldon
steve
#7
RX HVN
iTrader: (2)
Paint warning!
I lovingly powdercoated my Alt bracket, and after the install the alternator mysteriously stopped charging; rebuilt it, swapped it... nada! $75 and one hour with my mechanic:
-the bracket is the GROUND for the Alt - powdercoat cut the ground! 10¢ wire from back of alt to block fixed it. Nice looking bracket though .... ;p
Stu Aull
80GS

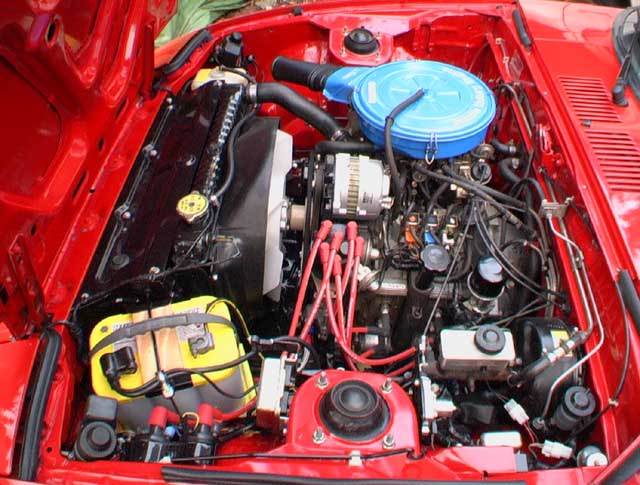

with mondo powdercoated bit in the engine compartment...
I lovingly powdercoated my Alt bracket, and after the install the alternator mysteriously stopped charging; rebuilt it, swapped it... nada! $75 and one hour with my mechanic:
-the bracket is the GROUND for the Alt - powdercoat cut the ground! 10¢ wire from back of alt to block fixed it. Nice looking bracket though .... ;p
Stu Aull
80GS
with mondo powdercoated bit in the engine compartment...
