Exclamation ACV Block Off

Does anybody have any measurements for the ACV block off plate. I just completed the rat's nest removal, my bro is going to machine me a plate. THANKS.
Old 05-01-05, 06:55 PM
  #2
Hybrid Samurai


RX-4X4's Avatar

Join Date: Feb 2005
Location: Andrews, NC
Posts: 130
Likes: 0
Received 0 Likes on 0 Posts
The best thing to do is use the old gasket as a template. If it is destroyed in the removal then you are on your own. I put paint on the seal side of the AVC and pressed in on to some card board. I worked pretty good.

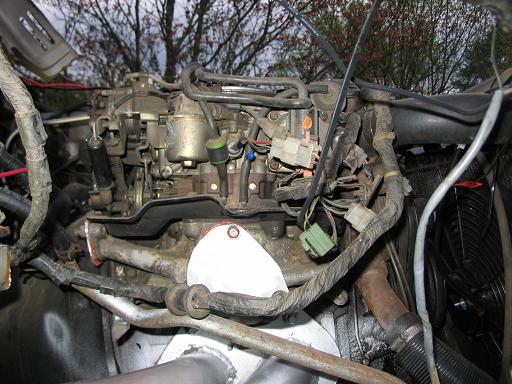

Attached Thumbnails ACV Block Off-1.jpg
Old 05-01-05, 07:11 PM
  #3
****ty Tune= Low #'s


Rusty Shackleford's Avatar

Join Date: Apr 2004
Location: Charleston, SC (chucktown!)
Posts: 1,496
Likes: 0
Received 0 Likes on 0 Posts
there ya go got this from somebody eailier

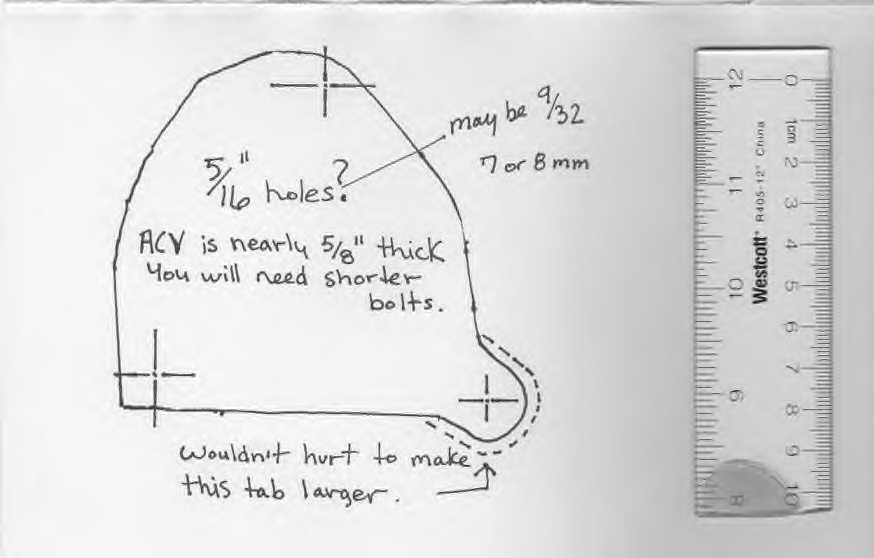

Attached Thumbnails ACV Block Off-acv-plate-template-85gstdd.jpg   ACV Block Off-acv-rb.jpg
Old 05-01-05, 07:23 PM
  #4
Love it!!!!!

Thread Starter

Kornyfan's Avatar

Join Date: May 2005
Location: Ohio
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
that is "on it, like bonet....butter to the bread." Thanks alot, I have the template.
