About to disassemble my first rotary
Hey guys -
I'm heading out to the garage to start disassembling the 12A from my project car...this will be the first time I've been inside a rotary. The manual says to use a "tubular dowel puller" to pull the tubular dowels of the rear housing. Is a tubular dowel puller necessary? If so, where do I get one? Also, it says to use a ring gear brake to lock things down when you remove the eccentric shaft pulley bolt. Will I be able to get by without this? I'll be using an impact wrench. Any other hints or suggestion would be welcome.
Thanks,
Rich
http://85rx7.home.mchsi.com
I'm heading out to the garage to start disassembling the 12A from my project car...this will be the first time I've been inside a rotary. The manual says to use a "tubular dowel puller" to pull the tubular dowels of the rear housing. Is a tubular dowel puller necessary? If so, where do I get one? Also, it says to use a ring gear brake to lock things down when you remove the eccentric shaft pulley bolt. Will I be able to get by without this? I'll be using an impact wrench. Any other hints or suggestion would be welcome.
Thanks,
Rich
http://85rx7.home.mchsi.com
#3
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
1st if all, I've been in motors before and done a fair share of car work (http://64mgb.home.mchsi.com/) so I'n not a complete novice. 2nd, I have nothing to lose. This motor was smoking and the previous owner had started removing it and was going to install a 13B, which was included with the car. And 3rd, many of the posts I've read here indicate that anyone with a fair amount of automotive mechanical experience could easily do it.
So that's what I'm thinking!
Rich
So that's what I'm thinking!
Rich
Trending Topics
#9
Hi
i think you can get any special tools you need form madzatrix..they are not cheap though
what i do is REAd ,Read , Read, and ask questions if you dont undestand something. there is a lot of help and information on this board.
A couple of tips i have is get some ziplock bags and paper tags, like printer labels and a notebook to label everything. and even draw sketches no matter how crude they are you dont have to be artist as long as you understand, it will help you remeber when your putting it back together. also get yourself a clean workarea and bench (this is so important if you look organized you will be organized) buy like some rubbermaid containers bigs ones and small ones with small compartments to hold tiny parts ones to keep your parts in.
these things made life a lot easier for me
i hope they help
goodluck
Don
i think you can get any special tools you need form madzatrix..they are not cheap though
what i do is REAd ,Read , Read, and ask questions if you dont undestand something. there is a lot of help and information on this board.
A couple of tips i have is get some ziplock bags and paper tags, like printer labels and a notebook to label everything. and even draw sketches no matter how crude they are you dont have to be artist as long as you understand, it will help you remeber when your putting it back together. also get yourself a clean workarea and bench (this is so important if you look organized you will be organized) buy like some rubbermaid containers bigs ones and small ones with small compartments to hold tiny parts ones to keep your parts in.
these things made life a lot easier for me
i hope they help
goodluck
Don
#10
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Good suggestions, Don. I did exactly that (bag and marks parts) when I restored my 64 MGB, except I took digital pictures and put them on my website (http://64mgb.home.mchsi.com/). the pictures and text were invaluable during the reassembly process. I've already started a site for my new project: http://85rx7.home.mchsi.com/
Hey guys, I understand that this is not trivial, but like lovintha7 said, you gotta start somewhere...and I'm starting here. Tips and hints appreciated.
Rich
Hey guys, I understand that this is not trivial, but like lovintha7 said, you gotta start somewhere...and I'm starting here. Tips and hints appreciated.
Rich
#11
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

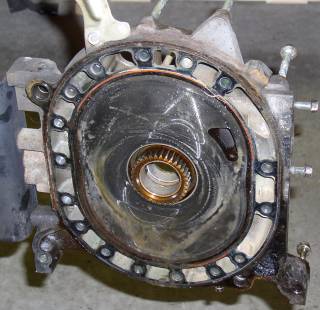

Here's what's left of my engine...now the fun begins! I have a lot of cleaning to do. In my research over the last few weeks, I've seen several different rebuild kits from various places. Any tips on how to go about determining which one I need?
#12
Ricer
iTrader: (4)
I cant wait to start tearing down my blown 12A. Hey Rich, if you need a housing I can hook you up. I am about 95% sure that one of mine is toasted. I am also thinking that the one rotor project will cost too much for me at least at this point. Also I may be PMing you about advice/ideas when I start tearing mine down. Looks good so far, keep us updated about how it goes.
#13
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, Ian -
Keep an eye on my web site for progress updates. http://85rx7.home.mchsi.com/ I'll be posting today's updates and many pictures of the teardown proces shortly.
Rich
Keep an eye on my web site for progress updates. http://85rx7.home.mchsi.com/ I'll be posting today's updates and many pictures of the teardown proces shortly.
Rich
#14
Eats, Sleeps, Dreams Rotary
Join Date: Jul 2004
Location: Allentown, PA - Paterson, NJ
Posts: 3,247
Likes: 0
Received 2 Likes
on
2 Posts
Good luck bro, hope all works well. Its sounds fun to me! Cant wait to rebuild my spare motor either!!! Keep us posted!
Last edited by Latin270; 12-05-04 at 05:11 PM.
#15
Zoom Zoom Boom!
Join Date: Mar 2003
Location: San Francisco, CA
Posts: 2,312
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 64mgb
Hey guys -
I'm heading out to the garage to start disassembling the 12A from my project car...this will be the first time I've been inside a rotary. The manual says to use a "tubular dowel puller" to pull the tubular dowels of the rear housing. Is a tubular dowel puller necessary? If so, where do I get one? Also, it says to use a ring gear brake to lock things down when you remove the eccentric shaft pulley bolt. Will I be able to get by without this? I'll be using an impact wrench. Any other hints or suggestion would be welcome.
Thanks,
Rich
http://85rx7.home.mchsi.com
I'm heading out to the garage to start disassembling the 12A from my project car...this will be the first time I've been inside a rotary. The manual says to use a "tubular dowel puller" to pull the tubular dowels of the rear housing. Is a tubular dowel puller necessary? If so, where do I get one? Also, it says to use a ring gear brake to lock things down when you remove the eccentric shaft pulley bolt. Will I be able to get by without this? I'll be using an impact wrench. Any other hints or suggestion would be welcome.
Thanks,
Rich
http://85rx7.home.mchsi.com
You don't need a special flywheel stopper if you're going to be using an impact wrench on the e-shaft bolt. Just in case you do want to lock the flywheel, I threaded in two long screws in the flywheel and place a pry bar in between it so it goes against the floor. That'll lock it up nice too.
#16
well for rebuilds the bare minimum is obviously a complete gasket set. If you have the money to spare I would definately buy the full rebuild kit. if not just spec out all the apex seals, corner seals, basically all the metal stuff that can get worn. depending on what your plan on doing with the engine you can get carbon apex seals which are better suited for racing but wear out faster than the steelies. if you've rebuilt a piston engine the rotary is a piece of cake. Just take your time and do it right. a tip for removal/nstallation of flywheel nut is to get two bolts and a chain, from like a swing. put bolt in hole with chanin link around bolt then find a threaded hole on the rear end plate. then put the other bolt w/chain in that hole, you will then prevent the flywheel from moving from that point.
Hope this helps.
Hope this helps.
#17
Lapping = Fapping
iTrader: (13)
I tore down two R5 13Bs the other day. One has water damage on the front rotor and missing chrome. The other has stuck apex seals but looks very nice on the inside. It's totally rebuildable.
Right now I'm messing with an S5 T2 engine for a '77 REPU swap. Gotta swap things like oil pans, front covers etc. Fun!
Right now I'm messing with an S5 T2 engine for a '77 REPU swap. Gotta swap things like oil pans, front covers etc. Fun!
#18
FB Maniac
iTrader: (1)
I got some advice the other day on where to get a rebuild kit. The site is www.rotaryaviation.com. Ther kits are suppose to come with rubber viton o-rings and oil seals and you are able to reuse these o-rings and they last longer than the other rebuild kit o-rings. This is where I plan on getting my rebuild kit.
#19
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Dan H
Dowel pin puller is not necessary. I use an old tension bolt. Stick it in there. Put a little pressure on the sides and yank it out. Sometimes they're on there really tight but its possible to remove them.
You don't need a special flywheel stopper if you're going to be using an impact wrench on the e-shaft bolt. Just in case you do want to lock the flywheel, I threaded in two long screws in the flywheel and place a pry bar in between it so it goes against the floor. That'll lock it up nice too.
You don't need a special flywheel stopper if you're going to be using an impact wrench on the e-shaft bolt. Just in case you do want to lock the flywheel, I threaded in two long screws in the flywheel and place a pry bar in between it so it goes against the floor. That'll lock it up nice too.
Rich
#20
Junior Member
Join Date: Nov 2004
Location: Annapolis, Md
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
video available
I'm sure you probably heard this, but there is a video available through Bruce Turrentine 919-212-00 or 0671, on rebuilding a rotary engine.
I just started racing Spec-7 class in the DC region, and Kearney Racing (the folks that built my car) recommended this video when I mentioned I was going to try and rebuild one of my left over 12a's. The video shows the rebuild of a 13b, but it is supposedly very helpful.
Good luck
I just started racing Spec-7 class in the DC region, and Kearney Racing (the folks that built my car) recommended this video when I mentioned I was going to try and rebuild one of my left over 12a's. The video shows the rebuild of a 13b, but it is supposedly very helpful.
Good luck
#21
Junior Member
Join Date: Aug 2004
Location: Lawrence, KS
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Atkins also has a rebuild video that has been very helpfull to me. I've pull apart 3 motors and have plans to put one back together. The video makes it look easy i think it was like 30 bucks or so. good luck.
#23
FB Maniac
iTrader: (1)
I just tore my engine apart and I am lucky because the chrome on my side plates and housings are in excellent condition. I grabbed this motor from a junkyard back in November of 2004. The engine needs a good cleaning and I also need to order the rebuild kit today from Atkin's Rotary. The Haynes manual wasa big help along with the Atkin's video. I am really not afraid to tear apart a rotary. Now porting is another story.
