'85 GSL: Oil Pressure/Level Wires??

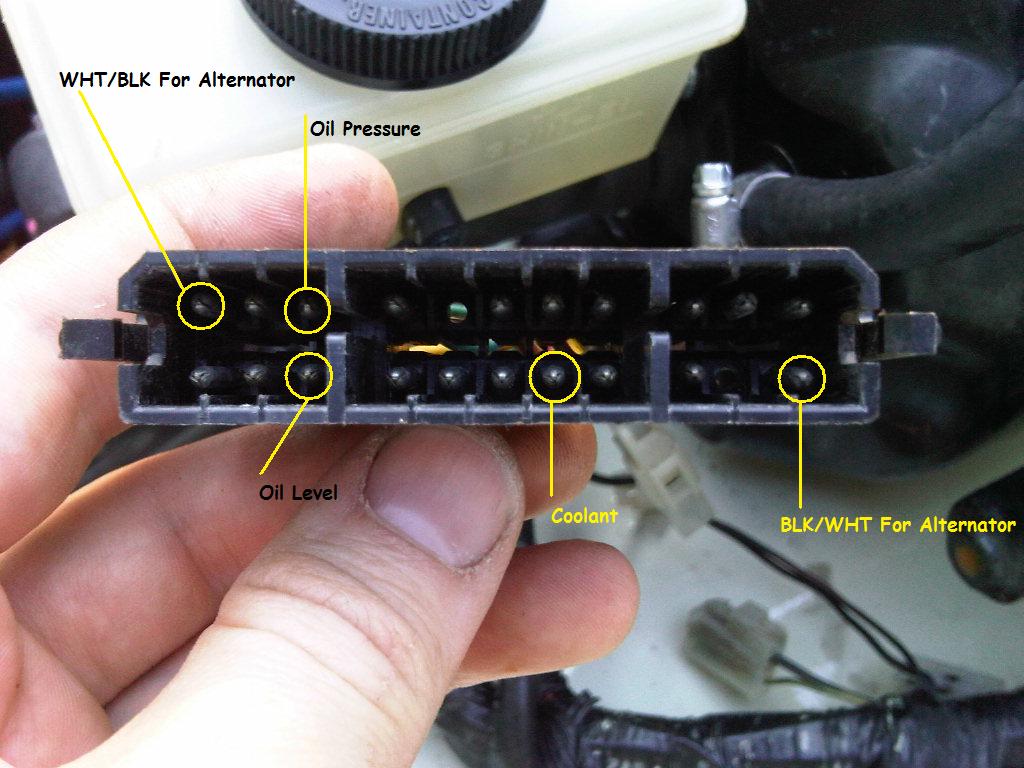

I am in the process of wiring up a oil pressure sensor and oil level sensor. For the life of me, I can't find either of those wires. According to the schematics I am looking at, the oil pressure wire exits the front harness through X-10 and is Brown with a yellow stripe. I can't find a brown w/ yellow anywhere at X-10. Would it be possible for someone to trace their oil pressure wire from the sensor and see where it connects to the front harness?
Also, the oil level sensor wire exits the front harness at the same location, but according to the schematic goes through the engine harness, then to the tranny harness. Regardless, it says it is yellow with red at X-10. Yet, I can't find anything that resembles the schematic....
Any help would be very much appreciated!
By the way, the car is a 1985 GSL.
Also, the oil level sensor wire exits the front harness at the same location, but according to the schematic goes through the engine harness, then to the tranny harness. Regardless, it says it is yellow with red at X-10. Yet, I can't find anything that resembles the schematic....
Any help would be very much appreciated!
By the way, the car is a 1985 GSL.
