Hey Guys,

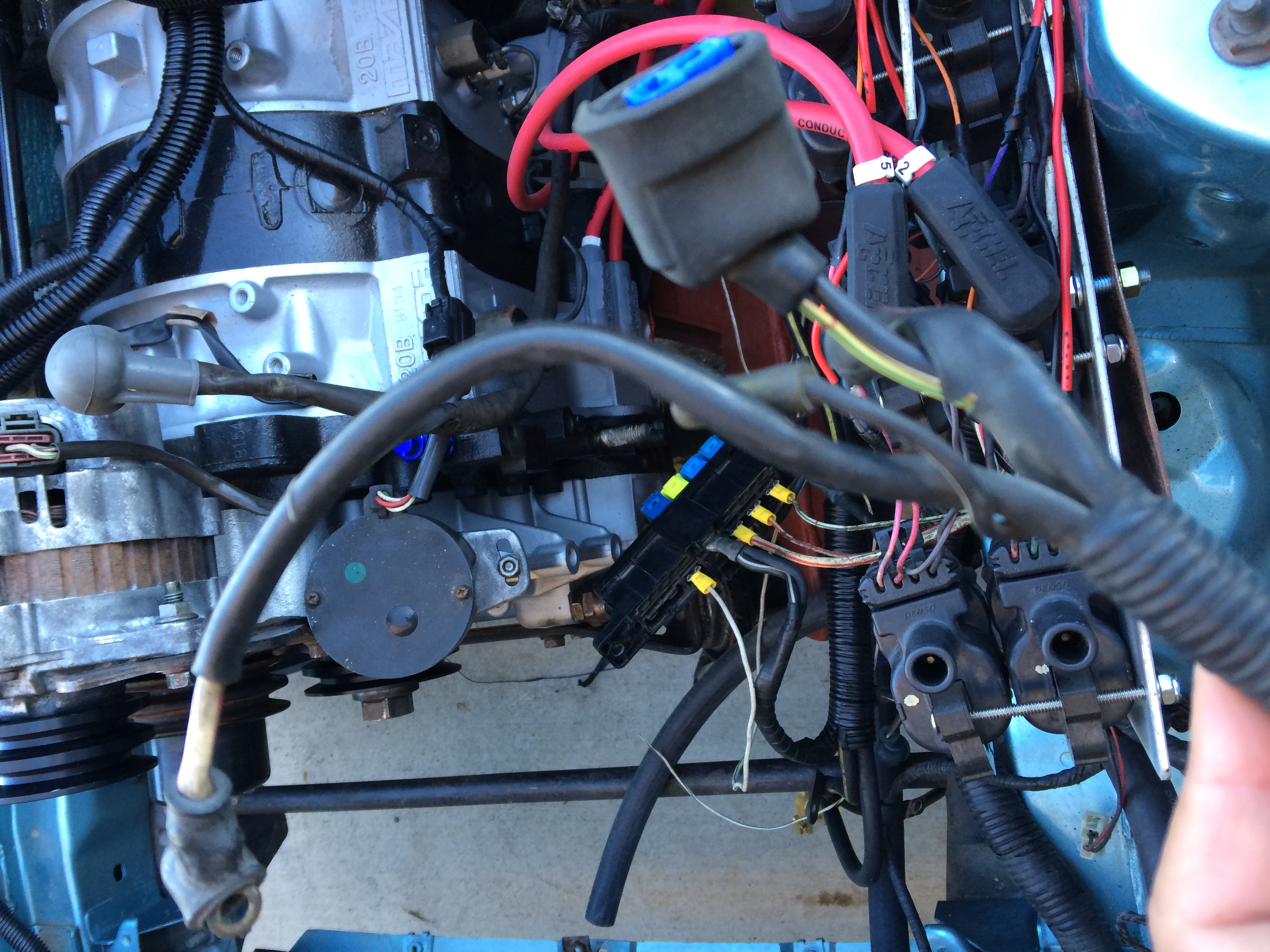

I'm in the final stages of getting my 20b crancked up within weeks, but still need to get my 20b alternator wired up correctly. What I need to figure out which is the 12a plug that went into the 12a alternator, so I can wire up the dash light cable. I've read the manual and the colors for the alternator don't coincide with what I believe is the correct plug/harness. Please see the pic below and tell me if this is what you have going to your 12a alt. I also used this website in trying to figure out this issue: AusRotary.com ? View topic - Alternator upgrades

Thanks in advance for the help guys.

KansasCityREPU

iTrader: (9)

The blue plug plugged in to the back of the alt and the other (lug) went to the alt post. Looks like you already have things hooked up to those.
