Looks great. I was planning doing a mini tub on my Drag 7 when I get around to it in 10 years. As was already stated don't forget to reinforce the spring tops. Stock the support is good to about 200 lb springs so if you plan on going that high in the rear make sure it's strong.

Viking War Hammer

iTrader: (8)

Are you working with universal tubs?

R.P.M.

iTrader: (3)

No i made these tubs from sheet metal.

coldy13

Very nice work, looks a lot like what I'm doing with mine If you feel like adding adjustable spring mounts its not too much extra work

warwickben

iTrader: (1)

not bad. i had the same idea but. i went with the adjustable spring mount from re-speed. mounts on the axle no tubs needed.

coldy13

There wasn't much left of my wheel wells, giant rust holes everywhere. I put in the 3 link a couple years ago when the upper control arms ripped out of the wheel wells, but now that I'm done with school I gotta fix it right. Plus I'll be able to fit huge tires in there after I put on the widebody kit

Viking War Hammer

iTrader: (8)

Suprised you guys are going through all that work to retain the stock suspension location. Just seems that since you're cutting everything out, you might as well put everything inboard and upgrade.

coldy13

I thought about it, but it's not a good idea unless you just want to drag race or use a super stiff roll bar. The closer the springs and shocks are to the wheels the better they work in a corner. The upper control arms are what's really in the way for wider tires and I'm making a new adjustable watts link that mounts on the back of the rear end and an adjustable 3 link, so everything is getting upgraded.

Viking War Hammer

iTrader: (8)

doh, I forgot that people enjoy turning !

JSmith0101

iTrader: (6)

Psh. Turning. That's only good if you want to... drive.

R.P.M.

iTrader: (3)

heres an update. Cars almost done. Should be done by the end of the day.

here some pictures

floor patch






another floor patch

R.P.M.

iTrader: (3)

here are some more pictures









and another floor patch






small patch

R.P.M.

iTrader: (3)

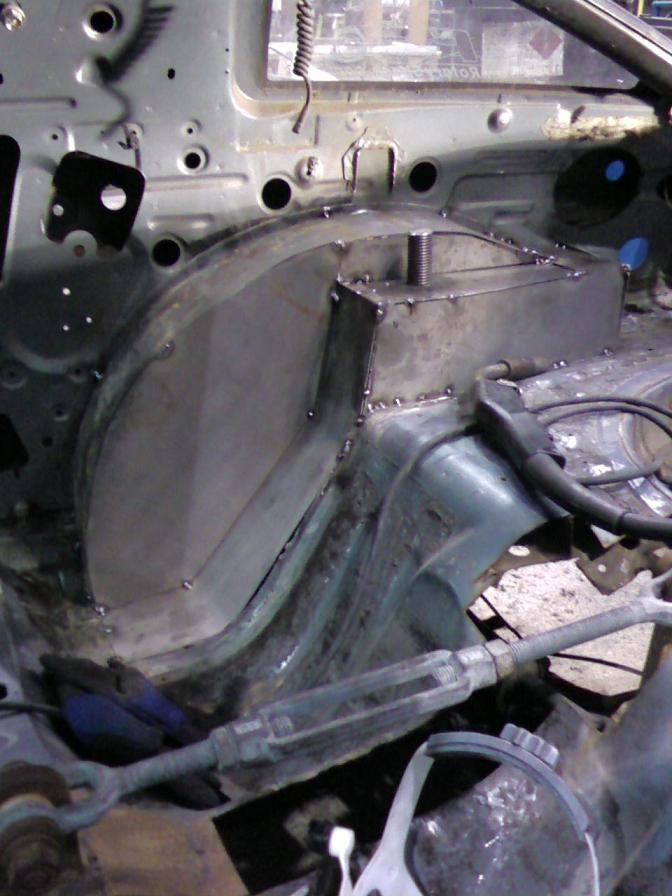

wheel wells

R.P.M.

iTrader: (3)

Support







other wheel well

R.P.M.

iTrader: (3)

inside the wheel well

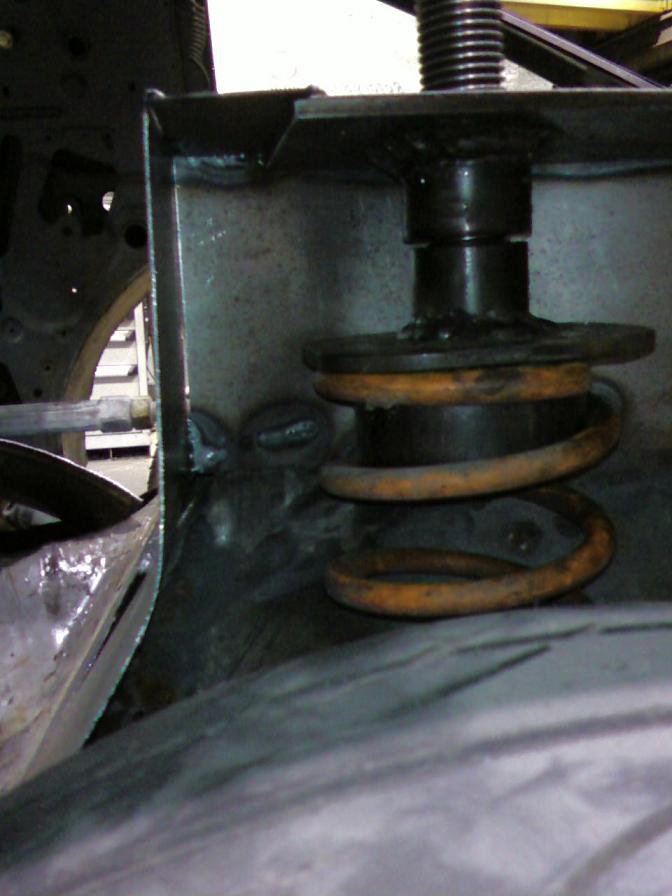

coil support

Viking War Hammer

iTrader: (8)

still think that dude is crazy for going through all that work to keep the stock shock locations

speedracer_not

speaking of shock locations, does anyone here know how the suspension is set up on tha >>>Batmobile<<< ?

I mean with those super wide rear tires, where do the shocks go??

vmarx7@yahoo.com

iTrader: (37)

R.P.M. you got skills!!

R.P.M.

iTrader: (3)

thats just what the customer wanted.

its setup just like it is from factory. I just moved the tub in closer to the shock and squared off the tub so he could go with a bigger rim and higher profile tire.

Luke

R.P.M.

iTrader: (3)

thank you vmarx7@yahoo.com

Luke
