I searched and came up empty handed. go figure..that or i dident type the right key word's in. which would also figure..

anyway..i need a picture of the fuse box cover ON THE INSIDE OF THE CAR not the engine bay fuseable link's. mine does not have one and i need to know what size or amp fuse goes where. being that i blew a couple of mine while drifting and i totally forgot what goes where..any kind of help would be nice..

again this is for a 85 GSL model not an SE model. hopefully someone out there still has there fuse cover..cause ive never met anyone that does..

for those who have no idea what im talking about im going to post up a picture of what im talking about in a minute.

thank's again..

:AA:



Here we go..The fuse box...for viewing perpose's.





:AA:



if no one has one by tomorrow i'll get you one, i would do it right now, but its raining like crazy



this is weird..i even referred to the haynes manuel for info. and all i got was the 79 layout..nothing on the plastic fuse type. mmmm...

:AA:



http://foxed.ca/rx7manual/manuals/19...Electrical.pdf

page 13.



yeah! i was waiting for you to chime in..i just could not remember your name..hmmm...i dont have the adobe program...is there anyway to cut and paste the information here so that i can read it??

:AA:



Adobe Reader is free. http://get.adobe.com/reader/



can someone just please get me a picture..

:AA:



**** son, just get acrobat reader. Its free and half the internet uses it. If you are on a computer you can't install stuff to, use this: http://kjkpub.s3.amazonaws.com/sumat...aPDF-0.9.3.zip

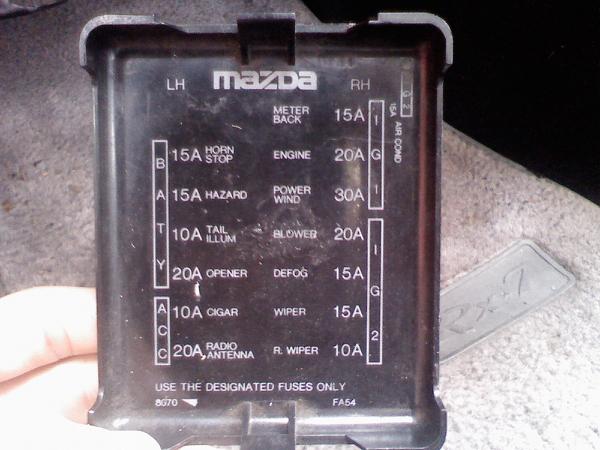

straight out of my 85 gsl!



BIG thank's to 83gslRX-7 for getting **** done..!! thank's man...that is all i needed. mod's please close thread.

:AA:



i was about to start uploading mine lol, but that's a cool pic, mine's not like that and its also an 85 GSL, it has a large white sticker instead of the white on black.



yeah thats how mine is i saw that one and was like cmon what the hell not another previous owner rig up lol feel much better now



this is what all my 7's fuse box covers have looked like....



i wish i had a fuse cover to complain about....anyway everything turned out good..the previous owner had a bunch of fuses where they dident belong so i fixed it real good.
