1984 GSLSE Clarion Stereo/Cassette/EQ

Good afternoon!

I have a 1984 GSLSE
Clarion combo including RT-9006C - Radio, PT-8006C - Cassette, and ET-302C - Equalizer. The EQ and Stereo are working fine (except for my power antenna, but that is a fight for another day), but I cannot get the cassette to power or light up when connected to the set. All the internal 3A fuzes are good.

The J-3, J-5 and antenna are connected to head unit, J-4 is connected to the jumper wire. The 6-way round from wiring harness is connected to head unit far left port as looking from rear. The 8-way connector from EQ is connected to head unit and 8-way from cassette to EQ. See attached diagrams. The cassette diagram has a power connector, but according to the FSM wiring diagram for Stereo version 3&4 you use the jumper in that location.

If I power the cassette by itself using a 12v power supply, I can get it to light and power up. I have checked the power microswitch inside the cassette and it appears to work fine.

With the EQ connected to the head unit and 12v power to the head unit, I get 12v out on the 8-way plug that goes to the cassette.

Anybody have any idea what kind of wizardry involved or secret there is to powering the cassette when connected to the EQ and head unit?



Reply
Old Aug 31, 2025 | 07:55 PM
  #2
Brownrx7's Avatar
Full Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Nov 2023
Posts: 122
Likes: 28
From: Michigan
Forgive me if my advice is obvious, as I'm not an electrical wizard LOL. Have you used a test light or a volt meter to see if the cables are getting any voltage? I would just start tracing back into the harness if it is not, if so, I would try looking and seeing if the plugs are bad... I went through a whole ordeal with my se radio so I know a bit... I also have an extra working cassette deck, but it's in rough shape, you may be able to switch faces....
Reply
Old Aug 31, 2025 | 08:39 PM
  #3
Okie 1984 GSL-SE's Avatar
Thread Starter
Junior Member

Joined: Jul 2025
Posts: 32
Likes: 14
Thank you Brownrx7, real wizards have to start somewhere, so here we are lol.

as far as tracing power, yes I traced the 12v pins in the DIN cable from the head unit to the EQ and the cassette. That all have 12v as they are supposed to, so I have 12v through the DIN all the way to the cassette player.

just to confirm your stock SE wiring harness you have a three pin and a single pin going into the head unit along with a DIN connected to an adapter from the main wiring harness and the antenna of course. Nothing is connected going into the cassette, correct?

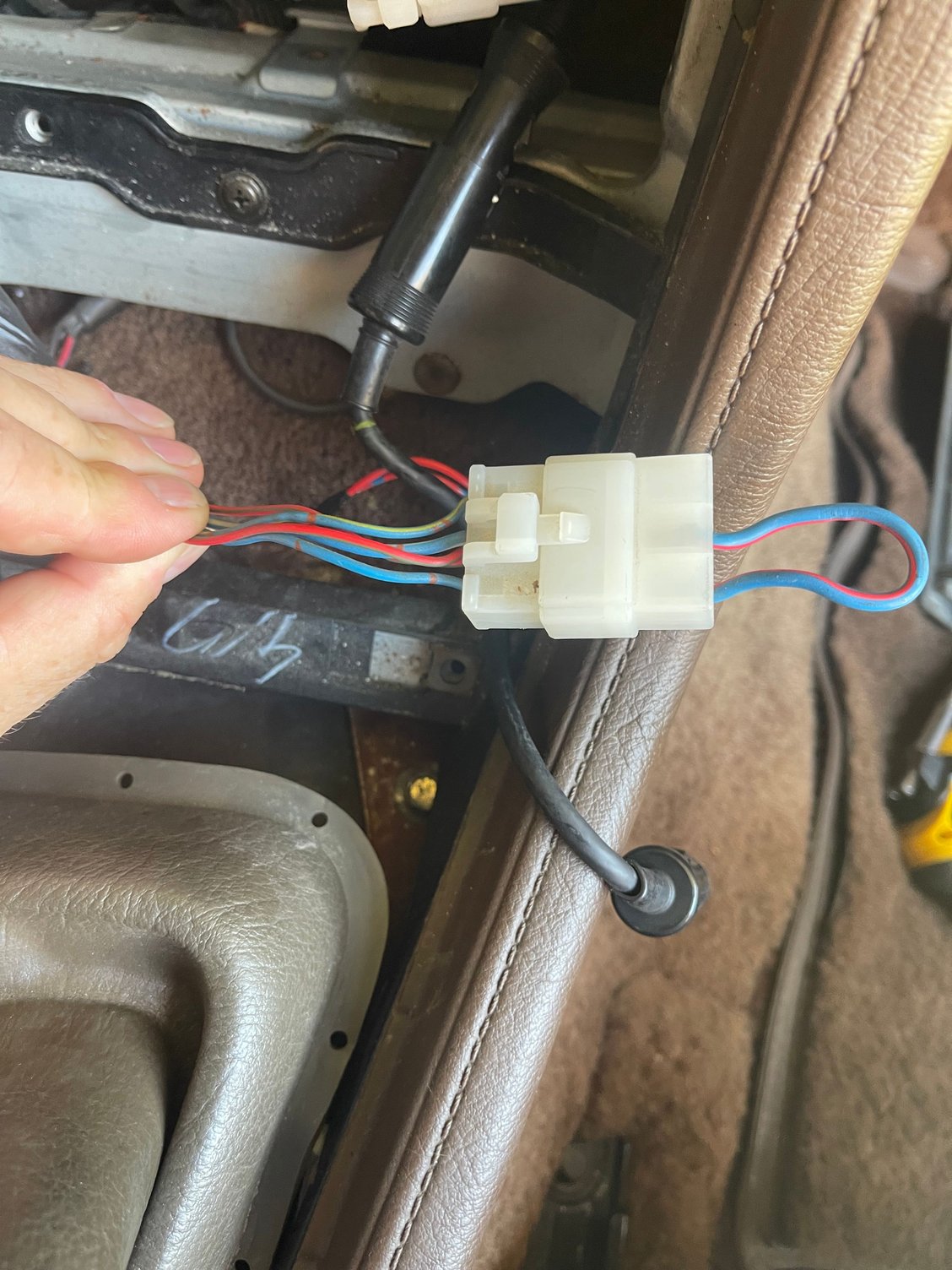

I do have an “extra” connector from the main harness under the dash that is connected to a jumper as shown in the FSM for radio types 3 and 4. See photo below. Is this supposed to connect to the cassette player?

thanks!
Reply
Old Aug 31, 2025 | 09:23 PM
  #4
KansasCityREPU's Avatar
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,668
Likes: 1,238
From: KC
Looking at the wiring diagram, that "short cord" is only used for systems that do NOT have tape deck.
Reply
Old Aug 31, 2025 | 11:21 PM
  #5
Okie 1984 GSL-SE's Avatar
Thread Starter
Junior Member

Joined: Jul 2025
Posts: 32
Likes: 14
Thanks KansasCityREPU. Im not the best at reading these wiring diagrams… it looks like the J-04 is connected, but there is a callout saying Short Cord.
I have only had this RX7 for a few months now and still sorting through it. I thought the cassette and EQ both pulled power from the DIN cables as there is 12v running through them as I tested. The PO had the jumper short cord plugged into J-04. Maybe I will try plugging it in to the cassette and see where that takes me.

Reply
Old Sep 1, 2025 | 08:01 AM
  #6
KansasCityREPU's Avatar
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,668
Likes: 1,238
From: KC
Looking at this again, there seems to be confusing information from the Mazda Wiring Diagram and the Body Electrical, 85RX7(50)Wiring_Diagrams.pdf, and the Body Electrical sections, 85RX7(15)Body_Electrical.pdf. In some documentation, the "Short Cord" is a DIN connection and in others it's that 6 pin square connector J-04.

The GSL-SE is a System 1. In this image from the 85RX7(15)Body_Electrical.pdf, it shows for System 1 a Short-Cord DIN. For System 3 it shows a Short-Connector and a DIN-Cord.

Attached Files
File Type: pdf
85RX7(15)Body_Electrical.pdf (14.18 MB, 17 views)
File Type: pdf
85RX7(50)Wiring_Diagrams.pdf (6.90 MB, 19 views)

Last edited by KansasCityREPU; Sep 1, 2025 at 08:19 AM.
Reply
Old Sep 1, 2025 | 06:09 PM
  #7
Okie 1984 GSL-SE's Avatar
Thread Starter
Junior Member

Joined: Jul 2025
Posts: 32
Likes: 14
Thanks for pointing this out… honestly wasn’t sure if I had radio 1, 2, 3 or 4. Knowing the SE is helpful.

As I look at the wiring diagrams and what I have in my car, maybe there is two different types of “short” wires. One is the 6 prong connector where the two terminals are “shorted” with each other using the blue jumper cable. The second is the DIN “short” (as in length) connector. This one converts the wiring harness 8 pin coming from the balancer and amps to a 6 pin for connecting to the back of the tuner.

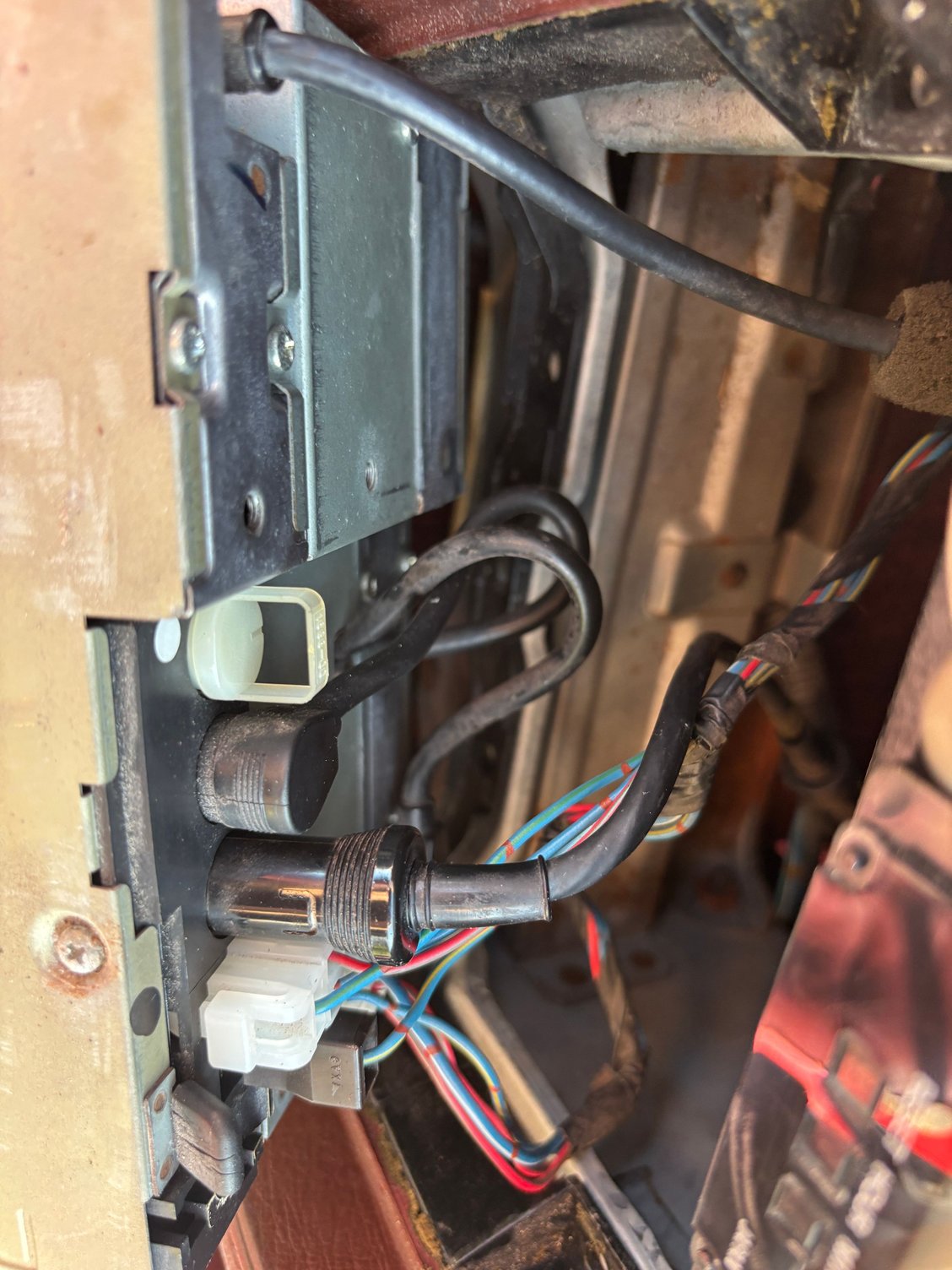

See attached photo, short connector one is in the front with the white connectors and short two is the black DIn cable in the background.

All that said, the wiring diagrams are leading me to believe I should not be using the white short one connector since I have radio 1. I guess then this cable gets connected to the cassette, as there is no other connector on the radio set of that style. I’ll give it a shot in the next day or so and report back.

Reply
Old Sep 1, 2025 | 06:28 PM
  #8
Okie 1984 GSL-SE's Avatar
Thread Starter
Junior Member

Joined: Jul 2025
Posts: 32
Likes: 14
Solved!!!

So curiosity got me and I decided to run out and give it a shot. Unplugged the “short” J-4 connector and plugged it into the back of the cassette. Jackpot, that fixed it up, when I inserted a tape, it shut the radio and the cassette portion lit up and I could hear the motor whizzing. Now just have to wait for the belt I had order to arrive and should be good to go.

Now onto the next adventure of fixing the power antenna up. Antenna works properly on bench test providing 12v power, relay seems to test correctly IAW the FSM, just need to trace some wiring from front to back to verify that.

Thank you all for the assistance.
Reply
Old Sep 1, 2025 | 10:14 PM
  #9
Brownrx7's Avatar
Full Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Nov 2023
Posts: 122
Likes: 28
From: Michigan

Sorry, late to the party! I went to snap this today to give you a visual but you got it figured out, congrats!!!
Reply
Old Sep 2, 2025 | 02:01 AM
  #10
Okie 1984 GSL-SE's Avatar
Thread Starter
Junior Member

Joined: Jul 2025
Posts: 32
Likes: 14
Brownrx7, thanks for taking the time and risking broken plastic!
Reply
Old Sep 27, 2025 | 09:54 PM
  #11
MiniFoo's Avatar
Full Member
Tenured Member: 10 Years

Joined: Jun 2011
Posts: 103
Likes: 0
From: Minnesota
Originally Posted by Okie 1984 GSL-SE
Solved!!!

So curiosity got me and I decided to run out and give it a shot. Unplugged the “short” J-4 connector and plugged it into the back of the cassette. Jackpot, that fixed it up, when I inserted a tape, it shut the radio and the cassette portion lit up and I could hear the motor whizzing. Now just have to wait for the belt I had order to arrive and should be good to go.

Now onto the next adventure of fixing the power antenna up. Antenna works properly on bench test providing 12v power, relay seems to test correctly IAW the FSM, just need to trace some wiring from front to back to verify that.

Thank you all for the assistance.
Glad to hear that you figured out the daisy-chain path, I could have also provided photos as well since I recently had my full head unit out to investigate a different and very weird issue (all audio works properly, even the makeshift aux cable I soldered to the equalizer pinout over a decade ago, but starting very recently I don't have FM radio only. AM still works. No clue lmao)

Out of curiosity, where did you order your cassette deck belt from? I'm not able to find anything that isn't like $15 plus shipping, or included in a massive assortment of belts that I do not need.
Reply
Old Sep 27, 2025 | 11:59 PM
  #12
Okie 1984 GSL-SE's Avatar
Thread Starter
Junior Member

Joined: Jul 2025
Posts: 32
Likes: 14
MiniFoo,

I can’t help with the lack of FM, but if you don’t have wiring diagrams for it, let me know, I found one finally.

As for the belt, I got mine on eBay for under $10 shipping included. PRB SCX 8.4 Square Cut Belt for VCR, Cassette, CD Drive or DVD Drive SCX8.4

hopefully this link works.
https://ebay.us/m/yFeJ3d
Reply
Old Sep 28, 2025 | 07:52 AM
  #13
rxtasy3's Avatar
Moderator
Tenured Member: 20 Years
iTrader: (2)

Joined: Jun 2002
Posts: 9,574
Likes: 290
From: Spartanburg, SC
not sure if anyone has suggested manuals and wiring diagrams found here for download but here it is

https://foxed.ca/index.php?page=rx7manual#firstgen
Reply
Old Sep 28, 2025 | 12:56 PM
  #14
Okie 1984 GSL-SE's Avatar
Thread Starter
Junior Member

Joined: Jul 2025
Posts: 32
Likes: 14
Rxtasy3,

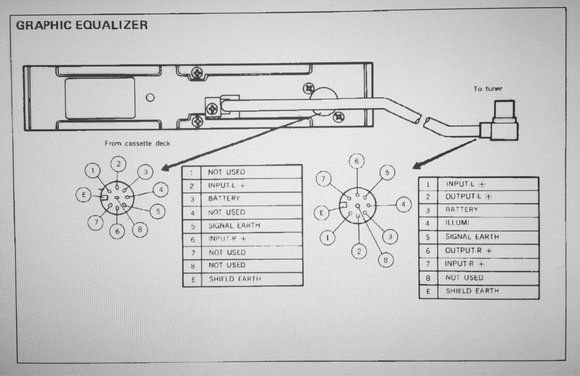

yes, thank you for the reference, tracking all the great manuals there. I could not find the specific clarion stereo internal wiring diagram on that site, but located it elsewhere.
Reply
Old Sep 28, 2025 | 08:18 PM
  #15
Toruki's Avatar
Rotary Enthusiast
Tenured Member: 15 Years
Liked
Loved
Community Favorite

Joined: Oct 2010
Posts: 1,294
Likes: 345
From: MA USA
@Okie 1984 GSL-SE put that link here for us!

Thanks
Reply
Old Sep 28, 2025 | 09:14 PM
  #16
Okie 1984 GSL-SE's Avatar
Thread Starter
Junior Member

Joined: Jul 2025
Posts: 32
Likes: 14
@Toruki here you go… came from website kevinchant.com. I believe the GSL-SE three piece receiver is a RT9006-C and this manual is actually for a RT-9022, but I am certain they are the same.

https://www.kevinchant.com/uploads/7...22i_ut563i.pdf
Reply
Old Sep 29, 2025 | 07:25 AM
  #17
Toruki's Avatar
Rotary Enthusiast
Tenured Member: 15 Years
Liked
Loved
Community Favorite

Joined: Oct 2010
Posts: 1,294
Likes: 345
From: MA USA
Thanks for following up. That web site has a huge repository of documents, the Clarion stuff alone is very deep. Good find!
Reply
Old Sep 29, 2025 | 09:28 AM
  #18
KansasCityREPU's Avatar
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,668
Likes: 1,238
From: KC
Added radio manual as attachment just in case the link stops working.
Attached Files
File Type: pdf
rt-9022i_ut563i.pdf (17.83 MB, 18 views)
Reply
