seanrot

iTrader: (2)

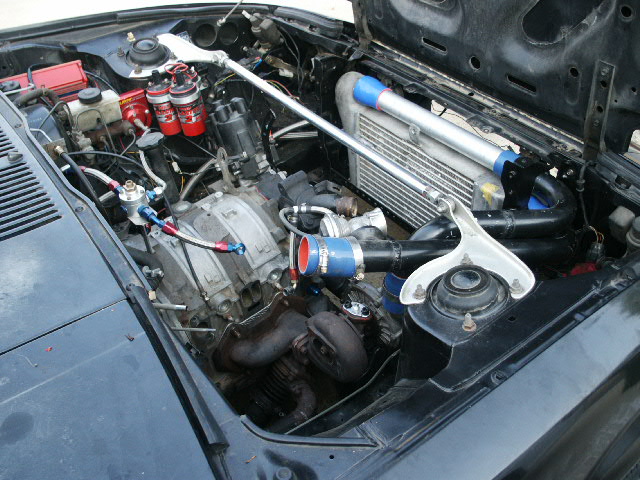

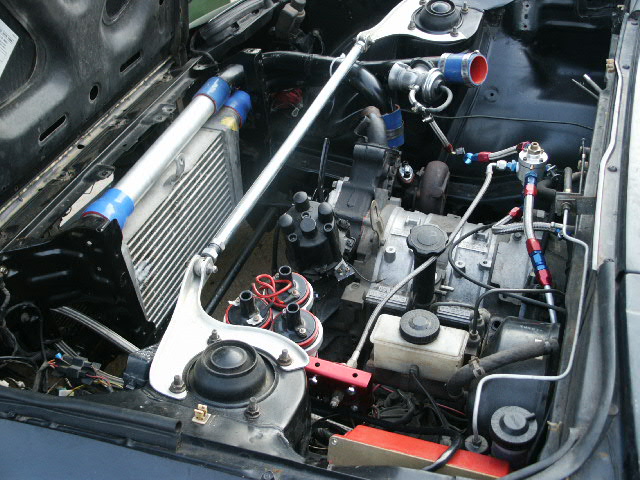

It has been a long two days. I made alot of progress though. Rear axle swapped and the altitude adjusted. front cover swapped, turbo installed it finally coming along.

DwArF

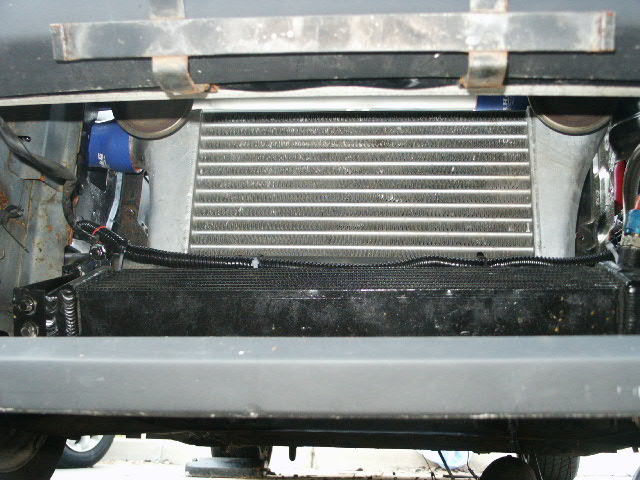

What kind of intercooler is that?

boog

That's cool dude, how much money have you spent so far??...make sure we get to see vids as soon as possible

seanrot

iTrader: (2)

QUOTE=DwArF]What kind of intercooler is that?[/QUOTE]
Its a Greddy/Trust intercooler for an R32 skyline not the GTR version



About 3500.00ish

blwfly

iTrader: (4)

is that 3500 for a complete setup or just what you have on the car so far

btw thats bitchin...

seanrot

iTrader: (2)

3500.00ish is what i have total in the car from the wheels to the lexan sunroof.

Hyper4mance2k

iTrader: (40)

Ummmmmm Nice Volk Superfins.

blwfly

iTrader: (4)

wow so how much more you got to spend? what parts are you missing
what carb are you going to use
doz the engine have porting
what kinda turbo/manifold is that you got there
wheres that nifty coil bracket from
do you really need the msd6a for a turbod setup

cheers
chirs

seanrot

iTrader: (2)

Good eye, what you do super size the picture?

how much more? Your never done spending. But unfortunately I'm building this to sell it. I found out last month that I will be PCS'ing to Japan in March. So I need to finish it up in a month or so. I only have a few little things left to do. Beside put the car back together. All the parts are already bought just need installed or modified a little.

Carb is a Weber 48 IDA - should be installed and a week or so need to have the manifold drilled/tapped and waiting for some gaskets from Rotaryshack that will be sent out later today. The carb has been modified for more fuel capacity and larger inlet for more flow. That and it has a boost friendly polyurethane float that i had to trade in my soul for.
The engine has stock ports

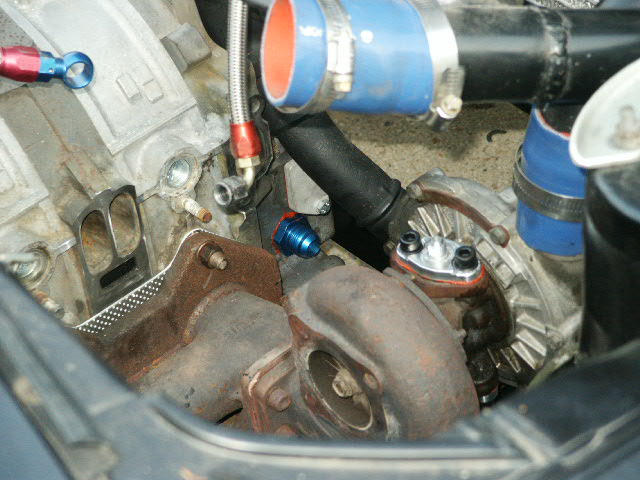

The manifold is Sigma(blitz) and the Turbo is a K26
coil bracket is from RESPEED
really need the msd6a-no, but it looks nice dont it.

Hyper4mance2k

iTrader: (40)

Why don't you just part it out. That might be easier. And I just know my stuff. I'll buy your Fuel pressure gauge and sender thing. LOL!

blwfly

iTrader: (4)

i tryed a search i cant find any sigma turbo manifolds
where did you get that from?
do you live in another country

seanrot

iTrader: (2)

Cuz I wont be able to drive it if I do that. Besides it too much stuff to part out.


Your not going to be able to, I believe they have been outa production for at least 15 years. I got mine used off of Yahoo auctions Japan.

blwfly

iTrader: (4)

that must of been a hasle to get from japan
did you upgrade the oil pump?

seanrot

iTrader: (2)

It wasnt that much of a hassle. Just took awhile to get.

I didnt upgrade the oil pump but i modified the oil pressure regulater for more pressure.

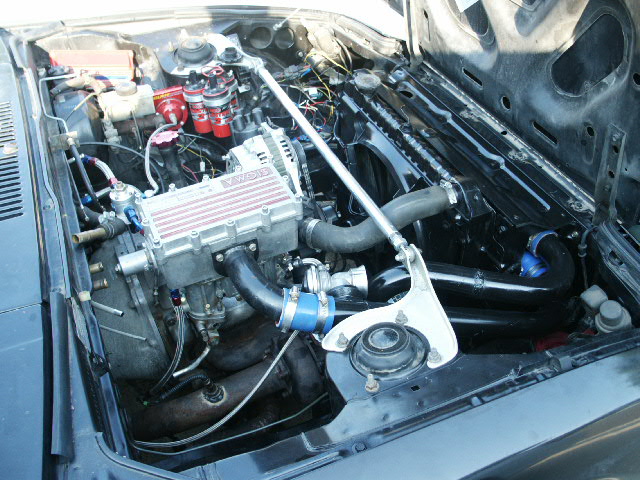

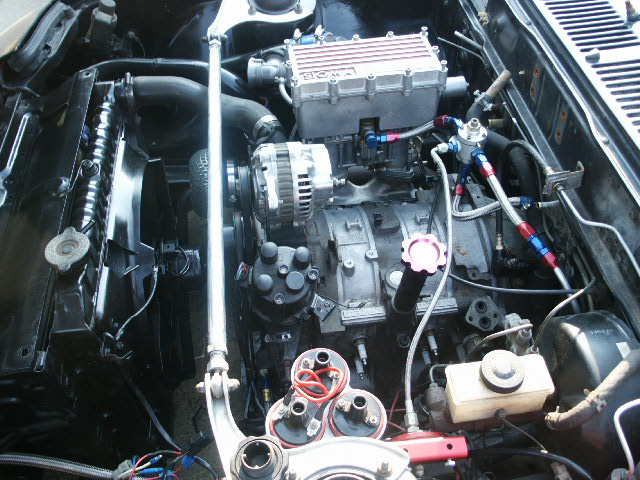

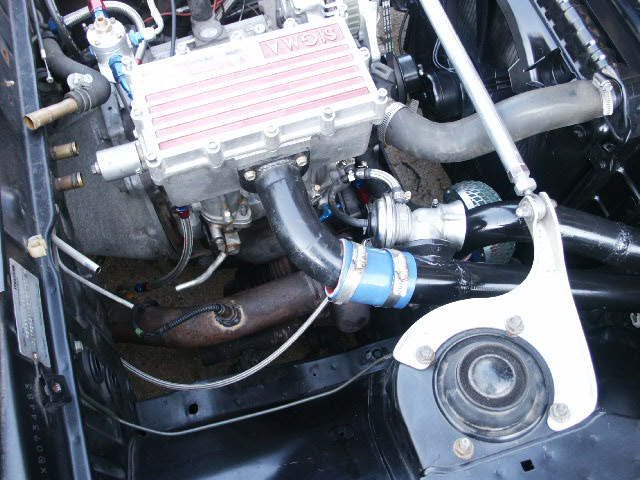

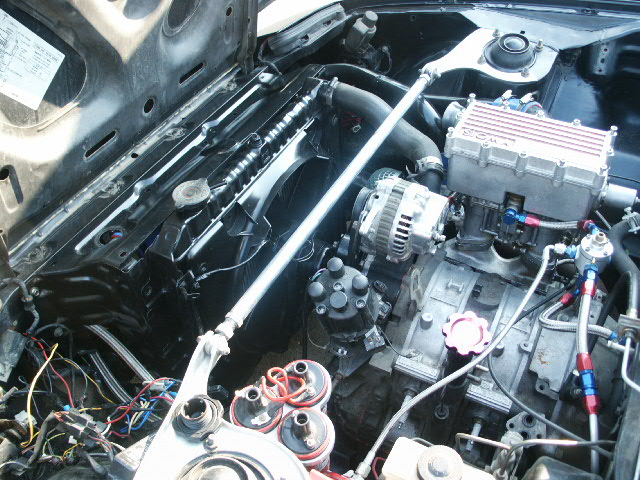

got some more pictures. starting to come together

bad 83

iTrader: (3)

Not too bad. I decided to go with running a simaller intercooler on my 83 12AT. The only thing that I did a little different than most guys, is I mounted the intercooler a little lower and layed it down at a 45 degree angle. That way I was able to keep my AC condensor. The only thing I have an issue with is the forward mount exhaust manifold. I have seen alot of people using these, and having overheating issues. I personally feel the three feet of exhaust pipe running beside the engine contributes to most of these problems. I would suggest fabbing a heat shield to go between the intake and turbo. I would really wrap that pipe also. It looks good seeing another intercooler ran that way. That way you don't have the hassle of moveing the battery, and snaking the pipeing aroung the oil fill tube and dizzy. Most factory turbos will survive with as little as 10 psi of oil pressure. The majority of problems I have seen is over pressure to the turbo. Above 80 psi, you will be pushing blowing a oil seal.

seanrot

iTrader: (2)

I had the same set up running on the 85 gsl. I didnt have a problem overheating but i did have a little smaller intercooler located in the same spot. I was thinking of getting an exhaust wrap but mainly just for looks the aluminized down pipe is starting to show its age, I figured the wrap would make it look a little nicer. Just worried it will rust away with the wrap.

I have a restictor in the oil feed flange to the turbo has a nice tiny hole to keep too much oil from flooding the turbo and I have a nice 10an return line to the front cover.

Almost done under the hood not looking forward to the wiring of enginebay and the interior. At least I'm on vacation time and getting a good chunk of the work done I still have about 1 week of work on teh car time left so with luck I might get a start up before July.

saltyslug

nice setup. I like how that box looks, almost factory looking.

there is some blow thru IDAs going on over on the vw forums. YES IDA WITH NO BOX AND BOOSTIN TO 12 LBS WITH NO LEAKING ISSUES. it seems there might be another weber people are blowin thru here soon.
