1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

16" rim on 1st gen

Thread Tools

Search this Thread

Old Apr 13, 2006 | 07:17 PM
  #1
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
16" rim on 1st gen

Anyone besides Rotorhead1 running 16" rims on there FB?

If so what size rim and tire are you running? 205/50/16? 16x7 or 8?
Thanks
Reply
Old Apr 13, 2006 | 08:03 PM
  #2
85slvrblt's Avatar
Full Member
Tenured Member 05 Years

Joined: May 2004
Posts: 63
Likes: 0
From: New Hampshire
16x7s

I am putting 16x7s on my 85 SE next week. I'll let you know how it goes. I am pretty sure I am going to have to go with longer wheel studs, at least in the back. Front may be ok, but I am also using 1/4 inch spacers because of the +42 offest. I went with 205/45/16 Toyo Proxe 4's. Thats close to maintaining the original diameter in both directions(larger or smaller) 50s are .2 larger, 45s are .2 smaller diameter. Everyone I talked to said go slightly smaller rather than slightly larger.

Anyway, I'll let you know how it goes. I am hoping with the lowered (1 inch) but stiffer suspension, and the spacers I will be in good shape. I put the rears on already and could probably get by without spacers, just longer wheel studs. Pretty sure I am going to need the spacers in the front, but thats a function of the wheel offset, not tire size.
Reply
Old Apr 13, 2006 | 09:05 PM
  #3
Rico Suave's Avatar
Rico the rotary freak
Tenured Member 15 Years
iTrader: (1)

Joined: Dec 2004
Posts: 680
Likes: 1
From: orlando,Fl
Thumbs up

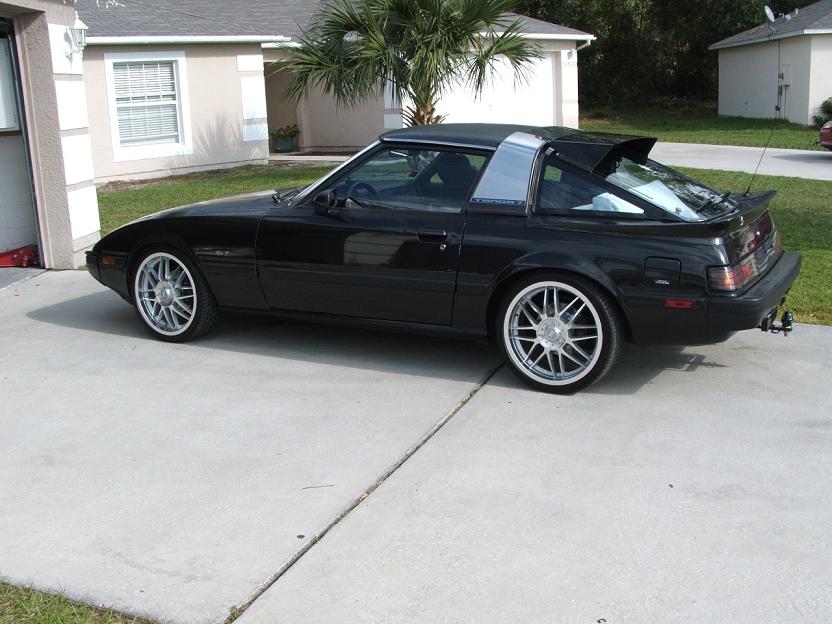

i had 17's in mine with 205-40-17 but i swap to 18's with 215/35 in fronts and 224/40 in rears.
Attached Thumbnails 16" rim on 1st gen-my-seven.jpg
Reply
Old Apr 13, 2006 | 09:35 PM
  #4
Phiber Optik's Avatar
V8 RX-7
Tenured Member 05 Years
iTrader: (2)

Joined: Sep 2002
Posts: 567
Likes: 0
From: BC Canada
16x7 38 or 40mm fits perfect all around no mods

don't go with a 7.5" or bigger it will rub

don't use another offset cos it will rub, or look stupid sticking outside the wheel well
Reply
Old Apr 13, 2006 | 09:41 PM
  #5
rotor vs. piston's Avatar
Function > Form
Tenured Member 15 Years

Joined: Nov 2002
Posts: 10,890
Likes: 3
From: Catonsville MD (baltimore suburb)
16x8 225/50/16 (R) 205/45/16 (F) 35 or 38mm offset (can't remember) does not stick out.

some rubbing on hard bumps in the rear.
Reply
Old Apr 13, 2006 | 10:20 PM
  #6
NoPis10's Avatar
Committee Member #2
Tenured Member 15 Years
iTrader: (29)

Joined: Jan 2005
Posts: 4,280
Likes: 5
From: Committe Chambers
I am running Rota N1R 16" rims with 205-40-16 Frt and 215-40-16 Rr. I can't tell you what offset they are as they were on the car when purchased. I can tell you though that they don't rub at all.
L8R
Reply
Old Apr 14, 2006 | 07:16 AM
  #7
Whizbang's Avatar
Respecognize!
Tenured Member 20 Years

Joined: Sep 2004
Posts: 4,106
Likes: 72
From: Anchor Bay, CA
personally i like 16s look weird. not proportional. kinda like putting 20s on well. anything.
Reply
Old Apr 14, 2006 | 08:56 AM
  #8
JAaron's Avatar
jersey tuner
Tenured Member 05 Years

Joined: Nov 2004
Posts: 100
Likes: 0
From: New Jersey
Originally Posted by caciqueuno
i had 17's in mine with 205-40-17 but i swap to 18's with 215/35 in fronts and 224/40 in rears.
sweet ride do you tow anything with that tow hitch
Reply
Old Apr 14, 2006 | 10:21 AM
  #9
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
Originally Posted by lwnslw
I am running Rota N1R 16" rims with 205-40-16 Frt and 215-40-16 Rr. I can't tell you what offset they are as they were on the car when purchased. I can tell you though that they don't rub at all.
L8R

Can you post a picture of the car? Next time you remove the wheel look on the back or front of the rim for numbers.
Thanks
Reply
Old Apr 14, 2006 | 10:24 AM
  #10
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA

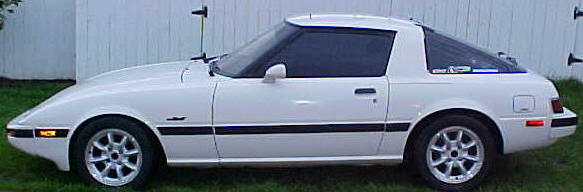

Here is what I had on my gsl-se 15x8" panasports. And now gonna go 16x7" panasports.
Attached Thumbnails 16" rim on 1st gen-mvc-058s-2-.jpg
Reply
Old Apr 14, 2006 | 10:33 AM
  #11
rx7owner's Avatar
Full Member
Tenured Member 15 Years

Joined: Mar 2005
Posts: 224
Likes: 0
From: North Bay, Ontario
Originally Posted by caciqueuno
i had 17's in mine with 205-40-17 but i swap to 18's with 215/35 in fronts and 224/40 in rears.

Where are these wheels from ...they look familliar, i think i saw them on a website that fitted wheels to our 12a cars
Reply
Old Apr 14, 2006 | 11:42 AM
  #12
NoPis10's Avatar
Committee Member #2
Tenured Member 15 Years
iTrader: (29)

Joined: Jan 2005
Posts: 4,280
Likes: 5
From: Committe Chambers
Originally Posted by Fire85GSLSE
Can you post a picture of the car? Next time you remove the wheel look on the back or front of the rim for numbers.
Thanks
Sorry to sound stupid BUT I dont know how to post pics on here.
Reply
Old Apr 14, 2006 | 02:03 PM
  #13
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
Originally Posted by lwnslw
Sorry to sound stupid BUT I dont know how to post pics on here.
I pm'ed you my e-mail to send me the pic and I will post it.
CHad
Reply
Old Apr 14, 2006 | 02:07 PM
  #14
estevan62274's Avatar
#garageguybuild
Veteran: Air Force
Tenured Member: 20 Years
Liked
Community Favorite
iTrader: (33)

Joined: May 2002
Posts: 3,454
Likes: 1,062
From: Space Coast, Florida

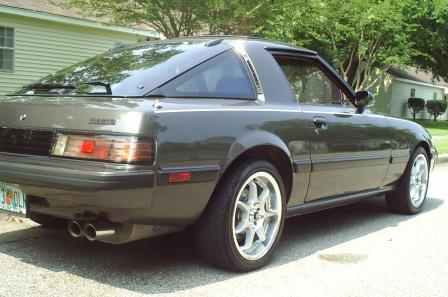

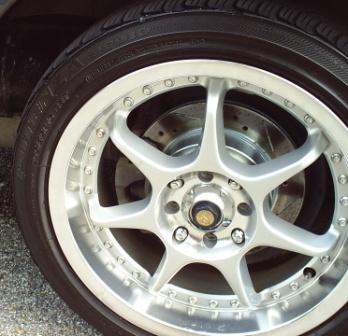

Here's a pic of my SE with 16's
205 45 16
Attached Thumbnails 16" rim on 1st gen-s3000016small.jpg   16" rim on 1st gen-84-se-sm.jpg
Reply
Old Apr 14, 2006 | 03:12 PM
  #15
NoPis10's Avatar
Committee Member #2
Tenured Member 15 Years
iTrader: (29)

Joined: Jan 2005
Posts: 4,280
Likes: 5
From: Committe Chambers
Originally Posted by Fire85GSLSE
I pm'ed you my e-mail to send me the pic and I will post it.
CHad
emailed you.....
L8R
Reply
Old Apr 14, 2006 | 04:20 PM
  #16
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
Originally Posted by estevan62274
Here's a pic of my SE with 16's
205 45 16

What offset and how wide are these rims? They look almost flush.
Reply
Old Apr 14, 2006 | 04:40 PM
  #17
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
Originally Posted by lwnslw
emailed you.....
L8R

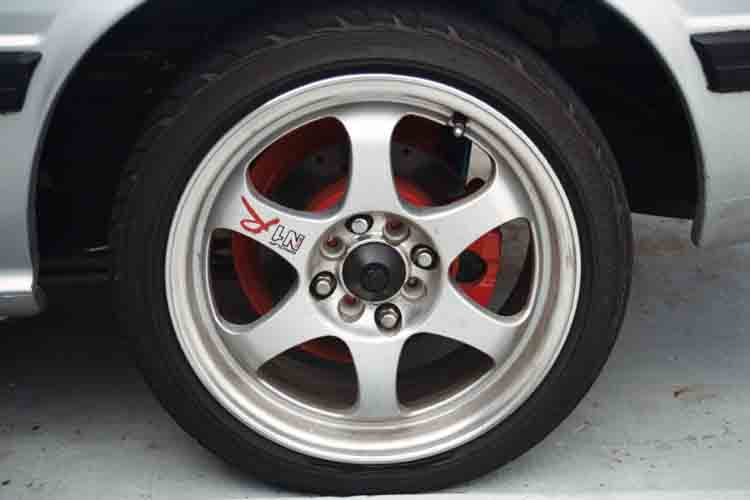

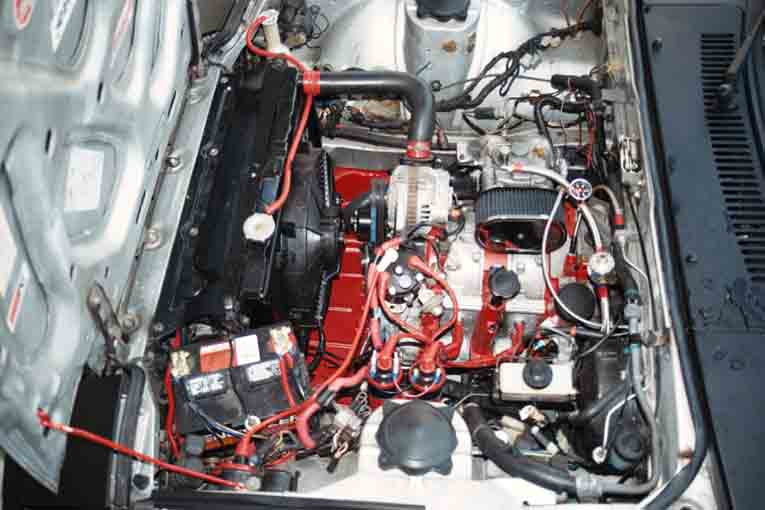

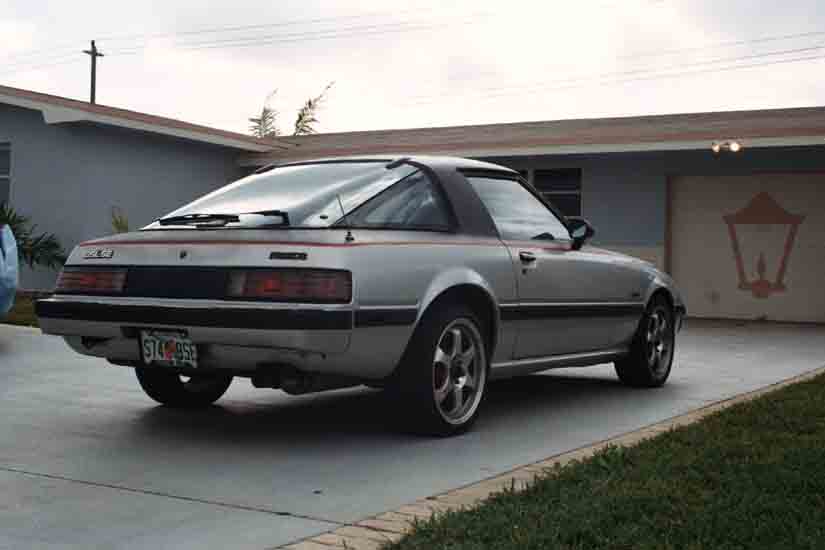

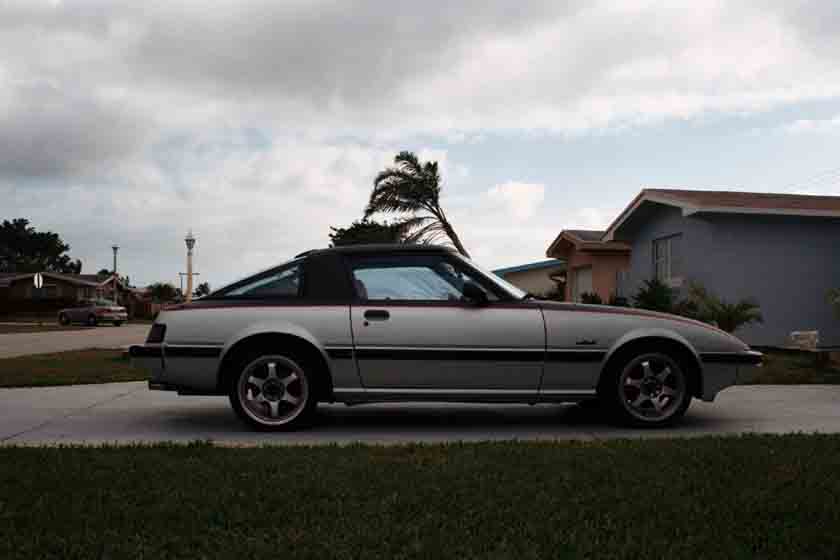

Here is your car
Attached Thumbnails 16" rim on 1st gen-side-7.jpg   16" rim on 1st gen-rim.jpg   16" rim on 1st gen-rear-side.jpg   16" rim on 1st gen-engine.jpg
Reply
Old Apr 14, 2006 | 04:44 PM
  #18
NoPis10's Avatar
Committee Member #2
Tenured Member 15 Years
iTrader: (29)

Joined: Jan 2005
Posts: 4,280
Likes: 5
From: Committe Chambers
Thanks.....
Reply
Old Apr 14, 2006 | 06:16 PM
  #19
Rico Suave's Avatar
Rico the rotary freak
Tenured Member 15 Years
iTrader: (1)

Joined: Dec 2004
Posts: 680
Likes: 1
From: orlando,Fl
jet skis, or my small utility trailer for trips to home depot
Reply
