1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

15x8 0 offset fitment? Low offset rim pic request.

Old 01-22-10, 11:34 PM
  #1
has seen the light.
Thread Starter

bd83fb's Avatar

Join Date: Sep 2009
Location: Uniontown Ohio
Posts: 32
Likes: 0
Liked 0 Times in 0 Posts
15x8 0 offset fitment? Low offset rim pic request.

Curious about picking up a set of rims that are 15x8 with an offset of 0. Wondering what I need to do to make it fit without rubbing? I plan on rolling the fenders.

Anyone got any pics of their low offset (+15mm and down) wheels on their first gen rx7?

I'm looking for the largest, widest, lowest offseted wheel size I can get to give me the most aggressive stance while filling the wheel wells. I enjoy the look of a 1st gen that has a bit of the tire bulging out from the fender.
bd83fb is offline
Old 01-22-10, 11:42 PM
  #2
RX for fun
iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,912
Likes: 0
Liked 3 Times in 3 Posts
it will stick outside the fenders
Siraniko is offline
Old 01-24-10, 12:09 PM
  #3
Old Fart Young at Heart
10 Year Member
iTrader: (6)

trochoid's Avatar

Join Date: Apr 2004
Location: St Joe MO
Posts: 15,147
Likes: 0
Liked 1 Time in 1 Post

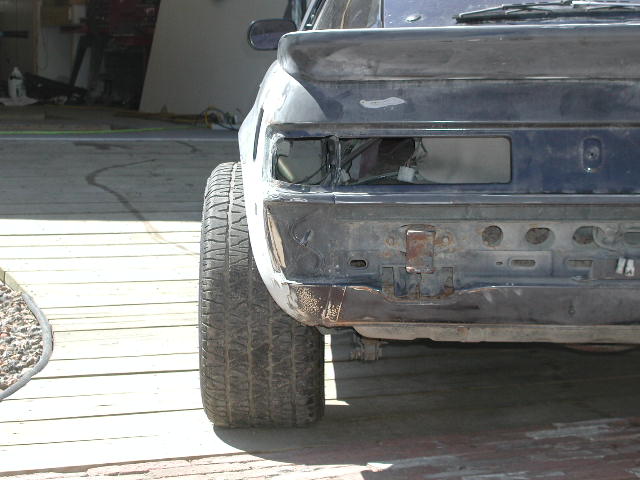

15X8 Epsilons, with 4 to 4-1/2" backspace. This is what started the widebody project. The 15X7" wheels/tires in the front didn't stick out as much, but caught both fender lips and bent them out. Body is sitting on Eibach Pros. Rear had less than an inch of clearance between the tire tread and fender lip.

If you go with this type of rim, you'll need to radius the fender lips and add flares. I have a writeup in the archives on how to trim out the fenders.

Attached Thumbnails 15x8 0 offset fitment? Low offset rim pic request.-p8030378.jpg
trochoid is offline
Old 01-25-10, 05:27 AM
  #4
Senior Member
10 Year Member
iTrader: (1)

StealthGXL's Avatar

Join Date: Nov 2003
Location: Boston, MA
Posts: 564
Likes: 0
Liked 0 Times in 0 Posts
Anyone have a pic of 15x7, 0 offset ?

I have a feeling that with a set of these the fronts will stick out of the fenders more than the rear, true?
StealthGXL is offline
Old 01-25-10, 06:02 AM
  #5
Full Member
10 Year Member

junkyard racer's Avatar

Join Date: Jul 2005
Location: South Bend, Indiana
Posts: 133
Likes: 0
Liked 0 Times in 0 Posts
I believe these are 15x8 0 offset. I know for a fact these are 0 offset...just not sure on the width of the wheel. It is RotaryBuddha's old car....
https://www.rx7club.com/album.php?al...ictureid=14255
junkyard racer is offline
Old 01-25-10, 10:56 AM
  #6
has seen the light.
Thread Starter

bd83fb's Avatar

Join Date: Sep 2009
Location: Uniontown Ohio
Posts: 32
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by trochoid View Post

If you go with this type of rim, you'll need to radius the fender lips and add flares. I have a writeup in the archives on how to trim out the fenders.
Thanks man, I'll be using that archive. Definitely plan on trimming or rolling the fenders then I'm ordering a set of super ZG's.

http://www.zforceproductions.com/ind...d=15&Itemid=56


Right now I'm really torn between the sizes 15x7 (in either +15mm or +0mm) or 15x8 (+0 offset).

The thing that confuses me is how having 4x110 to 4x100 or 4x114.3 wheel adapters will effect the fitment and drive-ability.

I'm planning on the wheel adapter to at least be +25mm to +35mm.

I haven't had much luck in finding too many companies that make 4x110 wheel adapters though.

Last edited by bd83fb; 01-25-10 at 11:00 AM.
bd83fb is offline
Old 01-26-10, 07:39 AM
  #7
Old Fart Young at Heart
10 Year Member
iTrader: (6)

trochoid's Avatar

Join Date: Apr 2004
Location: St Joe MO
Posts: 15,147
Likes: 0
Liked 1 Time in 1 Post
Adapters are out there. I had a great site bookmarked but but after a couple of comp crashes I've lost if, keep looking. You want an adapter that's about an inch+ thick. Keep searching and you will find it. My archive writeup is listed below.

https://www.rx7club.com/1st-gen-archive-71/body-how-modify-wheel-wells-fender-flares-733340/

I like the carbon fiber flares. May have to go that route since I tore up fiberglass front on the widebody, again. Not sure how the widebody will look with the wider over fenders in the rear and stock ones with flares in the front. May have to go with the ISC Racing flares and air dam in the front. During the build, I installed stock front fenders, trying to picture them with flares. It did look a bit strange
trochoid is offline
Old 02-11-10, 11:55 PM
  #8
has seen the light.
Thread Starter

bd83fb's Avatar

Join Date: Sep 2009
Location: Uniontown Ohio
Posts: 32
Likes: 0
Liked 0 Times in 0 Posts
Since I am using wheel adapters to change my bolt patern, and adapters also act as spacers if I am thinking right, what size offset would it be safe to go with? I am now considering more of a higher offset (20mm-38mm).

I have been told to go with an adapter that is atleast 25mm.

Correct me if I'm wrong, but if I had a 15x7 wheel with et 38mm would I be running 13mm offset all around with adapters of 25mm?
bd83fb is offline
Old 02-14-10, 07:16 AM
  #9
Junior Member

PISTONSLAYER's Avatar

Join Date: May 2007
Location: FAYETTEVILLE, NC
Posts: 15
Likes: 0
Liked 0 Times in 0 Posts
You can use this page to play with the different wheel and tire size comparisons as far as what the wheel/ lip will look like. the best thing ive found is. once you find an offset/ wheel width you like, build yourself a mockup out of cardboard, remove your wheel, place a jack under the lower control arm so the suspension compresses as it would with a wheel on it. then lower you car with that mockup and see more closely how that wheel/ width/ backspace is gonna work with your combo. Good luck. here's the link: http://www.bigcustomwheels.com/info_specs.jsp
PISTONSLAYER is offline
