it seemed to drive fine without boosting but it was lean yeah
when it was boosting it was kinda pissing and moaning it wasnt nice and it was super lean



yeah you need to call got some tips my guess is fuel pressure is to low!



Fuel pressure is gonna have to be like 3.5. If the floats are drastically over the half way mark you're gonna need to adjust the floats as well!

You are also gonna have boost creep like a mother with 3" exhaust. You need to correct your fuel issue though. set it at 3.5 take i for a run see if its better. if it is than work on getting those floats set right. Then fine tune it with diffrent jets and such! If yah want something that just bolts up call rob!



OK So she idles she moves but once into secondaries or on boost it is so damn lean the guage wont register even when cruising on the primaries she is real lean like in the 15's
fuel pressure is at 3.5 psi and rises when i give it throttle at idle
I only made about 4-5 pounds of boost and unless I really gently throttled into it it coughed and sputtered but both ways yeilded unrecordably lean conditions.
looks like I have to find some jets!



Oh it idles real lean too it is between 14-16 just idling



kev as far as the idle try closing the air screw a little, or opening the fuel screw or both Re-seal that acv and make sure you have no leaks anywhere.



Alright so I got some videos of a couple test runs I made yesterday... I had to drive and tape so sorry about the shakyness

1st run
http://media.putfile.com/12a-12-brid...bo-first-drive

2nd run
http://media.putfile.com/12a-12-bridge-first-drive-2



sorry 2nd run didnt work here it is

http://media.putfile.com/12a-12-brid...o-test-drive-2



I was wondering because I am running the low compression 12aT rotors can I run more timing safely?



OK so i ask about the timing because I cannot get this car timed dead on 10 deg BTDC.

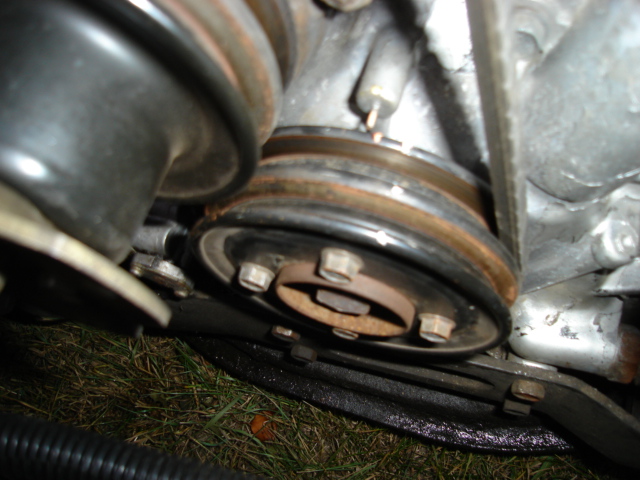

The way the car runs best is set like the first pic
It fires L1 way before the white line which is 10* and the dizzy is fully retarded

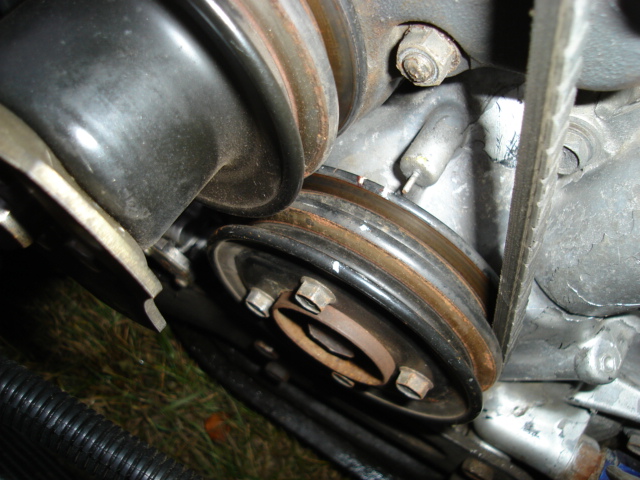

If i skip a tooth back then it ends up firing L1 where pic 2 shows the pin which is after the orange dot (TDC) and that is with the dizzy fully advanced
So i have opted to go with advanced as it runs like **** with the dizzy set back a tooth. so I am thinking I am about 15-18* advance any body know what I have to do to get this thing to beable to run at 10*?
I figured that where it is set because I cannot retard the dizzy enough to get to 10* I would just pull the dizzy and skip 1 tooth back then fully advance the dizzy and viola it would be closer to 10*BTDC but it seems that skipping 1 tooth back really sets the timing back.

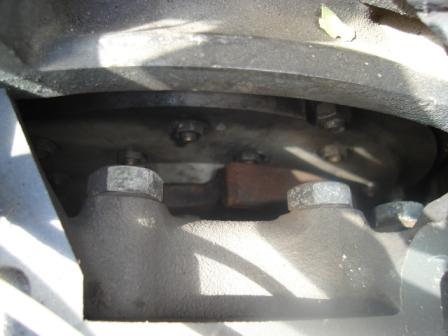

because my car has a lightweight flywheel I marked my top dead center using the counter wieght and the two bolts in the top ispection plate... this is where it sits when I am at my marked TDC



use a racingbeat pulley and set it at 10 degrees advanced, not btdc..
also since your motor is a bridgeport, there is overlap. with overlap the motor dumps unburned fuel and air throwing off the wideband readings, in short this means bridgeport turbo motors are THE hardest to tune.



OK is advanced not Before Top Dead Center?? I thought advancing your timing means to have it spark before 0 degrees?



am I doing something wrong?



Before Tdc=retarted After Tdc=advanced



So do I want it at the red or the blue?.... right now I have it at the blue I am being told set it at the red

Thanks



Thats backwards,

Retarded timing is when the spark occurs after top dead center,

Advanced timing is when the spark occurs before top dead center.




To the original poster,
right side of the timing pin is retarded
left side of the timing pin is advanced.



I'm retarted. I did post that backwards. If you want a simple way to get it to ten advanced, just get the leading between the "0" mark on the pulley for the leading, and the "20" mark for the trailing.



i think im having the same problem trying to time my superchargered sa.
cant figure out the timing..and it seems to run better retarded rather than advanced?
oh well hopefully you can figure your problem out so you can help me
edit: i think i got the retarded and advance thing mixed up also...so if its to the left its advanced and right is retarded? sounds about right when i think about it.



when you look at the front of the motor right of tdc is advanced left is retard motor spins clockwise.



Thanks ben so I am on the right track here.. I got some new jets for the car today so after work I will try them out



That doesnt make sense either....

I thought my last post cleared this up....



OK so I have it set right
I thought so and I have it dead on 10* now as well



man you people are ******* noobs. right side if the pin is advanced. left is retard. the pullet turns ******* clockwise. looking at it from the front of the the car. it rotates clockwise. so advanced would make it fire before tdc retard is after the compression stroke. i just give up on this **** man. Never mind it was my setup he has never ******* mind i have had a supercharged one and timed it just fine. sam is right i am right the rest of you are wrong. If the pin is in the middle and the motor turns clockwise btdc is lets say 1 o clock if tdc is 12 o clock . hence 11 o **** would be AFTER TDC cause it all ready turned passed tdc makeing 11 after tdc and retarded is it fires at 11. The stock maerks are at zero and twenty behind zero. so if what everyone is saying is true that would make trailing fire before leading. cause if what you are saying is correct the marks would go 20 and then zero that would make trailing fire at 20 and leading at zero.

SO to recap if the motor turns clockwise btdc would be a mark before it passed the tdc mark would be on the right side of the pin and atdc would be after 0 and to the left of the pin because it passed 0.



look here at racing beats **** if yah don't believe me btc is advance atc is retard. Stock is 20 btc at like 4,000 rpm's with a 20 spllit throughout the curve.

http://www.racingbeat.com/FRmazda1.htm

When you turn the dizzy clockwise it advances and counter is retard make a mark anywhere on the pulley and watch which way it moves when you advance the dizzy problem solved. If you cant achieve proper timing on what i said then your motor is not at tdc when you stabbed the dizzy. I don't know what to tell you for an aftermarket flywheel. Thats why i wanted you before you pulled the dizzy to pay attention to your original pulley.

My bottom line is kev the motor turns clockwise marks to the right of the tdc pin are advanced and to the left of the tdc is retard. just remember the motor TURNS CLOCKWISE TOWARDS YOU IF YOUR STANDING AT THE DRIVERS FENDER!
