JPsSparkYellow

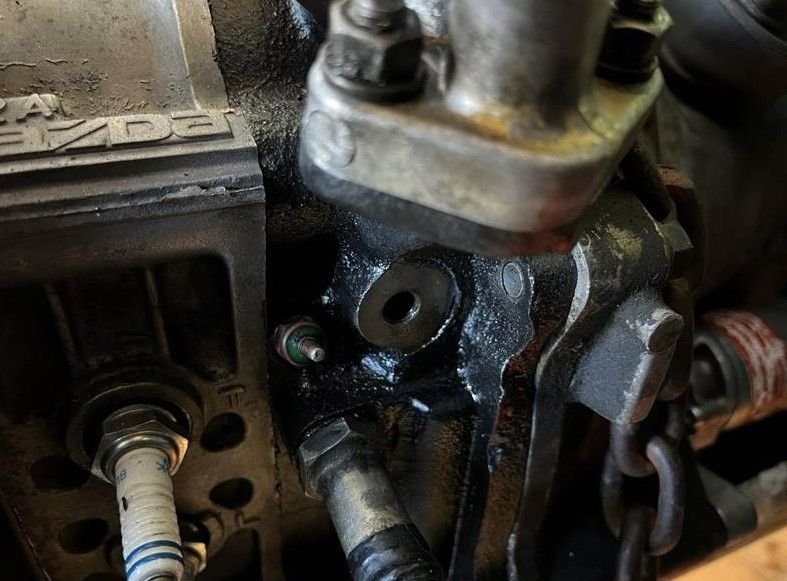

Hi, I am trying to figure out what size bolt fits into the hole below the oil filter. I am running an SA oil cooler and need to plug this hole:


It seems to be M10 diameter. I have tried M10x1, M10x1.25 and M10x1.5. They all go in a couple threads but then stop. Any ideas how I can plug this? Thanks

diabolical1

iTrader: (3)

i think i remember reading that it's some kind of weird (JIS) thread.

why not just put the pressure sensor back in it even if you don't plan to use it?

JPsSparkYellow

I did not realize that was for an oil pressure sensor, thanks. Unfortunately, I bought the keg without the sensor

JPsSparkYellow

Was able to find the answer to my question here now that I knew what to search
https://www.rx7club.com/1st-generati...-pitch-447596/

The size is 1/8PT

KansasCityREPU

iTrader: (9)

The SA never had an oil pressure gauge.

tommyeflight89

iTrader: (4)

Is it NPT or BSPT?

FYI the sender is still available from Mazda. Not sure if you have an SA or not...
