Vacuum Lines?
Thread Starter
Junior Member
Joined: Mar 2013
Posts: 31
Likes: 0
From: Myrtle Beach SC.
Vacuum Lines?
Just bought this RX7 and the previous owner made a mess out of the vaccum lines. Sticks and caps plugging all of the lines. I will be rebuilding my carb, and removing the rats nest.
? is does anyone have a diagram that has the routing for the left over vaccum lines?
? is does anyone have a diagram that has the routing for the left over vaccum lines?
Joined: Aug 2011
Posts: 3,078
Likes: 42
From: Cambridge, Minnesota
Should be one in the FSM that you can find in the archives.
I'd redo the entire rat's nest if I was you with new lines and caps.

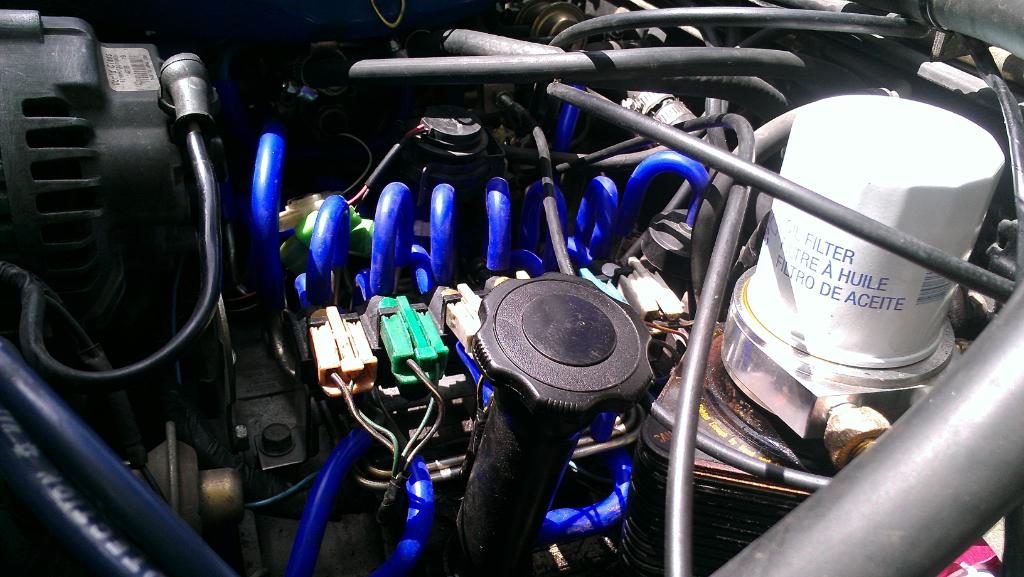

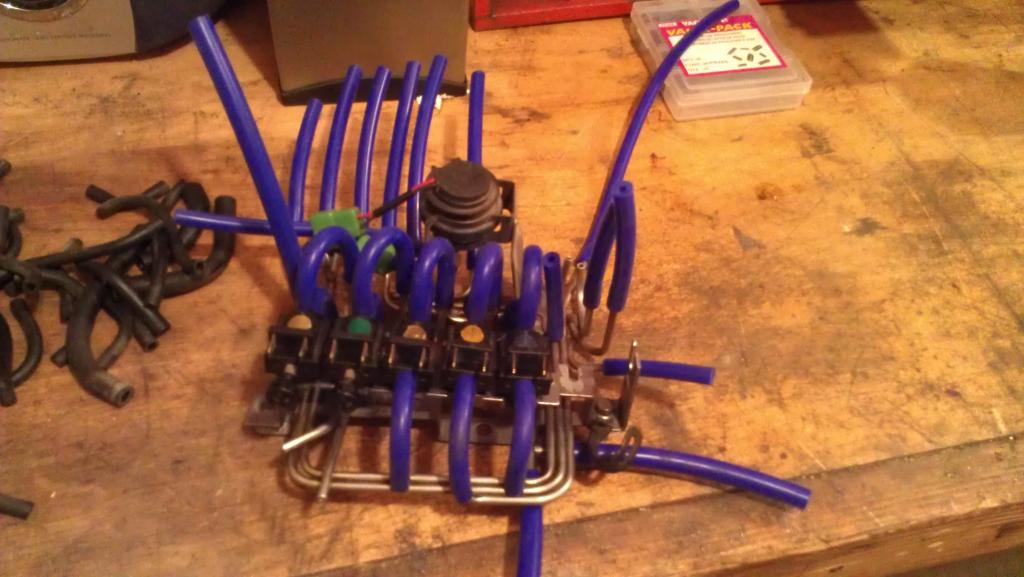

Look nice when they're redone:
I'd redo the entire rat's nest if I was you with new lines and caps.
Look nice when they're redone:
Thread Starter
Junior Member
Joined: Mar 2013
Posts: 31
Likes: 0
From: Myrtle Beach SC.
So if i delete the rats nest, cruise control, and the OMP (going premix while I build up my 383)
I should only have the brake booster, pcv from under the oil fill, and the vacuum advance from the dizzy right?
I should only have the brake booster, pcv from under the oil fill, and the vacuum advance from the dizzy right?
