SA rear carpet attachment
#1
Junior Member
Thread Starter
Join Date: Jul 2013
Location: Bloomington MN
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
SA rear carpet attachment
I did not take the rear upright carpet piece off of my 1979 Limited. I have a new piece, and can't figure out how they attached it. There are no holes in the plastic piece, but suspect that there should be. Does anyone have pictures of the way that piece attaches?
#3
Happy Rotoring!
iTrader: (13)

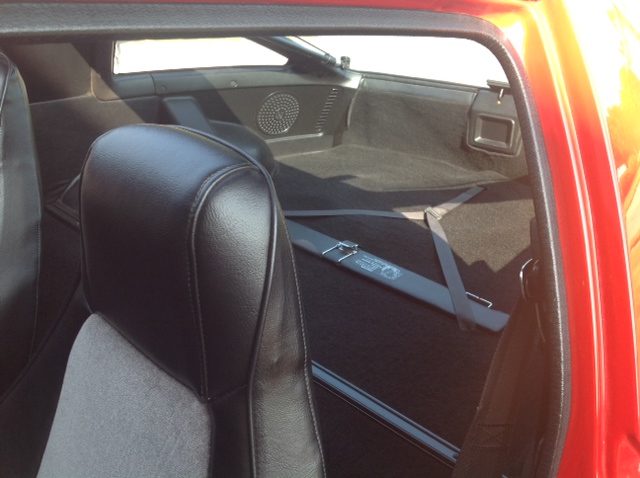

I can get a better picture if needed, but the rear carpet section which covers the tail goes on top of the plastic trim piece. About 6 or so sheetmetal screws hold both the carpet and plastic trim in place. The shetmetal screws go through a thinnly reinforced strip and are hidden when installed, as the carpet folds back over the top of them. The two snaps (one on each outer, lower edge) attach to the cargo floor. The cargo floor carpet then goes over the top, trimming it all off.

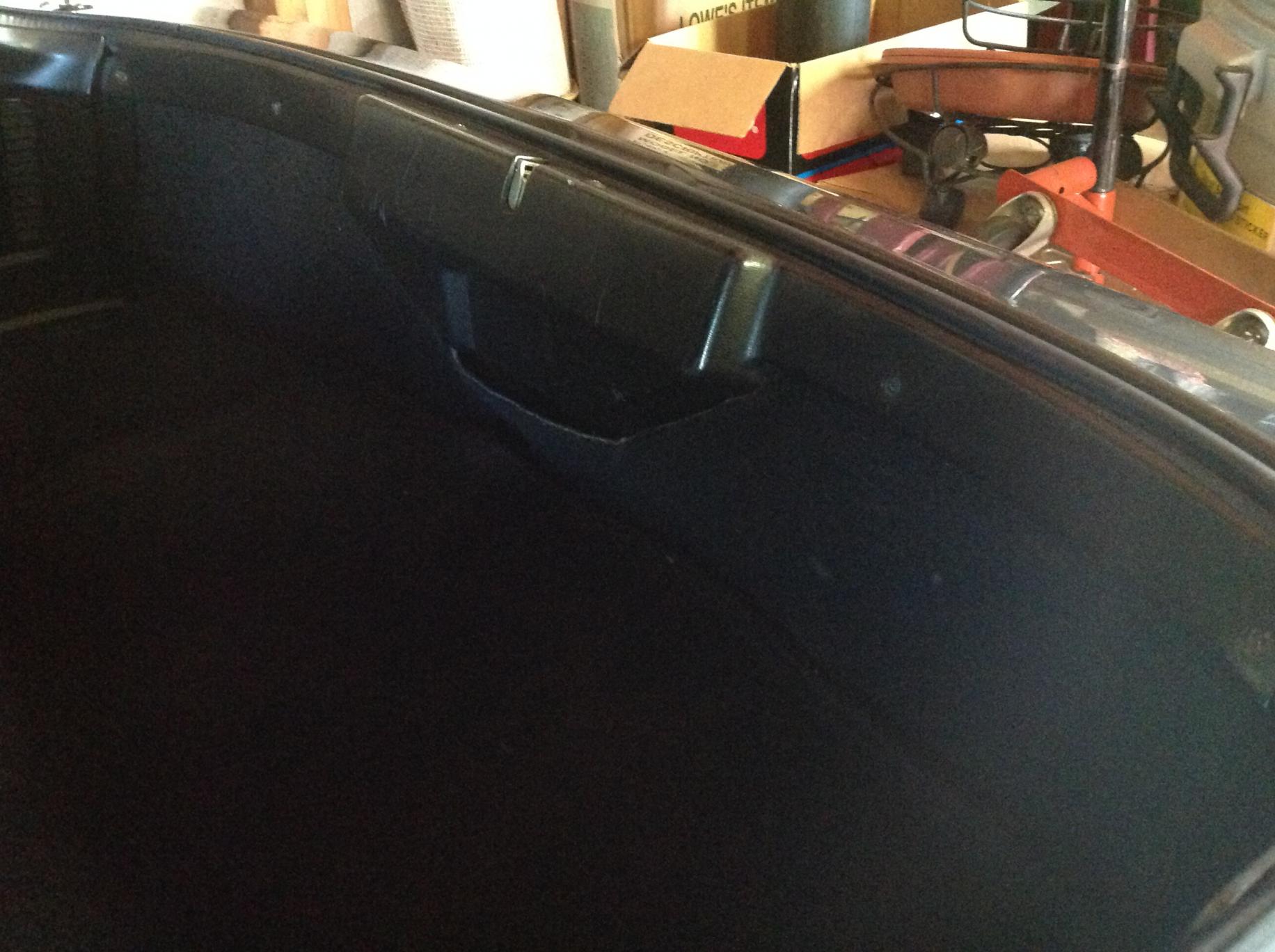

Sometimes the reinforced part of the carpet (where the sheetmetal screws go through) deteriorates and I've saw guys who just screw through from the outside, exposing the screws. See picture two.
Sometimes the reinforced part of the carpet (where the sheetmetal screws go through) deteriorates and I've saw guys who just screw through from the outside, exposing the screws. See picture two.
#4
1st-Class Engine Janitor
iTrader: (15)
I can get a better picture if needed, but the rear carpet section which covers the tail goes on top of the plastic trim piece. About 6 or so sheetmetal screws hold both the carpet and plastic trim in place. The shetmetal screws go through a thinnly reinforced strip and are hidden when installed, as the carpet folds back over the top of them. The two snaps (one on each outer, lower edge) attach to the cargo floor. The cargo floor carpet then goes over the top, trimming it all off.
Sometimes the reinforced part of the carpet (where the sheetmetal screws go through) deteriorates and I've saw guys who just screw through from the outside, exposing the screws. See picture two.
Sometimes the reinforced part of the carpet (where the sheetmetal screws go through) deteriorates and I've saw guys who just screw through from the outside, exposing the screws. See picture two.
On the 80 version, the plastic trim piece is different, and the carpet attaches to the rear of it with Tinnerman clips. Attachment to the floor is by snaps at the corners, as in the 79.
#5
Junior Member
Thread Starter
Join Date: Jul 2013
Location: Bloomington MN
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the prompt responses. If I could get a picture of the carpet flipped back it would show what I am trying to see. The pictures you sent give me a pretty good idea, but still can't see if the sheet metal screws are placed through the plastic. If they are I will have to create the holes since the replacement piece doesn't have any.
It could well be there is a variation between the 79 and 80, I know there were several other changes.
It could well be there is a variation between the 79 and 80, I know there were several other changes.
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,606 Likes
on
1,849 Posts
Thanks for the prompt responses. If I could get a picture of the carpet flipped back it would show what I am trying to see. The pictures you sent give me a pretty good idea, but still can't see if the sheet metal screws are placed through the plastic. If they are I will have to create the holes since the replacement piece doesn't have any.
It could well be there is a variation between the 79 and 80, I know there were several other changes.
It could well be there is a variation between the 79 and 80, I know there were several other changes.
i've seen the flaps break/be missing, and in this case you'd have a screw that kind of is in the middle of nowhere.
in the pic, which is a scan of a book, into microfishe, and then into computer, 59-605C is the screw with the button head. flaps on the 69-860 panel are missing in the drawing...
#7
Happy Rotoring!
iTrader: (13)

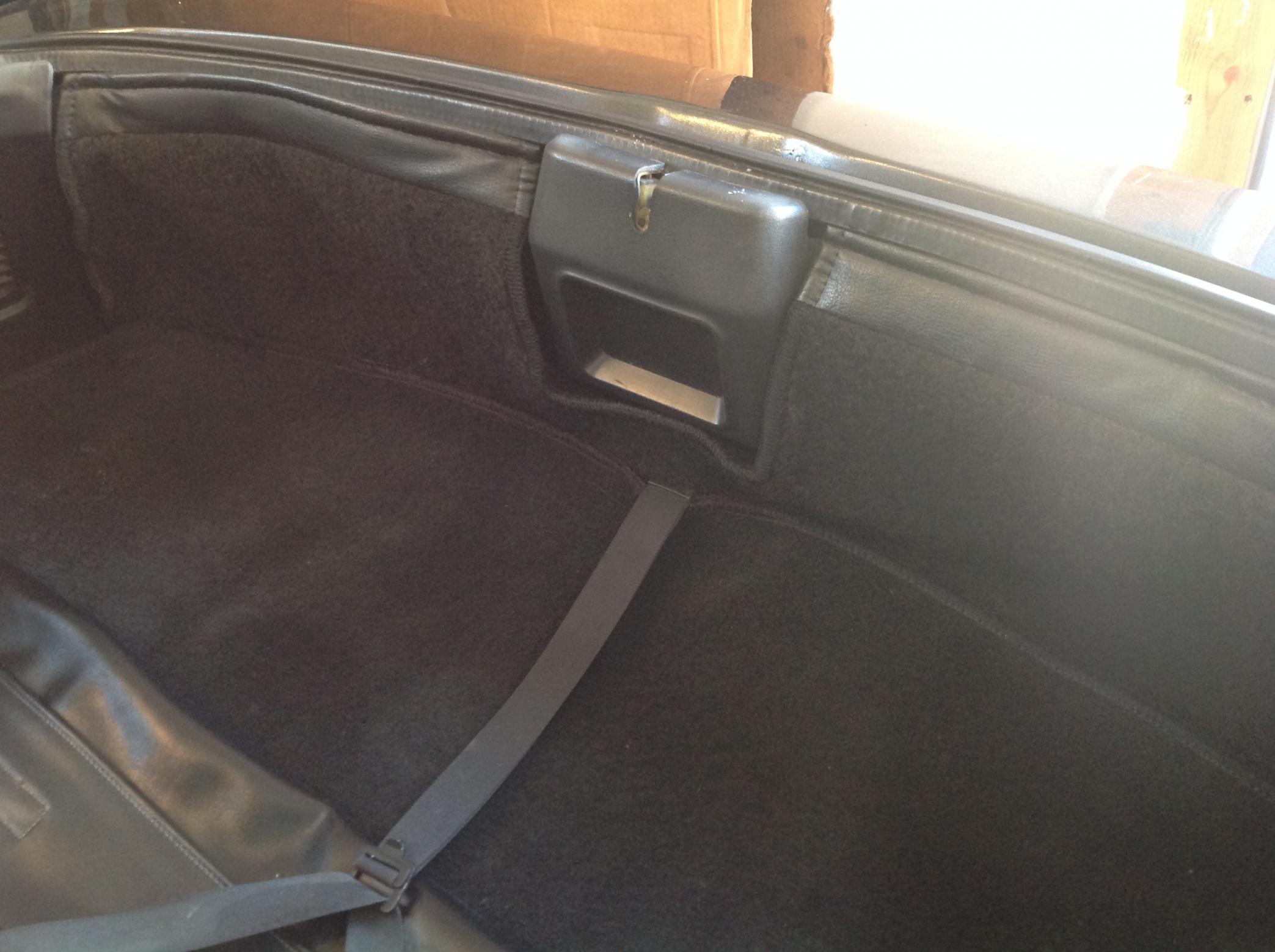

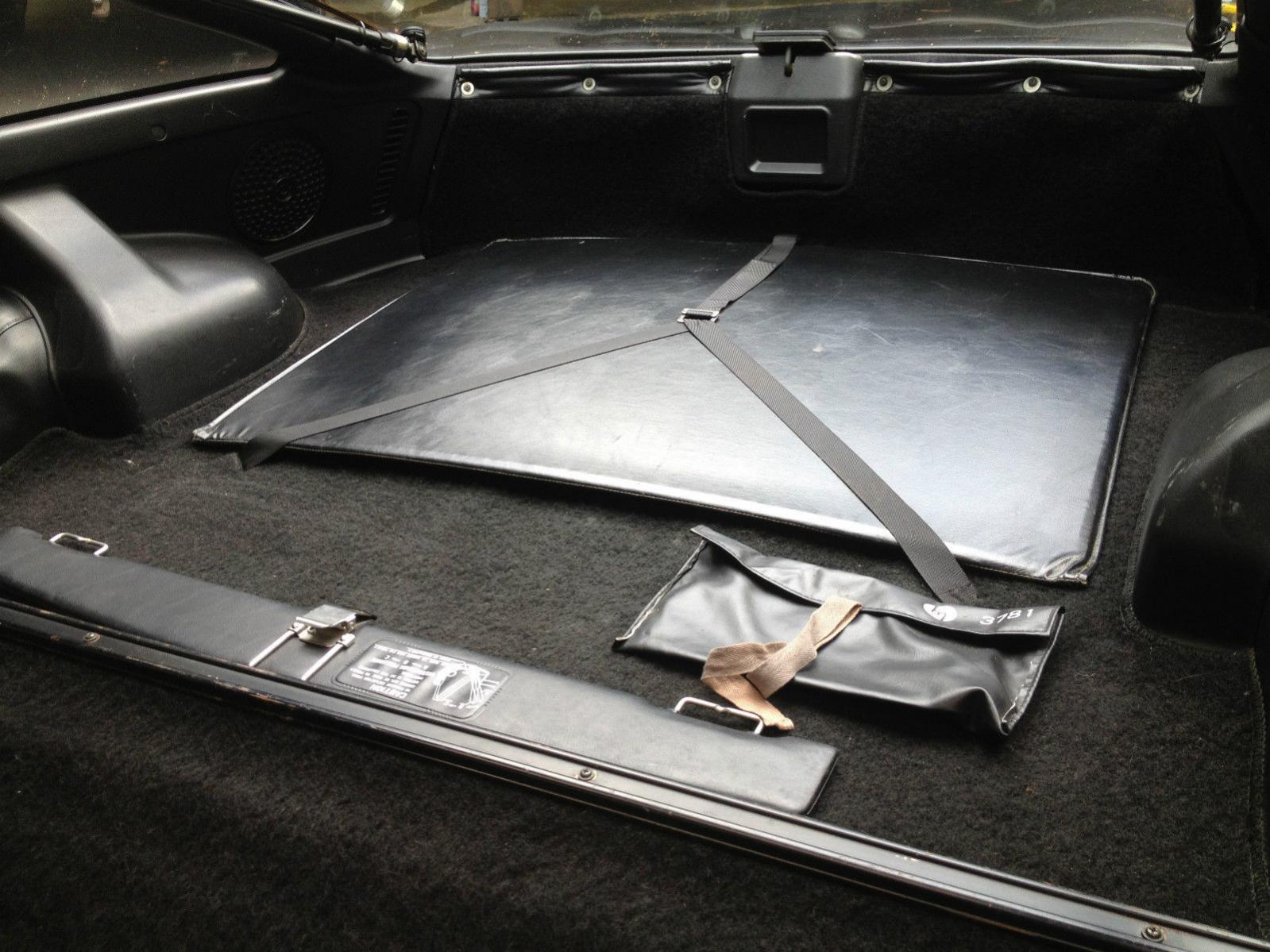

DD is right, there is a difference btw 79 and 80 SA's. The first pic is my 80 (built in Aug 79 and originally a Cali car). The plastic cover over the rear hatch release mech is significantly wider, giving the carpet section a larger cut out surrounding it. Also, mine slips "under" the plastic trim strip along the top edge. The whole thing is secured w/4 screws through the plastic trim which in turn clamps the carpet in place underneath it. DD, does yous mount different?

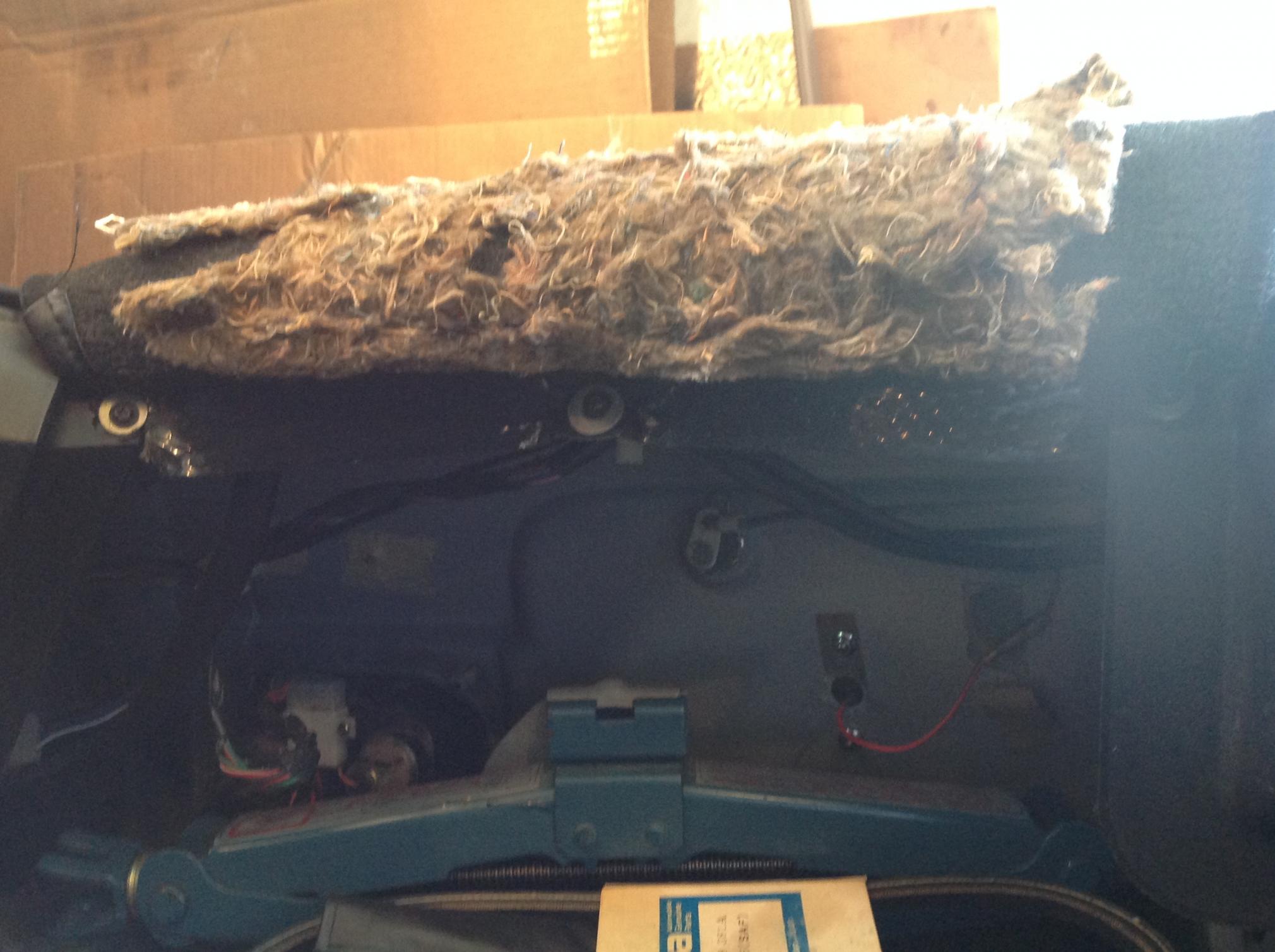

The second pic shows how much smaller the hatch release cover is on a 79 (this one is a Limited also). So if you need a 79 verticle rear carpet replacement, it looks to be a one year only part. The last pic shows the underside of the 79 and the 3 screws per side attachment. The first thing you should look at is the central cutout in the carpet and how it fits around the hatch release. If yours is not original to the car, it might be different. They could have changed again in 81.
