1st Gen General Discussion The place for non-technical discussion about 1st Gen RX-7s or if there's no better place for your topic

S1/2 Long Heater Hose Still Available?

Thread Tools

Search this Thread

Old 07-01-23, 05:18 PM
  #1
3D Printed
Thread Starter

Benjamin4456's Avatar

Join Date: Nov 2017
Location: Beaverton, OR
Posts: 1,098
Received 243 Likes on 169 Posts
S1/2 Long Heater Hose Still Available?

I'm having some trouble tracking down the heater hose that runs from the engine to the heater core on the 1979-1982 cars. The one for 83-85 is easy to find, but my engine doesn't have the tee in the rear iron required for it to fit properly. Anyone happen have leads on part numbers or availability for the earlier hose?

The one that doesn't fit is N231-15-550, although I have yet to find a number for the correct one. Really would like to finally get rid of this bright red hose installed by the PO (photo below) while I'm going through and refreshing things - it's been bugging me for over six years now . Any help would be much appreciated.

Old 07-01-23, 08:21 PM
  #2
Happy Rotoring!

iTrader: (13)

Banzai's Avatar

Join Date: Dec 2007
Location: Iowa
Posts: 2,304
Received 377 Likes on 247 Posts
The long hose currently available from Mazda is 8871-61-230. Should be about $40.



The following users liked this post:
j9fd3s (07-02-23)
Old 07-01-23, 11:31 PM
  #3
3D Printed
Thread Starter

Benjamin4456's Avatar

Join Date: Nov 2017
Location: Beaverton, OR
Posts: 1,098
Received 243 Likes on 169 Posts

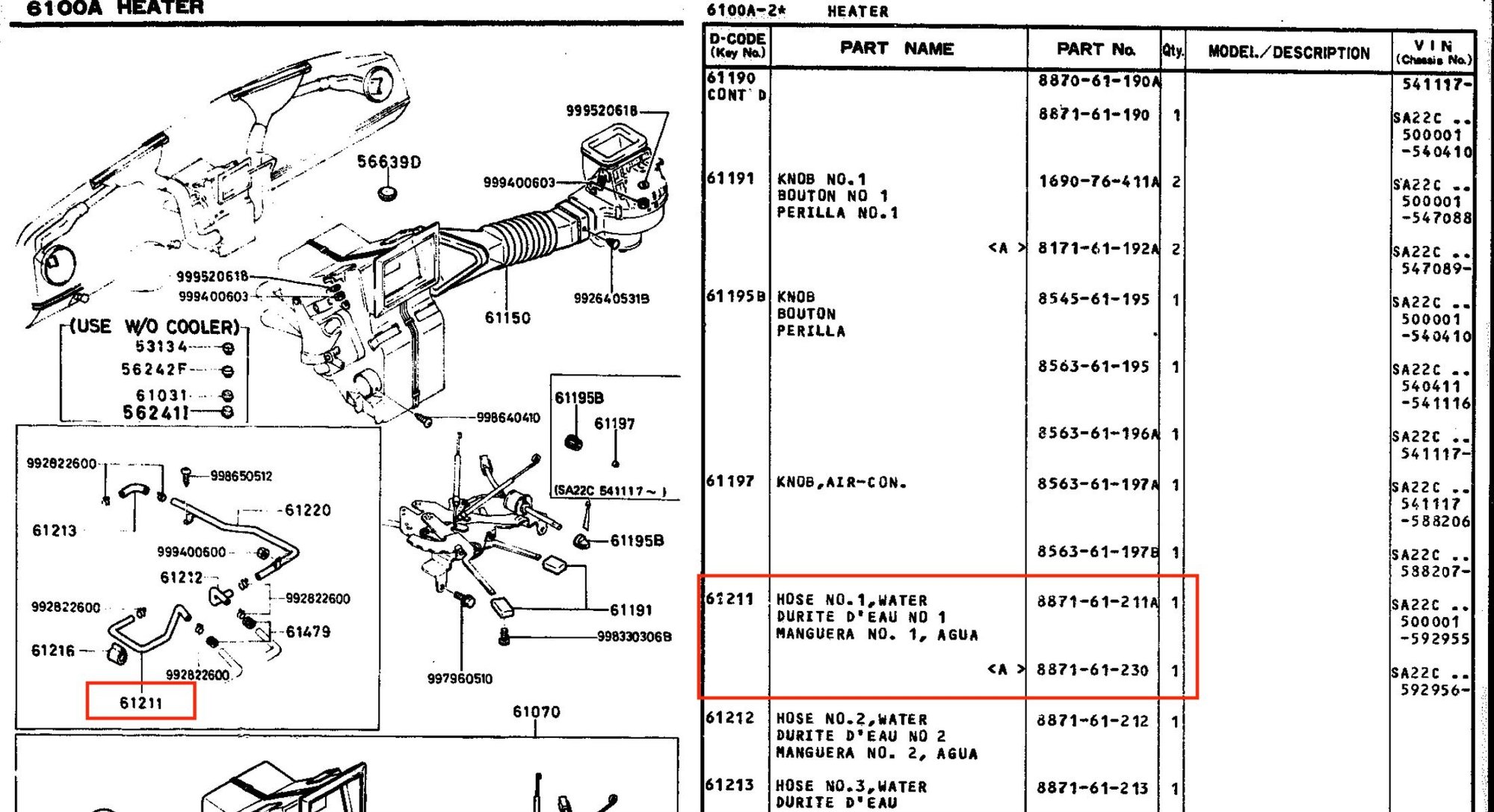

Crimeny, I saw that one but thought it didn't look right; guess I'm just crazy. Thanks for the diagram, numbers, and confirmation, Chris.
Old 07-02-23, 09:37 AM
  #4
Happy Rotoring!

iTrader: (13)

Banzai's Avatar

Join Date: Dec 2007
Location: Iowa
Posts: 2,304
Received 377 Likes on 247 Posts
I've changed out a couple of them this year already. Been meaning to order a couple more.



The following users liked this post:
j9fd3s (07-02-23)
Old 07-02-23, 04:21 PM
  #5
84SE-EGI helpy-helperton


LongDuck's Avatar

Join Date: Oct 2002
Location: Phoenix, AZ
Posts: 3,314
Received 359 Likes on 250 Posts
The part that seems to fail on this hose is directly under the Oil Filter Pedestal. Consider replacing the 2 O-rings which mate the pedestal to the rear iron, and that prevents oil leaks from dripping down and onto your pretty new hose.
The following users liked this post:
j9fd3s (07-03-23)
Old 07-03-23, 11:35 AM
  #6
3D Printed
Thread Starter

Benjamin4456's Avatar

Join Date: Nov 2017
Location: Beaverton, OR
Posts: 1,098
Received 243 Likes on 169 Posts
Awesome, good info thank you. Got one ordered although I unfortunately couldn't find it for around $40 - local dealers wanted either over $100 or $80 plus freight, but I found it from an online dealer for ~$74 shipped. Look forward to finally having the correct hose in there.
Old 07-03-23, 02:31 PM
  #7
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,828
Received 2,595 Likes on 1,843 Posts
i made a thread with all the hose and clamp part numbers https://www.rx7club.com/1st-gen-gene.../#post12566788
Old 07-03-23, 04:18 PM
  #8
Happy Rotoring!

iTrader: (13)

Banzai's Avatar

Join Date: Dec 2007
Location: Iowa
Posts: 2,304
Received 377 Likes on 247 Posts
Originally Posted by j9fd3s
i made a thread with all the hose and clamp part numbers https://www.rx7club.com/1st-gen-gene.../#post12566788

You da man!


Yea, must have got the price mixed up with something else. $74 seems the going rate now.

Last edited by Banzai; 07-03-23 at 04:25 PM.
Old 07-04-23, 09:55 AM
  #9
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,828
Received 2,595 Likes on 1,843 Posts
Originally Posted by Banzai
Yea, must have got the price mixed up with something else. $74 seems the going rate now.
it must have gone up?
