mazdaverx713b

iTrader: (91)

Rich, any updates on the car?

64mgb

iTrader: (1)

I've been making slow progress. I have several things partially complete.

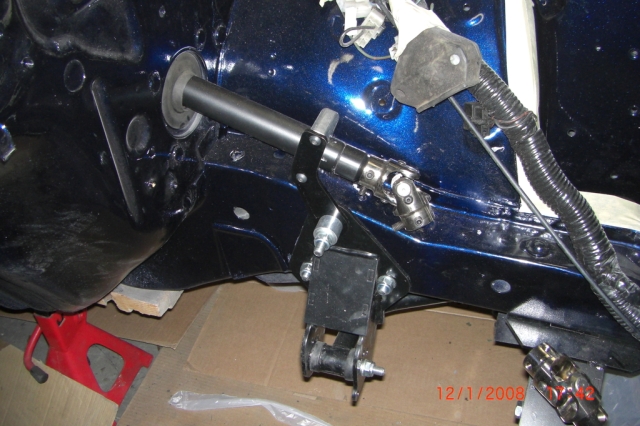

I have the rack and pinion conversion all done except trimming the ends of the rack to the proper length. I can't do that until I have the motor in and can set it on the ground so they are trimmed for the proper ride height. But I think I'll go ahead and trim them some so I can set it on the ground and move it around, then trim them again after the motor is in.

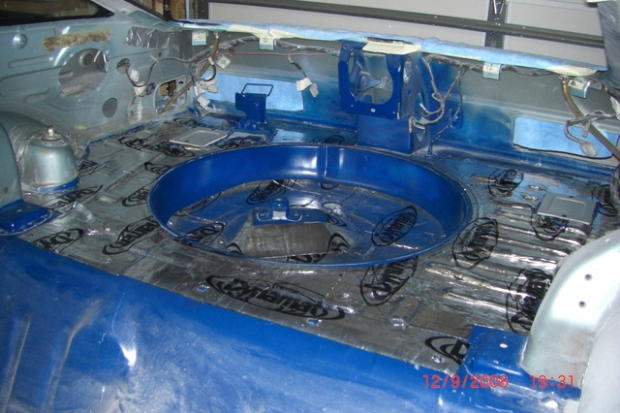

I have some of the Dynamat in...just in the rear section.

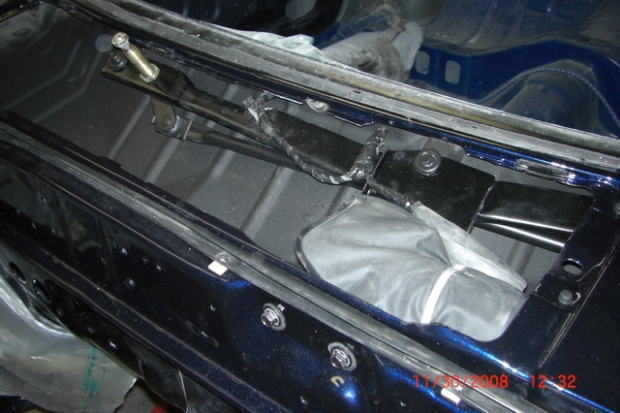

I got the wiper mechanism and cowl installed.

I have the headlights installed and the headlight relay and heavy duty wiring harness partially installed.

And I have the driver's door pretty much complete, including the mirror, door handle, latch, power window, and power door lock.

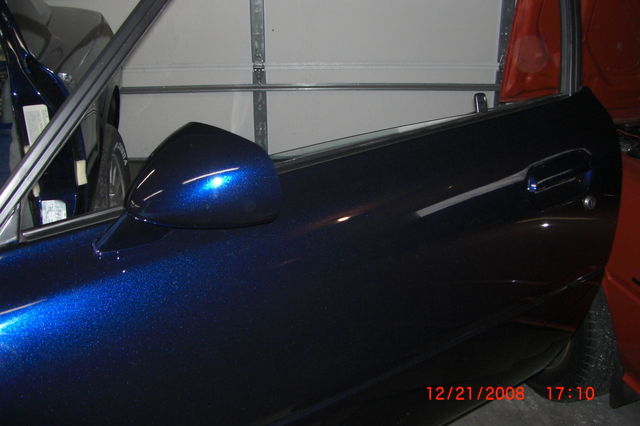

And for those that doubted how it would look with the mirror and door handle painted body color I've included a picture...I think it looks great! Not a very good picture, but it's going to be a while before I can get one outside, with all theis #%@$#*(@!#* snow

I'll try to post periodic updates to show you my progress.

Rich

IanS

iTrader: (4)

Coming along nicely Rich. Dont listen to the haters when it comes to color matched mirrors and handles - they obviously dont know what they're talking about.

Edit: Put some dynamat around your fuel pump mounting area and some under where the bins go also (I know thats basically the same spot) but that may help with the fuel pump noise a bit and also kill the pingy sound of rocks hitting the fender well areas in the rear.

64mgb

iTrader: (1)

Thanks man. Yea, I'm planning on covering the entire floor with the Dynamat, and also plan on covering the rear wheel arches, up the pillars behind the doors, and under the headliner (I have to check with the guy that will do the headliner first to make sure he thinks the headliner will fit ok if I do that).

I'll be doing the rest of the Dynamat when I finish putting both doors together, then I'll move on to wiring. I need to wire in the new digital gauges, the alarm system, the power door locks, and (your favorite lol) the stereo.

Rich

OnlyOnThurs

its looking great Rich! nice job! hey can you adopt me...........lol.............

chris_g

iTrader: (29)

Looking great man! I almost painted my car that color.

Someday I will take my car apart again and completely overhaul it. The motor will be coming out sometime soon (within a year) as it just hit 100,000. I'd like to keep it for a while and plus I have to paint the engine compartment still.

Good luck on the rest of the project and keep us updated!

64mgb

iTrader: (1)

Thanks Chris. I'm hoping to have this car ready for next year's calendar. :-;

Rich

mazdaverx713b

iTrader: (91)

things sure are coming along nicely! your attention to detail really sows through and i really respect the amount of work that has gone into this car! nicely done sir.

64mgb

iTrader: (1)

Thanks - I appreciate the kind words! Paying attention to the little details makes for some slow progress, but I know I'll regret it if I don't do it right. I have both doors pretty much done now other than a couple of little things and the Dynamat on the inside surface...I expect to have them completely done tomorrow or Saturday.

Rich

mazdaverx713b

iTrader: (91)

installing that dynamat will make for a quieter ride and less vibration in the vehicle. are you installing the supercharged engine in this car?

64mgb

iTrader: (1)

Yea, that's the idea behind the Dynamat. Make the ride quieter and make the sound system sound better...right Ian? LOL Yea, the supercharged 6 port 13B is waiting patiently in the corner to be re-installed!

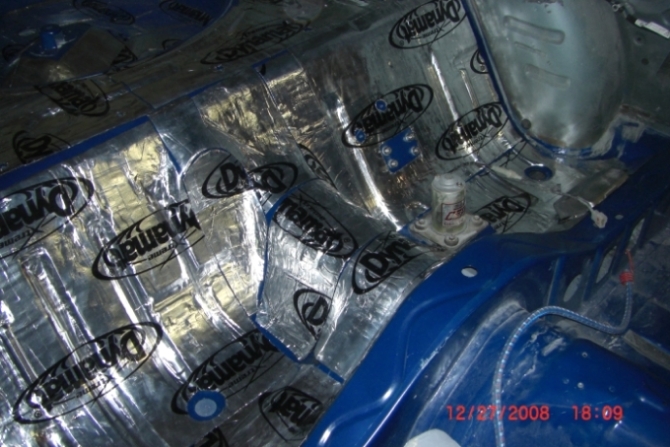

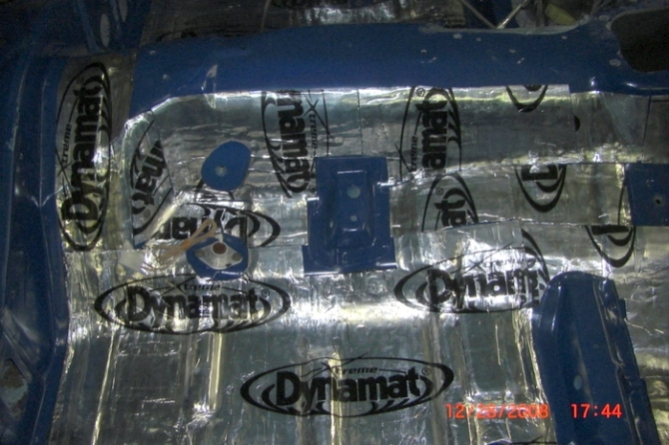

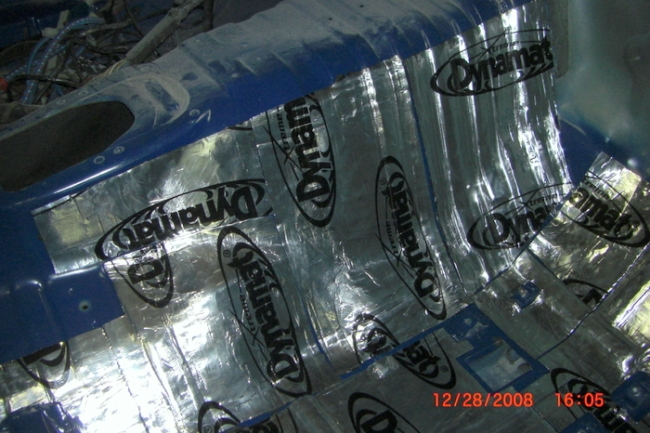

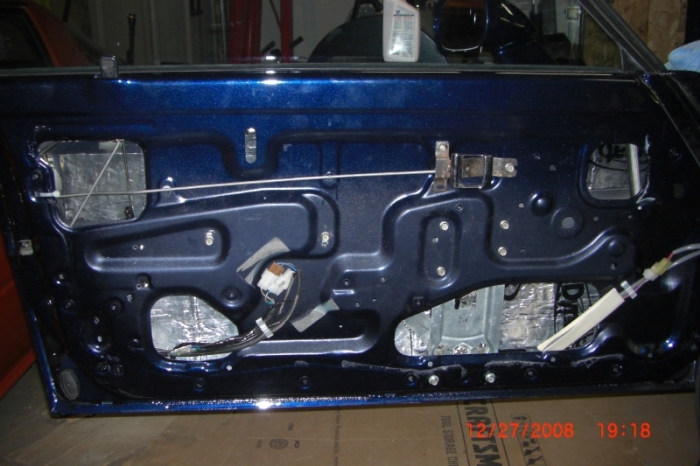

Here's the latest update, with pictures. Both doors are pretty much complete, including the wiring for the after market power door locks and the transplanted power windows (which work GREAT by the way!). The Dynamat is done on the floorboards except the front section of the driver's side, and the driver's side of the tunnel. Besides that, I still need to put Dynamat on the firewall and on the vertical surfaces (pillars, rear sections) and the roof. I've started just piecing smaller pieces of the Dynamat together, rather than trying to cut large pieces to fit. It leaves some gaps, but it's much easier to cut the pieces to fit, and much easier to get them into place.

Can't wait to get going in earnest on the wiring. When I removed unnecessary wires from the engine harness I unraveled the tape and actually removed the wires and the pins from the connector on the passenger's side of the firewall, which means I have extra pins available. So I plan on running the gauge wiring and the alarm wiring through this connector. i plan on running the power for the alarm and for the stereo through the grommet on the driver's side. Fun stuff!

Rich

mazdaverx713b

iTrader: (91)

thats really impressive Rich. that stuff takes some time and patience to install properly. thumbs up to you. looking great!! i'm really loving the color more and more as i see it on your car...though i still wish it wasnt originally an ocean blue car. but hey i cant will em all, lol. de-pinning the harness and running the needed pins for your accessories will be an excellent idea and will provide a super clean and stock look. nice work!

64mgb

iTrader: (1)

Latest Update.

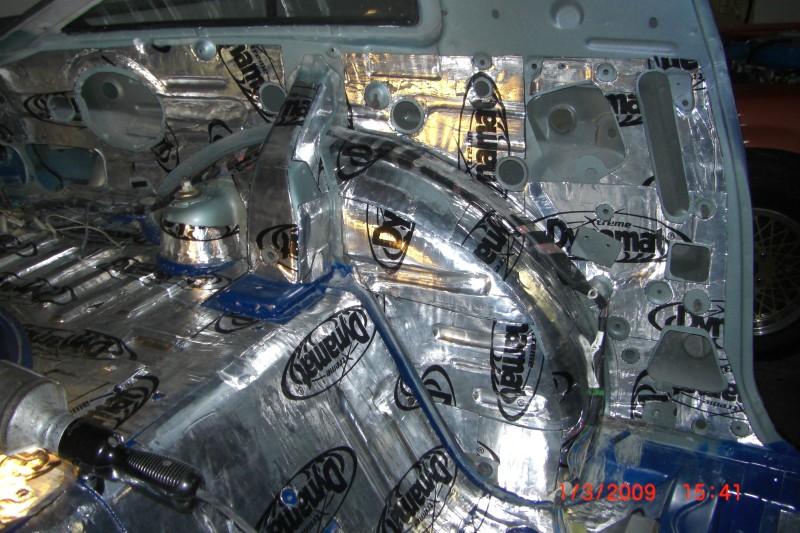

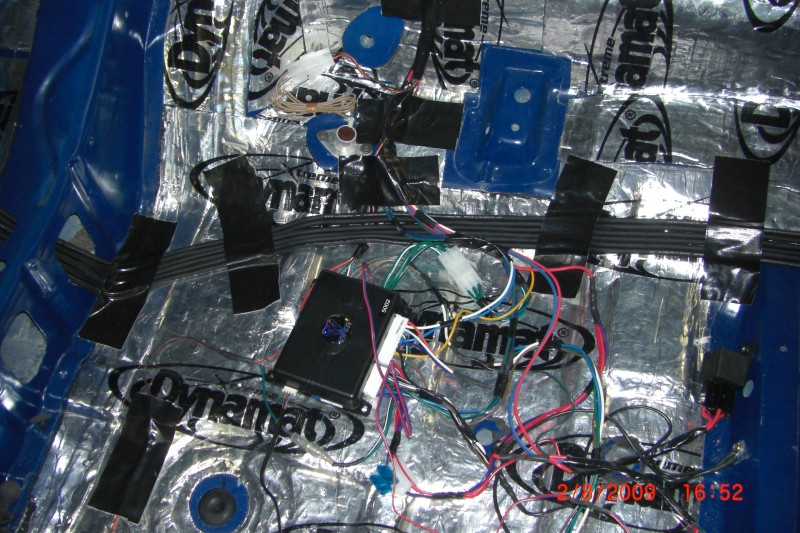

I have most of the Dynamat in. I just ordered more to finish up a few areas. Still need to do the inside panel of the doors, and want to cover the roof and the ECU cover. I have the alarm wired and tested, and it works great. The only thing that is questionable is the horns when the alarm sounds. They sound sick. Not sure what's going on but I'm hoping that it's some sort of grounding issue that will go away when I have all the wiring in. If not, well, the siren should drown them out anyway.

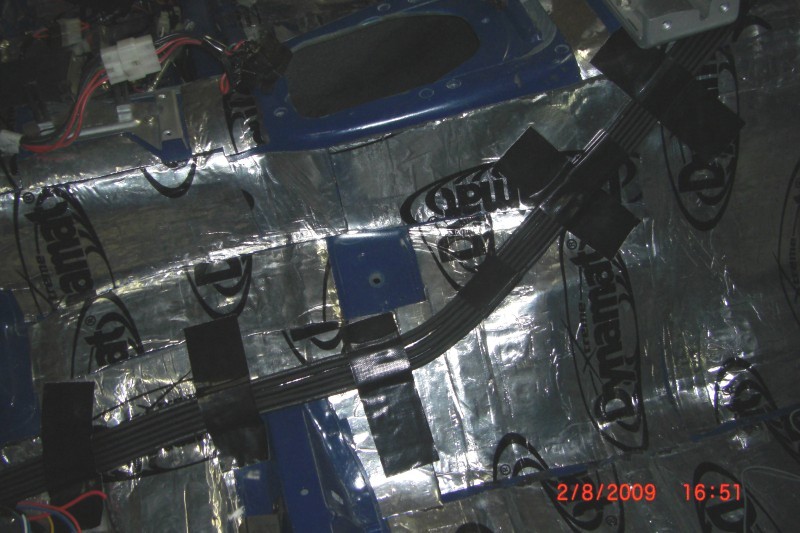

I converted the fusible links to the FC fuse panel (thanks Ian!) and ran all the wires for the stereo.

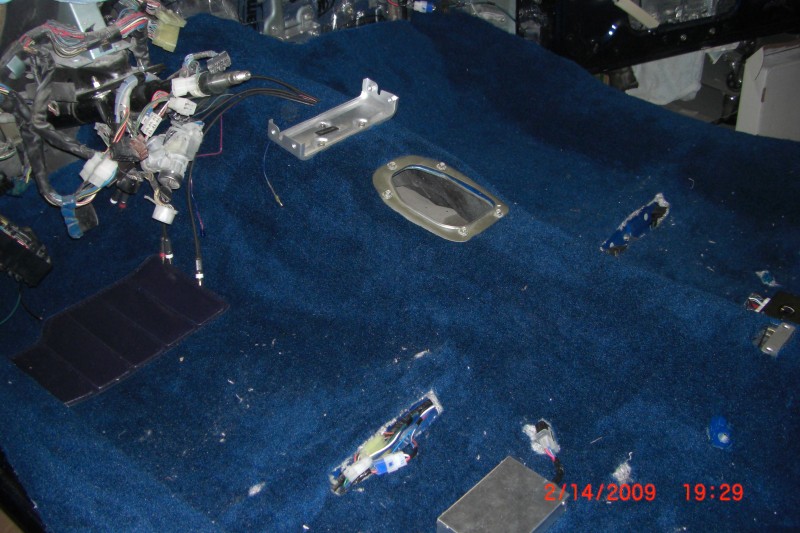

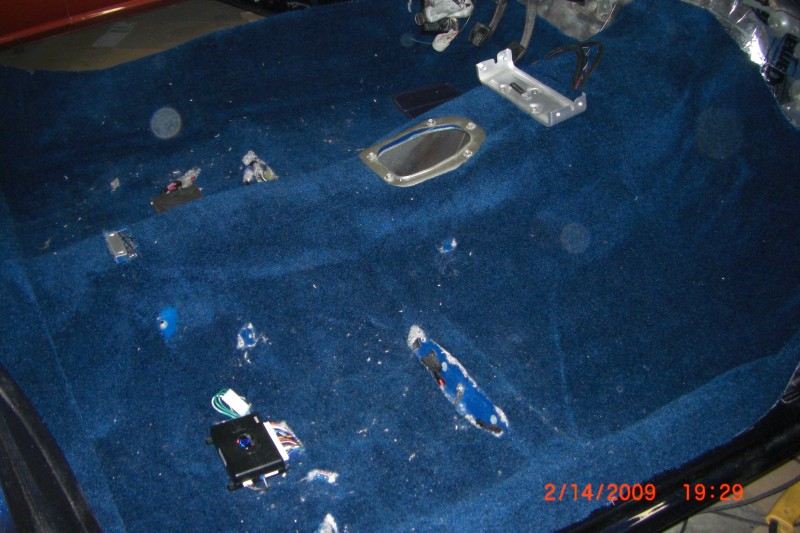

I got the carpet in. I got it from StockInteriors.com and have to say it's very good. I read several other threads about carpets and saw a lot of complaints about the fit and the width being too narrow. While the fit isn't perfect, it's not bad, and there was extra on all 4 sides that had to be trimmed away. I'm planning on taking it up to my interior guy to have him do some edging on it where I made some cuts, then will put it in for good and start working on getting the dash put in. After that the windshield can go back in, and then I'll drop the motor in and start buttoning things up.

Rich

7aull

iTrader: (2)

Hey Rich - not to take away from the stunning work on the car resurrection, I think a lot of us would LOVE to get you take on the install and "gotchas" you went thru on the rack-&-pinion kit. Seriously looking at the RESpeed rig myself.
Thanks for updates and pics...
Stu Aull
80GS
Alaska

ourxseven

iTrader: (1)

Nice to see the updates , other than the 74 Nova build thread in the other rotary section , this is my favourite . Nice carpet . Are you going to put some black seats in there ? I confer on your paint matching mirror and door handles. When I got the 79 E6 paint bback form fresh painting I particularly noticed how great the colour matching looked .

wish I could see it in person on a sunny day , I know that paint colour is hard to really capture with a camera

ΝΙΚΟΣ

this car is one step in front of my project.which carpet is this?is it the 812 - Royal Blue ?nice work!!!

vipernicus42

iTrader: (4)

Great choice on colour and awesome job with the Dynamat and carpet

Out of curiosity, how much dynamat did it take to do all that?

Jon

64mgb

iTrader: (1)

Yep...812 - Royal Blue. I really like it. But I'm going to have to do something about the headliner they sent me. I ordered 1690 - Dark Blue. I got a sample first, but the roll they sent is a fair amount different than the sample they sent me. It has a bit of a green tint to it. So much so that I don't think I can use it. I haven't called them yet to see what can be done about it.

Hey Stu - as for the rack install, it's fairly straight-forward, although I'm not done yet. I need to wait until I have the motor in so it sits at the proper ride height before I trim the ends of the tie rods. The biggest problem I remember having so far is installing the arms with bushings on them. They are a very tight fit. I finally made a spreader to spread the ears that they fit between and they slid right in. Besides that, it takes a little bit of trial and error to get the length right for the shaft that fits between the rack and the steering column, but it isn't too bad.

Rich

mazdaverx713b

iTrader: (91)

Rich, great job thus far!! i actually think the carpet color is a good choice! i assume you are doing the rear carpet in the same color. what are you going to use as far as seating goes? are you going to go with an aftermarket blue seat ot like a blue and black? are you thinking something along the lines of an alcantara seat?

64mgb

iTrader: (1)

Hey Jon - So far I've used two 36 square foot boxes, with a bunch of very small scraps left over. I just ordered a third to take care of the roof, door panels, and a few smaller areas left to do.

Rich

64mgb

iTrader: (1)

Thanks! The seats will be 3 different colors/materials. The backs and outside edges will be dark blue vinyl. The outside parts of the seat bottom and back cushion will be a dark blue cloth, and the center portions of the bottom and back cushion will be a lighter blue cloth with a bit of a darker blue speckled pattern in it. The door panels will be the same vinyl and cloth. The dash and all the trim will be black.

Rich

thunkrd

iTrader: (1)

so basically you're going to have an extremely awesome car inside and out. but how much does it all cost together? is it like buying an rx8?

64mgb

iTrader: (1)

That's a good question and I can't give you an answer. When I restored my MGB I did a really good job of tracking expenses, but have not done so on this one. But I can tell you that the paint job alone cost more than I could sell the car for when I'm done LOL. But then, I'm not doing it to make money...I'm doing it because I want to.

Rich

(null).exe

iTrader: (2)

You sir, have forged a supermodel out of sex and awesome, frosting it with pure ownage...

You inspire to repaint my own, while her skin is decent, a bit of bubbling and chipping is getting me antsy to repaint...any chance we could get a ballpark figure for the paintjob cost?

64mgb

iTrader: (1)

Wow...I hope I can live up to that!

The paint job cost roughly $8319.73. That included some minor body work. Just a bunch of dings and minor dents, and shaving the side markers and badge holes and antenna hole. They also had to straighten the left front frame member. But no rust repair required. It was a complete color change so it included shooting the engine bay and door jambs.

Rich
