Ha-LED-gen Lights
Terrible, I know. But I turned my Beamtechs into Halogen, sort of.
I've been running the Hella 7" headlights with Beamtech LEDs, very white color at 5500K but with my stock 83 it was a bit jarring. So why not the best of both options, low power consumption, bright light, and 3200K Halogen color temp?
I bought some of this stuff, Lee Filter part # 626. They have a bunch of colors for different starting this specific one filters 5500K LEDs to 3200K. I bought a big assortment pack. You only need one sheet:
https://www.filmandvideolighting.com...ter-sheet.html
Here's the applications list (lol that font, so 70's photographer!):

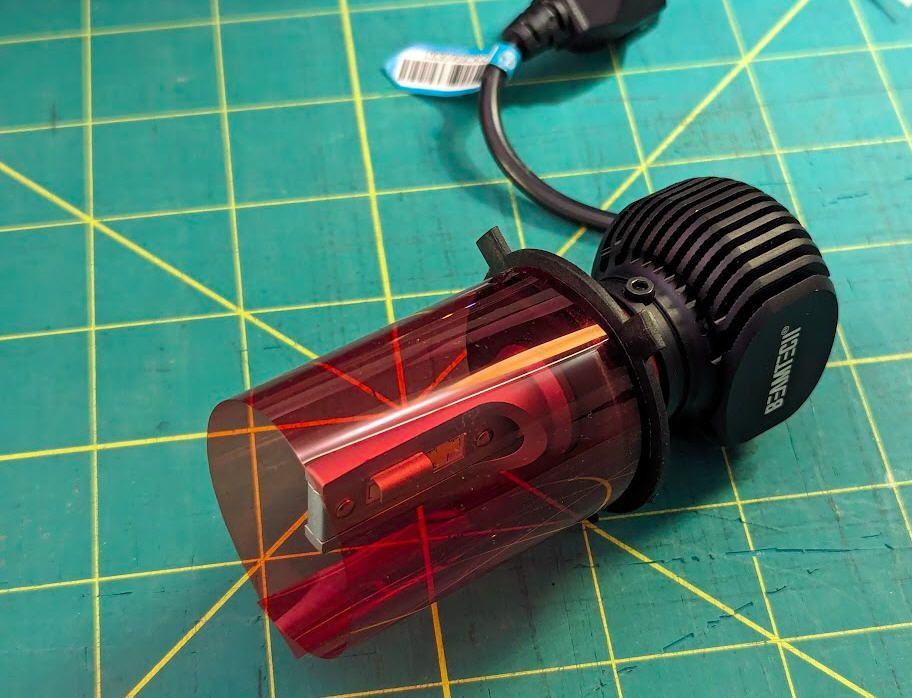

I bought it from a local theatrical lighting guy but that link is the same thing. I cut a 2" x 2.25" square and wrapped it around the LED, held on with an O-ring
It's a bit overlength in order to just butt up against the inside of the bulb cover inside the Hella fixture.
And here's a side by side shot, with unchanged on the left, new on the right
I've been running the Hella 7" headlights with Beamtech LEDs, very white color at 5500K but with my stock 83 it was a bit jarring. So why not the best of both options, low power consumption, bright light, and 3200K Halogen color temp?
I bought some of this stuff, Lee Filter part # 626. They have a bunch of colors for different starting this specific one filters 5500K LEDs to 3200K. I bought a big assortment pack. You only need one sheet:
https://www.filmandvideolighting.com...ter-sheet.html
Here's the applications list (lol that font, so 70's photographer!):
I bought it from a local theatrical lighting guy but that link is the same thing. I cut a 2" x 2.25" square and wrapped it around the LED, held on with an O-ring
It's a bit overlength in order to just butt up against the inside of the bulb cover inside the Hella fixture.
And here's a side by side shot, with unchanged on the left, new on the right
#3
Rotary Enthusiast
Thread Starter
Thanks! I took a ride last night for about 30 minutes and I'm really pleased with the quality of the light...no longer super white and not sickly yellow. The lighting guy said the gels are made take plenty of heat, high watt incandescent heat. But to your point I'll be keeping a eye on them
#4
Rotary Enthusiast
how much for the conversion, and how many amps does it draw?
looks great.
looks great.
#5
Rotary Enthusiast
Thread Starter
This is a great thread for the replaceable bulb conversion: https://www.rx7club.com/1st-generati...ights-1152368/
It looks like the Hella and Beamtech are ~$150 all in on Amazon right now. The Lee 626 filter gel is ~ $10 for the sheet, you need a very small amount as seen above.
Here's my post where I installed the LEDs originally last year. https://www.rx7club.com/group-buy-pr.../#post12465616
The LEDs draw 1.6 amps each, about 30% of the original sealed beam halogen draw.
It looks like the Hella and Beamtech are ~$150 all in on Amazon right now. The Lee 626 filter gel is ~ $10 for the sheet, you need a very small amount as seen above.
Here's my post where I installed the LEDs originally last year. https://www.rx7club.com/group-buy-pr.../#post12465616
The LEDs draw 1.6 amps each, about 30% of the original sealed beam halogen draw.
The following users liked this post:
ATC529R (05-13-22)
