Banzai

iTrader: (13)

Isn't the rear hatch trim cover molded with a slight textured finish? You'd probablly lose some of it if you sanded on it. Might try just cleaning and painting it. Probablly wouldn't look any worse. If its too scratched up, put one on your scavenger hunt list. Even a better condition cover in another color could be painted to match.

I consider these plaid interiors a rare and a unique version of the breed. Someday I believe they will be coveted and more desireable.

From the factory, floor mats were not offered but could be bought from the dealer or aftermarket. These were pretty basic back in the day and finding survivors in good condition today is impossibile. Here's a like to some info on some nice matts and even a rear compartment cover. I believe Jason still pokes around on here.

https://www.rx7club.com/group-buy-ce...up-buy-958363/

Red95FD

iTrader: (3)

Love this color combo. Just saw one of these on carsforsale.com It has 25K miles and is mint. Only problem, it's an automatic. And they are asking 10K . They were asking 12K. crazy

NCross

iTrader: (18)

Try the heat gun trick. Ive used it with success. Just dont hold the heat over one spot too long.

NCross

iTrader: (18)

RCCAZ 1

iTrader: (10)

Thanks for the tip. I'll give it a shot!!!

NCross

iTrader: (18)

Had to share as these were linked to the other video...
I like the plunger method!

RCCAZ 1

iTrader: (10)

Interesting. That low mileage auto is nearly identical to mine, except it was obviously a later in the model year car due to dual mirrors, doors with map pockets, etc. Of note though is the "41" chalk mark on the fan shroud in the engine bay. Mine has the same mark. Anyone know the significance of this mark and number? Was the number applied always "41"? Just curious to know if others have seen and what it means!

Thanks for posting the info. If I had a little more available cash it would be cool to buy that car and have a matching set (auto and 5 speed)

j9fd3s

iTrader: (3)

no idea on the meaning, however there are quite a few little paint marks and things like that on these cars, particularly the interior bits.

Mazda does this even with the FC parts

Red95FD

iTrader: (3)

Yea that would be dreat to have them both.

The "41" may have been the worker that installed the fan shroud on the assembly line. Or the quality control guy that did the final check on the car. IDK but it's cool all the same.

This thread has awakened a desire in me to find a low mileage SA. I really love the interiors and tail lights and the fact that the first rx7 I ever drove was a red 79 with black and white plaid seats. Wifey says I have to sell one of my cars though.

7aull

iTrader: (2)

Don't forget the carpet and the softer trim around the cover - ALL plastic (yep, even the carpet) and may react more to the heat before you get the results to the cover you want. Bit of a PITA but I think the cover is just clipped to the rest of the panel? Maybe best to separate it for the heat-treatment.
BTW, the heat demo video shows this work on a side molding restoration. For those specifically I have found there are some FABULOUS applications for restoring them.
Specifically:

3400 Urethane Supply Company Bumper & Trim Black 3oz

Urethan Supply Company's "Bumper & Trim BLACK 3400"
It applies like a shoe-polish applicator. Just mask around the trim, clean with alcohol, apply - done. Like NEW! I use it every 2-3 years. Takes about 1/2 a side to do.

Stu Aull
80GS
Alaska

RCCAZ 1

iTrader: (10)

Thanks Stu. Yea, I pulled it out of the car and tried the "heat treat" method. Although not perfect, it definitely improved the look. I'll take a pic this weekend so you guys can see how it changed the look. Eventually I'd like to find a nice replacement piece.

Hey, they're getting snow in Sedona this morning. Finally, a nice blanket of snow in the AZ high country! You should come down some year for Christmas!! Also, I'm "considering" getting the car repainted at some point in the future, so I've been checking out the Mazdatrix website to see what trim pieces are still available. Noticed that "some" of the body side moldings are NLA. Just curious, would a body shop be able to remove and reapply the side moldings for those that are NLA??

j9fd3s

iTrader: (3)

i've seen different kinds of markings, some times its a date, sometimes its just a mark to denote model (GSL-SE's have a yellow paint mark on the struts, 12A's are orange), and then sometimes its not very clear. maybe we should do a weird Mazda Markings thread?

as for which to sell and which to keep, its pretty easy. the SA is the best, and it goes downhill from there... the SA's are fun and funky, and the FD is pretty but boring.

RCCAZ 1

iTrader: (10)

Oh, that's too funny! Yes, they (the SA and FD) are both unique machines. I admire both for their quirks. If faced with having to decide which one to sell, I'd be hard pressed to make the call. Thank goodness my wife is understanding and supportive of my car habit.

Deena

I have one, too. It's similar to yours, except it's automatic and is in better shape.
It has always been garaged and the original paint job is great.There's no rust. It has 48,800 ish miles on it and all the original parts (not counting batteries, tires, upgraded shocks and such.)I love that car, but never really drive it anymore.
My husband is going to take pictures of it.
I've been having trouble on the site, as I am a luddite as far as technology is concerned. I'd like to sell my RX7, but don't have as many posts as I need and I can't figure out how to do the quizzes or whatever they are to up my count.
I want it to go to someone who will love it.
I'm in the Philadelphia area.
Deena Yachymiak

j9fd3s

iTrader: (3)

how many posts do you need? maybe start a tread asking some basic question, like how to set the luggage straps or something, we'll make it long, you pick up posts... piece of cake

7aull

iTrader: (2)

_________
Blackdragon Auto still lists the side moldings for sale (tho actually HAVING them could be another matter…):
Datsun 240Z, 260Z, 280Z, 280ZX & Mazda RX7 iCatalog - Black Dragon Auto
If they DO have them and you are serious about the Deep Dive into a repaint, then I would grab them quick! If typical of Mazda, Old Stock parts are just listed and sold till US inventory drys up. These are looong pout of production. As far as using the originals go, I have not tried this personally (since I have spare NOS mldgs) but there are most certainly others here that have reused them. No reason NOT to really. From what I see the trick is to use a heat gun to soften up the adhesive (its a 2-sided strip mounted to the back of the molding) then gently pull away from the body. Secret is not to bend or kink the molding as you peel it away. Door ones are the trickiest because they are so long. It should come off cleanly this way, then use 3Ms dble-sided molding tape to re-apply after the paint. I would personally pull these myself rather than some Shop Jockey. Ideally you would want the repaint to cure (45 days-ish) before re-applying the moldings anyway.

As to the repaint itself, may be worth having a Pro do a proper machine polish and see what pops up first? I mean, your paint looks pretty nice. If there are just certain panels that are a problem, maybe you can get away with just matching up those to a nicely-polished OE paint? I suggest this only because I managed to do this with my SunRise Red. I painted the nose and bumpers, after polishing up the body. the shop matched them nicely.

Sedona snow - YEP! We follow the weather there religiously (since it will be our new home at some point, for LOTS of christmases). Have to Laugh tho - I mean, it lasts, what? a day or 2?? then its 50F or 60F again and everyones out golfing. Honestly, you have no idea what actual winter IS!

Stu Aull
80GS
Alaska

RCCAZ 1

iTrader: (10)

Stu... thanks for the black dragon link. I've looked over some of their items in the past, but never took them seriously. I guess I may need to reassess. How do their prices compare to Ray Crowe at Malloy Mazda? He's always been my go-to parts guy for FD OE parts.

Paintwise, you'd have to see the car in person to understand. While some panels are VERY nice and show little fading, on others (especially the rear deck and roof) the clear coat is nearly gone. I agree on your suggestion to get a detailing PRO to look her over and give me an honest assessment before proceeding.

Your statement about Sedona is spot on. Occasional "photo-op" days this time of year, but in a day or less it's usually gone. Still, makes for some beautiful mornings. I spent the first 26 years of my life in Minnesota, so I'm no stranger to snow and cold (hence the reason I now live in AZ) Take care, and stay warm over this Holiday Season! Thanks again for your guidance!

Tim

RCCAZ 1

iTrader: (10)

Wanted to show NCross how my rear hatch release cover came out post heat-treat. Definitely better than before....

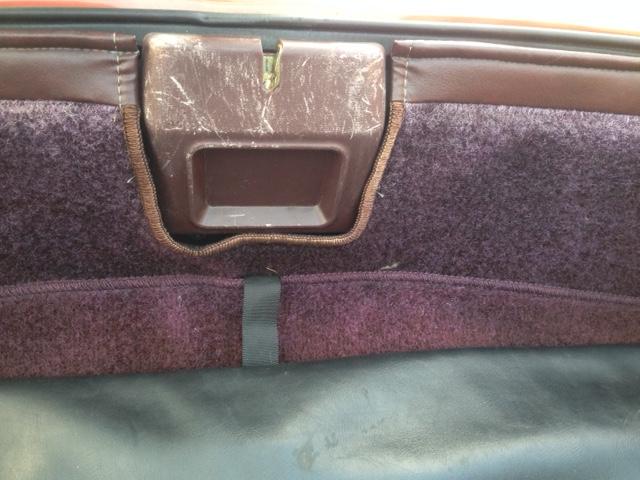

Before:

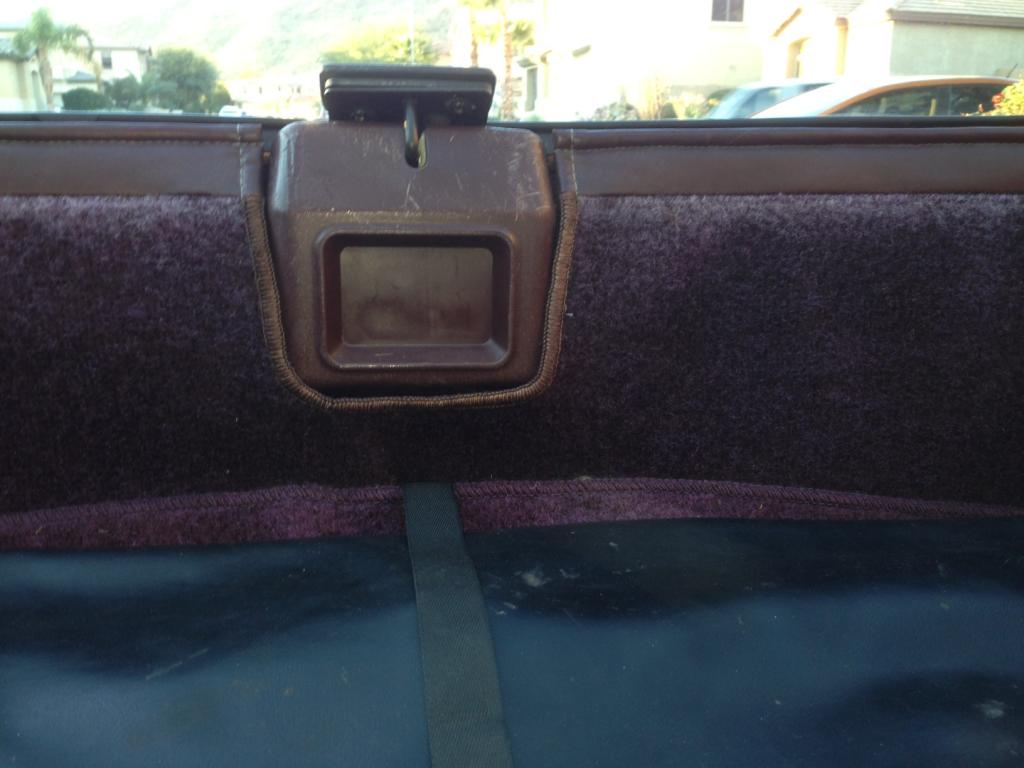

After:



Thanks for the suggestion!

NCross

iTrader: (18)

Quite an improvement!

Red95FD

iTrader: (3)

Luckily I have one hell of an FC to sell so I will not be selling the FD anytime soon.

Redliner223

iTrader: (6)

RCCAZ Can you post more picture of the red interior?
My rear carpet was changed to black and some parts are faded and I'm trying to compile some reference material.

RCCAZ 1

iTrader: (10)

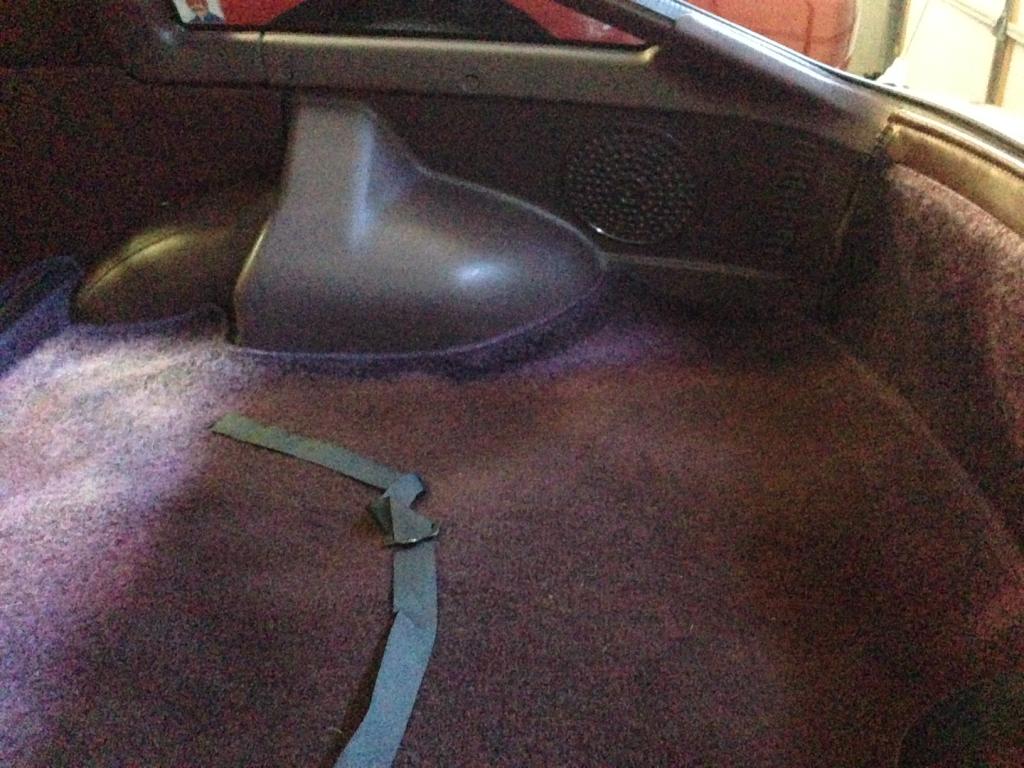

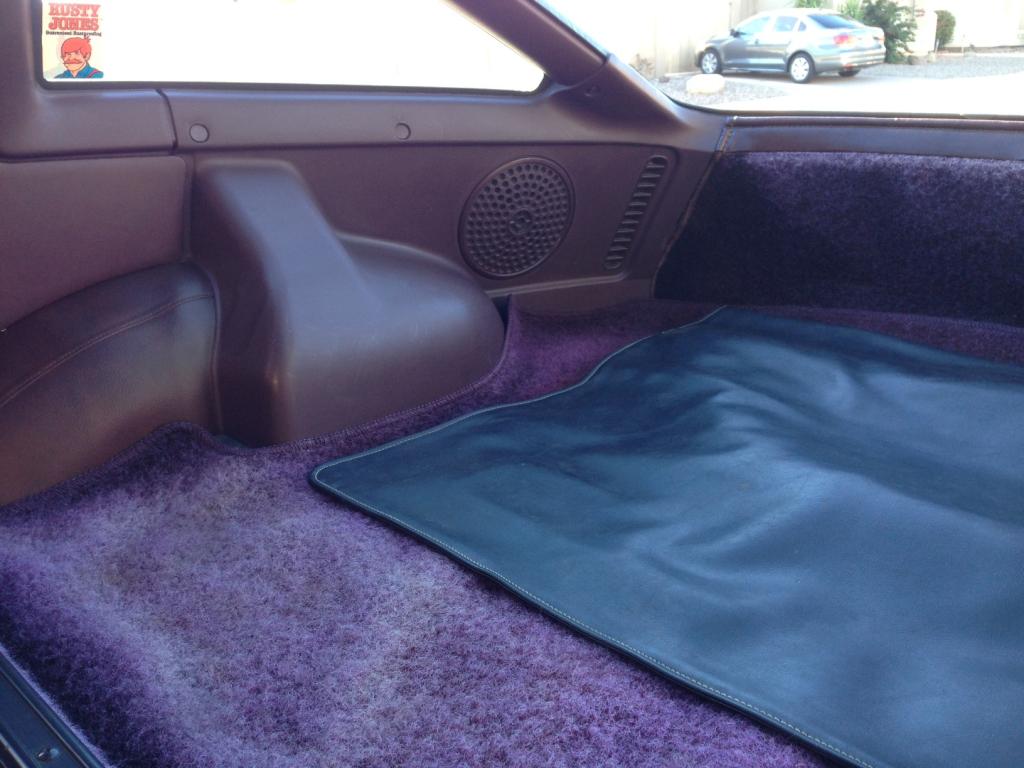

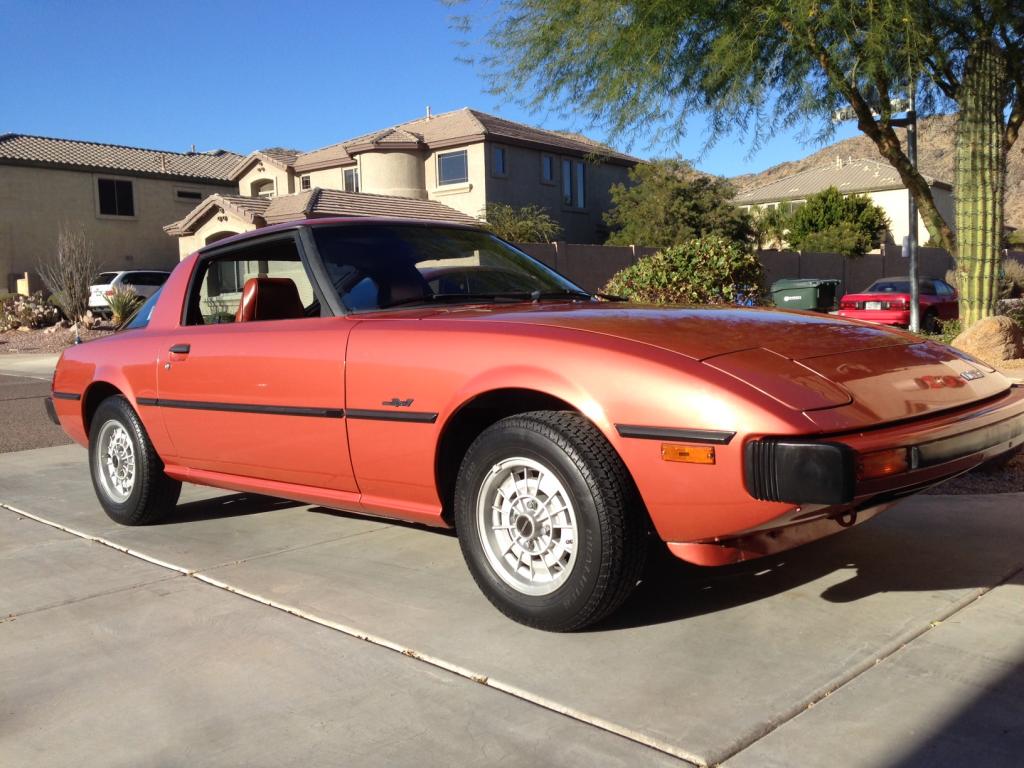

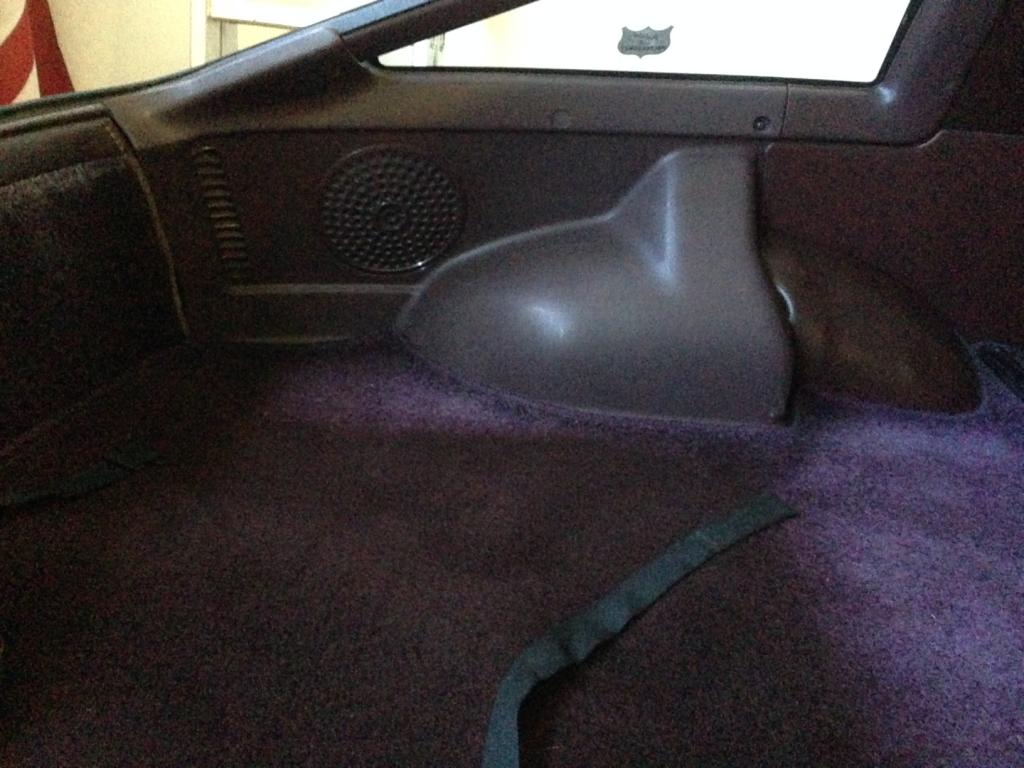

Sorry the quality of most of these pics is not better. Struggled with taking these yesterday outside in full daylight. As you can see, my hatch carpeting is severely sun faded from where the original owner left the sun roof cover permanently in place. Side panels are somewhat faded, but in great condition. And finally, a shot of her outside with her new painted waffle centercaps!

Oh, for others, does anyone know where one might source some "wine" or red interior screw caps? A few of mine are missing. I'm guessing that I should just add it to my list of "treasure hunt" items??

j9fd3s

iTrader: (3)

car looks great! i really like the color too.

the screw caps were used from 79-85, although the colors change, so if you're willing to dye one, used should be pretty easy to come by.

or the cheapskate (me!) would look behind the panels, and under the carpet, the missing one is probably still in the car somewhere

RCCAZ 1

iTrader: (10)

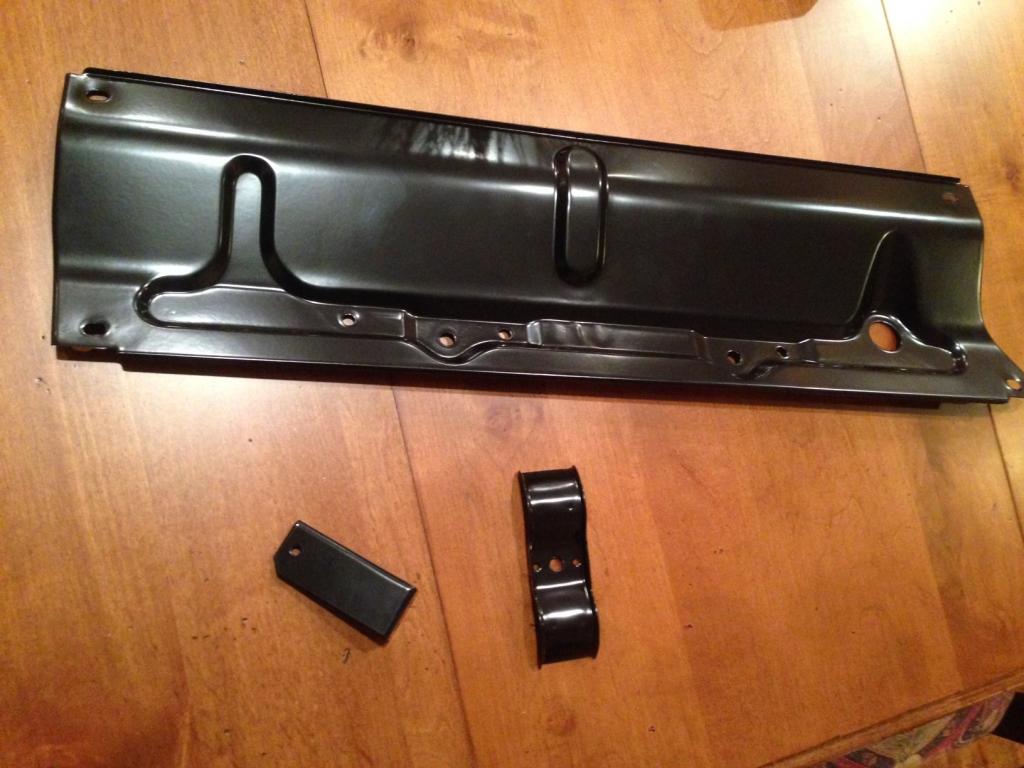

Just working details in the engine bay for now. Got these pieces back from the powdercoater last night. Semi-gloss black.

woodmv

iTrader: (8)

Looks good. I really like the semi-gloss...
