The begining of my exh mani
#27
Infamous...Butcher...
Join Date: Feb 2002
Location: WA
Posts: 510
Likes: 0
Received 0 Likes
on
0 Posts
I'd use .065 if you could, its easier to work with and a bit heavier, but the noise difference will be dramatic.ie thinwalled stainless tends to "ring" more, and with my level of welding skill I tend to chew up thinwall.. A good compromise would be the .049 I imagine. I have always wanted to build out of inconel but never had the ***** .. heh you screw up a weld and $$$ . I would think with 3 u bends you could build 2 manifolds easily.. 6" legs, so you could do the angle cut/weld/angle cut/weld/angle cut/weld tiger stripe thing (wtf is the proper term for that?) to get a tighter bend if you need.. The make some gussets out of the leftover =D heh like I said I like to do things once..
Unless you happen to have a mandrel bender? then Im coming over with some straightpipes!
Unless you happen to have a mandrel bender? then Im coming over with some straightpipes!
#28
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts
Does anyone know how long the main runners should be? If I remember right Riceracing said to try to make them close to 13". Also remember someone saying to make them short for high RPM power and long for low RPM power. Does anyone have any input on this? By judging where my turbo has to sit and the pieces I already have cut out it looks like I can only get them ~9" long.
BicuspiD- I'll have to try the 321 next time. The 304 that I have here is .125 wall thickness
BicuspiD- I'll have to try the 321 next time. The 304 that I have here is .125 wall thickness
#29
Full Member
Join Date: May 2001
Location: Kingwood, WV
Posts: 182
Likes: 0
Received 0 Likes
on
0 Posts
I am thinking of using the newly aquired water jet here at work to cut out a bunch of manifold plates out of stainless 304 or 321 ......and 4'x8'x1/2" stainless 304 sheet is around $600. I wonder how many plates I could get out of one sheet. I might be offering these shortly for sale. I will need to make patterns off of anything but FC's though. I am assuming they are a little different between series of engines.
-Morbius
-Morbius
#31
Senior Member
Join Date: Jul 2001
Location: Kalifornia
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Inconel Is great stuff.I don't think Burns can bend past 120 degrees because it is very hard and will break. That doesn't mean that you can't cut / weld many times to get your bends. It is also more difficult to weld than 304 or 321 ss. Inconel will pollish t a very nice shine and can withstand alot more heat than 304 /321
#32
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts

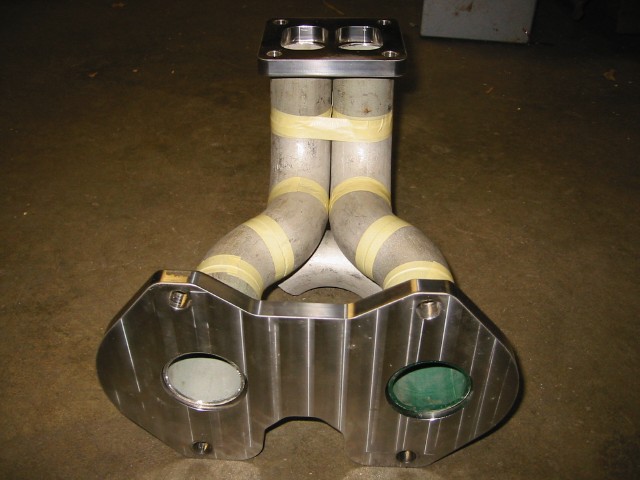

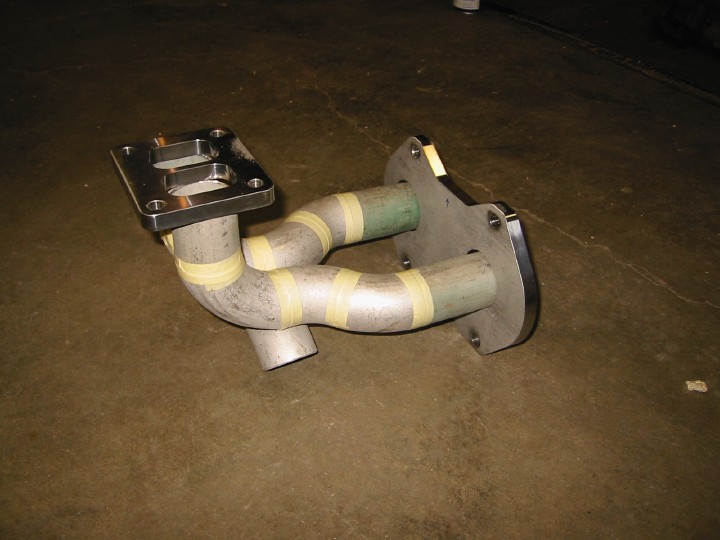

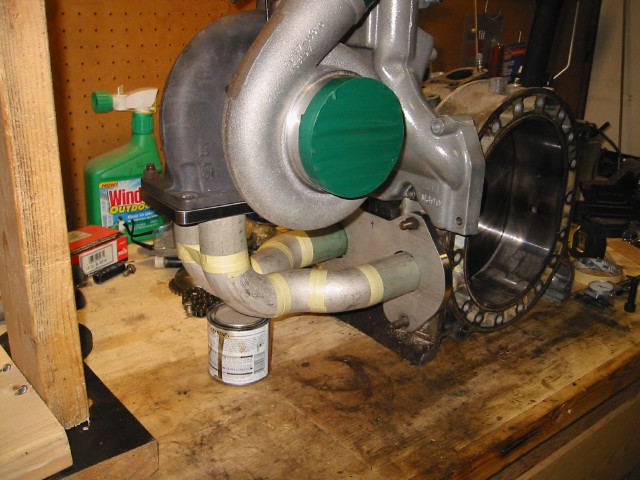

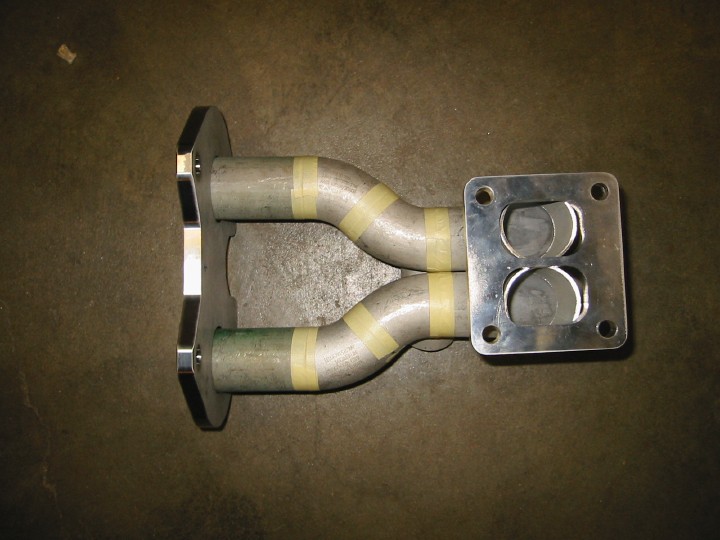

Time for another update! I made it come out of the engine straight for 3", straight into the turbo and 13" runners like recomended.
Last edited by setzep; 10-29-02 at 07:09 PM.
#37
Senior Member
Join Date: Jul 2001
Location: Kalifornia
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Looks great! Tape the 2 flanges closed also and then poke a couple of small holes in the tape on one end to make purging the oxygen out easier. That should make your welds look purty inside and out.
#38
Infamous...Butcher...
Join Date: Feb 2002
Location: WA
Posts: 510
Likes: 0
Received 0 Likes
on
0 Posts
NICE
Looks very nice. Is there a way you can weld a prop/support from the turbo inlet flange Engine flange, to the motor? Perhaps take a little stress off of the tubes/welds holding the weight of the turbo.
Wherever you can fit the wastegate, and minimize turbulence/welding will work well. A lot of tuners "siamese" the WG inlet, right off the turbo inlet area. Do you want to toue the WG back into the downpipe or goto atmosphere?
Excellent work so far ! keep us posted..
Richard
Wherever you can fit the wastegate, and minimize turbulence/welding will work well. A lot of tuners "siamese" the WG inlet, right off the turbo inlet area. Do you want to toue the WG back into the downpipe or goto atmosphere?
Excellent work so far ! keep us posted..
Richard
#39
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts
Thanks guys
I was also thinking I should make a brace somewhere to prevent the manifold from cracking at the engine flange. I saw a pic of rice racing's engine compartment once and he has a brace going from the middle of the intake manifold to the turbo (think thats how it went), seems intresting. I was thinking of welding triangles on the tops of the main runners at the engine flange, think that would be good enough?
I'd like to be able to do that siamese thing to the wg runners right before the turbo but there isn't any room Do you think it would be better to "Y" the WG runners out of the main runners or to "T" them? I also plan on runing the WG back into the dp, why do you ask?
I was also thinking I should make a brace somewhere to prevent the manifold from cracking at the engine flange. I saw a pic of rice racing's engine compartment once and he has a brace going from the middle of the intake manifold to the turbo (think thats how it went), seems intresting. I was thinking of welding triangles on the tops of the main runners at the engine flange, think that would be good enough?
I'd like to be able to do that siamese thing to the wg runners right before the turbo but there isn't any room Do you think it would be better to "Y" the WG runners out of the main runners or to "T" them? I also plan on runing the WG back into the dp, why do you ask?
#40
On a long vacation
Join Date: Feb 2001
Location: Bay Area, CA, U.S.A.
Posts: 2,160
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by setzep
Thanks guys
I was also thinking I should make a brace somewhere to prevent the manifold from cracking at the engine flange. I saw a pic of rice racing's engine compartment once and he has a brace going from the middle of the intake manifold to the turbo (think thats how it went), seems intresting. I was thinking of welding triangles on the tops of the main runners at the engine flange, think that would be good enough?
I'd like to be able to do that siamese thing to the wg runners right before the turbo but there isn't any room Do you think it would be better to "Y" the WG runners out of the main runners or to "T" them? I also plan on runing the WG back into the dp, why do you ask?
Thanks guys
I was also thinking I should make a brace somewhere to prevent the manifold from cracking at the engine flange. I saw a pic of rice racing's engine compartment once and he has a brace going from the middle of the intake manifold to the turbo (think thats how it went), seems intresting. I was thinking of welding triangles on the tops of the main runners at the engine flange, think that would be good enough?
I'd like to be able to do that siamese thing to the wg runners right before the turbo but there isn't any room Do you think it would be better to "Y" the WG runners out of the main runners or to "T" them? I also plan on runing the WG back into the dp, why do you ask?
#41
Infamous...Butcher...
Join Date: Feb 2002
Location: WA
Posts: 510
Likes: 0
Received 0 Likes
on
0 Posts
I'd probably y-them.. smoother flow.. where the runners come straight out from the engine, right at the point they turn up, Id prolly put a short turn down and go there, mountin the WG as close as I could to the runners. You dont want a long stretch to the WG in that location, may cause reversion as the gases "decide" where the path of least resistance is by fighting themselves, and it seems you wouldnt disrupt flow too bad by making a short run.
I asked about atmosphere and piping it in simply to facilitate mounting. If you know you are going to atmosphere, you can just vent it straight down.. If going back into dp, you must make sure the w/g outlet clears the rest of the manifold, and will be convenient to mate to the DP smoothly.
Next you can make me one
Richard
I asked about atmosphere and piping it in simply to facilitate mounting. If you know you are going to atmosphere, you can just vent it straight down.. If going back into dp, you must make sure the w/g outlet clears the rest of the manifold, and will be convenient to mate to the DP smoothly.
Next you can make me one
Richard
#43
Need more sleep
iTrader: (1)
Setzero,
Looks very nice so far, your patience is paying off. I think I understand why some folks have added the braces, such a long exh mani would seem to put quite a bit of load on the rotor housing/studs due to the cantilever length. Best suggestion hear is to make the mani flange at the motor as tall as the machined mating surface on the motor allows, this would help to counteract the cantilever effect of the large mani.
With the heavier wall tubing and full pen welds at the 1/2" flanges I doubt you will have issues with the mani itself. The only suggestion I could make is to bump up in thickness on the 3" pipe section that welds to the motor exhaust flange. The rest of the mani tubing should not be an issue.
For the wastegate tubing you seem to have many options. I would be tempted to use the space above the mani between the flanges, it would make access to the wg easy but may heat up the LIM a bit. Nothing that a heat shield wouldn't fix.
Nice work!
Looks very nice so far, your patience is paying off. I think I understand why some folks have added the braces, such a long exh mani would seem to put quite a bit of load on the rotor housing/studs due to the cantilever length. Best suggestion hear is to make the mani flange at the motor as tall as the machined mating surface on the motor allows, this would help to counteract the cantilever effect of the large mani.
With the heavier wall tubing and full pen welds at the 1/2" flanges I doubt you will have issues with the mani itself. The only suggestion I could make is to bump up in thickness on the 3" pipe section that welds to the motor exhaust flange. The rest of the mani tubing should not be an issue.
For the wastegate tubing you seem to have many options. I would be tempted to use the space above the mani between the flanges, it would make access to the wg easy but may heat up the LIM a bit. Nothing that a heat shield wouldn't fix.
Nice work!
#44
Full Member
iTrader: (1)
Join Date: Mar 2001
Location: Gainesville, GA USA
Posts: 241
Likes: 0
Received 0 Likes
on
0 Posts
What about the difference in expansin rates of the headers and any braces? Is it possible for the hot pipes to expand against the brace and tear the manifold apart? Just wondering. Oh, and good work. I'm going to do the same thing.
Don.
Don.
#45
Infamous...Butcher...
Join Date: Feb 2002
Location: WA
Posts: 510
Likes: 0
Received 0 Likes
on
0 Posts
I still think you would want to get the weight of the turbo off of the manifold itself as much as you can. Thats just undue stress on the welds, and with heat and vibration, It doesnt seem wise. You should be abl to fashion a stay, if anything, from the turbo flange to the engine flange. This way you dont really have to deal with the tubes expansion.
#46
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by twokrx7
Setzero,
Setzero,
I'm not really sure yet where I should run the bracing and the waste gate piping, there are too many options it seems. Seems that every way I think of doing it there is a drawback. Just need to figure out which way is the "best" way of doing it.
If all goes well tonight I'll get to fire up my buds tig welder and try welding together some scrap pieces and se how it turns out.
Oh yeah, one more question. When I (or my buddy) weld the pipes into the engine flange should I weld both sides or just weld the inside?
Thanks
#50

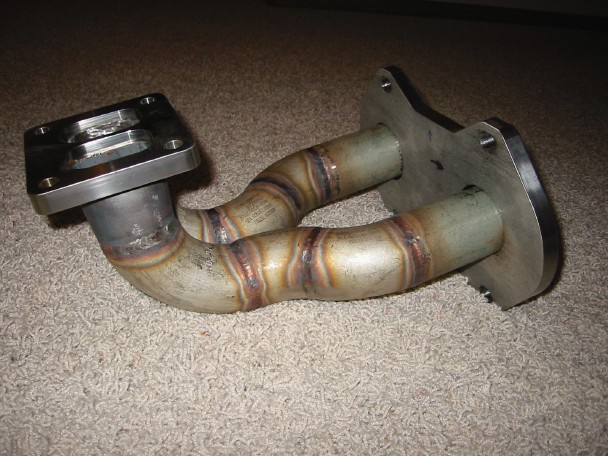

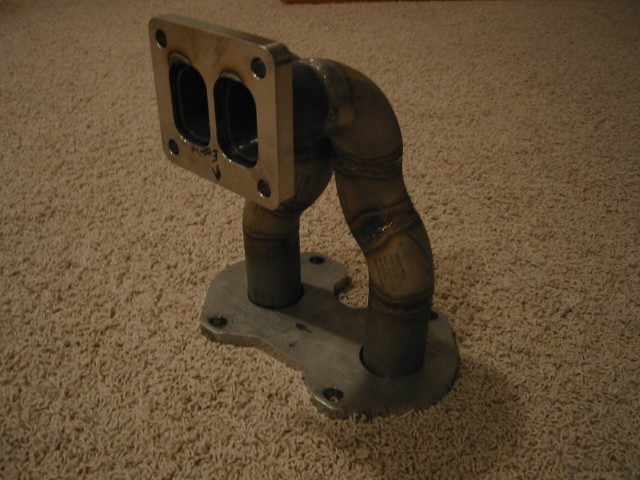

call me crazy but are you sure you are going to be able to get the header on the car w/o lifting the engine to put it in? it looks like it goes out way too far. remember the studs stick out around 1.5" and that has to be accounted for
