Racetech seats in a FD? possible?

Has anyone tried this? I have a hard time fitting my sparco circuit pro and I want to switch to a racetech RT9004HR. Problem is the racetech has a wider base. Has anyone attempted this or installed one?

Comparing both dimensions, the racetech seat is not as tall as the circuit pro.

Thanks


Click the image to open in full size.


Click the image to open in full size.
__________________
"If it's not burning, bending, or breaking, then you're not pushing it hard enough"
04' Acura TSX Navi / 93' Ultrasonic blue mica LSX RX7 R1 /08' Prius 5 Hybrid Gas Sipper
97SupraTwinTurbo is offline   Reply With Quote
Old 05-04-12, 11:27 AM   #2
All out Track Freak!
10 Year Member

Fritz Flynn's Avatar

Trader Score: (223)

Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 8,646
I have a racetech seat in my car but it's the smaller/narrower one. I'm 5.9 150 and it's snug.

I don't think the larger seat will fit very well (may require some fab work).
__________________
________________________________
"Anything in life worth doing is worth over doing. Moderation is for cowards"

Lots of stock FD parts for sale just PM me your parts request. THANKS!

** VERY IMPORTANT ** when you paypal note what part you're buying THANKS!!!!
Fritz Flynn is online now   Reply With Quote
Old 05-04-12, 12:11 PM   #3
Trackstar motorsport
10 Year Member

97SupraTwinTurbo's Avatar

Trader Score: (8)

Join Date: May 2002
Location: glendale, ca
Posts: 242
Trackstar Motorsport TSmotorsport
Send a message via AIM to 97SupraTwinTurbo
Quote:
Originally Posted by Fritz Flynn View Post
I have a racetech seat in my car but it's the smaller/narrower one. I'm 5.9 150 and it's snug.

I don't think the larger seat will fit very well (may require some fab work).
Fritz do you have the R1000? I don't mind some fab work, but I don't want it to be over the top.
__________________
"If it's not burning, bending, or breaking, then you're not pushing it hard enough"
04' Acura TSX Navi / 93' Ultrasonic blue mica LSX RX7 R1 /08' Prius 5 Hybrid Gas Sipper
97SupraTwinTurbo is offline   Reply With Quote
Old 05-04-12, 03:51 PM   #4
Spinner
5 Year Member

finger lock's Avatar

Trader Score: (5)

Join Date: Feb 2009
Location: Bay Area
Posts: 225
racerrx7
I have the RaceTech RT4009WHR in my caged FD. I used the RaceTech aluminum mounting brackets and they are mounted to ~3"x15" 3/16 plate welded to the floor pan.
The OEM cross brace (the front one the OEM seat bolted to) has been removed. If you would like some photos of the fab work I can take a few this weekend.

Guy
__________________
SCCA SFR #33 ITE
National #52 GT3
2011 SCCA San Francisco Region ITE Champion
2012 NASA 25 Hr of Thunderhill E2 Winner
racing videos
finger lock is offline   Reply With Quote
Old 05-04-12, 05:10 PM   #5
Trackstar motorsport
10 Year Member

97SupraTwinTurbo's Avatar

Trader Score: (8)

Join Date: May 2002
Location: glendale, ca
Posts: 242
Trackstar Motorsport TSmotorsport
Send a message via AIM to 97SupraTwinTurbo
Quote:
Originally Posted by finger lock View Post
I have the RaceTech RT4009WHR in my caged FD. I used the RaceTech aluminum mounting brackets and they are mounted to ~3"x15" 3/16 plate welded to the floor pan.
The OEM cross brace (the front one the OEM seat bolted to) has been removed. If you would like some photos of the fab work I can take a few this weekend.

Guy

That would be great if you could post pictures. I noticed the WHR would actually be a little better since it's wider, and I have wide shoulders but I just want to see how tight it would be in the car. Did you remove the cross brace to fit the seat because of height restrictions?
__________________
"If it's not burning, bending, or breaking, then you're not pushing it hard enough"
04' Acura TSX Navi / 93' Ultrasonic blue mica LSX RX7 R1 /08' Prius 5 Hybrid Gas Sipper
97SupraTwinTurbo is offline   Reply With Quote
Old 05-04-12, 05:43 PM   #6
Spinner
5 Year Member

finger lock's Avatar

Trader Score: (5)

Join Date: Feb 2009
Location: Bay Area
Posts: 225
racerrx7
We removed the cross brace after test fitting the seat and thought the nose of the seat might contact with the brace. After installation, we probably could have left the brace in but it was just easier to remove it and not worry about potential interference.

As you have mentioned, these seats are pretty big. I actually had the fab shop build the cage around the seat.

I'll post some pix here over the weekend.

Guy
__________________
SCCA SFR #33 ITE
National #52 GT3
2011 SCCA San Francisco Region ITE Champion
2012 NASA 25 Hr of Thunderhill E2 Winner
racing videos
finger lock is offline   Reply With Quote
Old 05-06-12, 05:43 AM   #7
Spinner
10 Year Member

shaun.sheldrake's Avatar

Trader Score: (0)

Join Date: Feb 2002
Location: Wellington - NZ
Posts: 188
I have the 4009HR in my car, fantastic seat but it is a really tight fit. To get the seat in we cut into the drive tunnel a little to get the seat into the centre of the car as much as possible.

If I was starting again, I'd use the same seat but i'd cut the floor and drop it down a couple of inches to create more head/helmet room btwn the inside head restraint and the roll cage bar running above the drivers door.

I'll dig out some photos ...

Cheers
Shaun
__________________
Current: Red R1 Circuit Car | Previous: 92 Brilliant Black R1 and 92 Vintage Red R1
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
shaun.sheldrake is offline   Reply With Quote
Old 05-06-12, 05:59 AM   #8
Spinner
10 Year Member

shaun.sheldrake's Avatar

Trader Score: (0)

Join Date: Feb 2002
Location: Wellington - NZ
Posts: 188

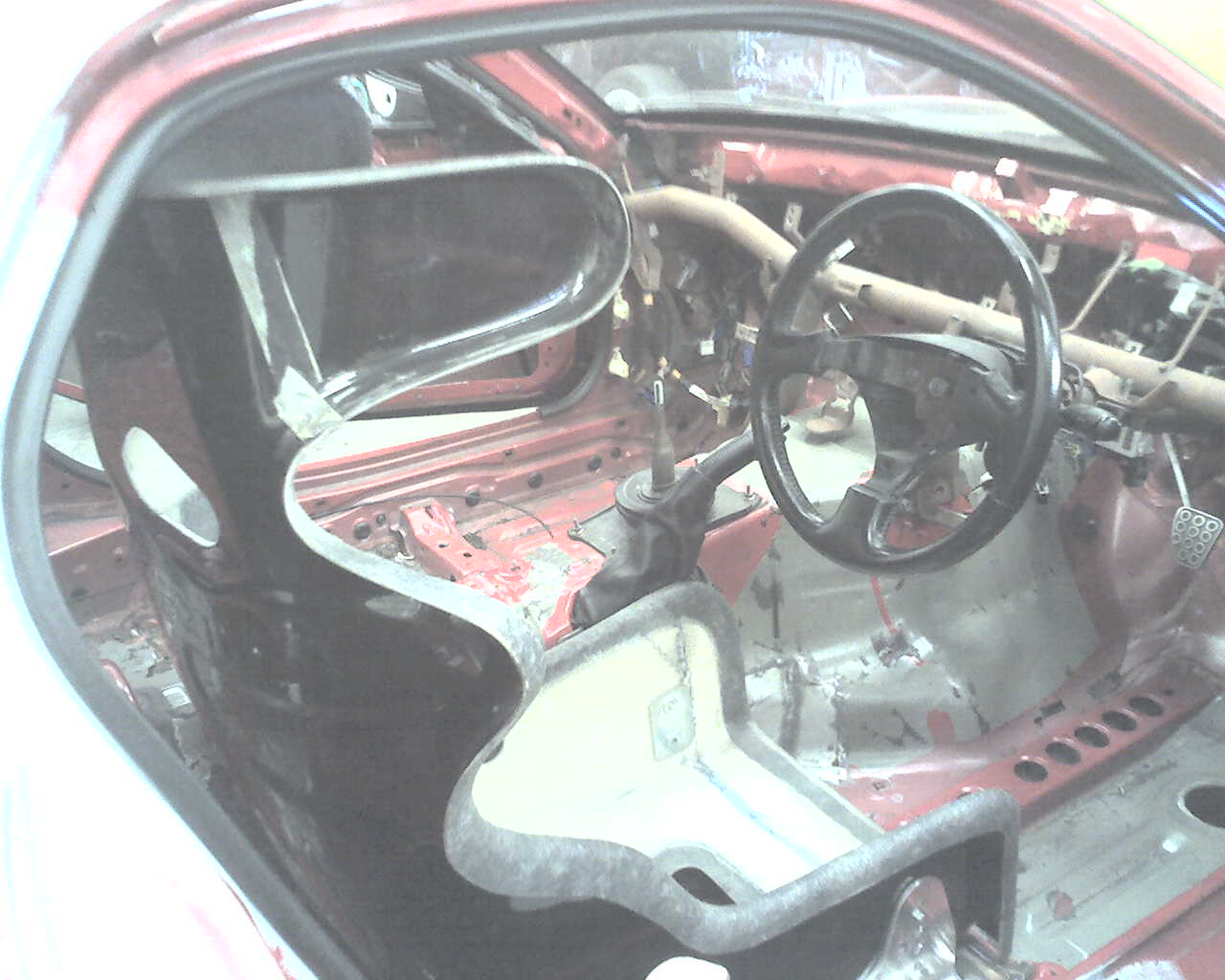

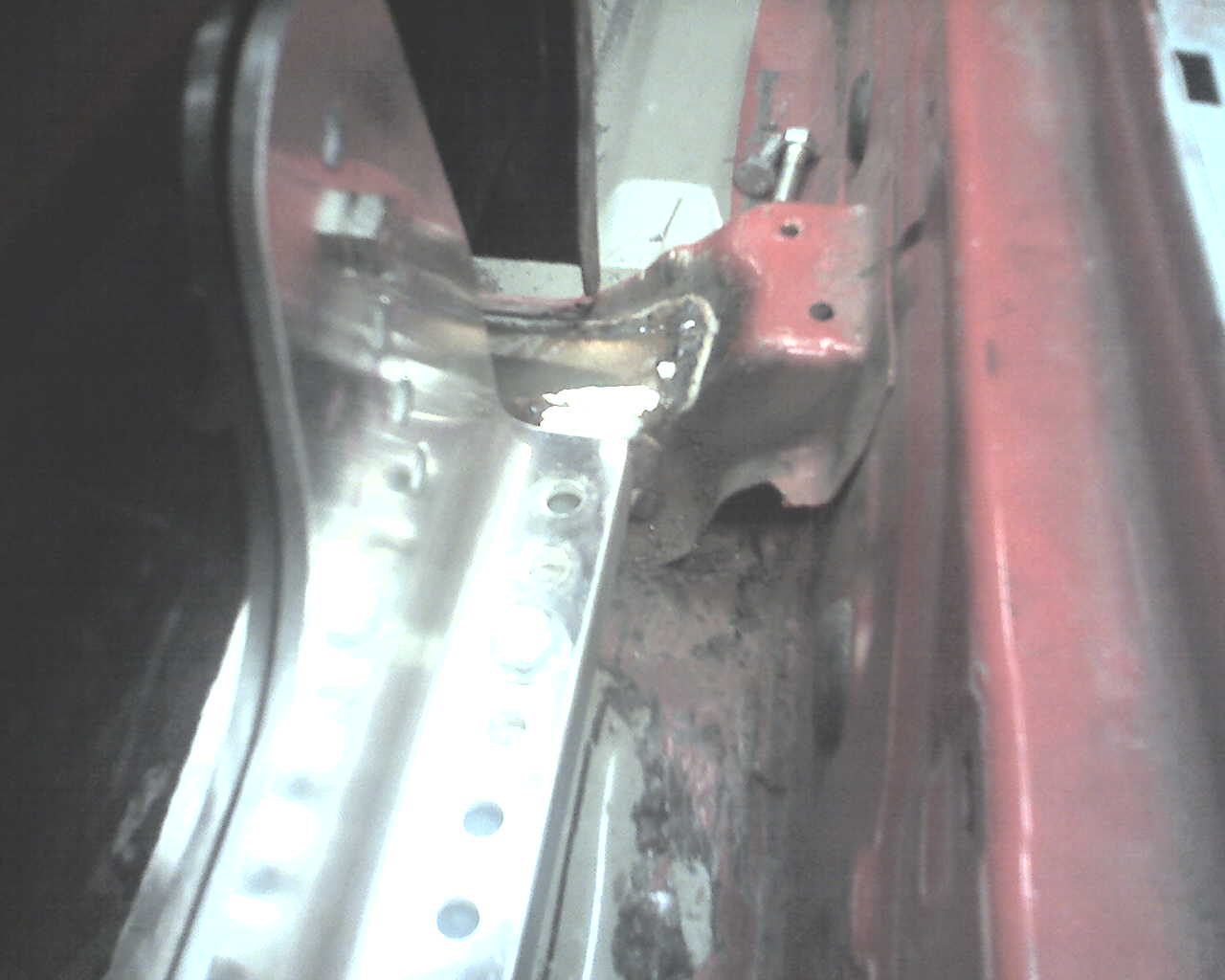

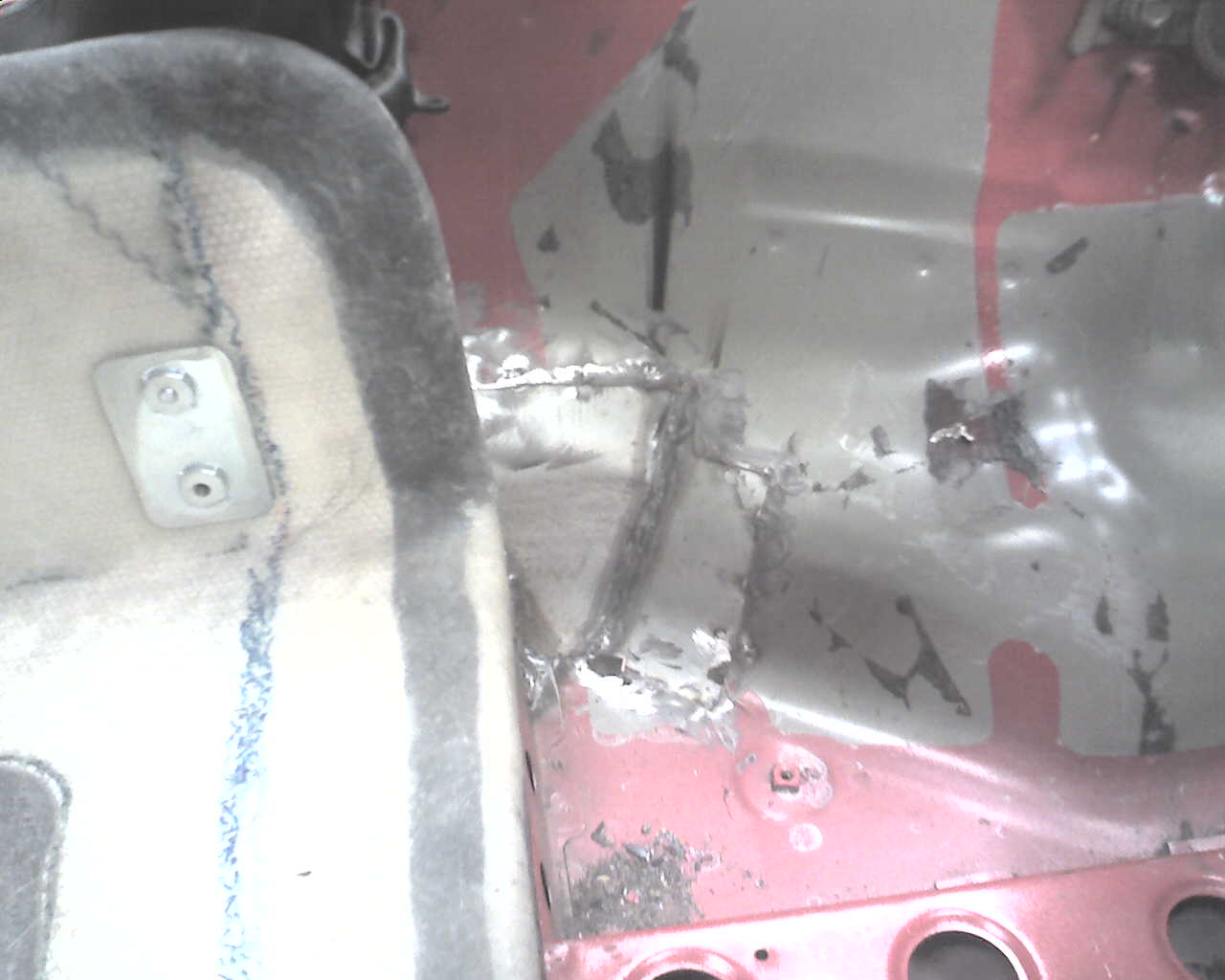

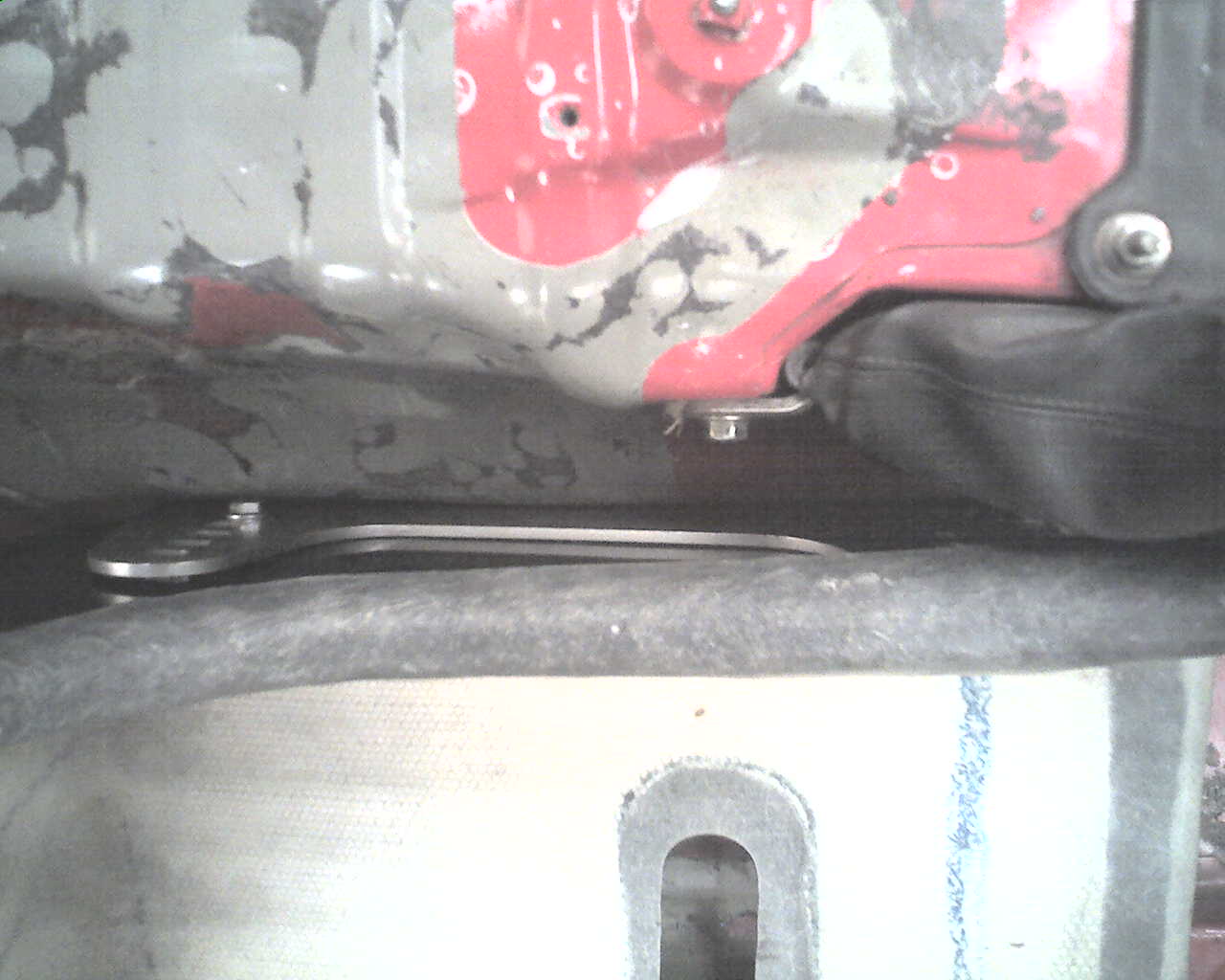

4 pics with the jig while we were building the cage.

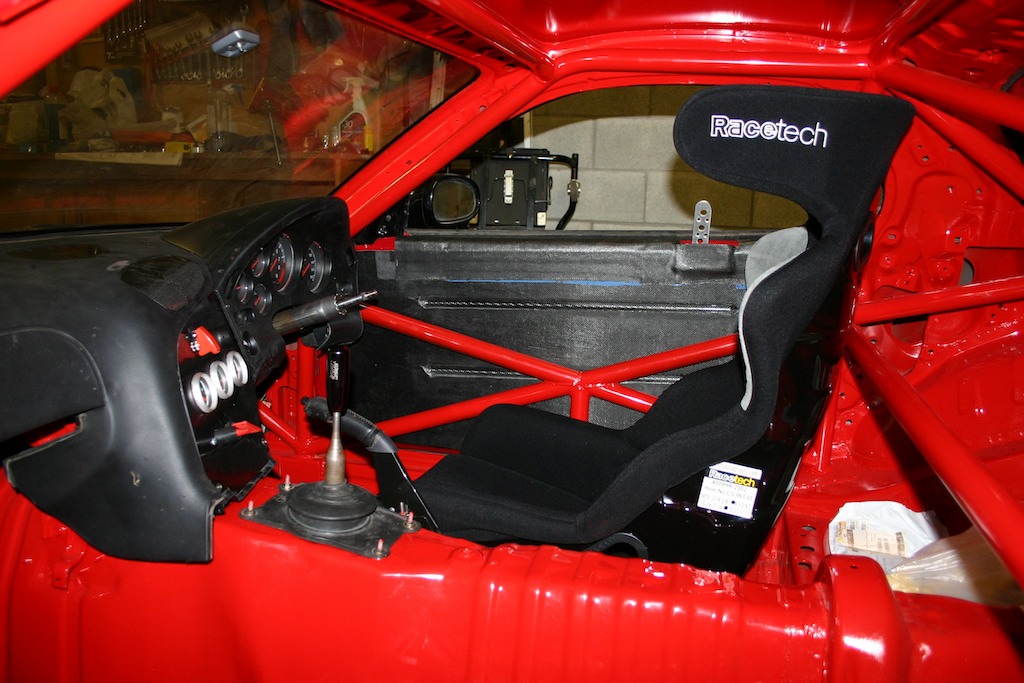

1 with it complete and painted.

Let me know if you have any other questions - RaceTech are just down the road. I'll be in there later in the week picking up a new helmet.
Attached Thumbnails
Racetech seats in a FD? possible?-img_4900_sm.jpg   Racetech seats in a FD? possible?-img082.jpg   Racetech seats in a FD? possible?-img081.jpg   Racetech seats in a FD? possible?-img080.jpg   Racetech seats in a FD? possible?-img079.jpg

__________________
Current: Red R1 Circuit Car | Previous: 92 Brilliant Black R1 and 92 Vintage Red R1
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
shaun.sheldrake is offline   Reply With Quote
Old 05-06-12, 09:50 PM   #9
Spinner
5 Year Member

finger lock's Avatar

Trader Score: (5)

Join Date: Feb 2009
Location: Bay Area
Posts: 225
racerrx7

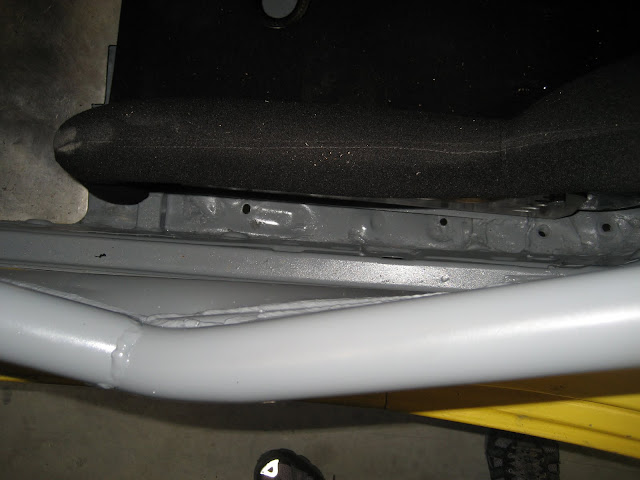

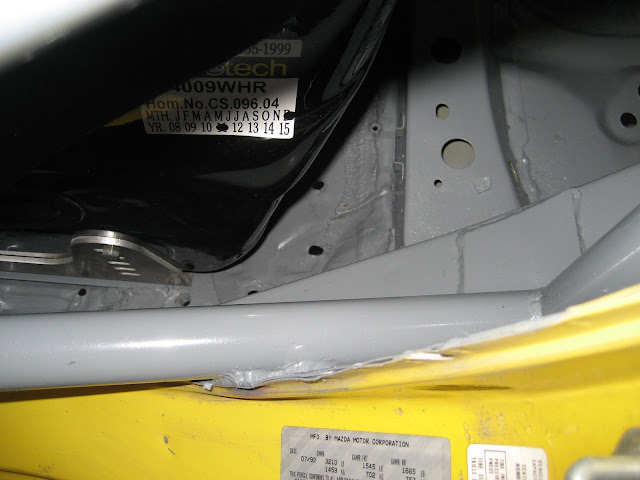

As promised, here are some pictures of my RaceTech RT4009WHR mounted in my FD.

Click the image to open in full size.

Drivers side straight down. The seat is moved to the middle so the "shoulder wing" clears the door bar.
Click the image to open in full size.

Drivers side rear
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Guy
__________________
SCCA SFR #33 ITE
National #52 GT3
2011 SCCA San Francisco Region ITE Champion
2012 NASA 25 Hr of Thunderhill E2 Winner
racing videos
finger lock is offline   Reply With Quote
Old 05-06-12, 11:33 PM   #10
Insane Burnout
10 Year Member

SHPNOUT's Avatar

Trader Score: (3)

Join Date: May 2001
Location: BENICIA, CA
Posts: 456
Nice
__________________
SCCA SFR ITE #75
SHPNOUT is offline   Reply With Quote
Old 05-08-12, 11:28 AM   #11
Trackstar motorsport
10 Year Member

97SupraTwinTurbo's Avatar

Trader Score: (8)

Join Date: May 2002
Location: glendale, ca
Posts: 242
Trackstar Motorsport TSmotorsport
Send a message via AIM to 97SupraTwinTurbo
Thanks for the pictures guys, that's exactly what I wanted to see. The fitment is tough but with a little fab work to the floor, we'll make it work.
__________________
"If it's not burning, bending, or breaking, then you're not pushing it hard enough"
04' Acura TSX Navi / 93' Ultrasonic blue mica LSX RX7 R1 /08' Prius 5 Hybrid Gas Sipper
97SupraTwinTurbo is offline   Reply With Quote
Old 05-08-12, 04:39 PM   #12
Sua Sponte
10 Year Member

Brent Dalton's Avatar

Trader Score: (26)

Join Date: Aug 2001
Location: Killeen, TX
Posts: 3,069
Send a message via AIM to Brent Dalton

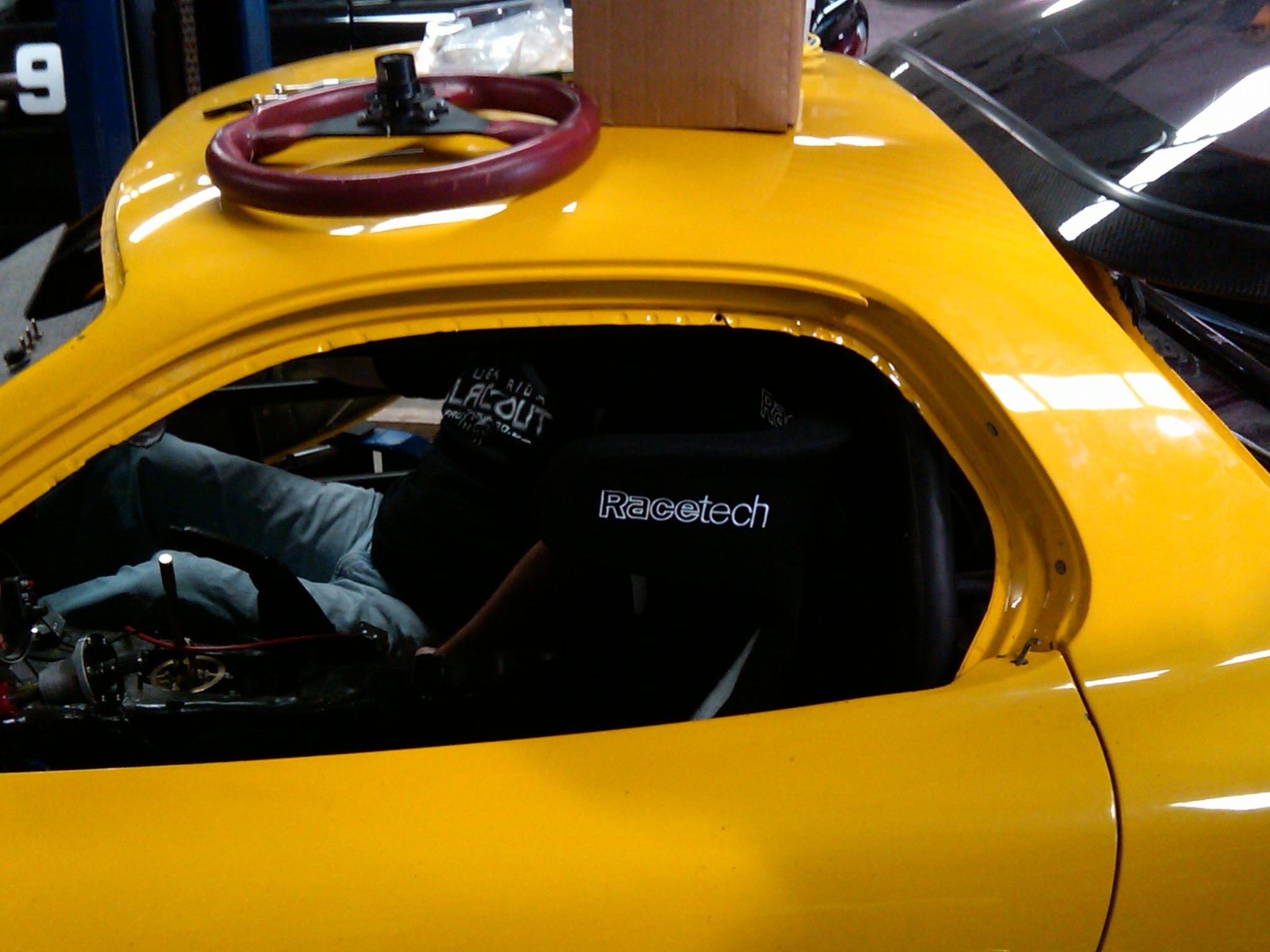

I have the Rachtech 4009 WHR with a lowered floor pan. Here is a link to the exact one I have and a couple of pictures.
http://www.discoveryparts.com/cgi-bi...cetech&pid=712
Click the image to open in full size.
Click the image to open in full size.
Attached Thumbnails
Racetech seats in a FD? possible?-droid-074.jpg   Racetech seats in a FD? possible?-droid-075.jpg
__________________
Road Atlanta NASA TT 1:33
http://www.youtube.com/watch?v=IFY00PAK_Ps
Video of Yellow LS1 FD at NASA TT at VIR(Oct 10)
http://www.youtube.com/watch?v=e6k0lJkcwrM
Brent Dalton is offline   Reply With Quote
Old 05-11-12, 10:25 AM   #13
Trackstar motorsport
10 Year Member

97SupraTwinTurbo's Avatar

Trader Score: (8)

Join Date: May 2002
Location: glendale, ca
Posts: 242
Trackstar Motorsport TSmotorsport
Send a message via AIM to 97SupraTwinTurbo
Brent are you running lexan windows in the front and rear?
__________________
"If it's not burning, bending, or breaking, then you're not pushing it hard enough"
04' Acura TSX Navi / 93' Ultrasonic blue mica LSX RX7 R1 /08' Prius 5 Hybrid Gas Sipper
97SupraTwinTurbo is offline   Reply With Quote
Old 05-11-12, 10:42 AM   #14
Sua Sponte
10 Year Member

Brent Dalton's Avatar

Trader Score: (26)

Join Date: Aug 2001
Location: Killeen, TX
Posts: 3,069
Send a message via AIM to Brent Dalton
I do not. I've had to replace a few window the last few years(and currently have a crack in the one in the car) so I may pull the trigger on a lexan one this time. I hear it's easier to keep the scratches off of them now. I've went glass to keep the car heavier as I need all the weight I can get to stay in the class I use to run in. Some things changed this year so I may be changing classes anyways.
__________________
Road Atlanta NASA TT 1:33
http://www.youtube.com/watch?v=IFY00PAK_Ps
Video of Yellow LS1 FD at NASA TT at VIR(Oct 10)
http://www.youtube.com/watch?v=e6k0lJkcwrM
Brent Dalton is offline   Reply With Quote
Old 02-19-13, 01:46 PM   #15
Let's get silly...
10 Year Member

RockLobster's Avatar

Trader Score: (4)

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,540
Brent, did you get a Variance/Exception from Greg G on your floor pan modification? Unless you are running TTU floor pan modifications are strictly prohibited...per the TT rules.
