I havent really kept track of my builds so far but I thought that this is a good time to share my project.

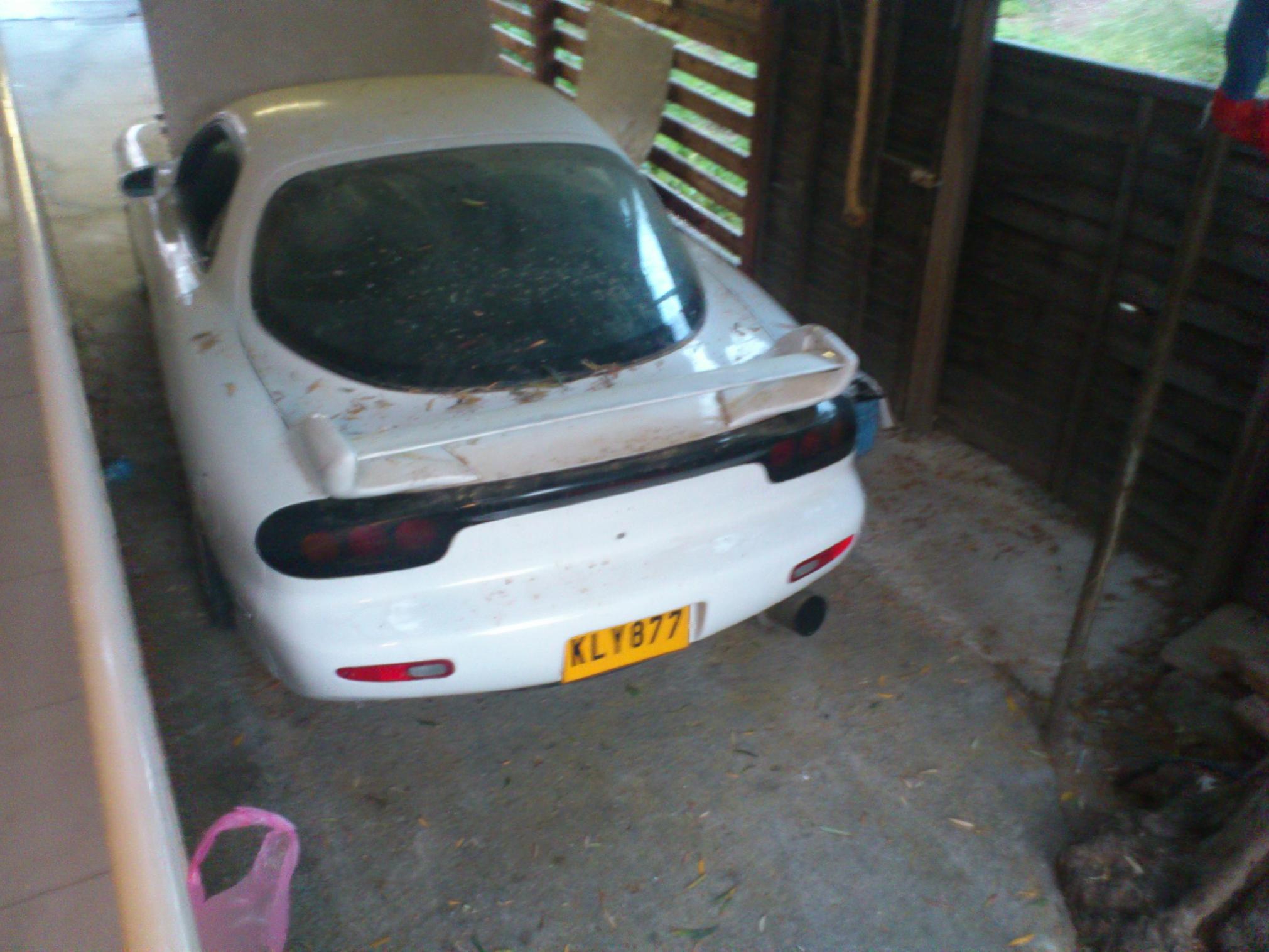

The car first came to cyprus in 2005 as a veilside show car. It was featured in tokyo auto salon and the first owner was a friend of mine.. very clean car, no accident history (rare for rx7s exported from japan)
The car was impounded for a couple of years for being heavily modified according to the local police
The owner was able to get it back after a lot of struggle and won the case against the police.

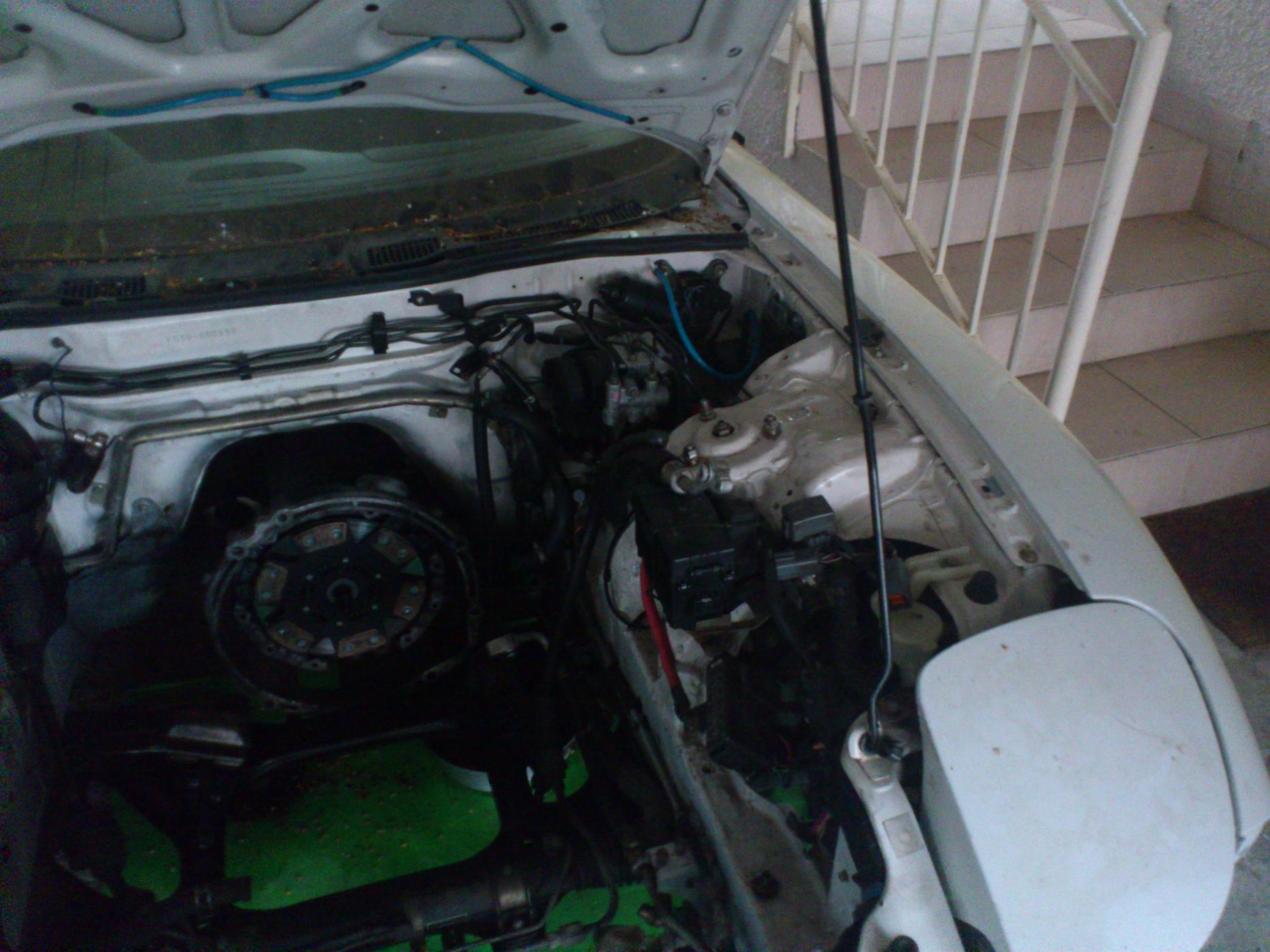

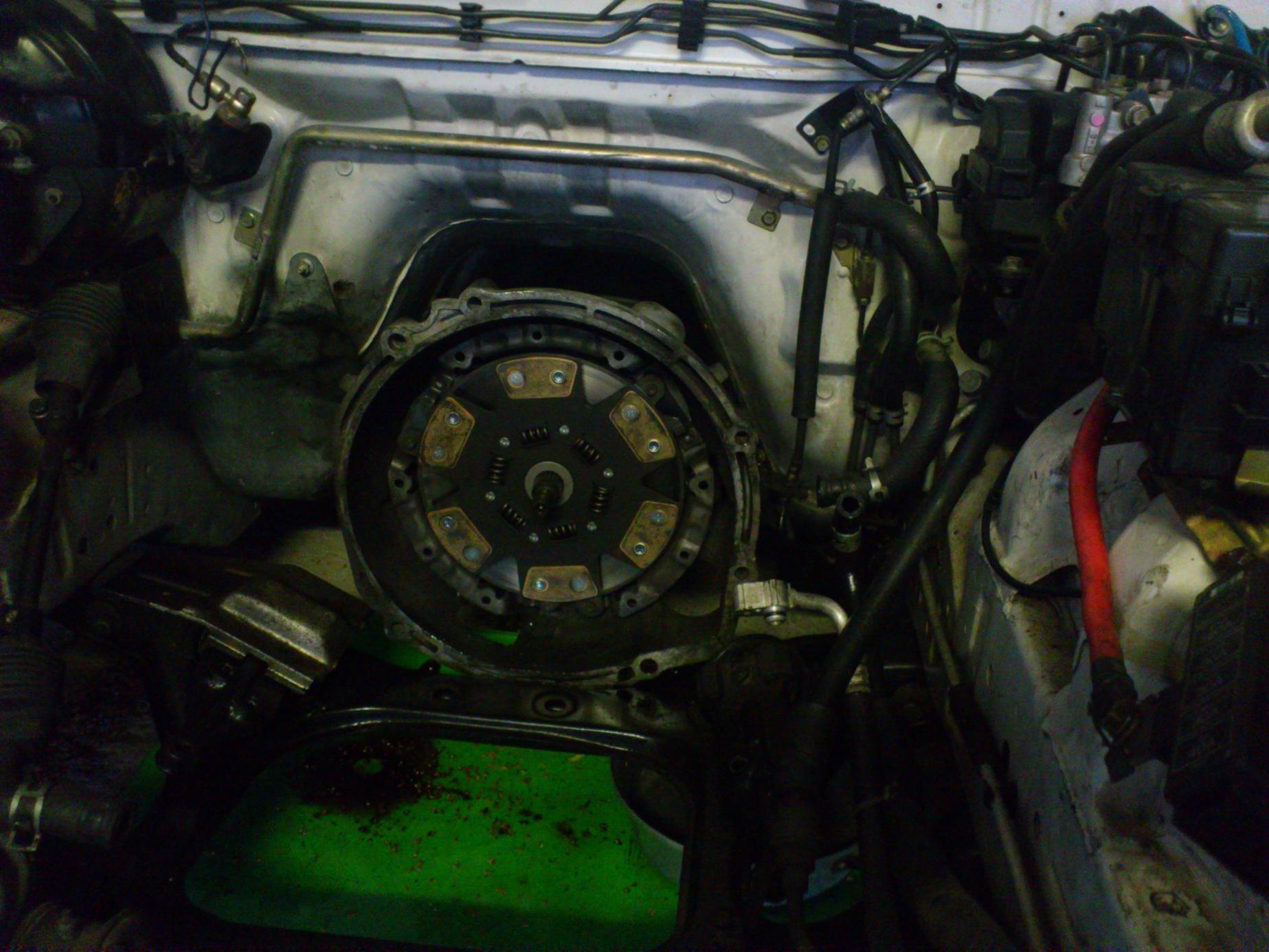

He got sick of all this story and thought to part out the car (engine and what not) and sold it to another friend of mine. He put a stock motor in stock twins and had this car as a daily driver.He wasn't doing all that well with the finances and thought to put it up for sale. The stock engine he put there had unknown mileage and it developed a bad coolant seal. He pulled the motor out and the coolant seal slot was damaged. With all the finance problems he decided to let the car go at a fairly low price without a motor

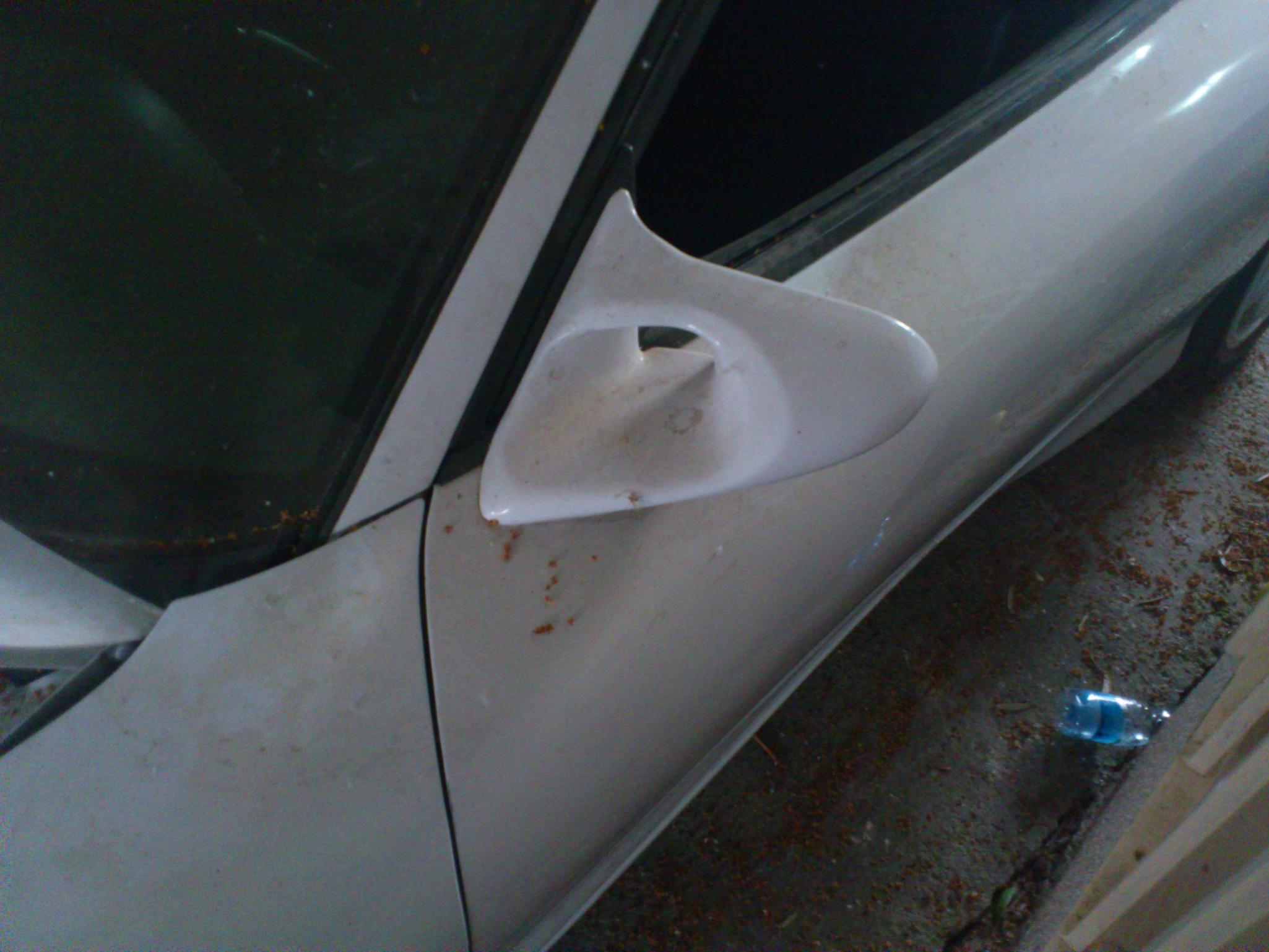

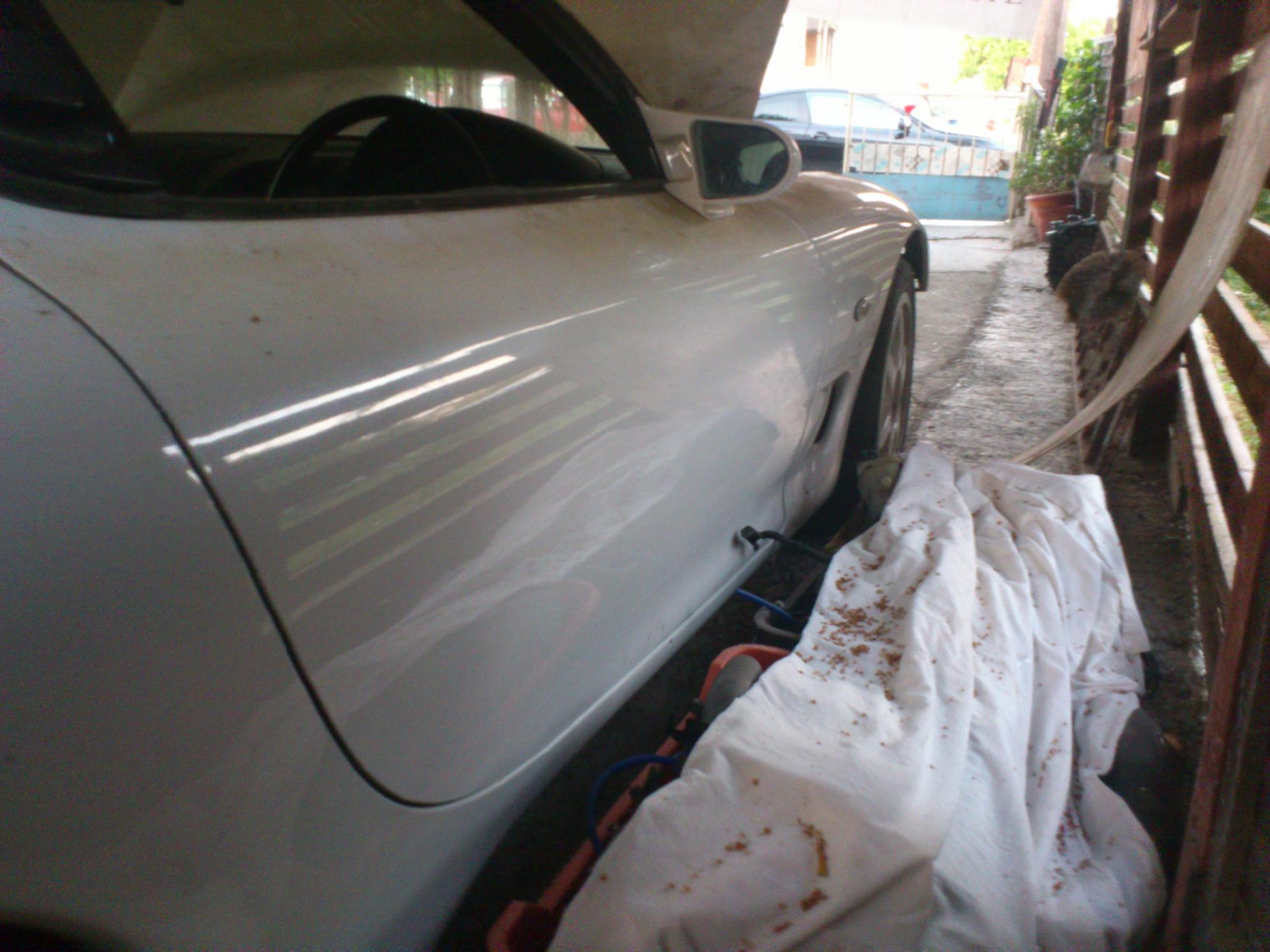

I thought I could buy the car fix it up and sell it for a profit but shortly after my 2002 was on fire (steering column rubber dust cover) and the car was destroyed
So I ended up with this car in my possesion. Clean car. So I thought that it was a good start.to make it a great everyday car and a track monster.
The car first came to cyprus in 2005 as a veilside show car. It was featured in tokyo auto salon and the first owner was a friend of mine.. very clean car, no accident history (rare for rx7s exported from japan)
The car was impounded for a couple of years for being heavily modified according to the local police
The owner was able to get it back after a lot of struggle and won the case against the police.
He got sick of all this story and thought to part out the car (engine and what not) and sold it to another friend of mine. He put a stock motor in stock twins and had this car as a daily driver.He wasn't doing all that well with the finances and thought to put it up for sale. The stock engine he put there had unknown mileage and it developed a bad coolant seal. He pulled the motor out and the coolant seal slot was damaged. With all the finance problems he decided to let the car go at a fairly low price without a motor
I thought I could buy the car fix it up and sell it for a profit but shortly after my 2002 was on fire (steering column rubber dust cover) and the car was destroyed
So I ended up with this car in my possesion. Clean car. So I thought that it was a good start.to make it a great everyday car and a track monster.
05-10-13, 11:36 AM
#2
Rotor or no motor
Thread Starter
iTrader: (24)

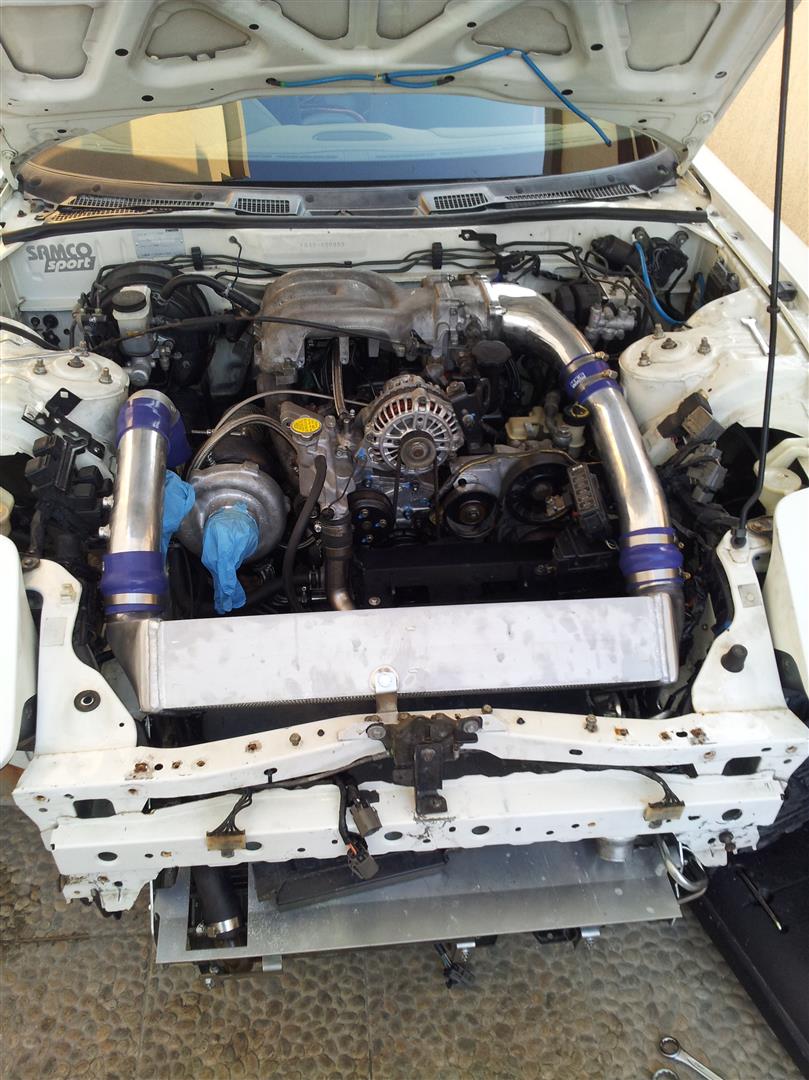

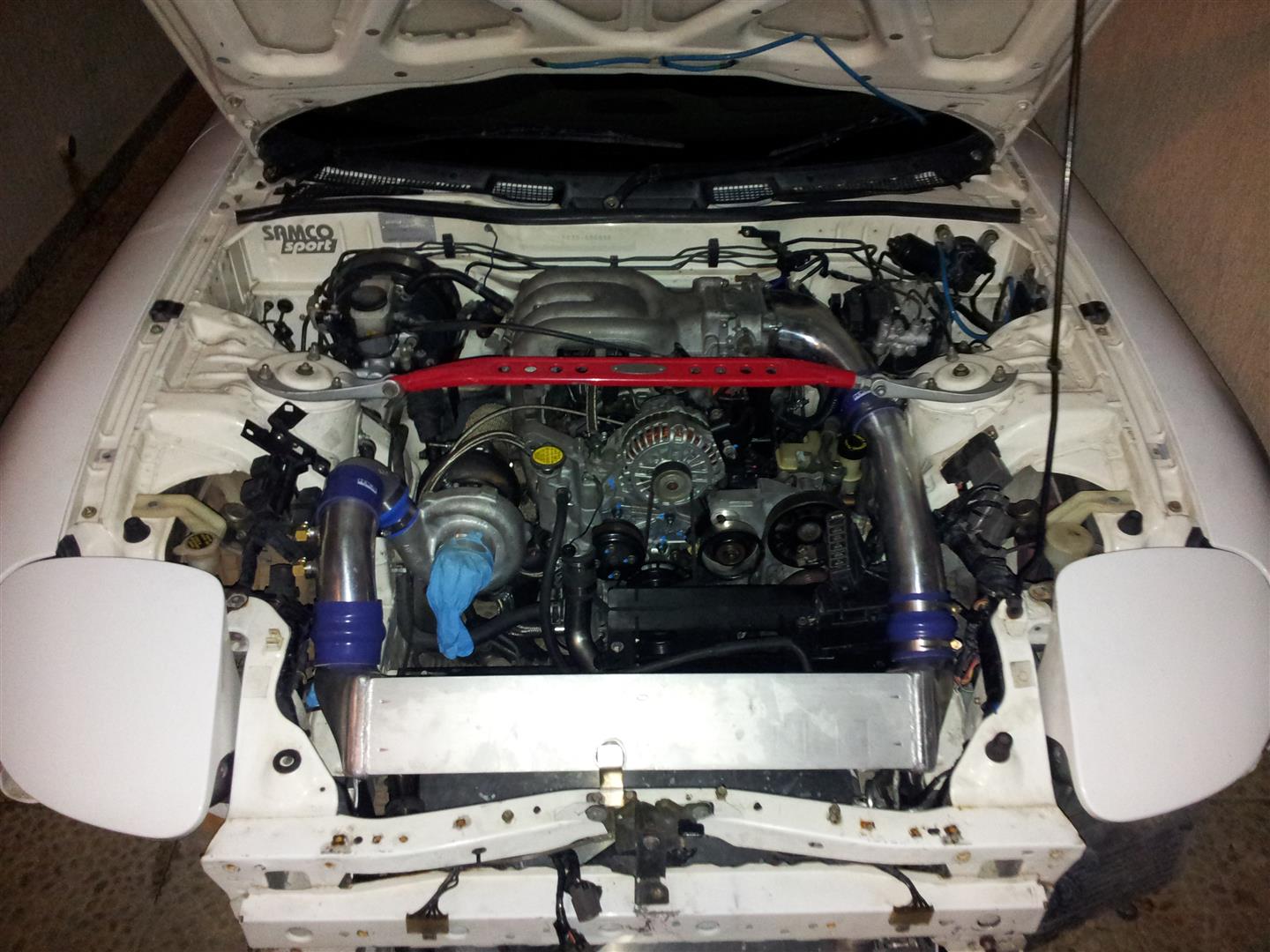

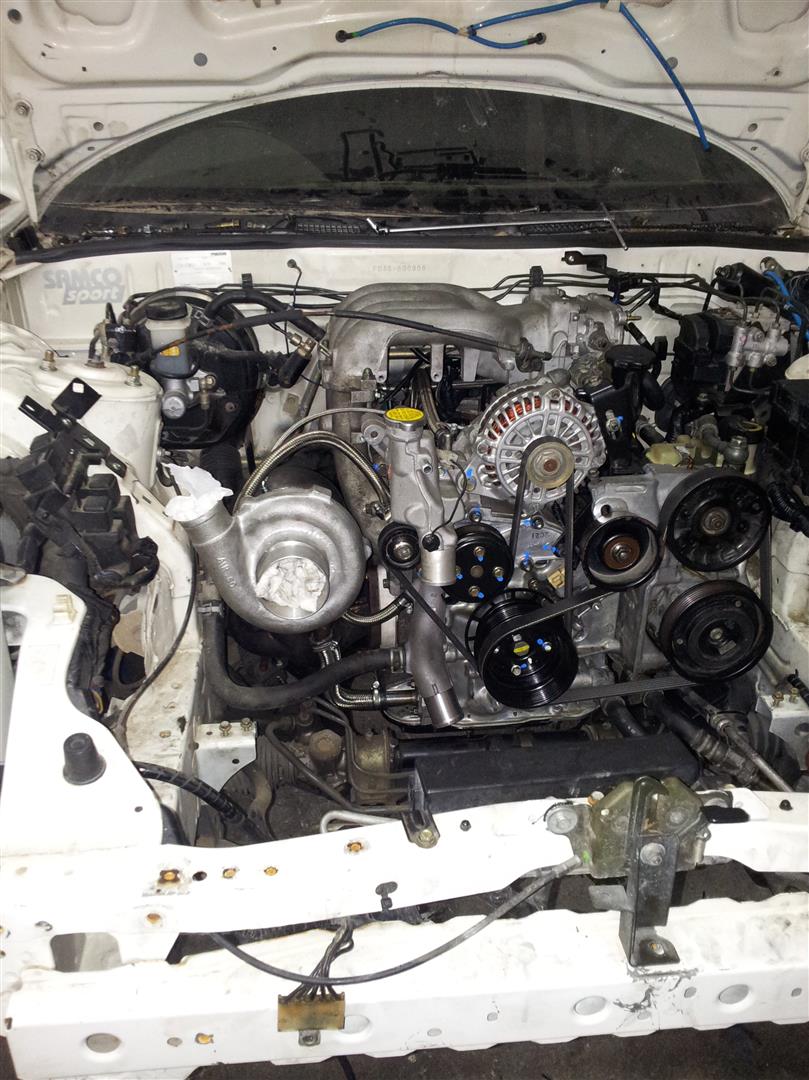

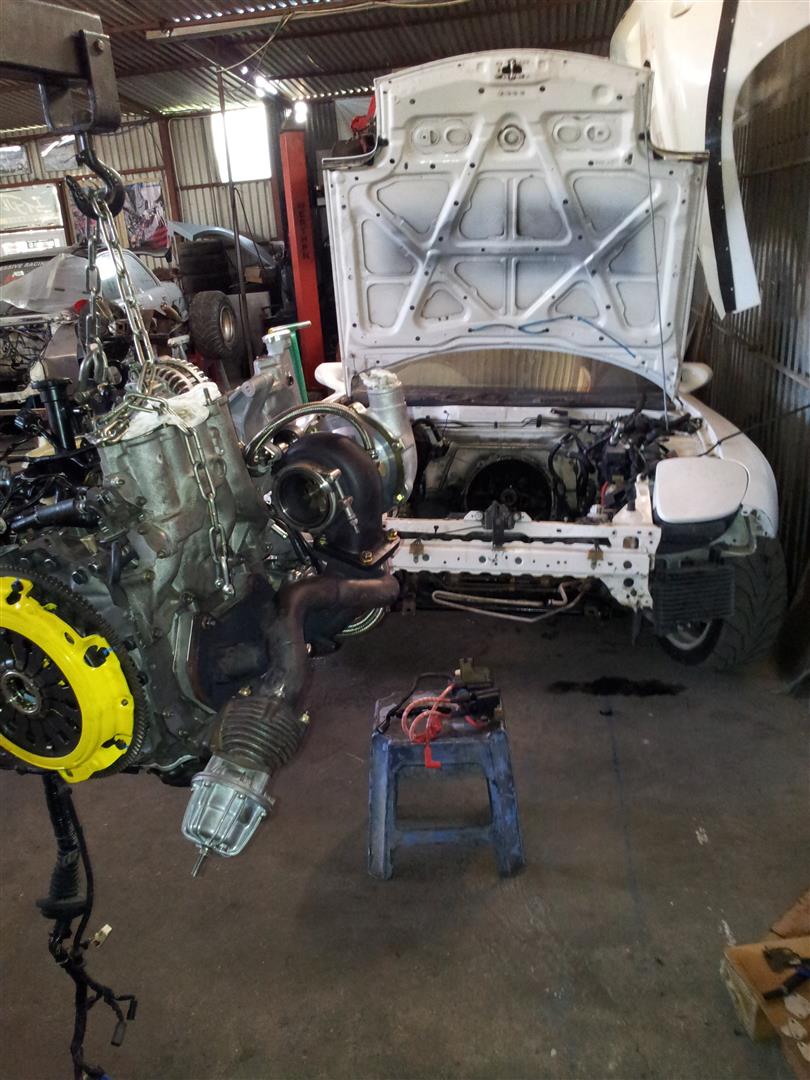

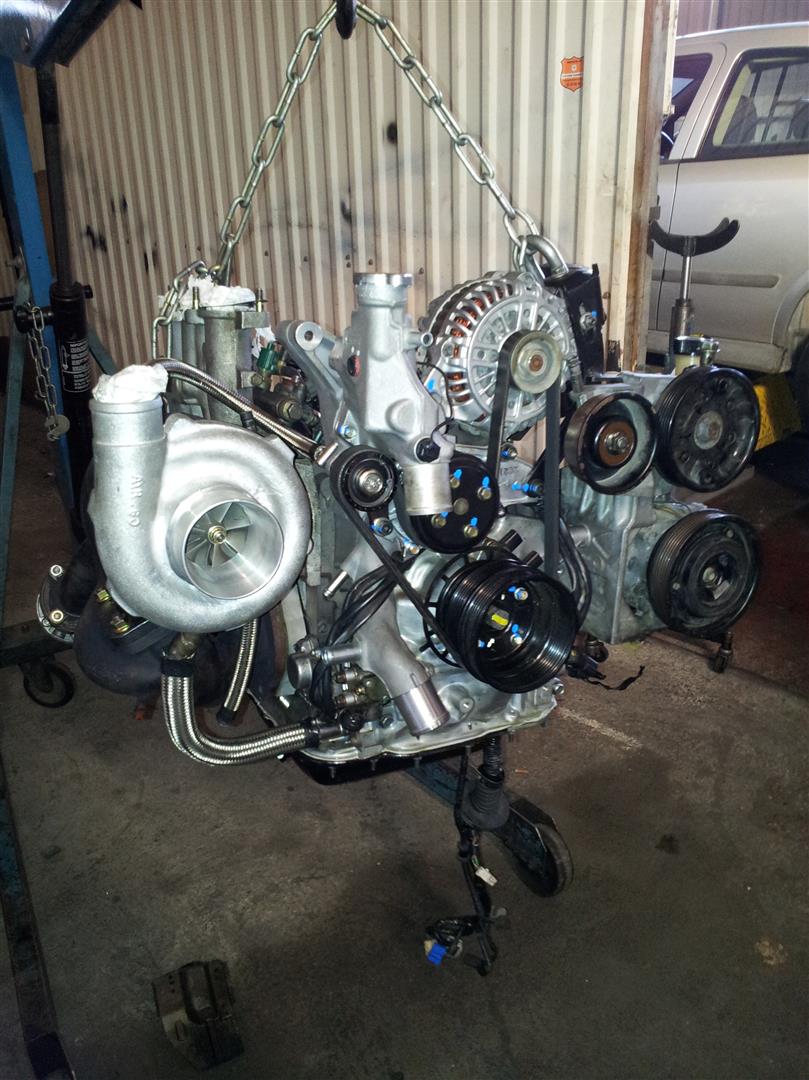

After buying a brand new engine (as the initial goal was just to fix it up) and a greddy SS single turbo manifold with a BNR P-trim 60-1 turbo. I found locally the Rmagic "cheap" version Vmount they offered (old skool) which uses the OEM Intercooler from a mitsubishi evo 6. I thought, since i was only fixing up the car it was pointless to get a better intercooler

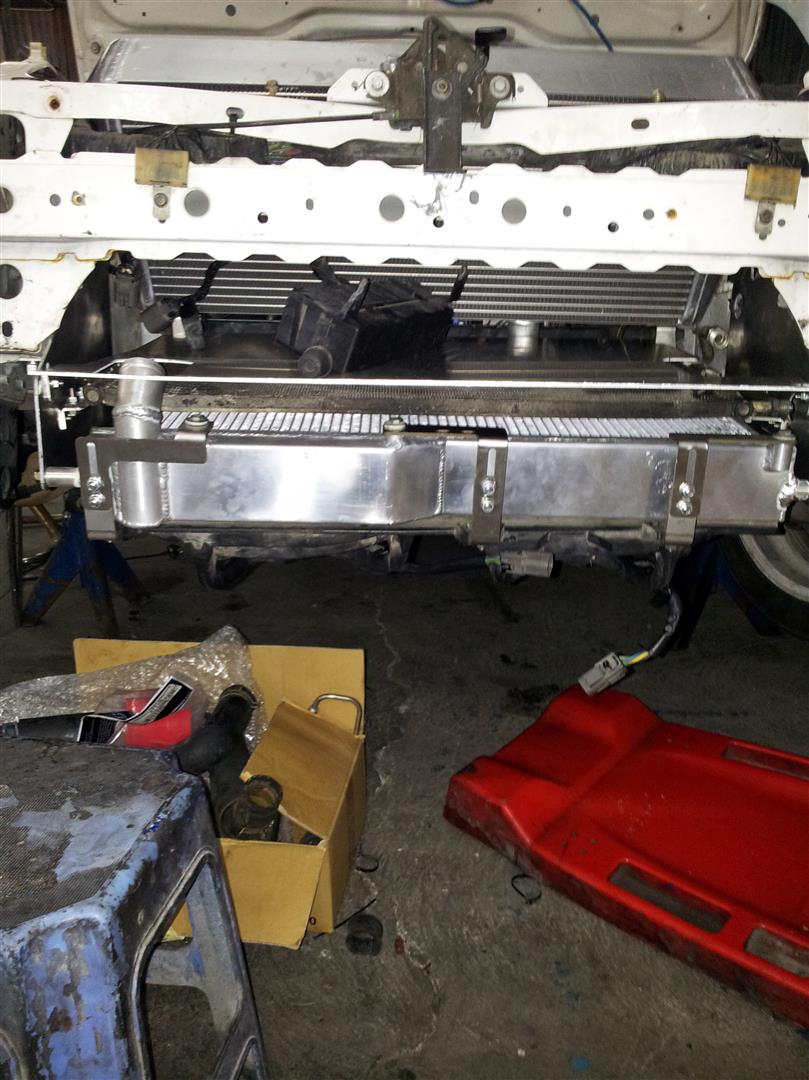

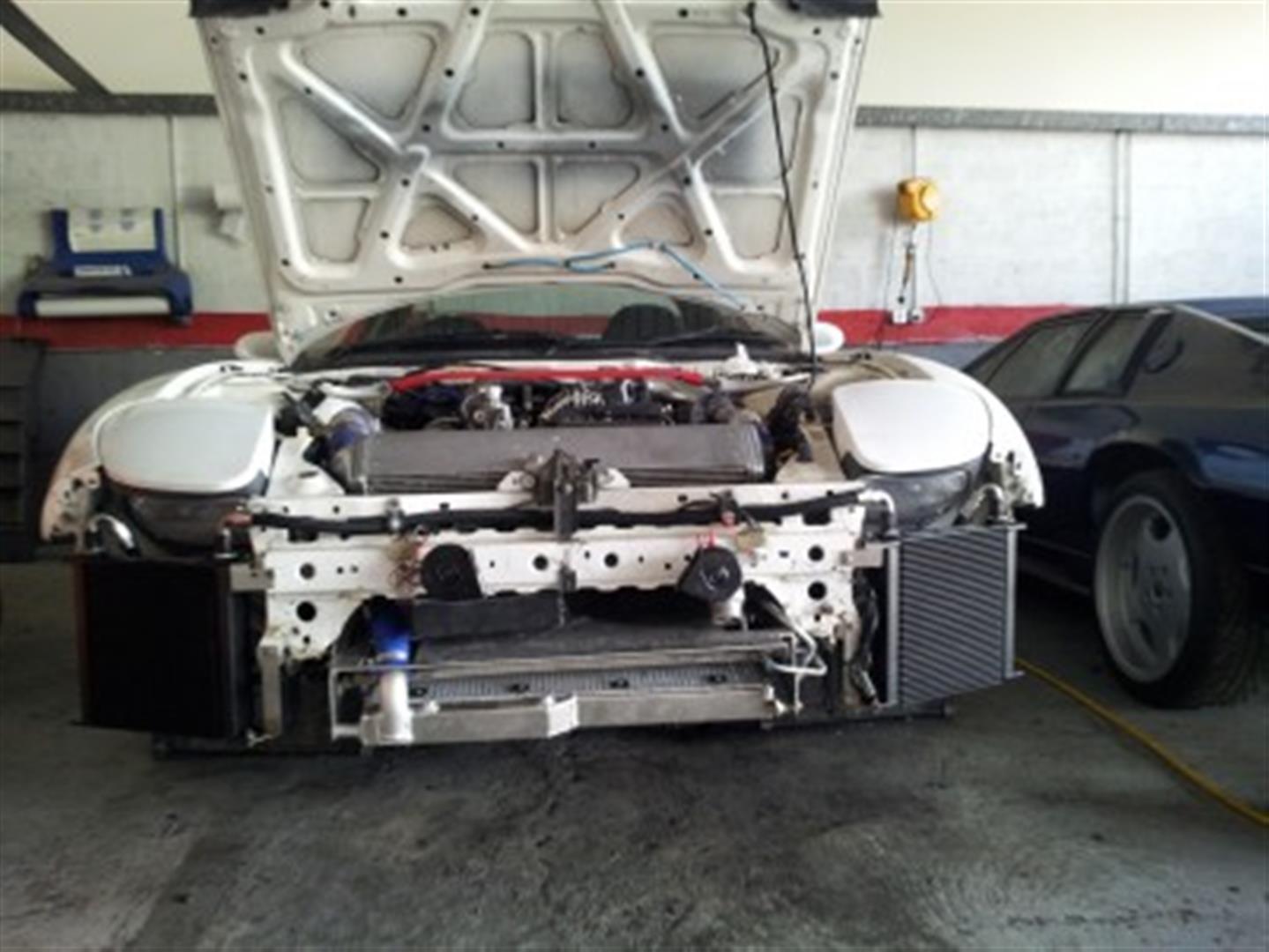

after the whole thing with the fire on the other car i didnt want to compromise with that intercooler. I ended up going with the HKS vmount kit which was a pain in the *** to mount. It uses the stock radiator and fans and any thicker radiator will make this a big nightmare. The stock fans are also pretty high and the fans were almost hitting the floor.. the fans were much lower than the OEM 99spec bumper (with the lip included
AS i mentioned, the thicker radiators wouldnt work i ended up going with the fluidyne radiator and spal low profile fans. the hks vmount was poorly engineered and poorly fabricated. While the actual intercooler is fantastic, the rest i was disappointed.
That manifold is made for the t78-t88 turbos that they have longer cartridge. while this turbo is significantly smaller than the t78 (in size at least) the turbo wouldnt clear the waterpump housing and the LIM. A flange was cut (waterjet) 20mm so the turbo would clear well and try to keep the intake temps down. It may a little hard to see the flange. if you pay close attention to the exhaust port and manifold you can see it

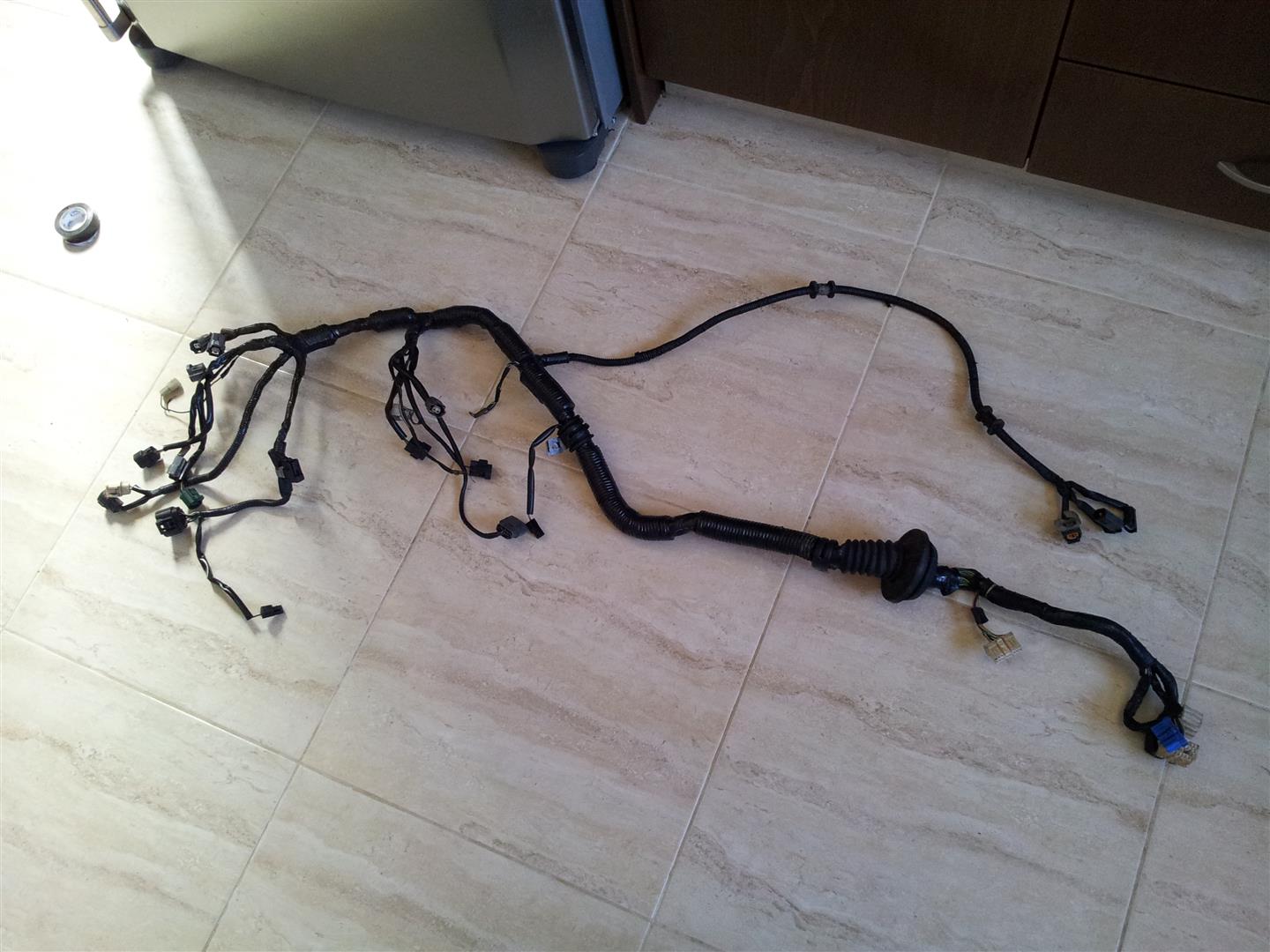

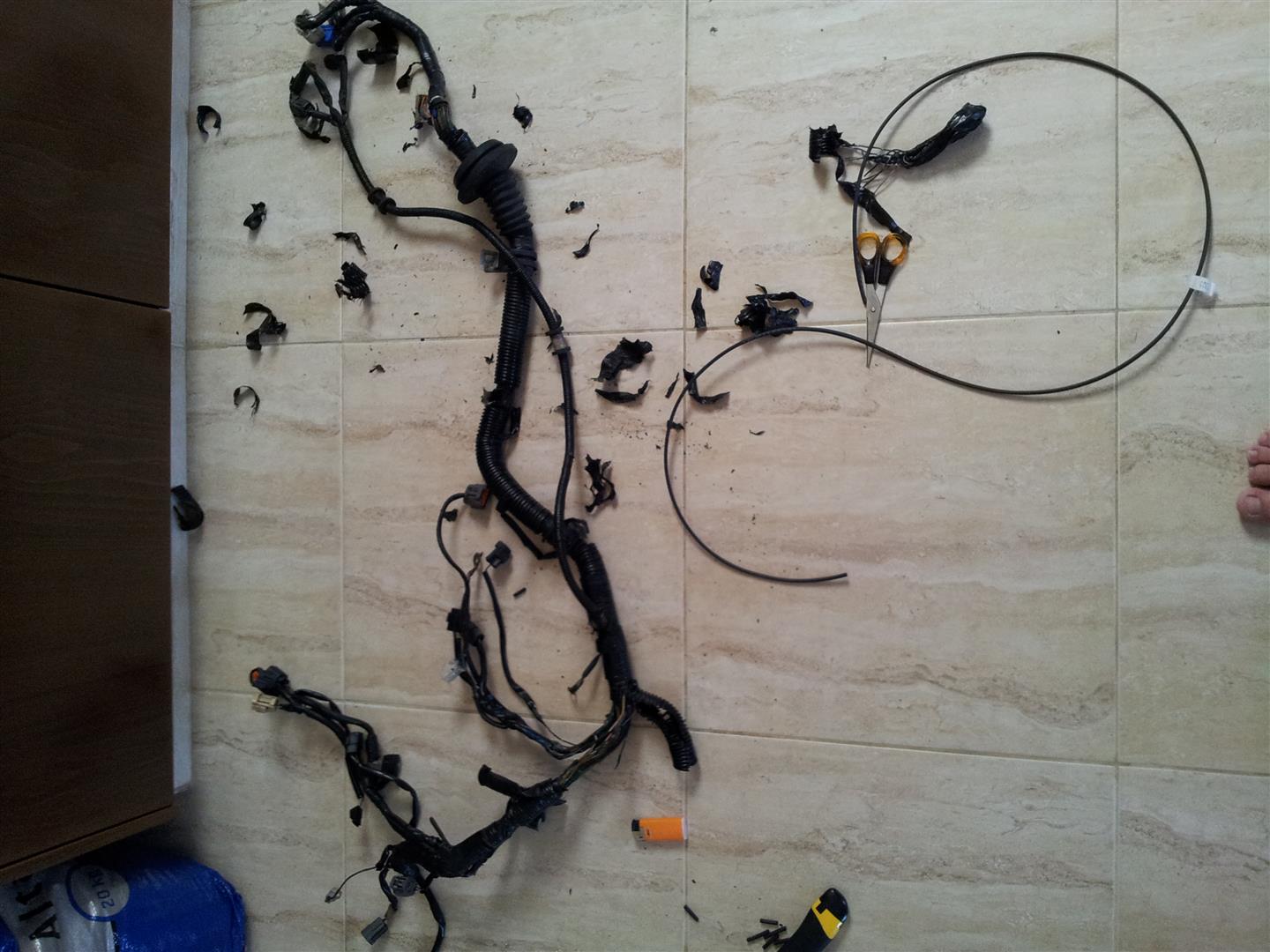

harness was then converted to a single turbo harness and removed all the unnecessary crap. It was then further simplified as i wanted to remove more stuff (OMP plug and others)
after the whole thing with the fire on the other car i didnt want to compromise with that intercooler. I ended up going with the HKS vmount kit which was a pain in the *** to mount. It uses the stock radiator and fans and any thicker radiator will make this a big nightmare. The stock fans are also pretty high and the fans were almost hitting the floor.. the fans were much lower than the OEM 99spec bumper (with the lip included
AS i mentioned, the thicker radiators wouldnt work i ended up going with the fluidyne radiator and spal low profile fans. the hks vmount was poorly engineered and poorly fabricated. While the actual intercooler is fantastic, the rest i was disappointed.
That manifold is made for the t78-t88 turbos that they have longer cartridge. while this turbo is significantly smaller than the t78 (in size at least) the turbo wouldnt clear the waterpump housing and the LIM. A flange was cut (waterjet) 20mm so the turbo would clear well and try to keep the intake temps down. It may a little hard to see the flange. if you pay close attention to the exhaust port and manifold you can see it
harness was then converted to a single turbo harness and removed all the unnecessary crap. It was then further simplified as i wanted to remove more stuff (OMP plug and others)
The following users liked this post:
Tacos (10-26-23)
05-10-13, 11:49 AM
#3
Rotor or no motor
Thread Starter
iTrader: (24)

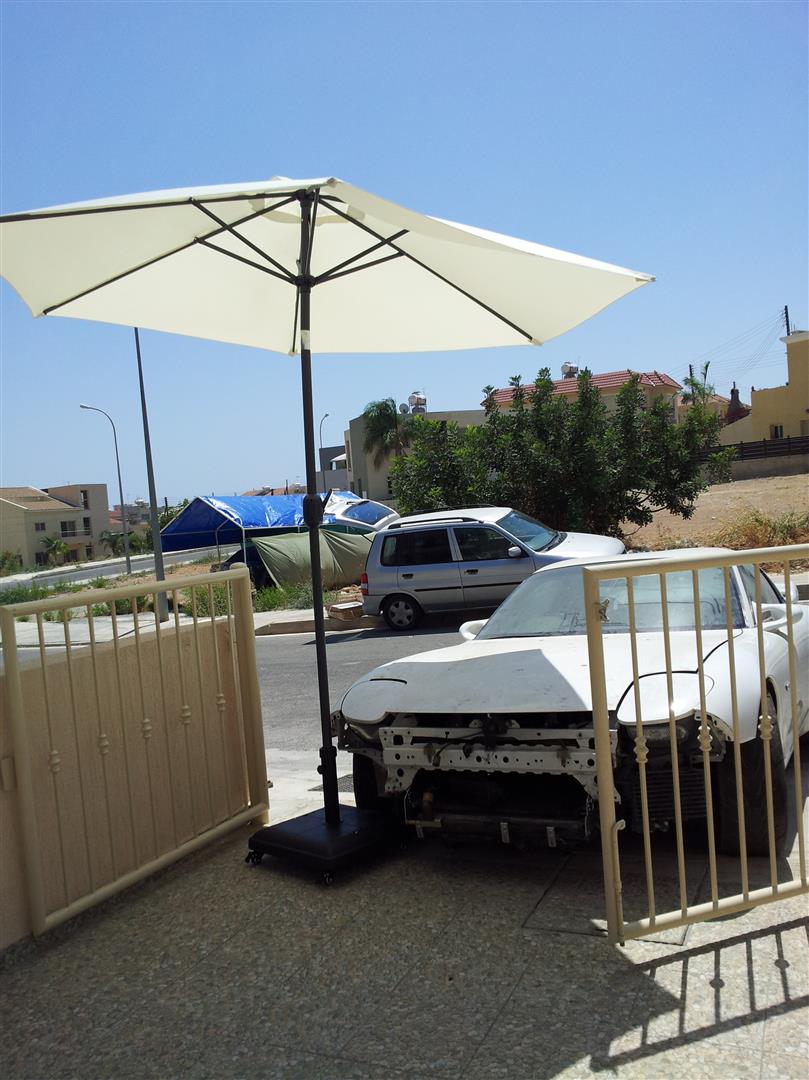

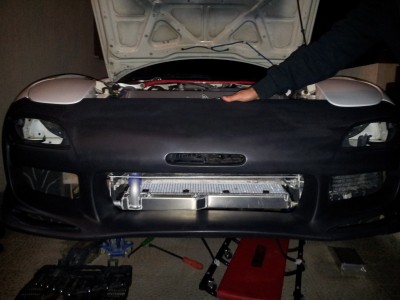

the picture with the umbrella shows how low the fans are and thats with the stock radiator. I tried installing a JAPSPEED junk radiator (brand new, leaking, wouldnt fit) so i scrapped that after a few hours went back to stock (before i switched to the fluidyne
charge pipes where then modified to work with that turbo setup
charge pipes where then modified to work with that turbo setup
05-10-13, 12:37 PM
#4
Rotor or no motor
Thread Starter
iTrader: (24)
the turbo was then switched to the BNR version of GT35 with the billet compressor wheel

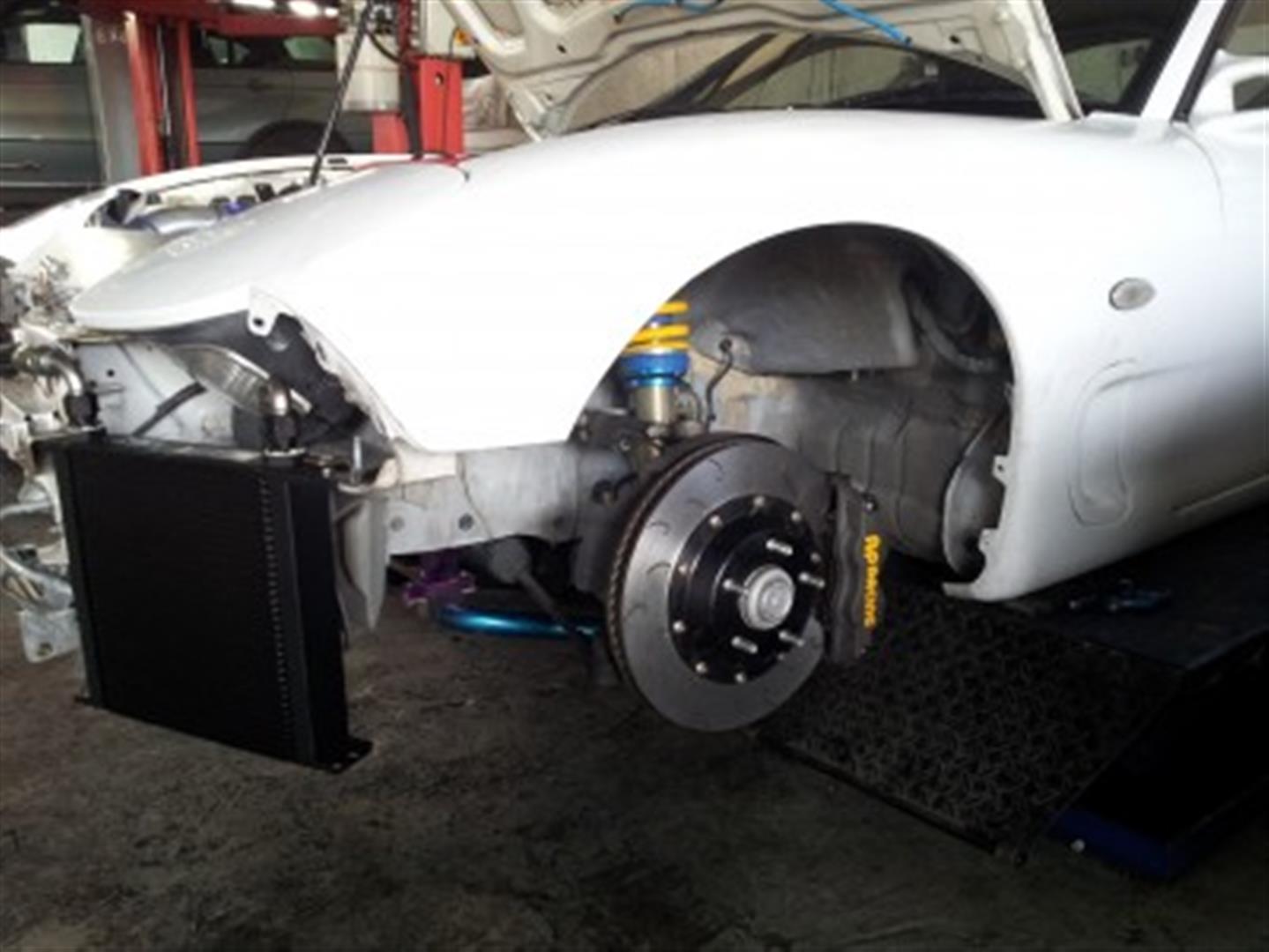

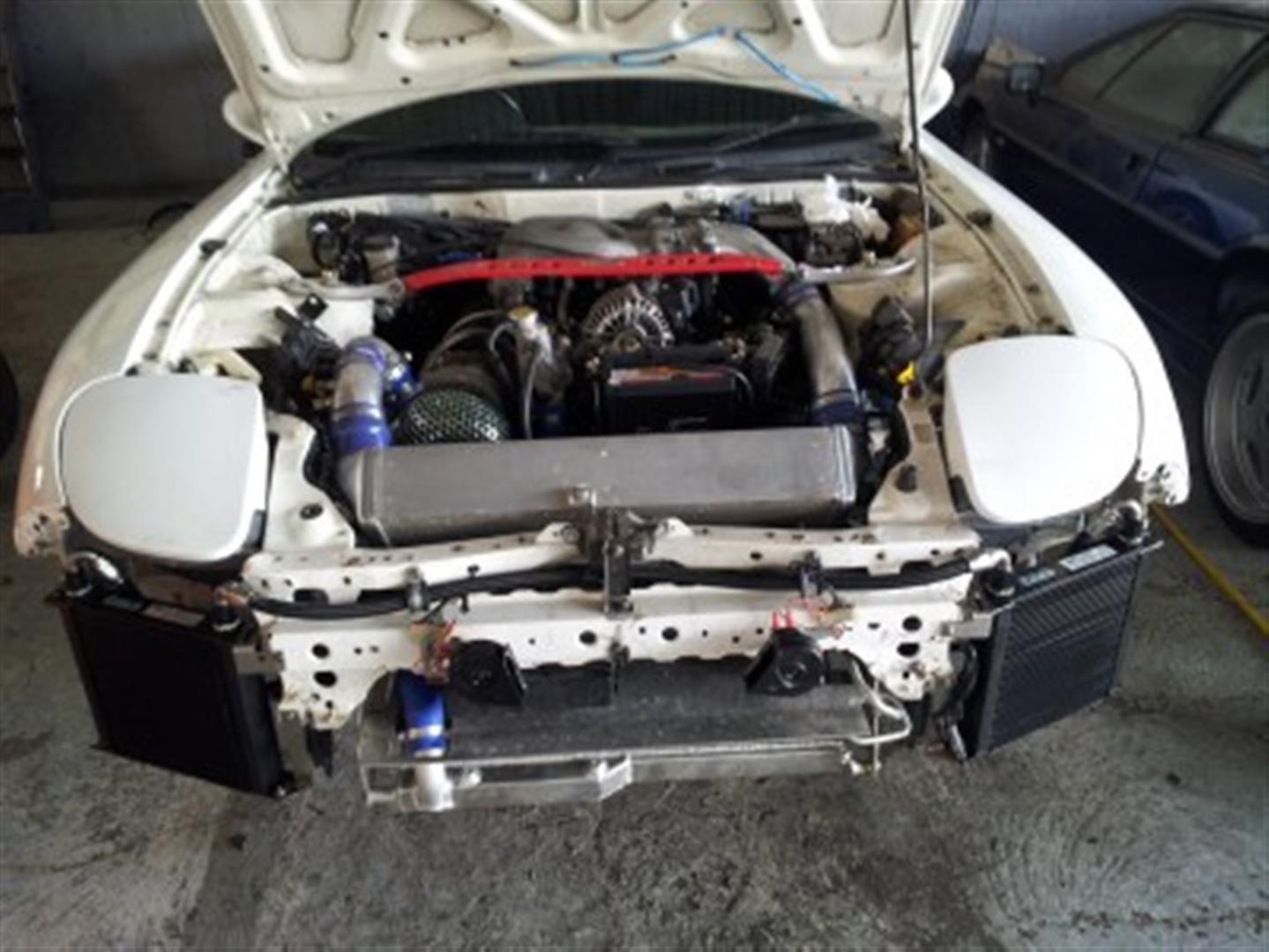

2x34 row Setrab oil coolers with Mocal thermostat
and now the good stuff

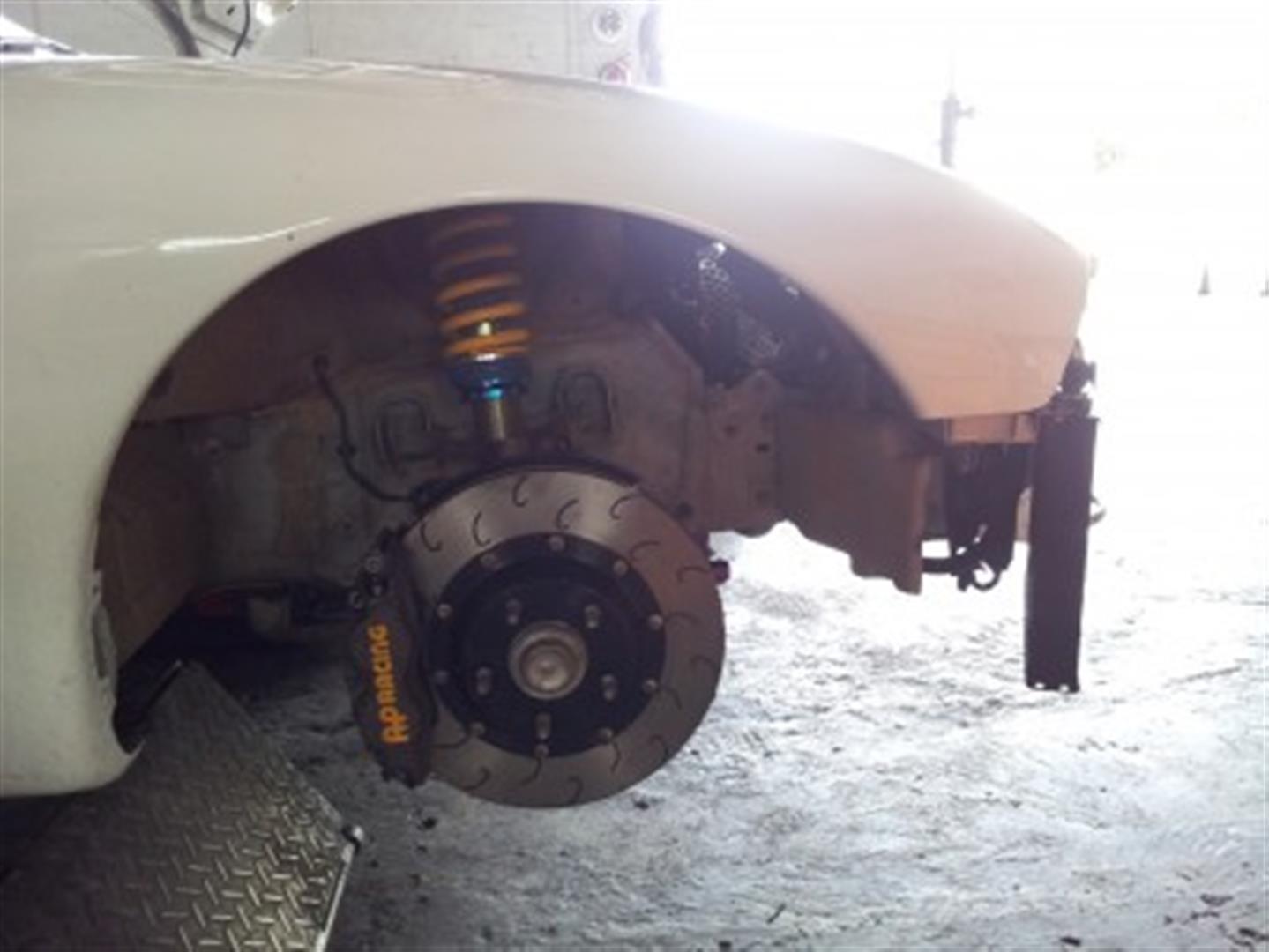

Suspension that was on the car was HKS Hipermax Drag.. Didnt really enjoy it so i switched for an almost brand new set of OHLINS PCV dual spring
Sakebomb AP racing BBK
FEED front and rear sway bars
Supernow sway bar mounts

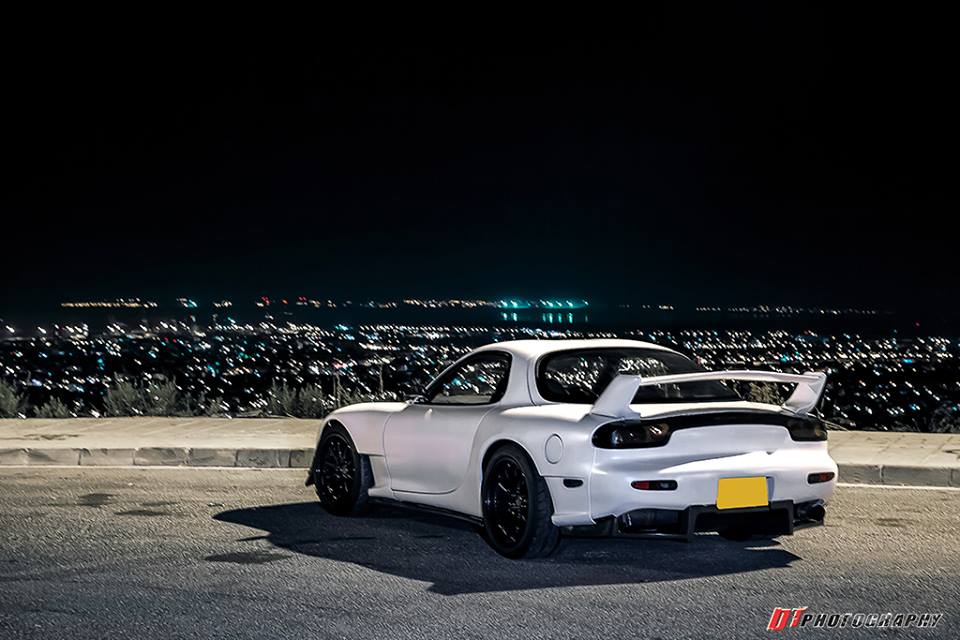

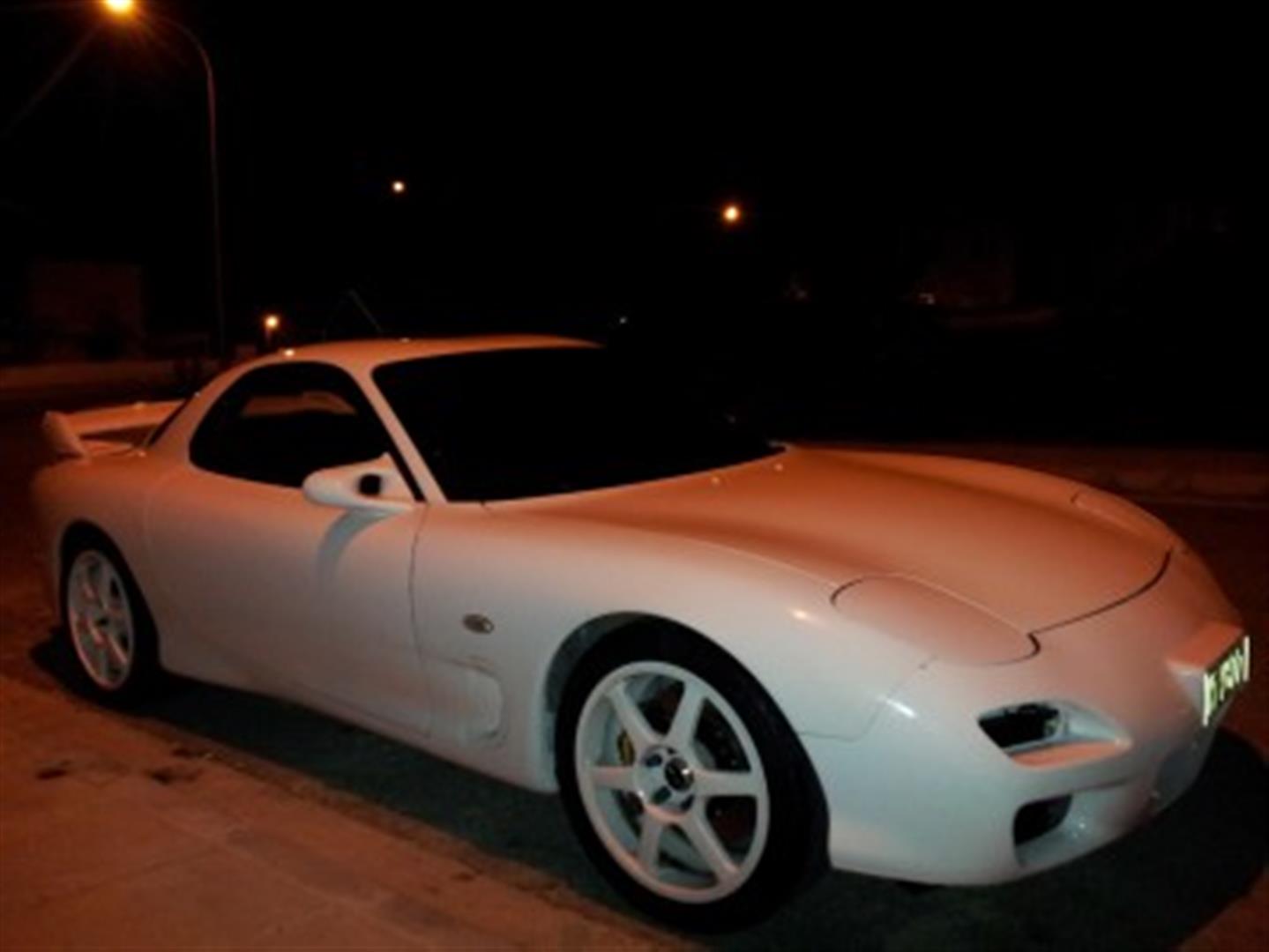

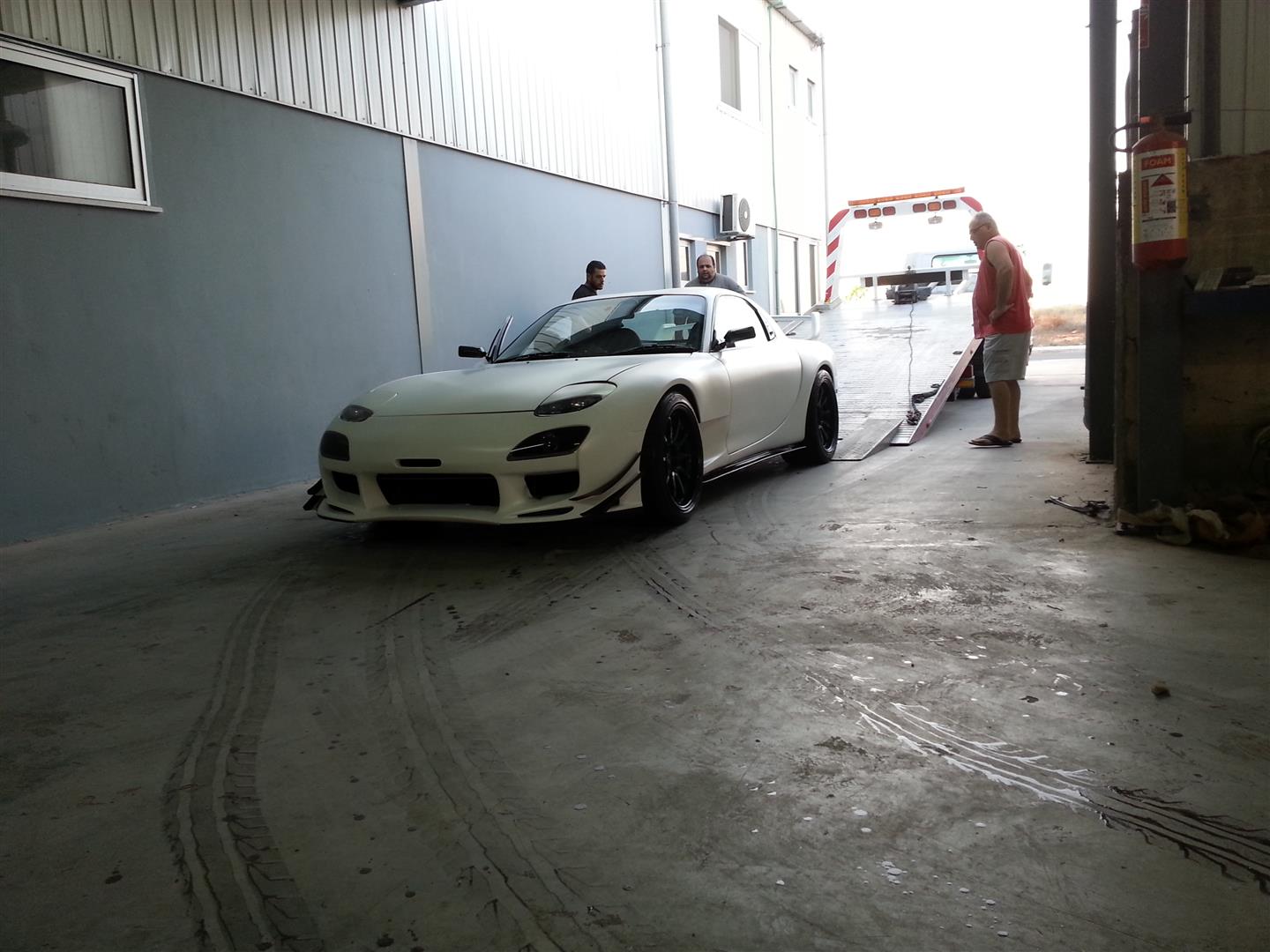

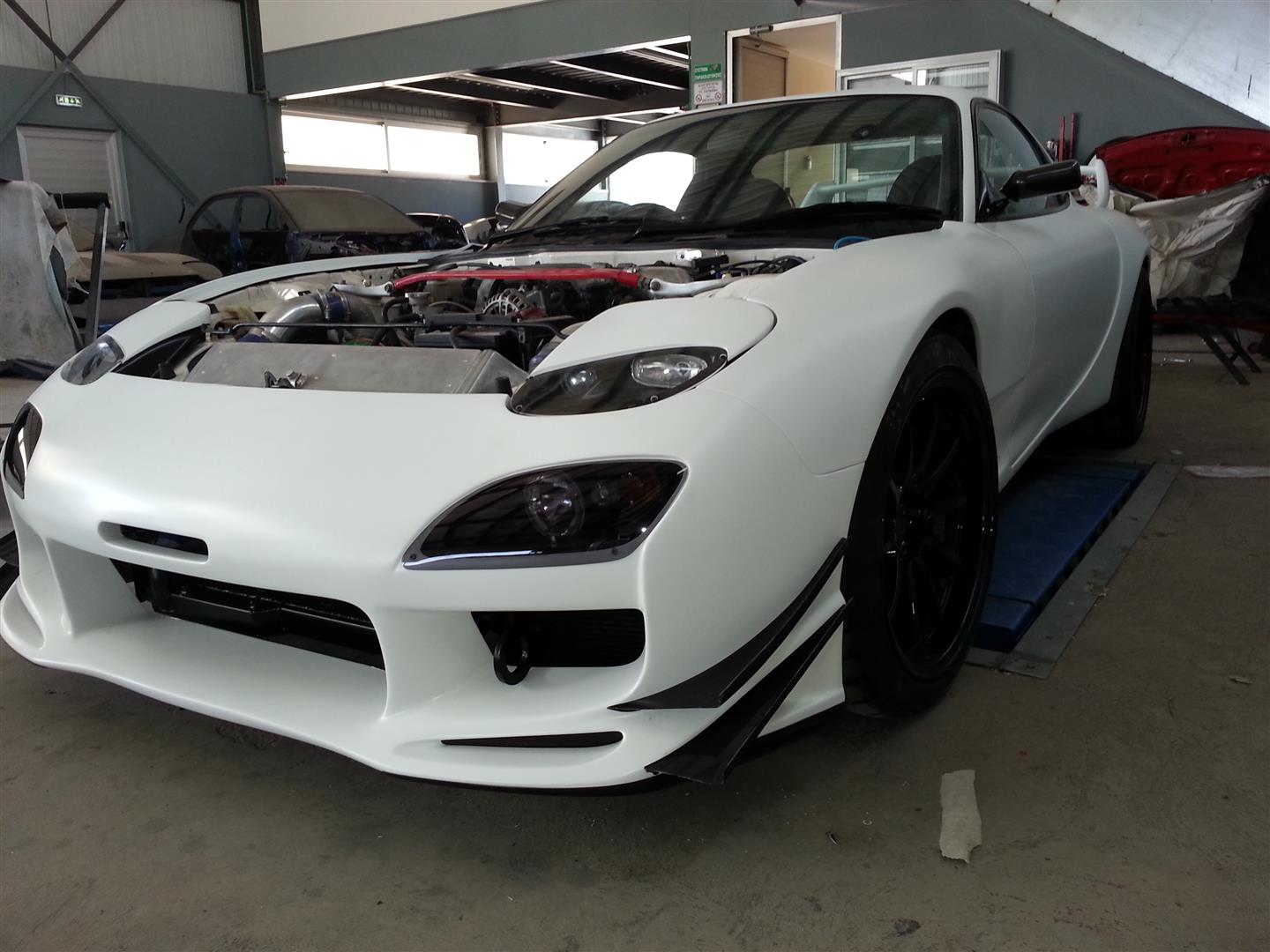

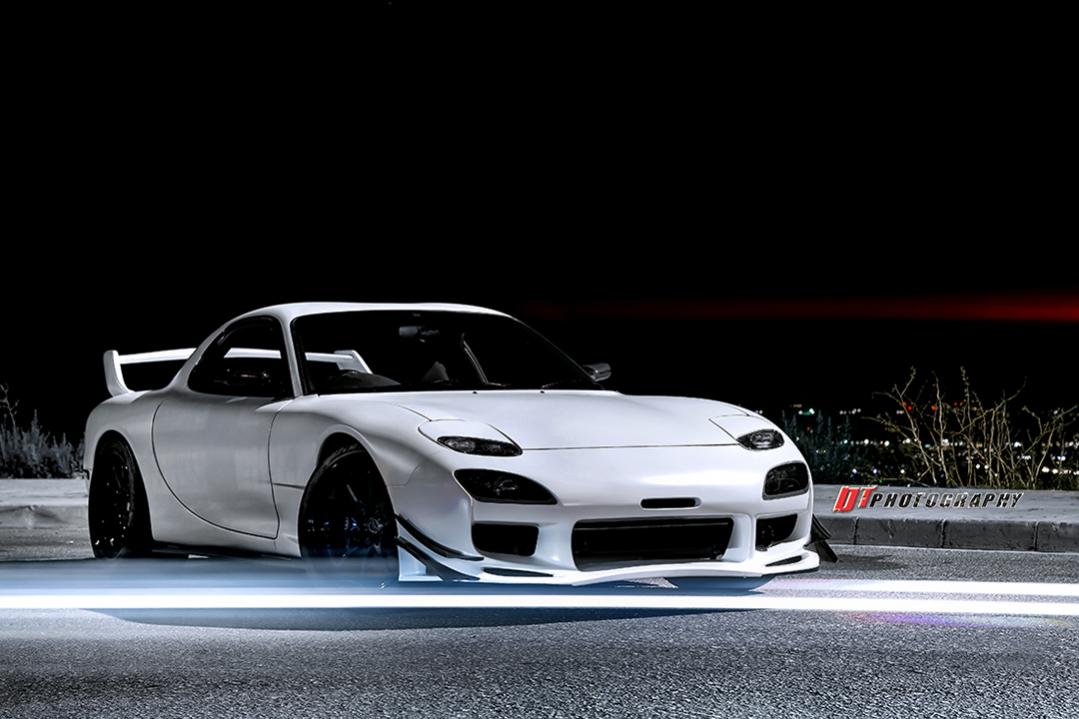

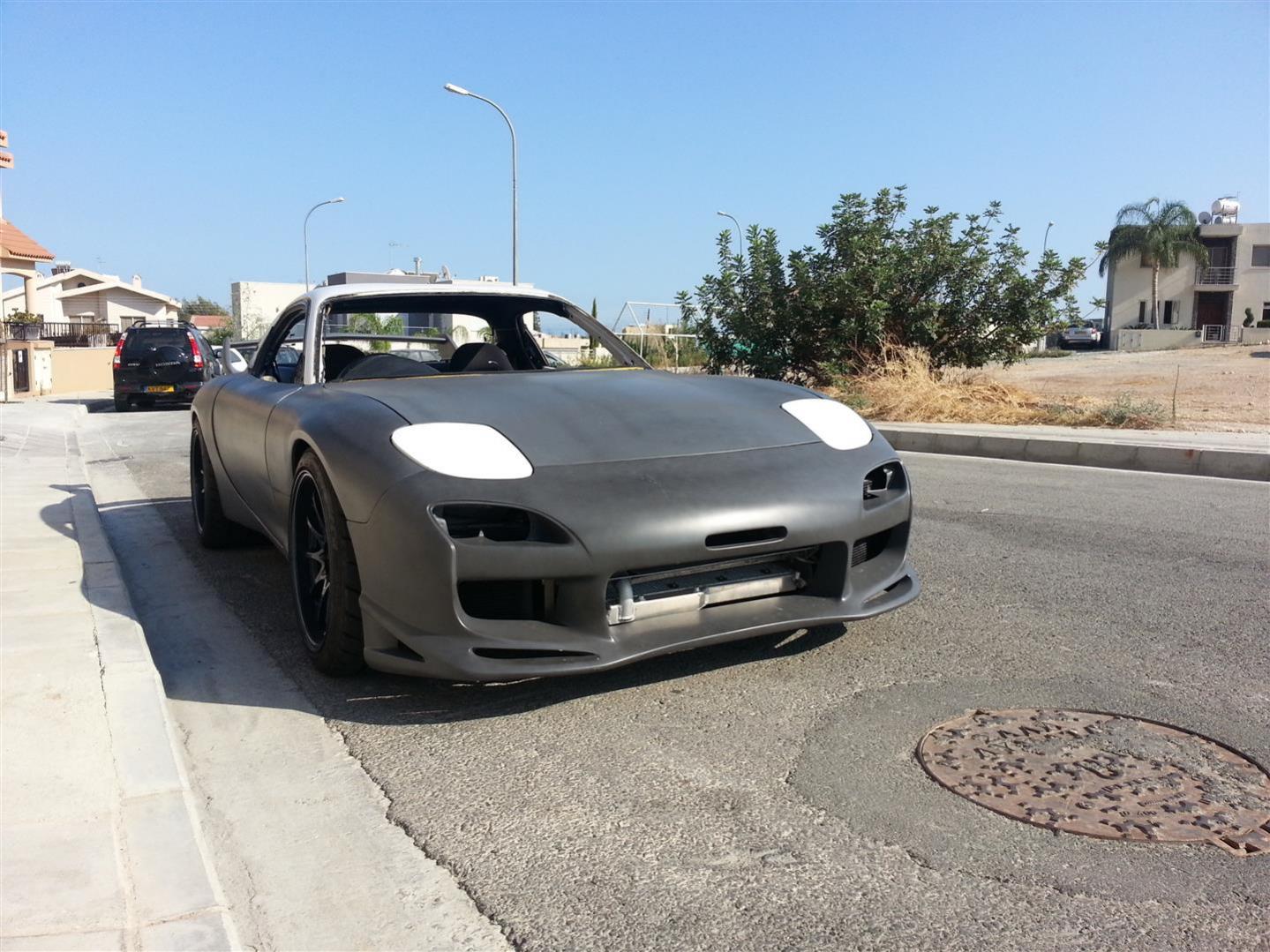

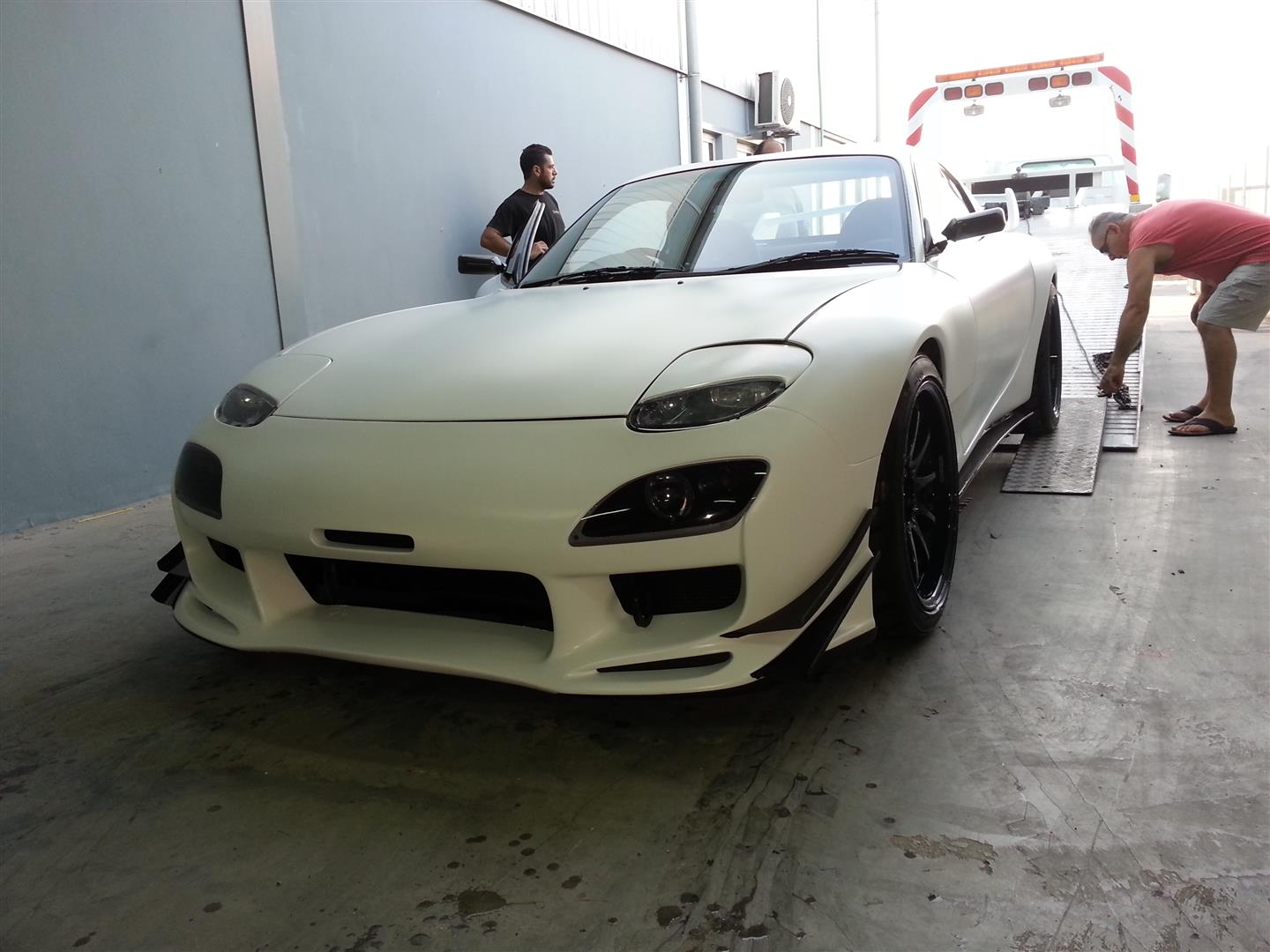

and the car at the current state
2x34 row Setrab oil coolers with Mocal thermostat
and now the good stuff
Suspension that was on the car was HKS Hipermax Drag.. Didnt really enjoy it so i switched for an almost brand new set of OHLINS PCV dual spring
Sakebomb AP racing BBK
FEED front and rear sway bars
Supernow sway bar mounts
and the car at the current state
05-11-13, 12:36 AM
#7
Rotor or no motor
Thread Starter
iTrader: (24)
Thanks Jim!
The list of parts that will go on the car is pretty big

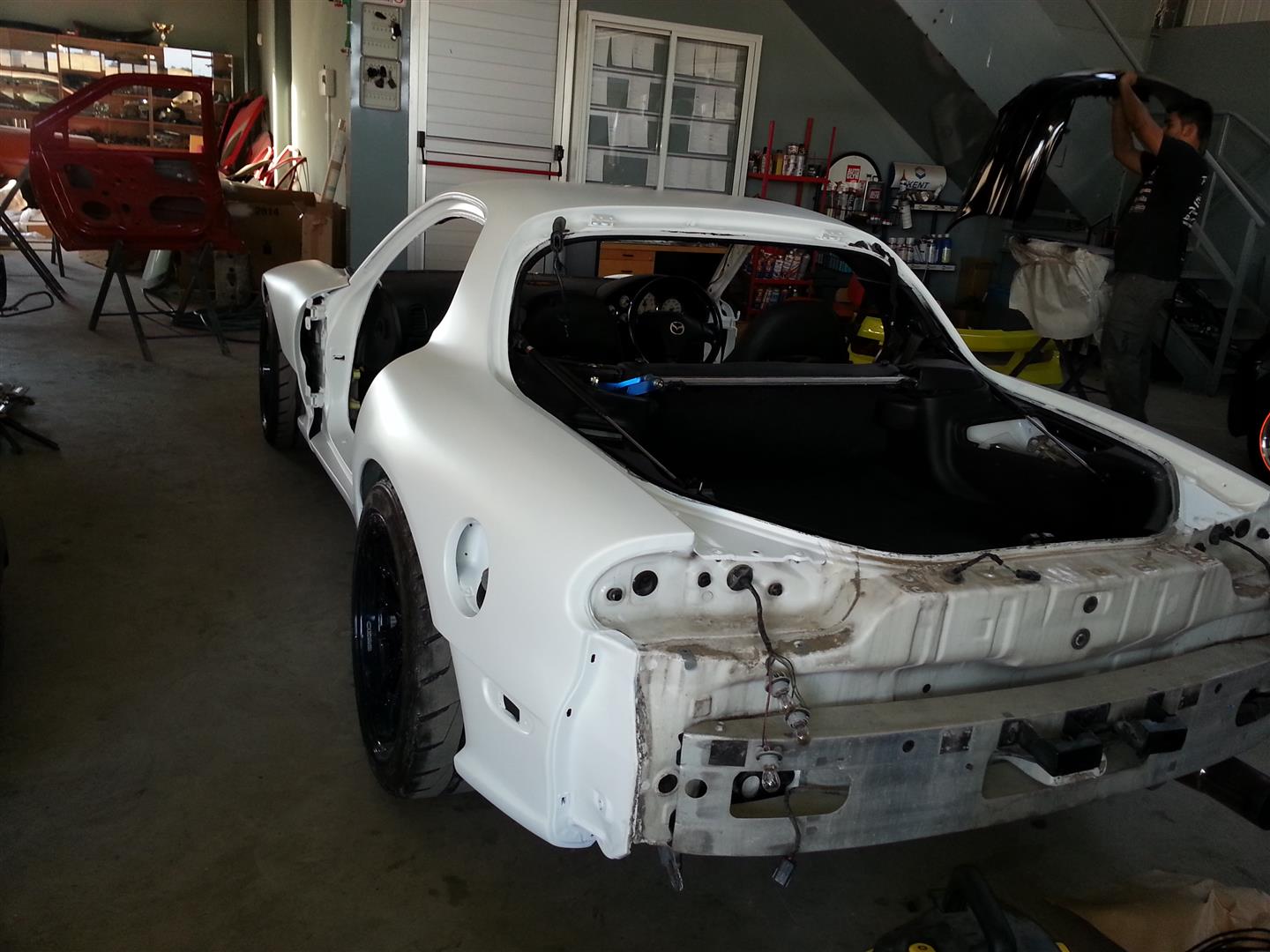

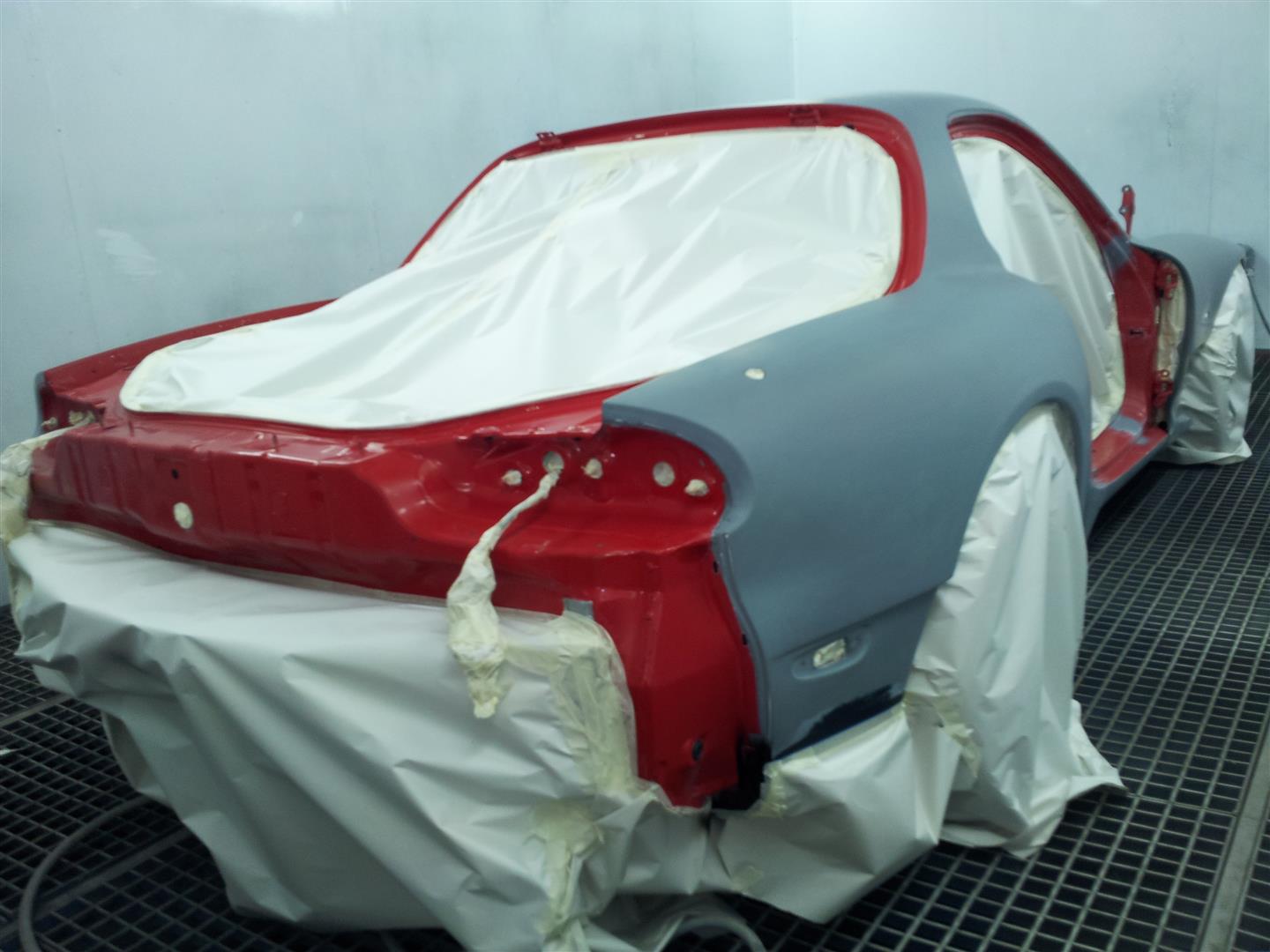

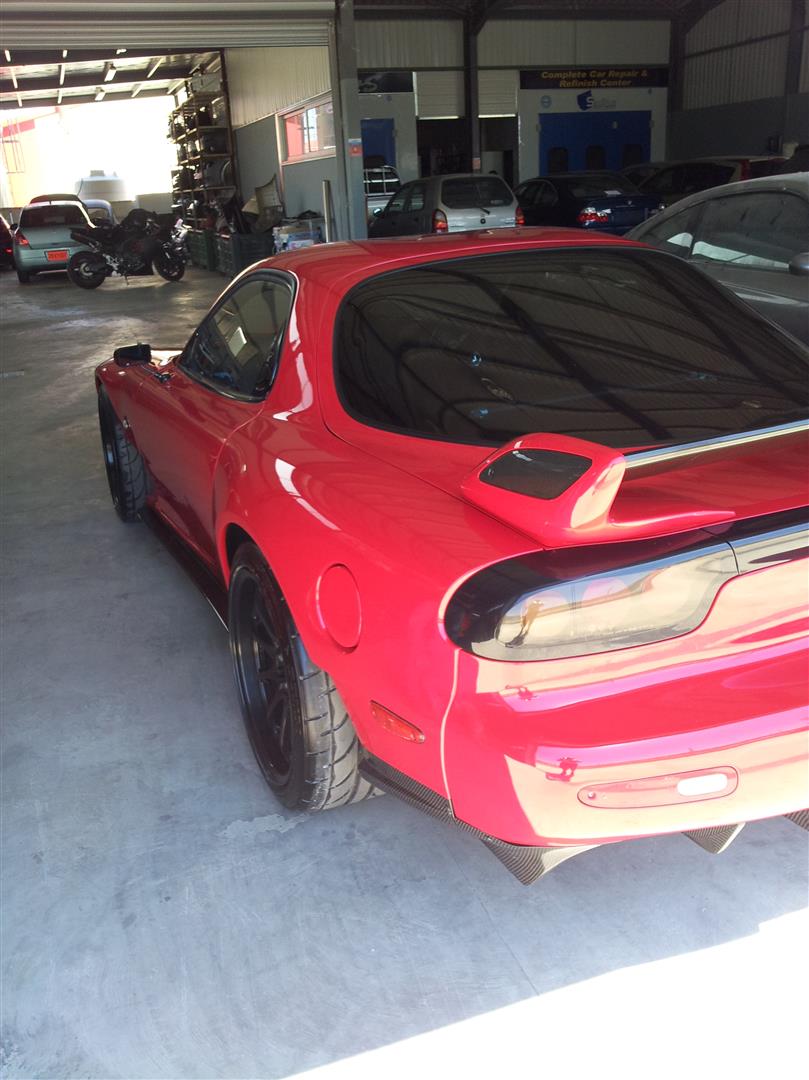

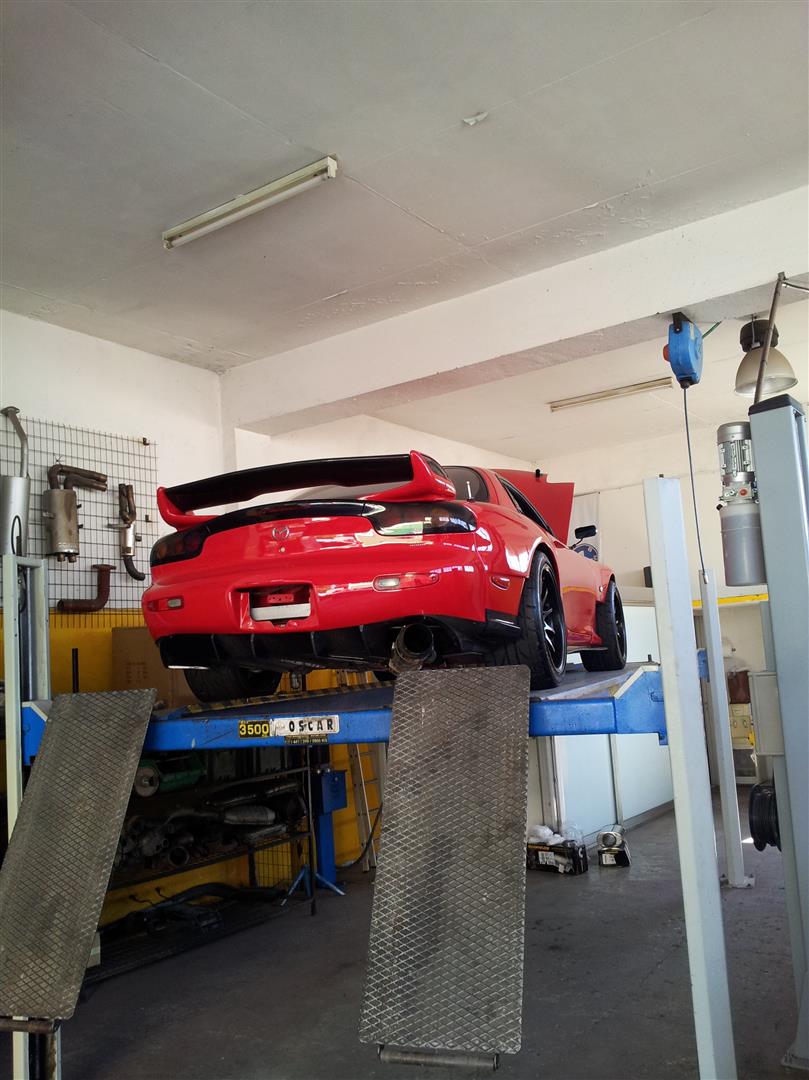

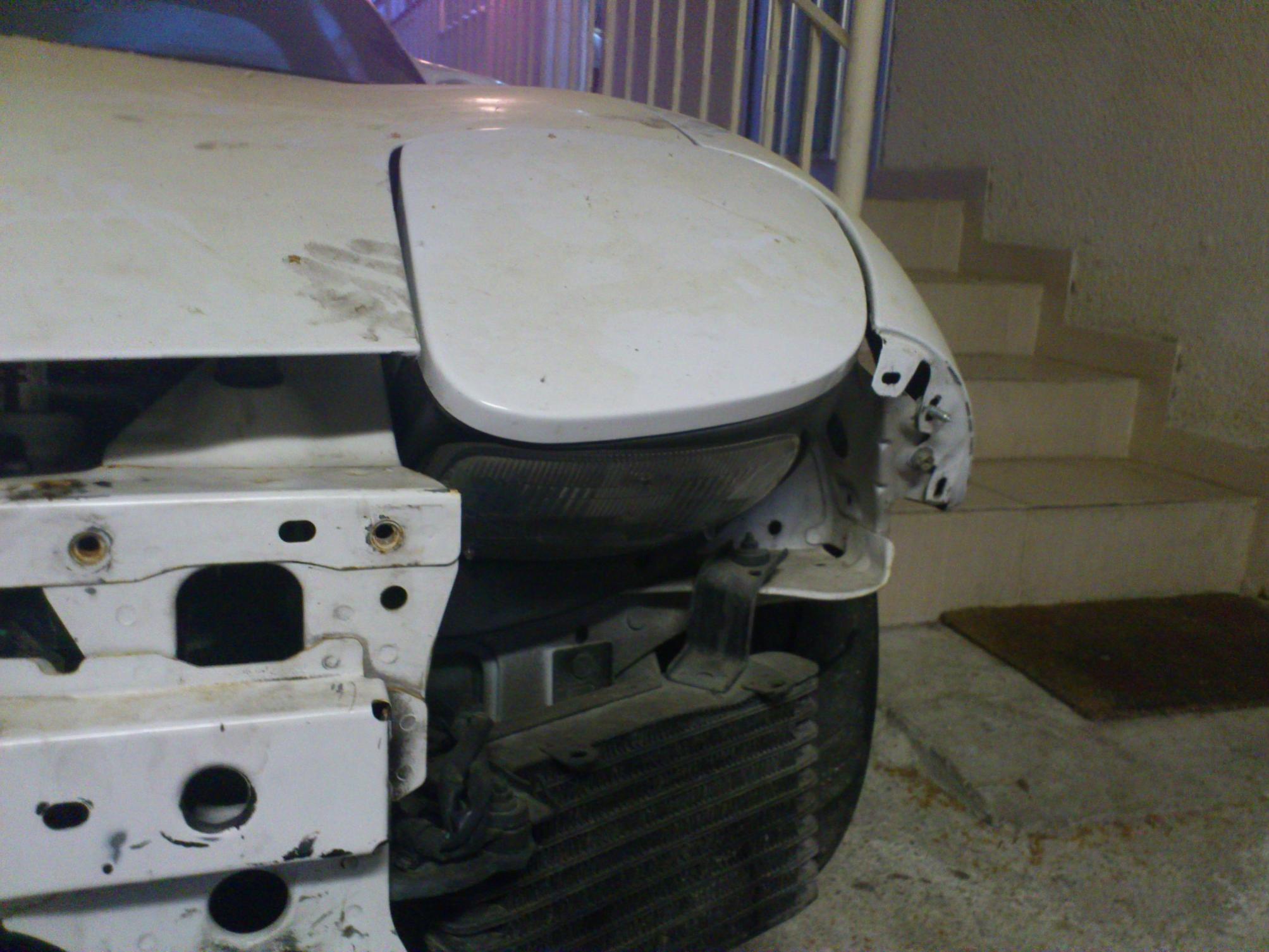

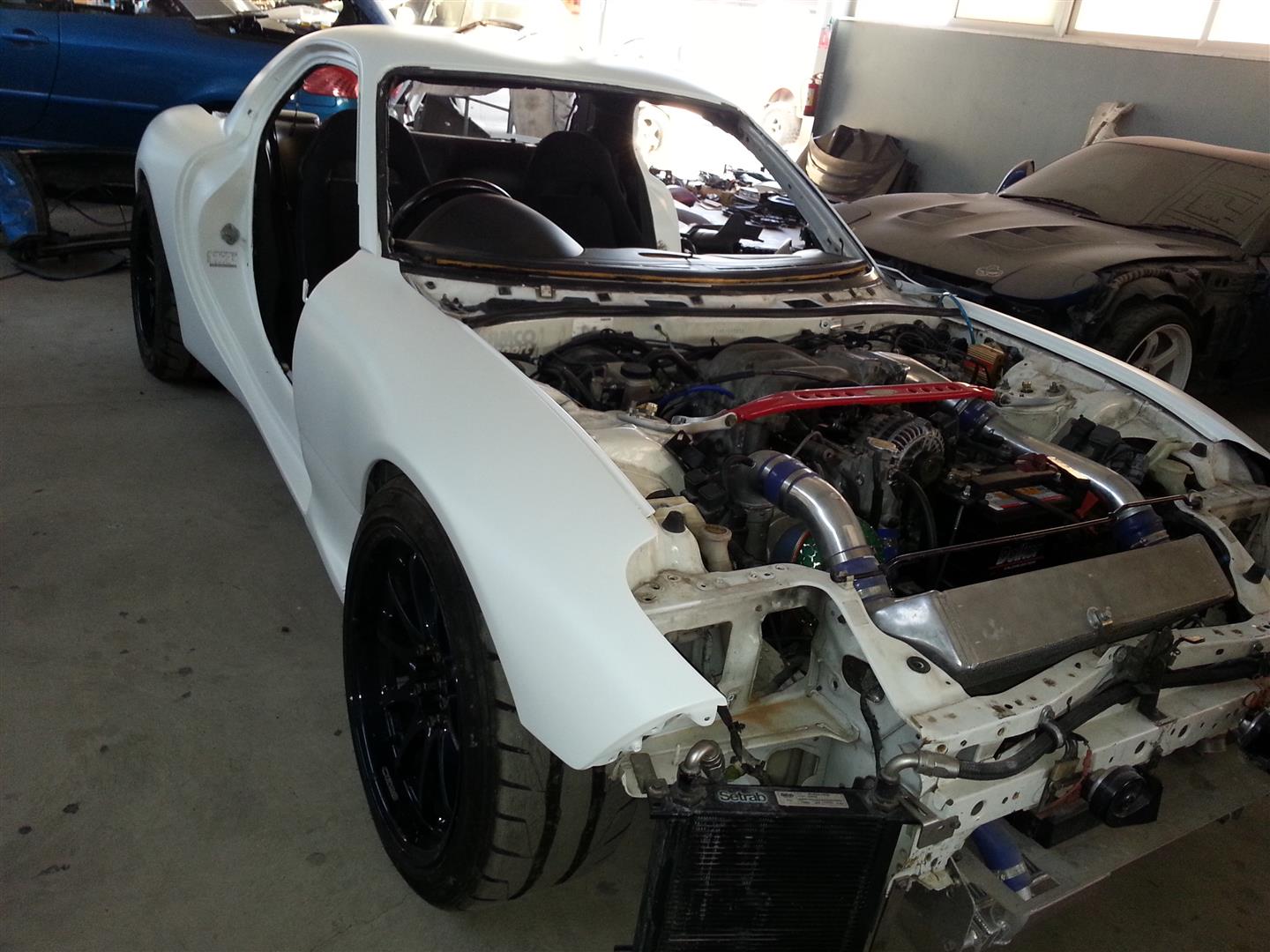

the car is currently at the body shop getting a feed wide body with the quarter panels molded in up to the trunk lid. Pictures below of the car that was burned down. quarter panels should be the same fit

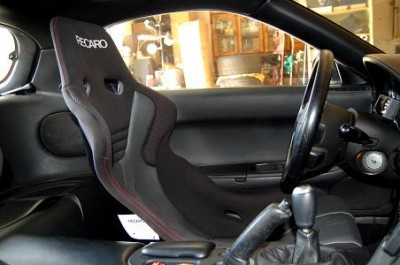

I got my hands on a pair of Recaro TS-G ASM AUTOBACS limited editions seats (carol Imstillonjava's seats)

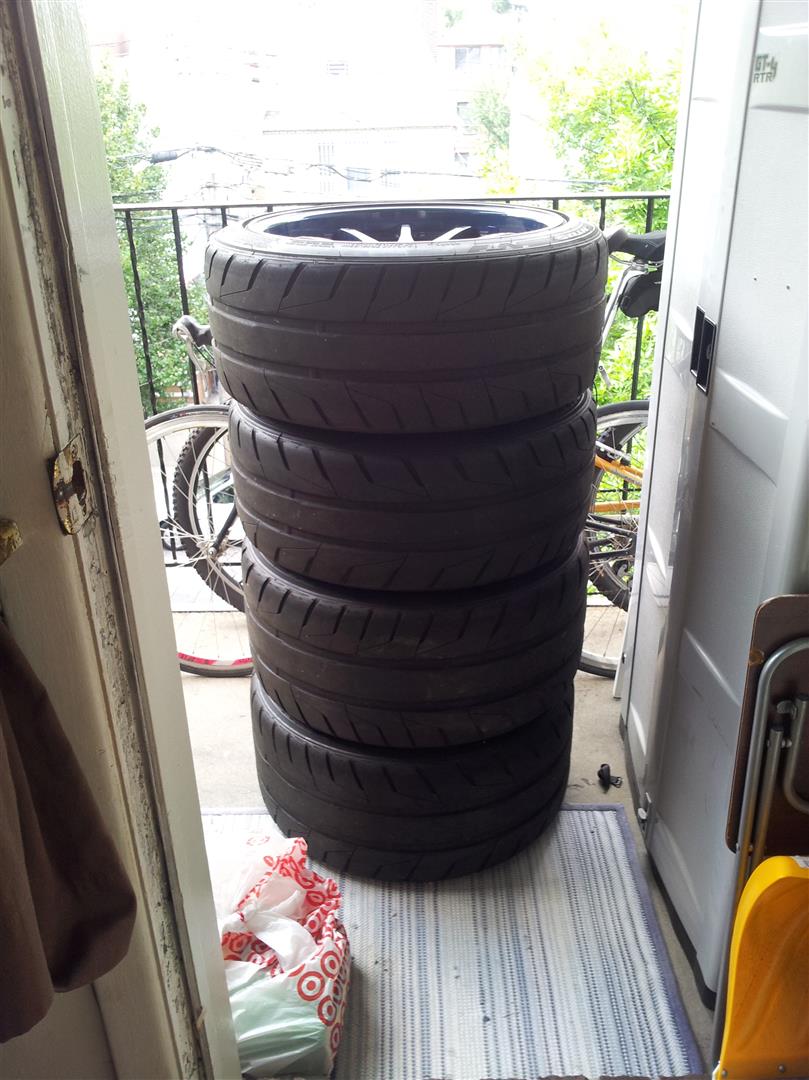

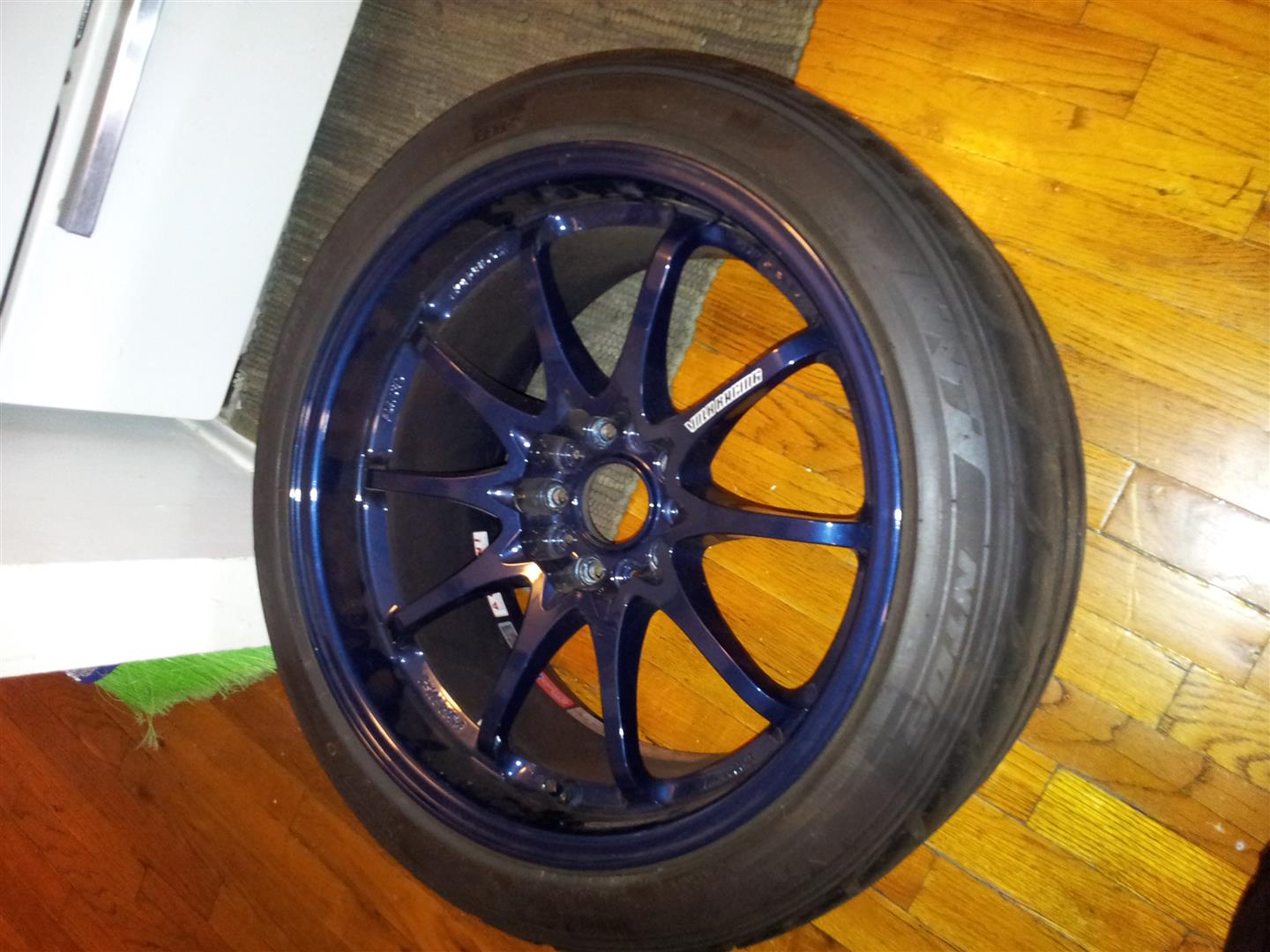

ce28N 18x9.5 +22 and 18x10.5 +18
DEFI ZD monitor (love every second of owing this monitor)
Rmagic Genuine headlights
725/2000 Ev14 injectors with FFE rails (IRP FUEL KIT)

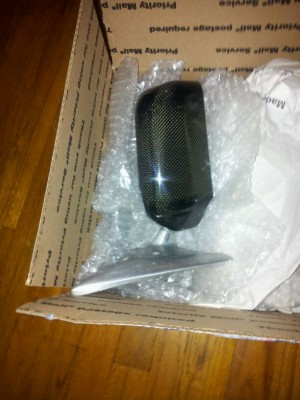

Knightsports Carbon strut/engine cover

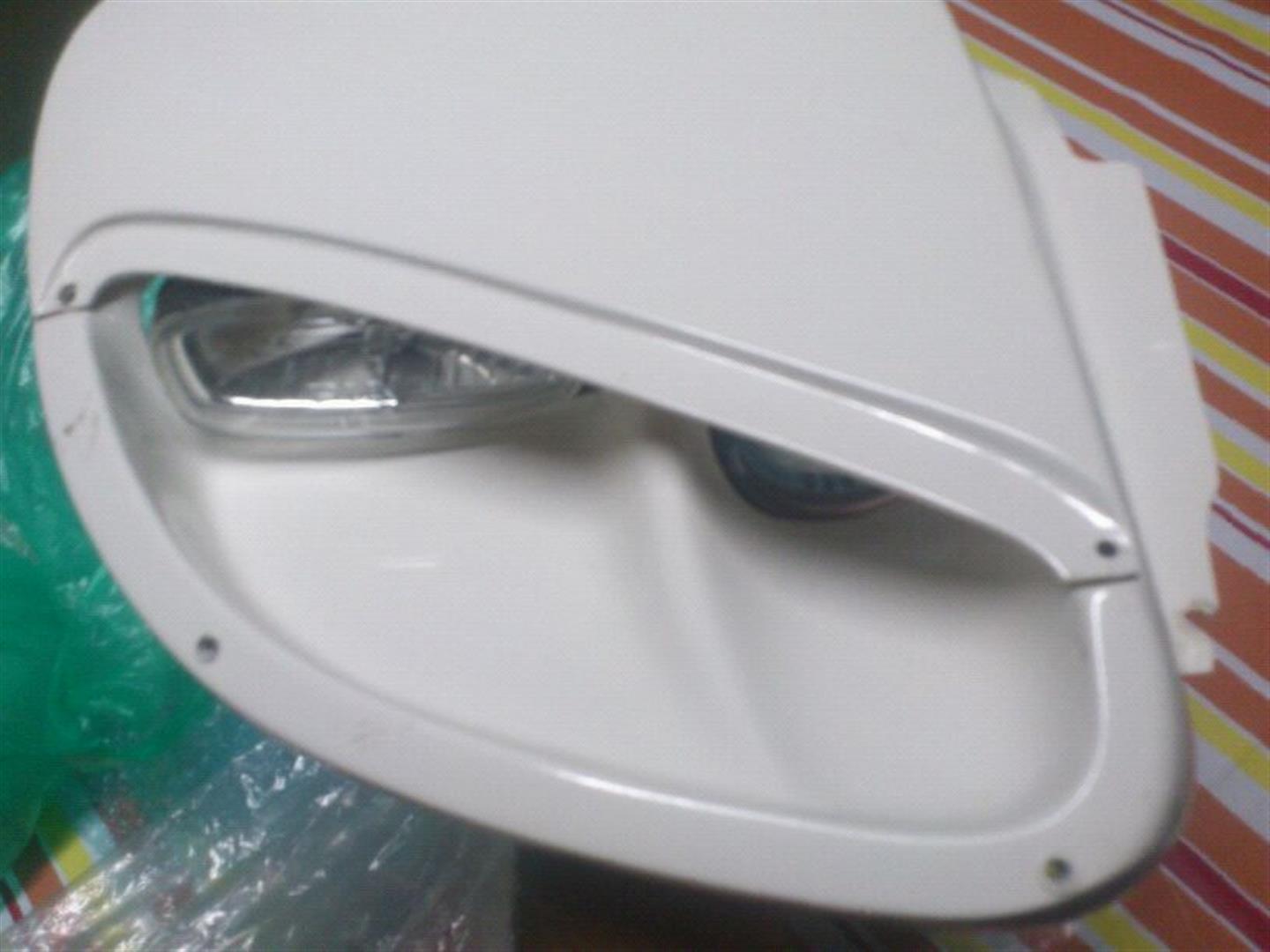

FEED combo lights with covers
Shineauto FEED body kit (bumper, fenders, 1/4 panels, sides)
Custom made hood (wont show that until its done)
I was debating between the two diffusers so i ended up buying both
Sanai works diffuser VS re-amemiya track diffuser (i got sick of the street version, didnt like the car from certain angles)
JUN auto front diffuser
AUTOEXE under braces
Do luck floor braces (inside and outside)

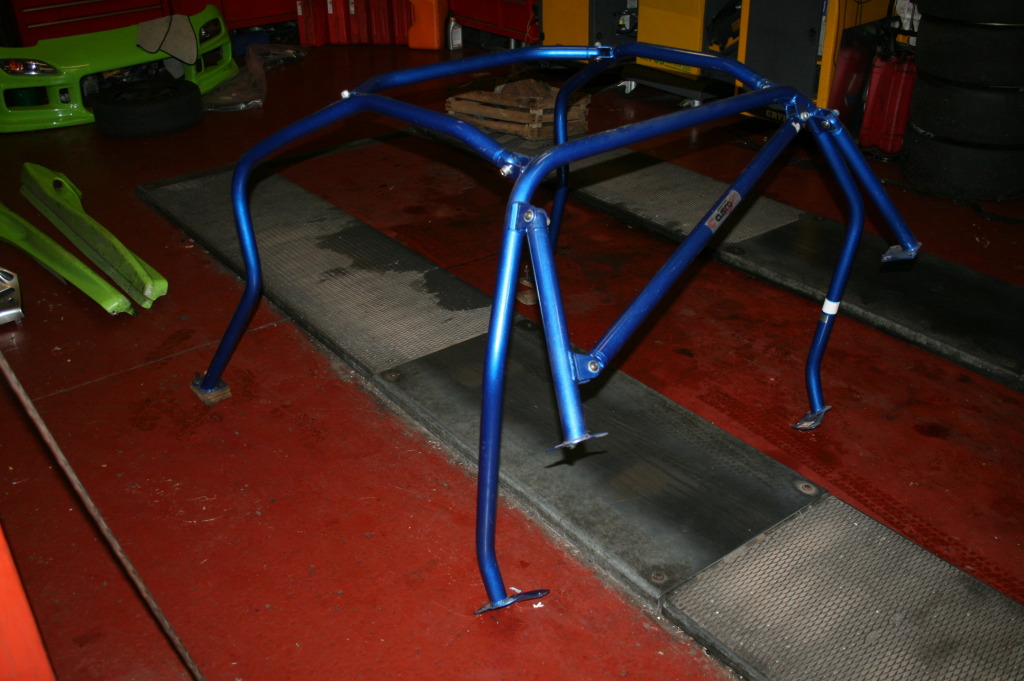

Cusco safety 21 Full chromoly roll cage
HPP differential brace
HPP fuel anti surge tank
HKS twin power and Power fc are given
AEM water/meth injection
HKS evc-s boost controll kit and turbotimer (gotta make them match
)
The list of parts that will go on the car is pretty big
the car is currently at the body shop getting a feed wide body with the quarter panels molded in up to the trunk lid. Pictures below of the car that was burned down. quarter panels should be the same fit
I got my hands on a pair of Recaro TS-G ASM AUTOBACS limited editions seats (carol Imstillonjava's seats)
ce28N 18x9.5 +22 and 18x10.5 +18
DEFI ZD monitor (love every second of owing this monitor)
Rmagic Genuine headlights
725/2000 Ev14 injectors with FFE rails (IRP FUEL KIT)
Knightsports Carbon strut/engine cover
FEED combo lights with covers
Shineauto FEED body kit (bumper, fenders, 1/4 panels, sides)
Custom made hood (wont show that until its done)
I was debating between the two diffusers so i ended up buying both
Sanai works diffuser VS re-amemiya track diffuser (i got sick of the street version, didnt like the car from certain angles)
JUN auto front diffuser
AUTOEXE under braces
Do luck floor braces (inside and outside)
Cusco safety 21 Full chromoly roll cage
HPP differential brace
HPP fuel anti surge tank
HKS twin power and Power fc are given
AEM water/meth injection
HKS evc-s boost controll kit and turbotimer (gotta make them match
)
Trending Topics
05-12-13, 09:39 PM
#12
Rotor or no motor
Thread Starter
iTrader: (24)
Thanks for the nice words guys
Its difficult to post updates while im stuck in the states and the car is over there but I will keep updating it when I have something new...
I am anxious to see how the hood is gonna turn out. Should be really unique first of all, cool and functional

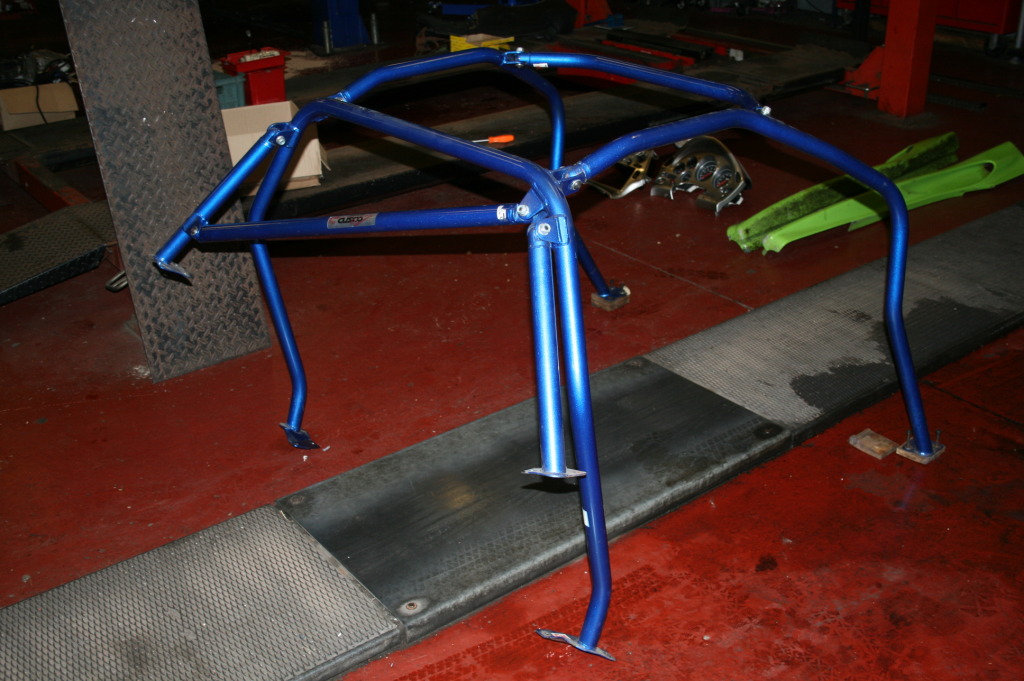

The cusco roll cage is unbelievably light and it was a pain in the **** to find one.. nevermind shipping it over. Luckily friends hooked me up and it was a decent price with shipping next to nothing
The defi zd monitor is mounted at the center speaker grill .. came out much better than I thought but I want to make an enclosure, gauge pod style to hide it there
Ngk afx wideband is mounted and hidden in the din pocket.. visible only to the driver but it has a foldable mount and sticks outfor the tuners easy viewing
Addition of a new part
C's short shifter... I have used a variety of short shifters including the ikeya formula sequential shifter
The happiest I have been with was with the re amemiya short shifter. Everyone claims that c's is one of the best so I thought to give it a try before I get my hands on a dogbox or something more racing oriented than oem
And never forget to always have a fire extinguisher in the car. Sakebomb makes a very nice mount for easy access under the passengers seat. After losing everything within a few minutes I never ride again without a fire extinguisher. I had so much money in that car, the rarest and custom parts u only imagine and all became ashes. Learn from my mistake and spend some money on this. ... u better not have use to it than lose everything
Its difficult to post updates while im stuck in the states and the car is over there but I will keep updating it when I have something new...
I am anxious to see how the hood is gonna turn out. Should be really unique first of all, cool and functional
The cusco roll cage is unbelievably light and it was a pain in the **** to find one.. nevermind shipping it over. Luckily friends hooked me up and it was a decent price with shipping next to nothing
The defi zd monitor is mounted at the center speaker grill .. came out much better than I thought but I want to make an enclosure, gauge pod style to hide it there
Ngk afx wideband is mounted and hidden in the din pocket.. visible only to the driver but it has a foldable mount and sticks outfor the tuners easy viewing
Addition of a new part
C's short shifter... I have used a variety of short shifters including the ikeya formula sequential shifter
The happiest I have been with was with the re amemiya short shifter. Everyone claims that c's is one of the best so I thought to give it a try before I get my hands on a dogbox or something more racing oriented than oem
And never forget to always have a fire extinguisher in the car. Sakebomb makes a very nice mount for easy access under the passengers seat. After losing everything within a few minutes I never ride again without a fire extinguisher. I had so much money in that car, the rarest and custom parts u only imagine and all became ashes. Learn from my mistake and spend some money on this. ... u better not have use to it than lose everything
Just a thought
09-10-13, 11:16 PM
#22
Original Gangster/Rotary!
iTrader: (213)
Mr. Pops, the car came out awesome man! You make it seem effortless
You should be commended on how you immediately bounced back from the tragedy with your red FD. I speak from personal experience when I say it isn't easy seeing your dreams crushed in a split second.
You should be commended on how you immediately bounced back from the tragedy with your red FD. I speak from personal experience when I say it isn't easy seeing your dreams crushed in a split second.
09-11-13, 05:56 AM
#23
Rotor or no motor
Thread Starter
iTrader: (24)
Well the more you think about a tragedy the harder it gets. It was like getting back on the horse immediately after abig fall.
It may seem eeffortless but so many things went wrong in the process of putting this together. Problems here andthere on a daily basis.. it was rather a disappointment .. so many brand new things failed, including the engine that makes me wonder wtf is going on
It may seem eeffortless but so many things went wrong in the process of putting this together. Problems here andthere on a daily basis.. it was rather a disappointment .. so many brand new things failed, including the engine that makes me wonder wtf is going on
