what size nut is this???

Thread Tools

Search this Thread

Old 02-03-04, 06:52 PM
  #1
screwed by chad hall

Thread Starter
iTrader: (4)

gdnimr0d's Avatar

Join Date: Nov 2003
Location: South florida
Posts: 784
Likes: 0
Received 0 Likes on 0 Posts
what size nut is this???

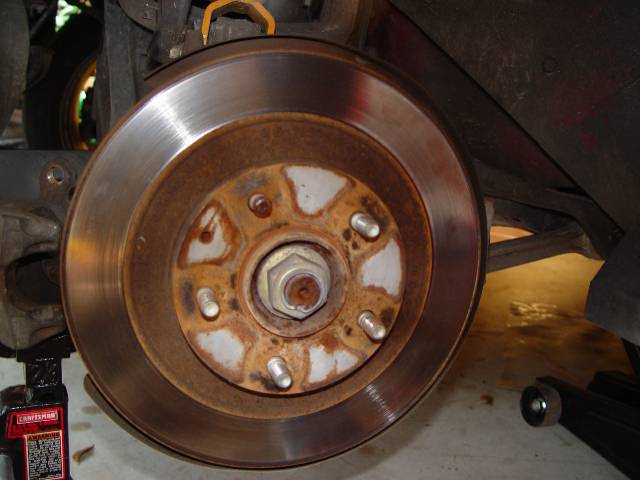

hey guys take a look at the nut in the center of this brake rotor and tell me what size it is please..thanks and peace out

https://www.rx7club.com/attachment.p...postid=2622313
Old 02-03-04, 07:18 PM
  #2
Slam Pig


Join Date: Dec 2002
Location: New York
Posts: 888
Likes: 0
Received 0 Likes on 0 Posts
22mm rough guess no idea i never put a socket to it.....
Old 02-03-04, 07:34 PM
  #3
PV = nRT


clayne's Avatar

Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes on 0 Posts
32 MM.
Old 02-03-04, 07:41 PM
  #4
screwed by chad hall

Thread Starter
iTrader: (4)

gdnimr0d's Avatar

Join Date: Nov 2003
Location: South florida
Posts: 784
Likes: 0
Received 0 Likes on 0 Posts
are you sure that its 32 because i have a 27mm and it barely doesnt fit i thought that it might be a 28 or 29 mm do you know that for a fact or no?
Old 02-03-04, 07:47 PM
  #5
PV = nRT


clayne's Avatar

Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes on 0 Posts
Then my scale is off. More reference needed.

When you say 27 barely fits, then I would say 25 or 26 is proper, wouldn't you think?

Do you have a ruler? Measure it.
Old 02-03-04, 09:10 PM
  #6
Super Snuggles


jimlab's Avatar

Join Date: Feb 2001
Location: Redmond, WA
Posts: 10,091
Received 32 Likes on 17 Posts
35mm. I had to run out and buy a socket to remove them, and I just double checked.
Old 02-03-04, 09:25 PM
  #7
Rotary Freak

alberto_mg's Avatar

Join Date: Aug 2002
Location: nyc+li, ny
Posts: 2,690
Likes: 0
Received 0 Likes on 0 Posts
You still tring to get the damn rotors off? That bolt is for the wheel bearings/hubs. you don't need that to remove that to get the stud out.
Old 02-03-04, 09:35 PM
  #8
Eats, Sleeps, Dreams Rotary

iTrader: (4)

BigIslandSevens's Avatar

Join Date: Apr 2003
Location: Denver, NC
Posts: 3,531
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by alberto_mg
You still tring to get the damn rotors off? That bolt is for the wheel bearings/hubs. you don't need that to remove that to get the stud out.
He is trying to replace a wheel stud. He MUST remove the hub to be able to press the old stud out and press the new stud in. And Jimlab is on the nose with the size. I said 36mm in the other thread on the same topic but it is just a little sloppy.
Old 02-03-04, 10:59 PM
  #9
screwed by chad hall

Thread Starter
iTrader: (4)

gdnimr0d's Avatar

Join Date: Nov 2003
Location: South florida
Posts: 784
Likes: 0
Received 0 Likes on 0 Posts
yeah i have found out guys you must remove the hub to remove the old stud and install a new one....35 mm is the correct size i am pretty sure....another guy told me he uses 36 all the time and it works...i will grab a 35 since you said 36 is a little sloppy
thanks a lot guys and peace out
