v-mount bracket pictures?
#1
R. R. R.
Thread Starter
Join Date: Jun 2004
Location: san jose
Posts: 1,892
Likes: 0
Received 0 Likes
on
0 Posts
v-mount bracket pictures?
I was trying to find some pictures of the brackets of the v-mount kits but i can't seem to find any, I found pictures of the v-mount installed on the car and by themselves but no bracket pictures, or if i found some, they were too small to see anyway
Can anyone point me in the right direction for some pictures?
any manufacturer, just wanna see the brackets.
Can anyone point me in the right direction for some pictures?
any manufacturer, just wanna see the brackets.
#3
Senior Member
iTrader: (1)
Join Date: Feb 2004
Location: ohio
Posts: 688
Likes: 0
Received 0 Likes
on
0 Posts
i have a few pics i took from both sides of the undertray(after i cut it)
the alum. piece screwed to the tow hook is the bracket....don't have any better pics...sorry....
but then again thats why v-mounts cost what they do...cause they figured out away to make it work...
giving away the secret, would be cheating....
pass. side
driver side
brad
the alum. piece screwed to the tow hook is the bracket....don't have any better pics...sorry....
but then again thats why v-mounts cost what they do...cause they figured out away to make it work...
giving away the secret, would be cheating....
pass. side
driver side
brad
#7
sdrawkcab
iTrader: (1)

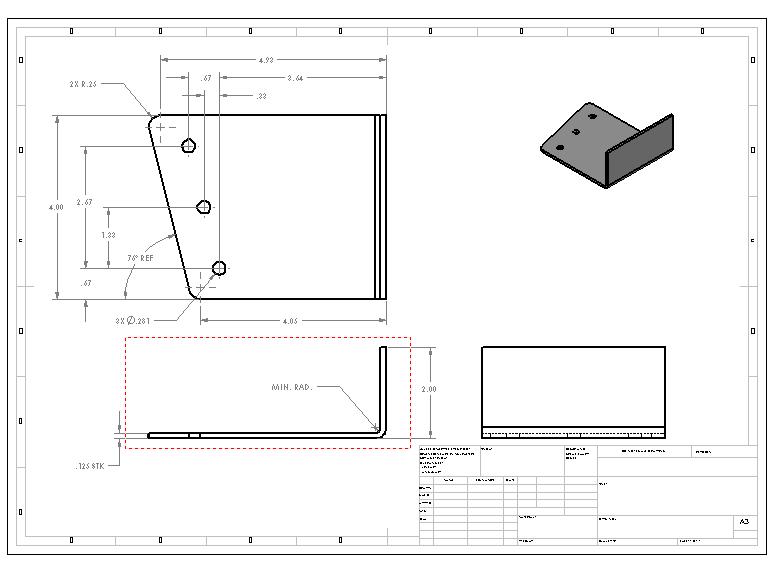

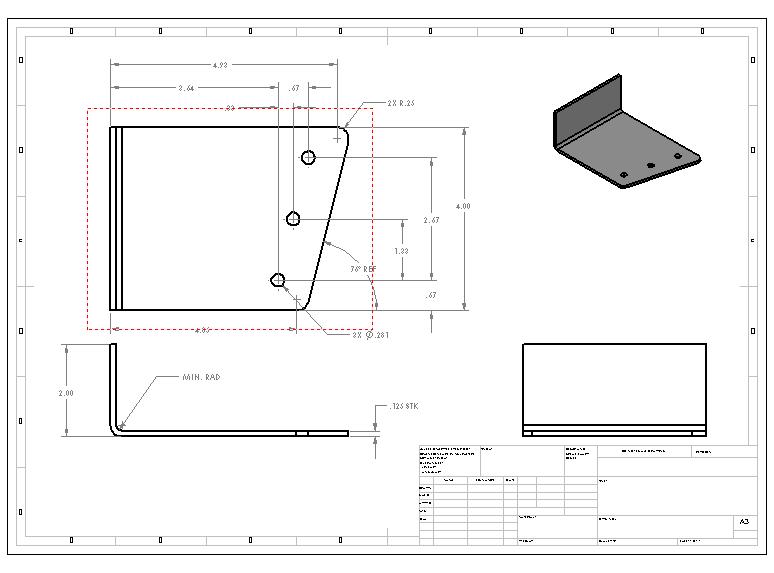

Not the best pics but it will give you an idea or two…
I feel they really need to be isolated, look at the way the OEMs do it, or just use common sense.

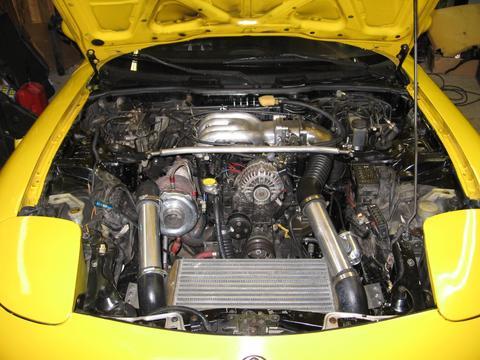

I used 2 different ways to mount the lower section 1 while I did not have the radiator skid plate is attached to the sides of the radiator with the duct pics, and the second and current is a uncompleted pic before the tubing was welded in place to facilitate the stock peg mounting points.
Not the most presentable pics, but once I replaced most of it with molded carbon section it became quite respectable aesthetically
HTH
I feel they really need to be isolated, look at the way the OEMs do it, or just use common sense.
I used 2 different ways to mount the lower section 1 while I did not have the radiator skid plate is attached to the sides of the radiator with the duct pics, and the second and current is a uncompleted pic before the tubing was welded in place to facilitate the stock peg mounting points.
Not the most presentable pics, but once I replaced most of it with molded carbon section it became quite respectable aesthetically
HTH
Trending Topics
#11
development
Originally Posted by ptrhahn
^^^^
This one is interesting... I like the MOMO seat bracket mounting! How about some more info/specs?
This one is interesting... I like the MOMO seat bracket mounting! How about some more info/specs?
#13
development
Originally Posted by ptrhahn
No, more info on the radiator size and configuration and working w/ Ron Davis on it. I'm in the same process right now.
one thing I thought was a real trick install...I ran the turbo coolant line dump directly to the radiator; since it was right there and all.
#17
needs more track time
iTrader: (16)
Originally Posted by dubulup
ah...gotcha. Lead time was 4-5 weeks (~$850) if I remember correctly...we just measured and sent him envelop dimensions of the largest size that we thought would fit (I'll see about digging that info for you), and where we wanted AN fittings and sizes...and said, "dual pass and shroud it with fans." Super quality!! The fans move serious air...I remember dropping dollar bills and having them stick to the radiator.
one thing I thought was a real trick install...I ran the turbo coolant line dump directly to the radiator; since it was right there and all.
one thing I thought was a real trick install...I ran the turbo coolant line dump directly to the radiator; since it was right there and all.
Yep. I pretty much got the same info from Ron Davis. Call and speak with Bill at 800.842.5166 x6. They have had a bunch of people calling about Rx7 radiators lately. I offered to send them dimensions and all that but they already have it.
The rad was $650 and the mounting plates to accomdate the stock fans was $150.

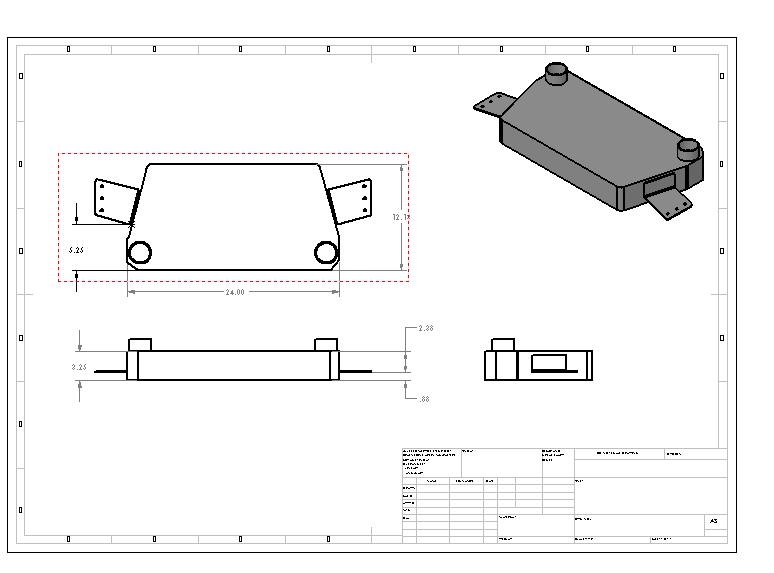

This is of course for use as a Vmount with the inlets/outlets positioned accordingly. I'll see if I can find my last drawings and upload.
I haven't had time to follow through and given the cost of the fan bracket I wondered if it was worth it to use the stock fans.
#19
needs more track time
iTrader: (16)
^ they make a fan controller type of small black box that takes a temp signal and triggers the fan.
I've seen some for all types of prices. Some as low $60 but can't find it now. Do some research on the fans and fan controllers at http://www.alumrad.com/fans.htm then Google for other options with prices.
I've seen some for all types of prices. Some as low $60 but can't find it now. Do some research on the fans and fan controllers at http://www.alumrad.com/fans.htm then Google for other options with prices.
#20
development
Originally Posted by ptrhahn
I'd go with the aftermarket fans like Dubulup, but i wouldn't have the first clue how to get them to run properly off the ECU with it's multi speed function.
node 29 is where the PFC will turn the fans on...and you can test your fans in the diag. box by jumping TFA and GND
ask questions if this doesn't make sense.
Thread
Thread Starter
Forum
Replies
Last Post
Frisky Arab
2nd Generation Specific (1986-1992)
13
