tahmid

can anyone pls tell me which slots are for ten and gnd in the diagnosis box. My box doesnt have a sticker saying nething........so am lost here.........any pics??
thanks

SBi_Owner

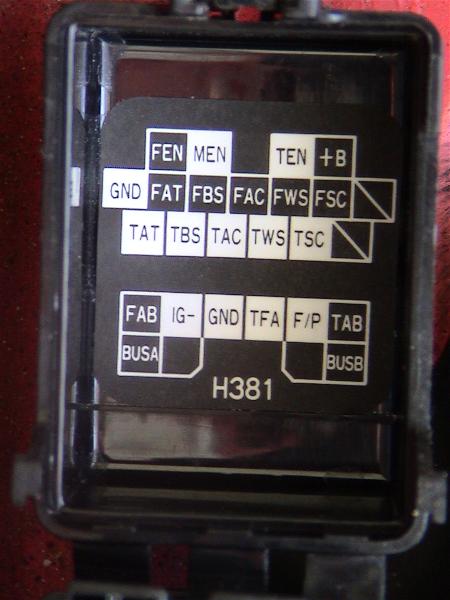

ok, this might help a little....

FEN MEN TEN +B

GND FAT / FAC / FSC /

TAT / TAC / TSC /

FAB IG- GND TFA F/P TAB

/ /

This may look confusing, but it is how it is labeled.

fd3s_rx7

iTrader: (13)

No such thing is "one last help"

tahmid

thanks.......yea i know theres no such thing as a last help for the FD................what i meant was a last help with this 13b engine.......
thanks again

scotty305

iTrader: (2)

Red = TEN
Orange = GND

There are two GND, you can use either of them.

scotty305

iTrader: (2)

.

-s-

tahmid

thanks a lot dude........appreciate it.......love this forum........people are very helpful

weetbix13

Sorry everyone, digging this thread up from the dead...
what do those abbreviations actually STAND for? i want o fire up the fuel pump (assuming that is 'F/P') and the injectors to check them... but can't figure which ones to ground from the abbreviations!

cheers... long may this thread be pulled back from the dead........

the_glass_man

iTrader: (2)

Can you just remove the diagnosis box?
