Snapped Studs on 13bt turbo water line

Thread Tools

Search this Thread

Old 01-09-17, 02:36 AM
  #1
Can Post Only in New Member Section
Thread Starter

rileyluke's Avatar

Join Date: Mar 2016
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Exclamation Snapped Studs on 13bt turbo water line

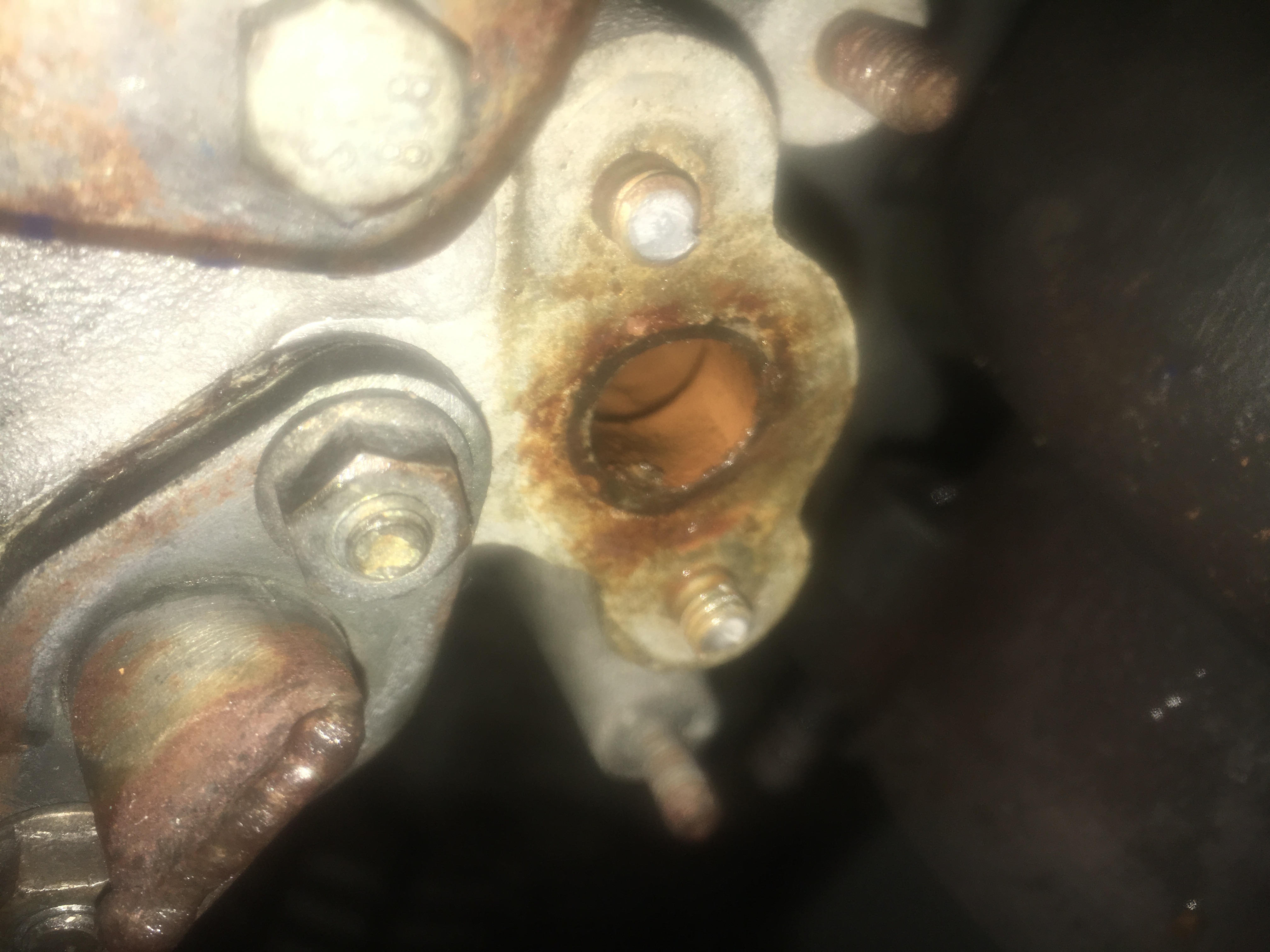

Has anyone had any luck removing these studs?
any advise would be much appreciated

Thanks
Attached Thumbnails Snapped Studs on 13bt turbo water line-img_2505.jpg
Old 01-09-17, 06:55 AM
  #2
Rotary Freak

iTrader: (10)

DC5Daniel's Avatar

Join Date: Jul 2012
Location: Peachtree City, GA
Posts: 1,631
Received 83 Likes on 63 Posts
Originally Posted by rileyluke
Has anyone had any luck removing these studs?
any advise would be much appreciated

Thanks
You're in the clear man. With half the stud sticking out just grab it with a vice grip and twist it out.

Normally the double nut method or a stud extractor is preferred, but with how uneven that broke I'd just just to vice grips. Soak them in PB for a day or two and go for it.
Old 01-09-17, 11:41 AM
  #3
Can Post Only in New Member Section
Thread Starter

rileyluke's Avatar

Join Date: Mar 2016
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
thanks for the advise Dan, the problem i face is there is not much room to get a decent turn on the stud, unless i remove power steering line etc..
I will weld a nut on tonight and hope to get it out that way without another break.
fingers crossed
Old 01-09-17, 03:04 PM
  #4
roTAR needz fundZ

iTrader: (1)

Join Date: Aug 2002
Location: Freeland, MI
Posts: 2,614
Likes: 0
Received 31 Likes on 31 Posts
Welding a nut on will probably work as you'll be heating up the aluminum also, just don't let it cool too long or you'll still fight it
Old 01-09-17, 06:29 PM
  #5
Rotary Freak

iTrader: (10)

DC5Daniel's Avatar

Join Date: Jul 2012
Location: Peachtree City, GA
Posts: 1,631
Received 83 Likes on 63 Posts
Originally Posted by rileyluke
thanks for the advise Dan, the problem i face is there is not much room to get a decent turn on the stud, unless i remove power steering line etc..
I will weld a nut on tonight and hope to get it out that way without another break.
fingers crossed
I've gotten some of those out with some funky angles on vice grips, as long as you get a good bite and can jar it loose. Then after a few meticulous twists and repositions you can usually get it by hand

Good luck!
Old 01-11-17, 11:24 AM
  #6
Can Post Only in New Member Section
Thread Starter

rileyluke's Avatar

Join Date: Mar 2016
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
thanks for the responses.

I managed to get one with the vice grip and surgically welded the nut back on the other one and got that off too.
they were not as tight as i thought they were going to be.

very good result!
Old 01-11-17, 11:56 AM
  #7
Rotary Freak

iTrader: (10)

DC5Daniel's Avatar

Join Date: Jul 2012
Location: Peachtree City, GA
Posts: 1,631
Received 83 Likes on 63 Posts
Originally Posted by rileyluke
thanks for the responses.

I managed to get one with the vice grip and surgically welded the nut back on the other one and got that off too.
they were not as tight as i thought they were going to be.

very good result!
Glad to hear
