PC 2 Wolf 3d V4 comms cable

Hi everyone,
I am looking for the wiring diagram for the comms cable from the PC to the Wolf 3d Version 4 it is a 9 pin(PC) to 15 pin(ECU) I have had to put most of my map in manually what a P.I.T.A! If anyone could help out it would be great.
Thanks
Michael Smith

Jan 8, 2005 | 01:45 PM

signofinfinity

Coyote

Joined: Nov 2004

Posts: 953

Likes: 0

From: Malta. Europe

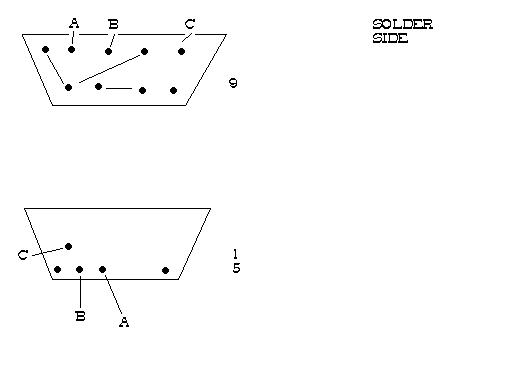

Hi ..I just made you a diagram for the cable. I did it pretty quick from a rough sheet. so pardon the crudenes..but it works.

CYA

Attached Thumbnails

PC 2 Wolf 3d V4 comms cable-wolf-pin-out.jpg

Last edited by signofinfinity; Jan 8, 2005 at 01:47 PM.

Jan 8, 2005 | 01:49 PM

signofinfinity

Coyote

Joined: Nov 2004

Posts: 953

Likes: 0

From: Malta. Europe

ps...the shield goes to the outer housing....cheers

Jan 8, 2005 | 09:51 PM

Michael Smith

Thread Starter

Rotary Enthusiast

Joined: Feb 2004

Posts: 778

Likes: 0

From: North Queensland Australia

Signofinfinity thank you so much!

I was going to have to wait until I bought one to get my car programmed well. It is great to be able to ask a question and have it anwsered within days.
Eternally Grateful
Michael Smith
North Queensland
Australia
P.S. You have to admit the RX7 community is GREAT!!!
