Time Slips and Dyno Section is for posting 1/4 mile time slips and dyno graphs

single turbo dynoed at 377whp details inside

Old 04-03-05, 01:44 AM
  #1
i am not a girl
10 Year Member
Thread Starter
iTrader: (13)

Kahren's Avatar

Join Date: Aug 2001
Location: CT
Posts: 1,916
Likes: 0
Received 0 Likes on 0 Posts
single turbo dynoed at 377whp details inside

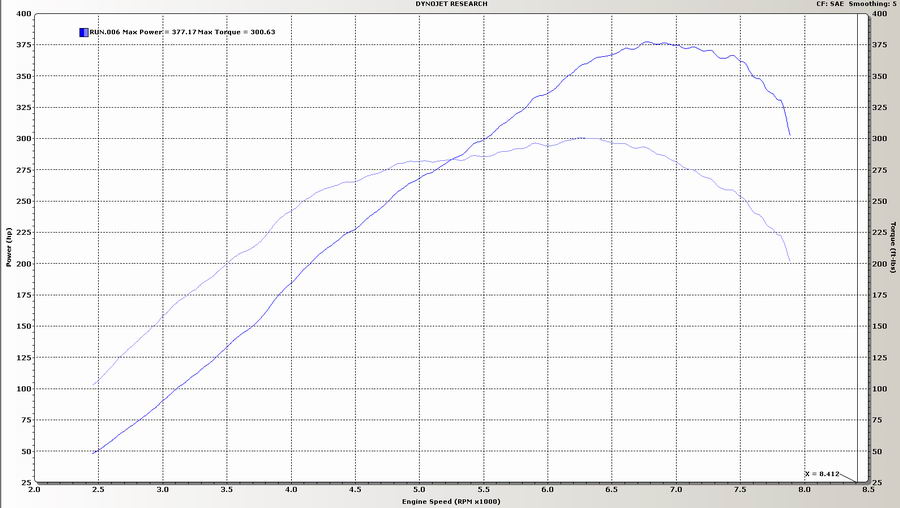

after tunning the car on the street took it to the car to the dyno to do any of the fine tune adjustments and to see what power we would put down. the turbo was supposed to be full t04s 60-1 but after having to fix the oil drain and a couple other things i discovered that it had a t3 exhaust housing and a t3 flange that was welded on top of a t04 flange on the exhaust manifold. the car used to have a stock cat that was starting to fail so that was removed, and after that the manual boost controller proved to be useless so it was removed and the boost was controlled straight off the wastegate spring. i have attached a datalog for those that want to see the boost level at each rpm. the owner told me that the motor was ported, but i am not sure of that and if it is, then i assume it to have a very mild port. well enough talk here is the chart.

owner: steve prew

relevant mods:
t3/t04s
maybe ported motor?
microtech lt8
3 inch exhaust
ebay exhaust manifold?
ebay wastegate?
greddy 2row
stock ignition with 9s all around
Attached Thumbnails single turbo dynoed at 377whp details inside-steve-prew.jpg   single turbo dynoed at 377whp details inside-img_0881_resize.jpg
Attached Files
File Type: txt
steve prew datalog.txt (1.4 KB, 155 views)

Last edited by Kahren; 04-03-05 at 01:48 AM.
Kahren is offline
Old 04-03-05, 08:53 AM
  #2
Adrenaline

RecKleSs's Avatar

Join Date: Feb 2001
Location: Long Island, NY
Posts: 1,260
Likes: 0
Received 0 Likes on 0 Posts
Thumbs up

You need to post more pics of that FD!!!! That FD looks so sweet.
RecKleSs is offline
Old 04-03-05, 04:50 PM
  #3
Ee / Cpe
5 Year Member

XSTransAm's Avatar

Join Date: Jan 2003
Location: Gaithersburg, MD / WVU
Posts: 2,843
Likes: 0
Received 0 Likes on 0 Posts
good numbers, what kind of boost were you running?
XSTransAm is offline
Old 04-03-05, 04:56 PM
  #4
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 138 Likes on 111 Posts
based on the high rpm drop in power, that looks like a stock port motor to me. regardless, good #s, seems like those ebay parts work alright.
GoodfellaFD3S is offline
Old 04-03-05, 06:13 PM
  #5
I brake boost
10 Year Member

FD Rey's Avatar

Join Date: Aug 2003
Location: Orlando
Posts: 2,128
Likes: 0
Received 0 Likes on 0 Posts
Good numbers. How much boost? Post pics of under the hood.
FD Rey is offline
Old 04-03-05, 09:13 PM
  #6
i am not a girl
10 Year Member
Thread Starter
iTrader: (13)

Kahren's Avatar

Join Date: Aug 2001
Location: CT
Posts: 1,916
Likes: 0
Received 0 Likes on 0 Posts

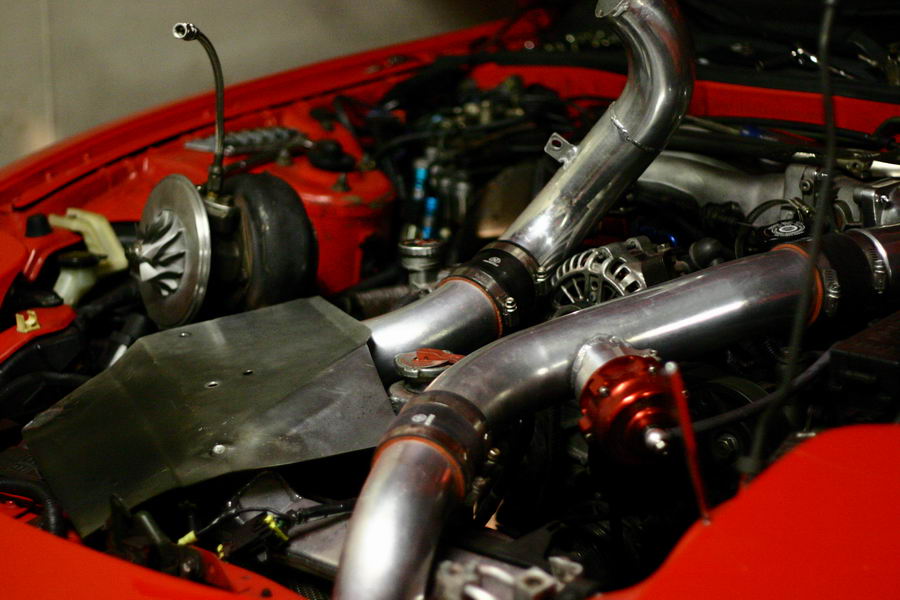

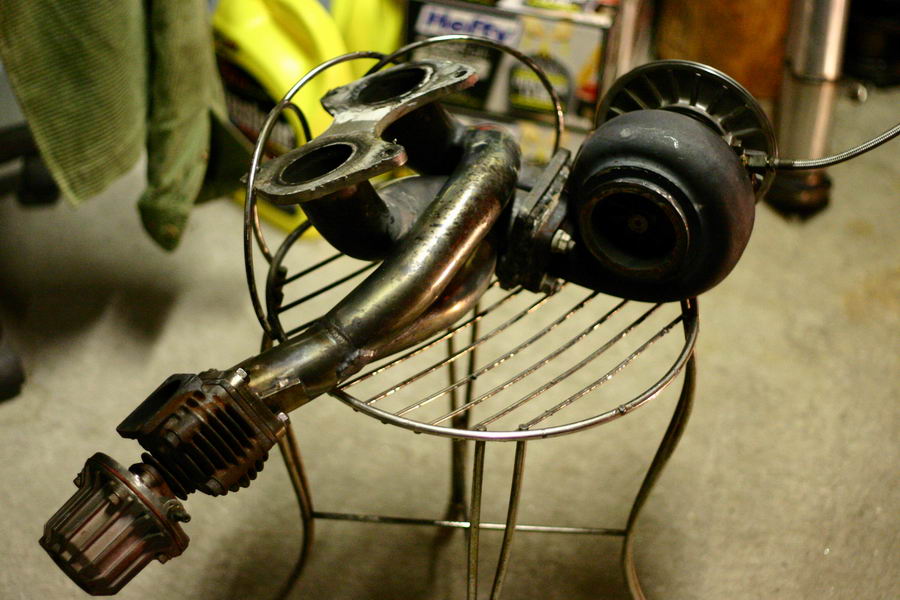

just click the attached datalog txt file to see boost at each rpm, since it just kept goign up i didnt post a number. i forgot to take the pics during the day, so the only few i took at night, the time of dyno, i didnt get to take as many as id liked to and there is no engine bay shot. the closest thing i have is this
Attached Thumbnails single turbo dynoed at 377whp details inside-img_0864.jpg   single turbo dynoed at 377whp details inside-img_0856.jpg
Kahren is offline
Old 04-03-05, 09:27 PM
  #7
*******
10 Year Member
iTrader: (9)

prew's Avatar

Join Date: Dec 2001
Location: NJ
Posts: 1,782
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by FD Rey
Good numbers. How much boost? Post pics of under the hood.
heres one:

http://www.steveprew.com/engine/DSCN3086.JPG

Last edited by prew; 04-03-05 at 09:34 PM.
prew is offline
Old 04-04-05, 05:44 PM
  #8
I brake boost
10 Year Member

FD Rey's Avatar

Join Date: Aug 2003
Location: Orlando
Posts: 2,128
Likes: 0
Received 0 Likes on 0 Posts
very nice and clean.
FD Rey is offline
Old 04-04-05, 11:45 PM
  #9
OFENSIV
iTrader: (6)

SpoolinRX's Avatar

Join Date: Jul 2003
Location: Fargo, ND
Posts: 708
Likes: 0
Received 0 Likes on 0 Posts
Prew why did you sell ur car?
SpoolinRX is offline
Old 04-13-05, 12:13 PM
  #10
Just Call Me Terminator!
15 Year Member
iTrader: (4)

vosko's Avatar

Join Date: Feb 2001
Location: NJ
Posts: 7,848
Likes: 0
Received 0 Likes on 0 Posts
he didn't sell his car wtf are you talking about
vosko is offline
Old 04-27-05, 11:34 PM
  #11
*******
10 Year Member
iTrader: (9)

prew's Avatar

Join Date: Dec 2001
Location: NJ
Posts: 1,782
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by SpoolinRX
Prew why did you sell ur car?
to support my cocaine addiction. i drive a geo storm now.
prew is offline
Old 05-06-05, 01:30 PM
  #12
RIP Icemark
5 Year Member
iTrader: (4)

j200pruf's Avatar

Join Date: Oct 2002
Location: Aloha OR
Posts: 1,481
Likes: 0
Received 0 Likes on 0 Posts
Anyone know the turbine A/R and trim out of curiosity?
j200pruf is offline
