Time Slips and Dyno Section is for posting 1/4 mile time slips and dyno graphs

10.71 @ 131.5 mph time slip

Thread Tools

Search this Thread

Old Oct 22, 2011 | 07:10 PM
  #1
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
10.71 @ 131.5 mph time slip

New personal best. Spinning through 1st gear, 60 ft time could be better with traction. Too bad I forgot to get the gf to record video Haha. This was my 3rd and last run of the day, first pass was 10.76 @ 131.8 . 23-24 psi boost, t04r single turbo. My tune was a little too rich, I made some recent changes and didn't get to tune before today, so I could have made a little more power. I hope to do even better next week.

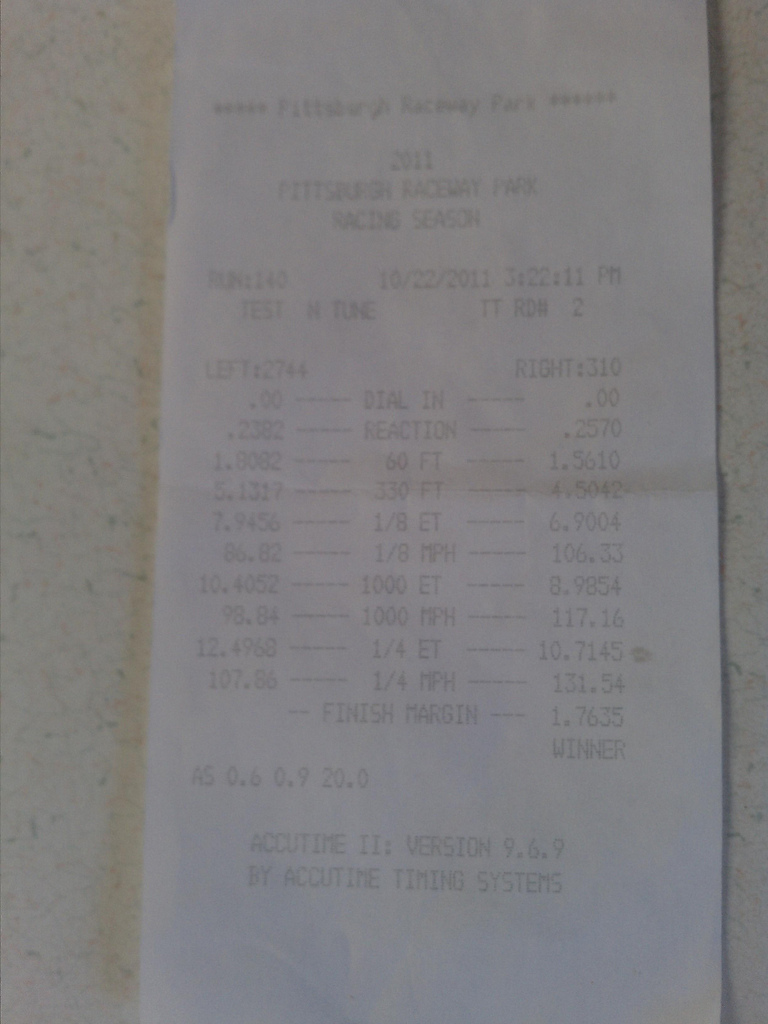

Attached Thumbnails 10.71 @ 131.5 mph time slip-6270331397_a3ee1eaf5e_b.jpg
Reply
Old Oct 22, 2011 | 07:33 PM
  #2
Passion4thegame's Avatar
Full Member
Tenured Member 10 Years
iTrader: (1)

Joined: Jul 2006
Posts: 150
Likes: 0
From: Netharlands Antilles
Congrats ... nice work!
with that trap speed it will be easy hitting the low 10's ...
Reply
Old Oct 23, 2011 | 01:05 PM
  #3
neit_jnf's Avatar
Eats, Sleeps, Dreams Rotary
Tenured Member: 20 Years
iTrader: (17)

Joined: Apr 2003
Posts: 4,057
Likes: 262
From: Around
Nice! Are you using the stock trans and diff?
Reply
Old Oct 23, 2011 | 01:39 PM
  #4
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
Thanks. I am using a stock jdm tranny I put in recently, I shredded the 3rd gear in my old stock tranny when I was doing a bunch of 3rd gear pulls tuning it. And its a fc LSD and stock axles.
Reply
Old Oct 23, 2011 | 06:42 PM
  #5
Turbo8's Avatar
REPU Garage
Tenured Member 10 Years
iTrader: (17)

Joined: Jun 2007
Posts: 623
Likes: 0
From: Northern Colorado
You just keep on rolling, impressive Tom!
Reply
Old Oct 23, 2011 | 06:48 PM
  #6
halfbridgedrx7's Avatar
Full Member

Joined: May 2011
Posts: 73
Likes: 0
From: baltimore
What kind of power did u put down on the dyno
Reply
Old Oct 23, 2011 | 06:52 PM
  #7
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
528 rwhp https://www.rx7club.com/time-slips-dyno-121/528-rwhp-428-ft-lbs-24-psi-pump-gas-wi-973231/
Reply
Old Oct 23, 2011 | 07:30 PM
  #8
phrost's Avatar
brap brap mf
Tenured Member 15 Years
iTrader: (14)

Joined: May 2004
Posts: 402
Likes: 0
From: clifton, NJ (north jersey)
very nice Tom, keep making us proud!
Reply
Old Oct 23, 2011 | 08:01 PM
  #9
MOBEONER's Avatar
It's finally reliable
Tenured Member: 20 Years
Liked
iTrader: (18)

Joined: May 2004
Posts: 3,514
Likes: 10
From: NEW YORK CITY
What are your highest knock readings at what boost and rpm?
Reply
Old Oct 23, 2011 | 08:16 PM
  #10
Rotor Nut.
Tenured Member 20 Years
iTrader: (34)

Joined: Feb 2002
Posts: 2,163
Likes: 2
From: RI
thats a great 60' in my eyes considering i do much worse. what tires are you using?
Reply
Old Oct 23, 2011 | 09:02 PM
  #11
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
Thanks. Ya it is a decent 60 ft time, not bad, if I can get It to hook better it will be lower. Tire pressure was set to 13psi before that run. My best is 1.48 with the stock turbos. MT ET Streets 26x10.5x16. Crane 2 step.

I will upload my datalogit files later tonight.
Reply
Old Oct 23, 2011 | 11:35 PM
  #12
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
My highest knock reading was 19 in 3rd gear at 7267rpm 26343pim (about 23.5psi), highest in 4th gear was 15, mostly between 3-11.

My datalogit maps and datalog files are attached. I was also logging AFR and fuel pressure.
Attached Files
File Type: zip
Maps_3rd-run-1071-ET.zip (2.3 KB, 44 views)
File Type: zip
Log_3rd-run-1071-ET.zip (55.2 KB, 40 views)
Reply
Old Oct 24, 2011 | 08:42 AM
  #13
melvinFC10's Avatar
Full Member

Joined: Sep 2011
Posts: 50
Likes: 0
From: Pittsburgh, PA
Wow that is quite impressive! Congrats! Must be a heck of a car to drive.
Reply
Old Oct 24, 2011 | 09:03 AM
  #14
Narfle's Avatar
Rx7 Wagon
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (16)

Joined: Nov 2002
Posts: 6,978
Likes: 888
From: California
Great work. Get some video!
Reply
Old Oct 24, 2011 | 10:08 AM
  #15
halfbridgedrx7's Avatar
Full Member

Joined: May 2011
Posts: 73
Likes: 0
From: baltimore
Wow nice power im hoping to get over 500 once i get bigger injectors
Reply
Old Oct 24, 2011 | 11:03 AM
  #16
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
Thanks guys. Ya its fun to drive, It's just a lot of tire spin above 15 psi boost. I'll get video next time. I'm still trying to get rid of a little boost flutter in 4th gear at 24 psi, I can see it on the boost gauge and hopefully that's why my fuel pressure flutters a little. I have a 14 psi wastegate spring in there now which was a nice improvement over the 10 psi spring, but I still need a stiffer spring so I Just ordered a 1.2 bar spring, that should work better for high boost but then I can't run low boost anymore, oh well.

This was done with the headlights up too, because of my custom cold air intake I have been leaving the passenger side headlight installed in the up position for night street tuning. I wonder if I would have went faster if they were not up lol. I have brackets to mount just my headlight cover in the down position.
Reply
Old Oct 27, 2011 | 01:41 AM
  #17
hdawg06's Avatar
Junior Member
Tenured Member 05 Years

Joined: Sep 2005
Posts: 10
Likes: 0
From: USA
damn thats fast.
Reply
Old Oct 27, 2011 | 12:12 PM
  #18
Narfle's Avatar
Rx7 Wagon
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (16)

Joined: Nov 2002
Posts: 6,978
Likes: 888
From: California
Originally Posted by tom94RX-7
Thanks guys. Ya its fun to drive, It's just a lot of tire spin above 15 psi boost. I'll get video next time. I'm still trying to get rid of a little boost flutter in 4th gear at 24 psi, I can see it on the boost gauge and hopefully that's why my fuel pressure flutters a little. I have a 14 psi wastegate spring in there now which was a nice improvement over the 10 psi spring, but I still need a stiffer spring so I Just ordered a 1.2 bar spring, that should work better for high boost but then I can't run low boost anymore, oh well.

This was done with the headlights up too, because of my custom cold air intake I have been leaving the passenger side headlight installed in the up position for night street tuning. I wonder if I would have went faster if they were not up lol. I have brackets to mount just my headlight cover in the down position.
Probably good for some trap, but probably not much time.
We demand videos!
Reply
Old Oct 28, 2011 | 10:53 AM
  #19
halfbridgedrx7's Avatar
Full Member

Joined: May 2011
Posts: 73
Likes: 0
From: baltimore
bump for video
Reply
Old Oct 28, 2011 | 11:02 AM
  #20
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
It's supposed to rain and snow tomorrow, this sucks
Reply
Old Nov 5, 2011 | 01:38 PM
  #21
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
https://www.youtube.com/watch?v=LQ1f...e_gdata_player

10.51 @ 133.2 mph 1.52 60ft spinning and pedaled it. first run was 10.54 @ 133.53
Reply
Old Nov 5, 2011 | 09:31 PM
  #22
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA

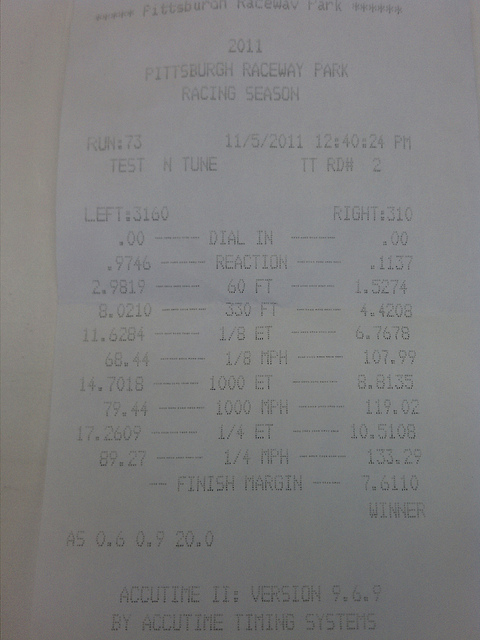

10.51 timeslip. 3rd and last run today was 10.56 .
Attached Thumbnails 10.71 @ 131.5 mph time slip-6316575489_b955fc07aa_z.jpg
Reply
Old Nov 6, 2011 | 11:42 PM
  #23
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
So I found out today that my tire pressure gauge is off and was reading about 3 psi lower than the real pressure, so when I lowered them down to 11 psi trying to get traction, they really still had 14 psi in them. No wonder I been spinning so much in first gear. I should be cutting low 1.4s or 1.3s I think with traction, will try again next Saturday. Also will be installing a Hyperion in tank fuel surge cover so I shouldn't need to run 3/4 to a full tank of gas.
Reply
Old Nov 7, 2011 | 09:48 AM
  #24
djseven's Avatar
Eh
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (56)

Joined: Aug 2002
Posts: 6,553
Likes: 344
From: Nashville, TN
Glad to see that same engine still running. Traps in the 1/8th are awesome man, what boost were these runs on?
Reply
Old Nov 7, 2011 | 10:09 AM
  #25
tom94RX-7's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (5)

Joined: Apr 2005
Posts: 1,489
Likes: 4
From: Pittsburgh, PA
23-24 psi. Runs great. thanks
Reply
