How to Adjust Height on Ohlins?
#1
Senior Member
Thread Starter
Join Date: Apr 2004
Location: Sydney Australia
Posts: 558
Likes: 0
Received 0 Likes
on
0 Posts
How to Adjust Height on Ohlins?
I want to readjust the height of my ohlins whilst my cars off the road. This particular type I heard you need to take the entire thing off the car and adjust the bottom perches so can someone explain how you go about doing this?

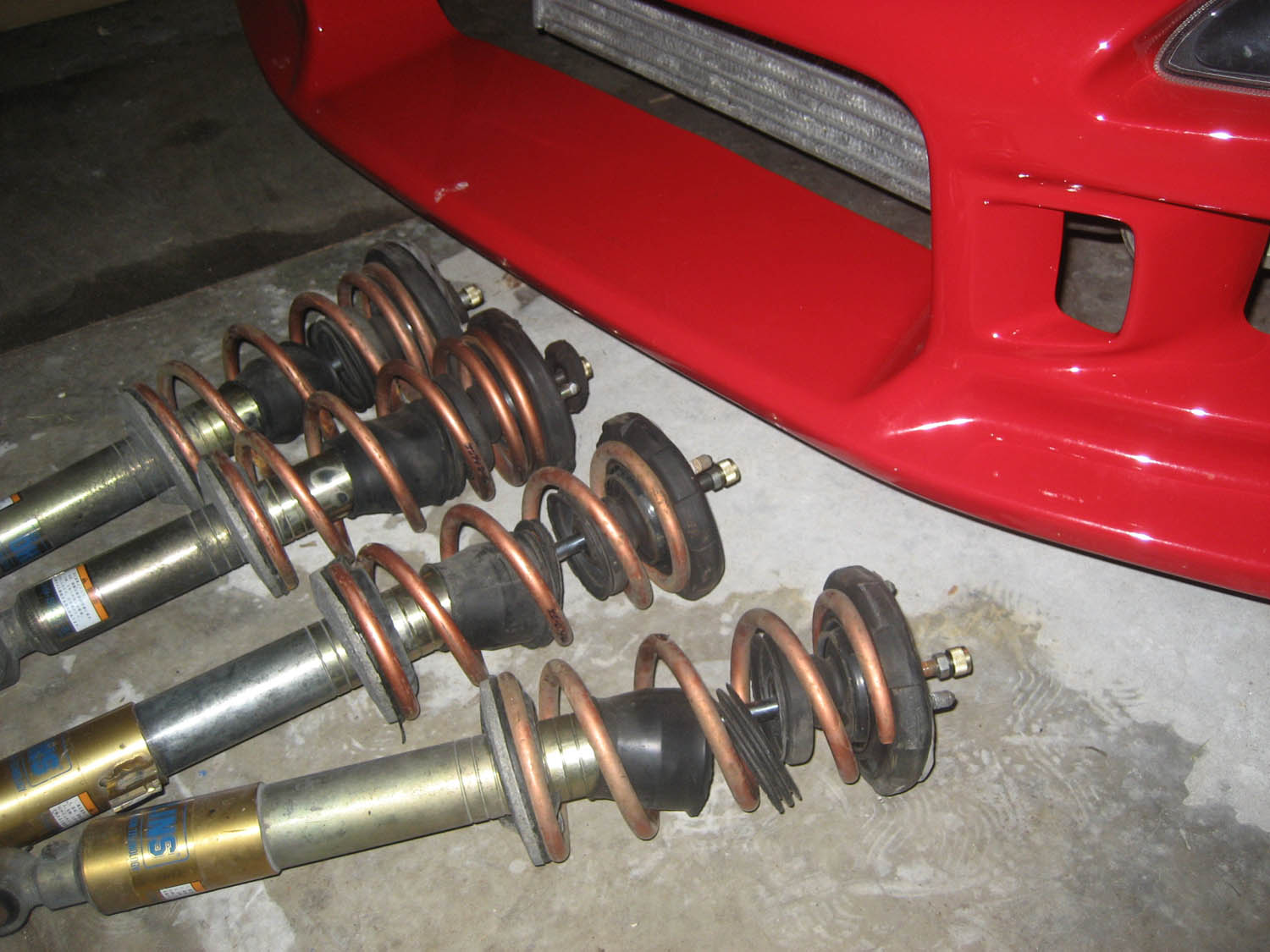

I've attached a picture of the set I'm running.
I've attached a picture of the set I'm running.
#2
needs more track time
iTrader: (16)
Sounds about right. The spring perches look similar to the Konis.
To adjust ride height, you would need to get a spring compressor, compress the
spring, remove the upper shock bushing/mount, move the spring perch to the setting you want and put everything back together.
To adjust ride height, you would need to get a spring compressor, compress the
spring, remove the upper shock bushing/mount, move the spring perch to the setting you want and put everything back together.
#3
Rotary Freak
Join Date: Apr 2004
Location: Rochester, NY
Posts: 1,579
Likes: 0
Received 0 Likes
on
0 Posts
you can see the grooves in the shock body, there is a big c-clip that fits in one groove at a time, depending on whta groove it is in will locate your spring perch and ride height.
just like konis.
just bhe careful to NOT bend or break the c-clip as you open it just a tiny bit to relocate it to a different groove, ask me how I know.
doh!
2 new clips from koni, next day air, wtf!
just like konis.
just bhe careful to NOT bend or break the c-clip as you open it just a tiny bit to relocate it to a different groove, ask me how I know.
doh!
2 new clips from koni, next day air, wtf!
#4
Lift Off in T-Minus...
iTrader: (6)
Also be sure to install a helper spring if your springs are loose when the shocks are fully extended in the new setting you want.
http://performanceshock.com/index.ph...roducts_id=452
http://performanceshock.com/index.ph...roducts_id=452
#5
Senior Member
Thread Starter
Join Date: Apr 2004
Location: Sydney Australia
Posts: 558
Likes: 0
Received 0 Likes
on
0 Posts
Ok so if I move the the perch down this would make the car sit higher?
Also whats the best way to make both sides level? As currently my left side is about 10mm lower than the right side yet I measured the height of the perches before the install and they were even.
Also whats the best way to make both sides level? As currently my left side is about 10mm lower than the right side yet I measured the height of the perches before the install and they were even.
