Fitment Issue: 17x9.5+38 FD3s?
#1
turboftw
Thread Starter
iTrader: (7)
Join Date: Sep 2008
Location: Garden Grove
Posts: 234
Likes: 0
Received 0 Likes
on
0 Posts
Fitment Issue: 17x9.5+38 FD3s?
Can I fit this size all around front and rear?
I know I'm going to need to roll, but I won't have clearance issues inside? Is anyone running the setup at all? This is for a track setup and I will be running a 255/40/17 all around, no stretch or anything fancy, just need to get an idea of how doable this is, any help is appreciated. Thanks guys in advance.
I know I'm going to need to roll, but I won't have clearance issues inside? Is anyone running the setup at all? This is for a track setup and I will be running a 255/40/17 all around, no stretch or anything fancy, just need to get an idea of how doable this is, any help is appreciated. Thanks guys in advance.
#2
Rotary Enthusiast
iTrader: (7)
Join Date: May 2007
Location: Sammamish Washington
Posts: 783
Likes: 0
Received 0 Likes
on
0 Posts
you can fit this without modification. im running 17x10's all around with no fender modification. my offsets are +35 in the front and +25 in the rear. you should be fine
#3
needs more track time
iTrader: (16)
Friend of mine is running 17" x 9" + 45 with 275 all around and bent up fenders from the tires rubbing. This is with Tokico shocks and stock springs. I run the same size wheel with 255/40/17 and usually don't rub unless I drive fast over a big dip in the road. When I do that the front tires rub a bit. I'm running Konis and GC coilovers. I've posted that a few times if you want to look for other posts from myself or Mahjik on that size.
Also, Look at the 1st thread w/ the spreadsheet stickied in this forum for more info on rim/tire fitment.
Also, Look at the 1st thread w/ the spreadsheet stickied in this forum for more info on rim/tire fitment.
#4
Engage
iTrader: (12)
Join Date: Mar 2008
Location: Springfield, VA
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
I want to run 17x9.5 +35 in the front w/ a 255/40 tire, on tein SS coilovers, fender roll, slight pull, and about -1.7 front camber. Any idea if this will work at the track (for FD)?
#5
Rotary Enthusiast
iTrader: (7)
Join Date: May 2007
Location: Sammamish Washington
Posts: 783
Likes: 0
Received 0 Likes
on
0 Posts
as of now im running a 235/40 in the front on stance coilovers with no problems. I will be buying new summer tires soon and am probably going with bigger tires so i will let you in. also my setup does have quite a bit of camber
#7
Trending Topics
#8
Engage
iTrader: (12)
Join Date: Mar 2008
Location: Springfield, VA
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
Ergh, I DID search. But for every person who says "it won't fit" there's another guy who's like "I run blah blah and it works great no problem!". It's hard to weed thru who's right and who's not sometimes. Thanks.
#9
Rotary Enthusiast
iTrader: (7)
Join Date: May 2007
Location: Sammamish Washington
Posts: 783
Likes: 0
Received 0 Likes
on
0 Posts
i guess it just depends what you set your car up for. sorry if my post messed you up. when i bought my wheels plenty of people said there is no way you could fit them on a stock body fd and sure enough they fit. I think sometimes stuff that shouldn't fit according to the charts somehow does. who knows. good luck fitting your wheels. if worst comes to worst just rent a fender roller. would save you alot of trouble. just my 2 cents
#10
needs more track time
iTrader: (16)
You'll get the drifters and the mad-tight-yo guys that run stretched tires and never really track their cars saying it fits. I probably just pissed off a few people but sorry, but I love using the "cool" words yo and over generalizing can be fun.
Seriously though, some guys run ridiculously stiff coilover spring rates that aren't streetable and rims that are too big that would rub if they ran a lower, track oriented ride height. Yet they parrot over and over that it "fits" b/c they can bolt them on and they roll but don't really drive the car hard or have a track worthy setup.
Search on posts by forum elders such as DamonB, rynberg, Mahjik, ptrhahn, SleepR1, Fritz Flynn, GoodfellaFD3S, AMRX7 and you'll get the info you need on just about any suspension topic. Also search and read posts from howard coleman. He is a former SCCA Nationals winner and shares lots of good info. You can probably safely ignore many threads on which that those guys didn't participate (at least in the suspension section). I shared some usable info in old threads also in between my wise *** remarks.
#17
Registered User
Join Date: Jan 2003
Location: Sterling, VA
Posts: 1,038
Likes: 0
Received 0 Likes
on
0 Posts
It's really too bad nobody makes a 275/35-17.
I run 275/40-17 on 17x9.5+42 all around, exact same as NeoTuri above at about 25.25" fender height, and I've rubbed away large areas in front and on the outer top of the front wheelwell liners on the track. Even different brands/models of tires of the same size will vary - the 888s I'm running are much wider at the shoulders than any tire I've ever run before, and rubbing has gotten worse.
I run 275/40-17 on 17x9.5+42 all around, exact same as NeoTuri above at about 25.25" fender height, and I've rubbed away large areas in front and on the outer top of the front wheelwell liners on the track. Even different brands/models of tires of the same size will vary - the 888s I'm running are much wider at the shoulders than any tire I've ever run before, and rubbing has gotten worse.
#23
Searching for 10th's
iTrader: (11)

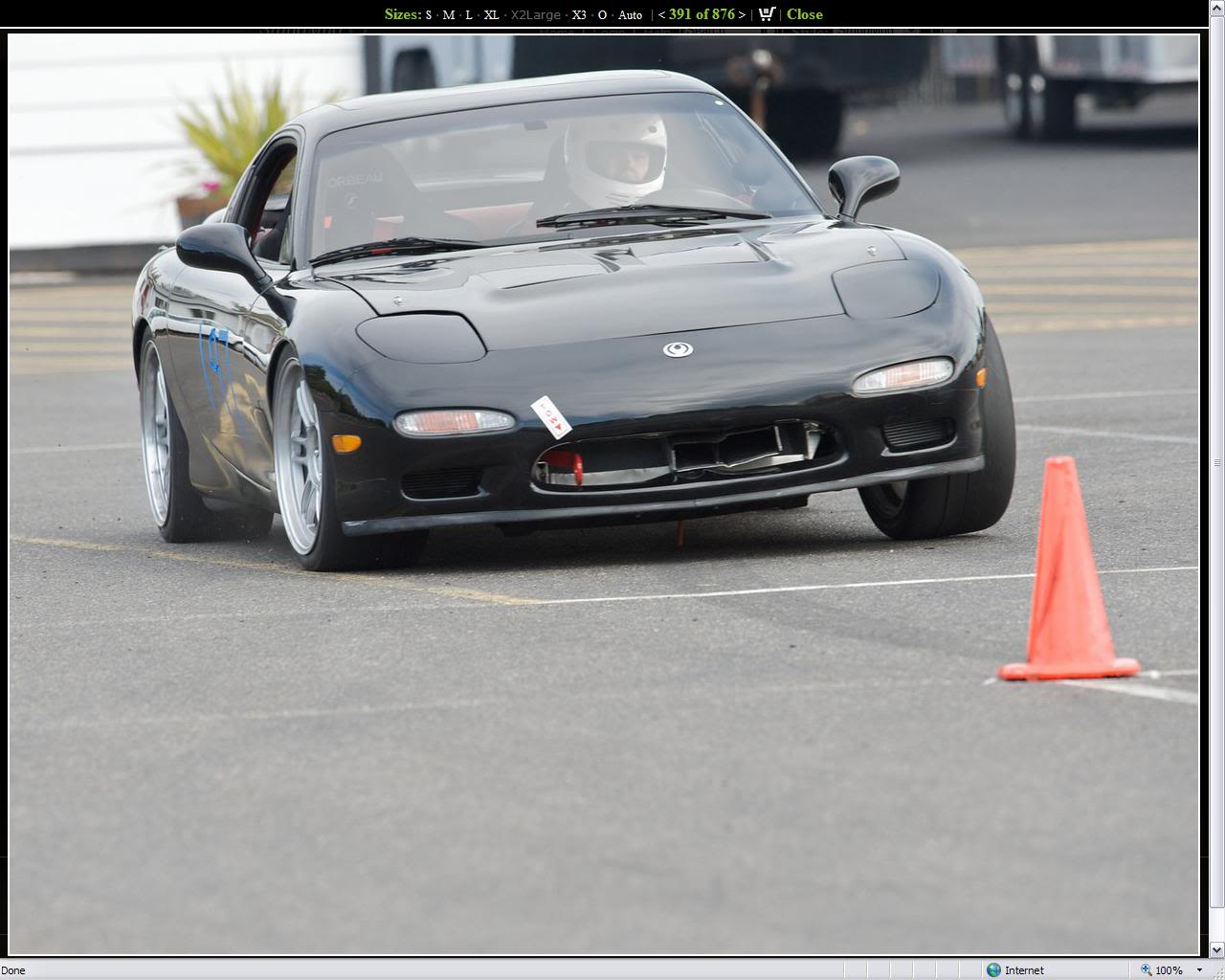

Suspension setup is Ground Control with Koni Yellows.
Springs are Eibach, 550 lb front, 450 lb rear.
Sway bars in this photo are Suspension Techniques, front and rear.
Sways now changed to TriPoint 0.188 in front, stock in rear.
(ST is too stiff for cold weather, way too stiff for wet)

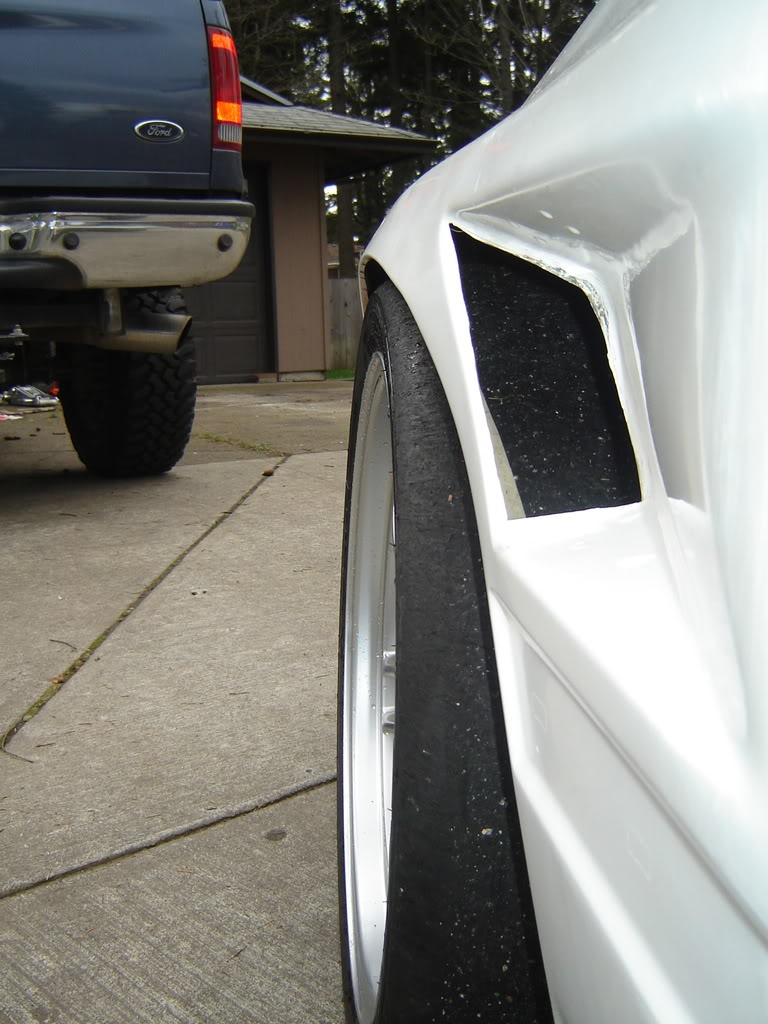

The clearance in the 285's in front is close, but even on a bumpy autox course there is minimal rubbing in the front.
As for the rear, lots of room there. Probably going to 315's in the back next year.
Car sits at 25" at the top of the fender arches.
