FD Fortune Auto Coilover Review

Reply



Old 03-26-15, 03:13 PM
  #26
Senior Member
iTrader: (5)

FD3S_wanted's Avatar

Join Date: Jul 2002
Location: Québec
Posts: 691
Thanks: 0
Thanked 2 Times in 2 Posts
Originally Posted by tbkonwso View Post
for your rear coilover... did you reuse the black rubber plastic for the top? i notice some paint cracking near the shock mount, like its hitting it too hard.

what setting did you end up with anyways?
Same issue here.

Here's what FA answered me:
I went over this with our engineers as well. The peeling of the shock tower is not associated with the coilover, its most likely from the age of the chassis.

Which I think is not correct. My FD is rock solid and the FD chassis is known to be stiff. It never happened when I had my stiffer Apexi N1 evolution coilovers. I need to do a follow with them, didn't had time.

FYI I used the stock transparent plastic between the coilover and the shock tower when I installed them.
FD3S_wanted is offline
Reply With Quote
Old 03-26-15, 04:11 PM
  #27
Rotary Enthusiast
iTrader: (19)

Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,153
Thanks: 0
Thanked 3 Times in 2 Posts
Hit a bump going fast and this can separate a good shock from a poor shock. the low speed stuff is all relatively close, when the shock velocity kicks up is when the shock gets tested.

Does the car skip/jump/absorb a high speed bump? Most of the shocks I have been in don't "soak" it up as a really plush soft, great suspension set up would do. Its typically really harsh and skips or jumps over bumps.
lOOkatme is offline
Reply With Quote
Old 03-20-16, 07:20 PM
  #28
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,598
Thanks: 0
Thanked 2 Times in 2 Posts
another update on these?
silverTRD is offline
Reply With Quote
Old 05-22-16, 05:13 PM
  #29
No money. No love.
iTrader: (12)

SmogSUX's Avatar

Join Date: Jul 2004
Location: SACRAMENTO
Posts: 2,806
Thanks: 0
Thanked 0 Times in 0 Posts

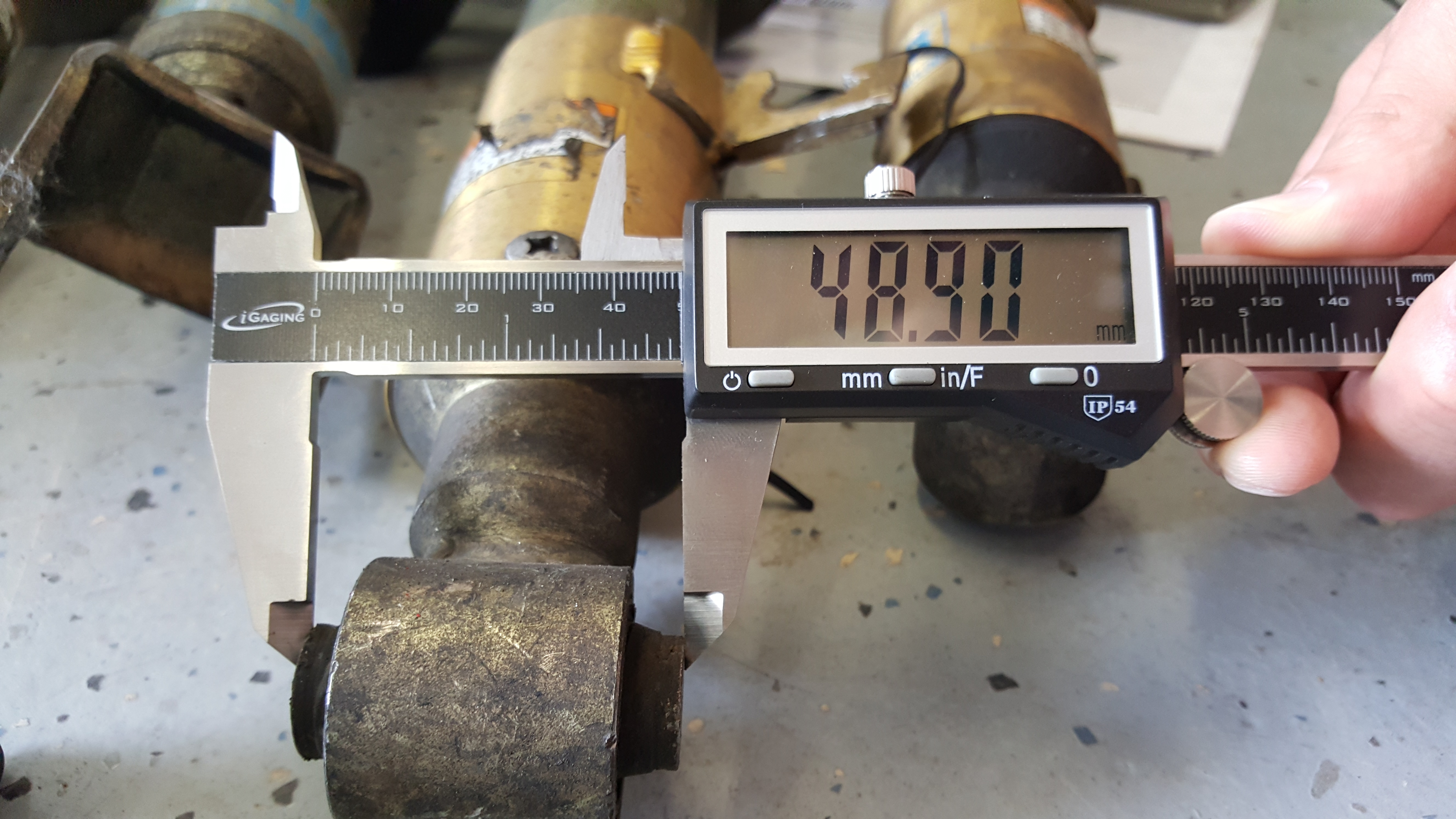

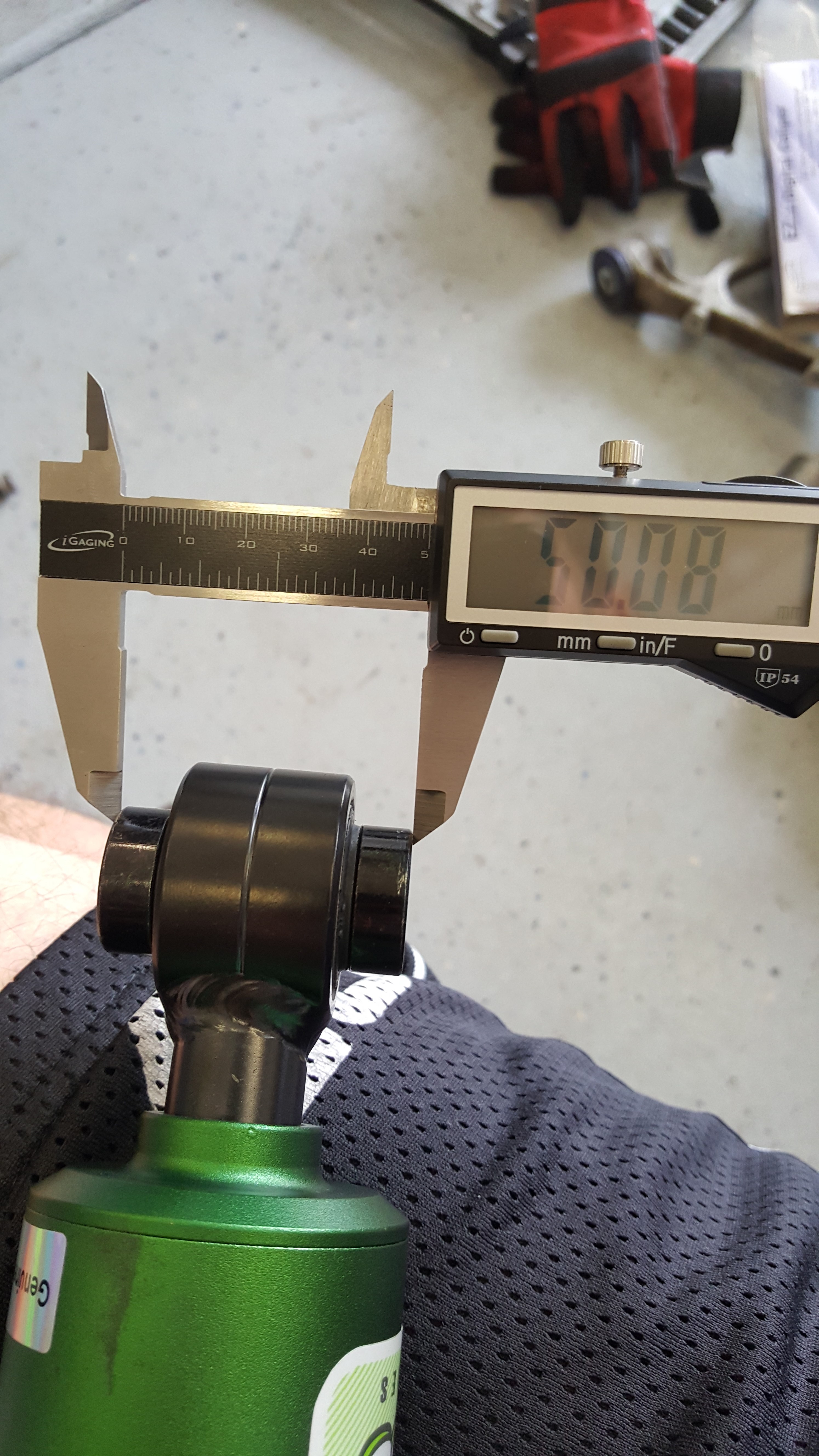

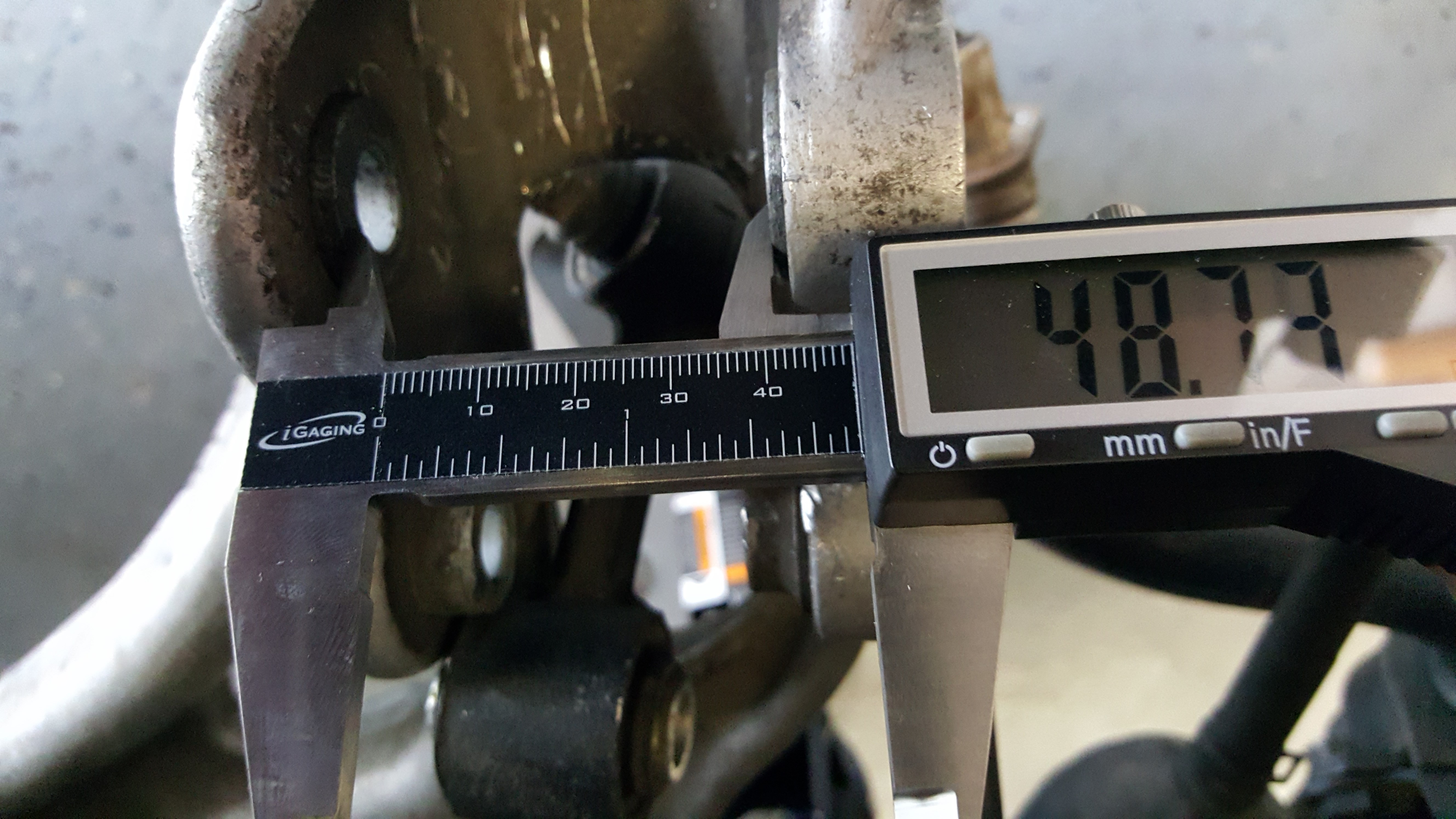

I want to know more about how you managed to make the fronts fit...I got the total thickness to be 50.08mm and the space that it's supposed to fit into on the lower control arm is 48.73mm. Not sure how comfortable I am trying to bend my LCA's 1.35mm to make it fit..
Attached Thumbnails FD Fortune Auto Coilover Review-20160522_135749.jpg   FD Fortune Auto Coilover Review-20160522_135814.jpg   FD Fortune Auto Coilover Review-20160522_135843.jpg   FD Fortune Auto Coilover Review-20160522_135912.jpg
SmogSUX is offline
Reply With Quote
Old 05-23-16, 09:14 AM
  #30
brap brap brap
iTrader: (2)

evo_koa's Avatar

Join Date: Jan 2012
Location: Huntsville, Al
Posts: 1,086
Thanked 4 Times in 4 Posts
I have ksport coilovers on my fd. One of the lower mount on them did exactly like yours. I used a bench grinder to grind down a little on the coilover. fits perfect now

Originally Posted by SmogSUX View Post
I want to know more about how you managed to make the fronts fit...I got the total thickness to be 50.08mm and the space that it's supposed to fit into on the lower control arm is 48.73mm. Not sure how comfortable I am trying to bend my LCA's 1.35mm to make it fit..
evo_koa is offline
Reply With Quote
Old 05-23-16, 09:35 PM
  #31
Senior Member
iTrader: (5)

FD3S_wanted's Avatar

Join Date: Jul 2002
Location: Québec
Posts: 691
Thanks: 0
Thanked 2 Times in 2 Posts
Originally Posted by evo_koa View Post
I have ksport coilovers on my fd. One of the lower mount on them did exactly like yours. I used a bench grinder to grind down a little on the coilover. fits perfect now
Don't do that!!

Originally Posted by SmogSUX View Post
I want to know more about how you managed to make the fronts fit...I got the total thickness to be 50.08mm and the space that it's supposed to fit into on the lower control arm is 48.73mm. Not sure how comfortable I am trying to bend my LCA's 1.35mm to make it fit..

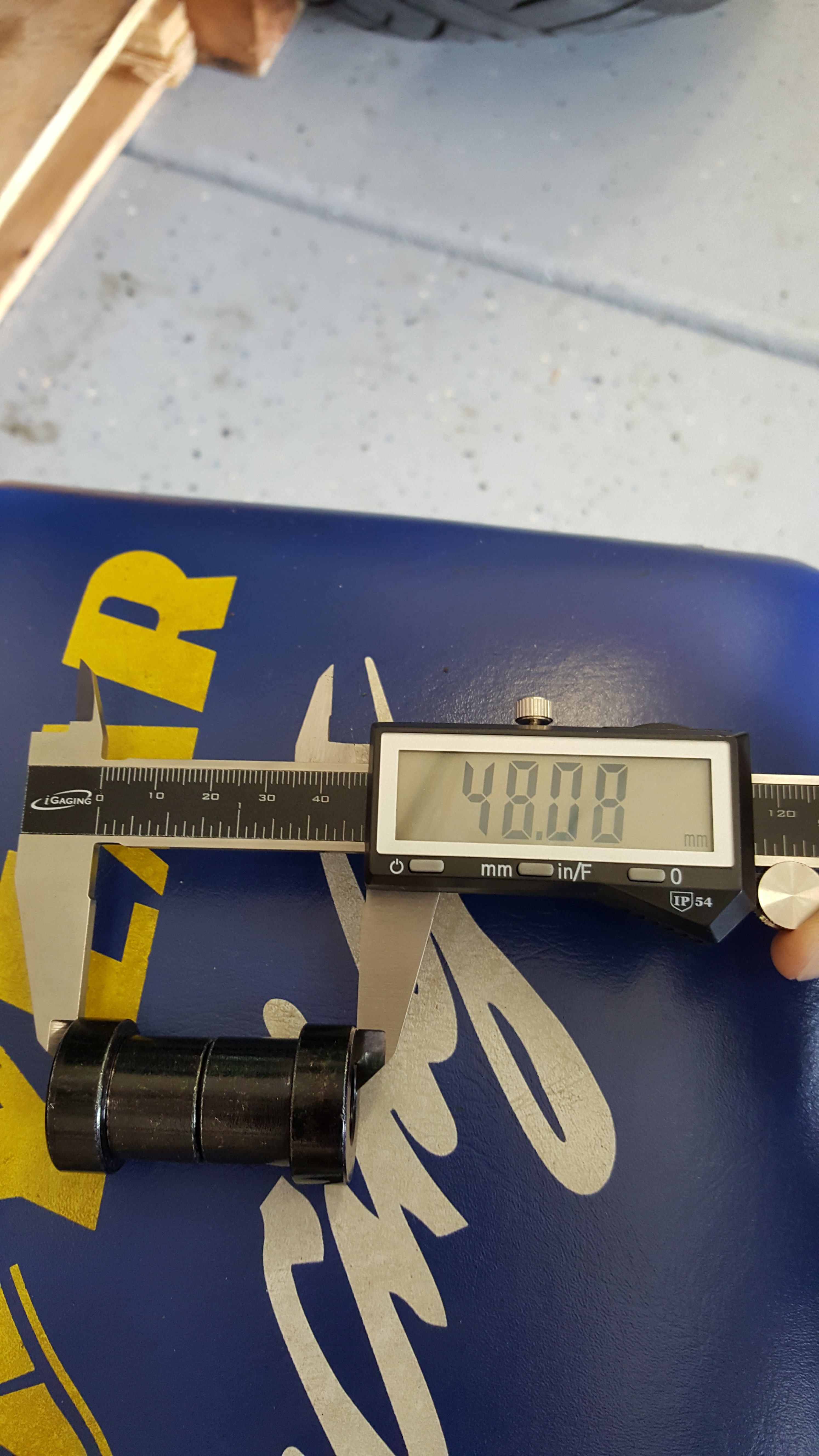

In your fourth pic the spacers/washers in the LCA move inside the LCA. With a bolt, nut, washers and a big socket you'll be able to push it to the outside then your coilover should fit perfectly without any hacking.
FD3S_wanted is offline
Reply With Quote
Old 05-25-16, 04:23 PM
  #32
brapbrapbrap
Thread Starter
iTrader: (8)

airjordan223's Avatar

Join Date: Dec 2012
Location: Ohio
Posts: 385
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by SmogSUX View Post
I want to know more about how you managed to make the fronts fit...I got the total thickness to be 50.08mm and the space that it's supposed to fit into on the lower control arm is 48.73mm. Not sure how comfortable I am trying to bend my LCA's 1.35mm to make it fit..
You don't need to bend the LCAs, just use a C-Clamp or some other creative method to slide that insert outward. When the bolt is tightened it reduces the gap again.
airjordan223 is offline
Reply With Quote
Old 06-10-17, 10:31 AM
  #33
Full Member
iTrader: (15)

Join Date: Feb 2005
Location: florida
Posts: 174
Thanked 0 Times in 0 Posts
fortune 500 coilovers

saw your post on fortune 500 coilovers and wanted to know if your still running them and if so have your opinion changed. Also waht spring rate are you using.
Thanks,
Northon
Northon Jocelyn is offline
Reply With Quote
Old 06-17-17, 07:23 PM
  #34
Senior Member

Join Date: Mar 2001
Location: Walnut, CA
Posts: 681
Thanks: 0
Thanked 2 Times in 2 Posts
did they include a dyno with the shock? can you post it? thanks
Alpine is offline
Reply With Quote
Old 08-15-17, 11:43 AM
  #35
Full Member
iTrader: (4)

latinFD's Avatar

Join Date: Nov 2005
Location: Stockton, CA
Posts: 90
Thanks: 0
Thanked 1 Time in 1 Post

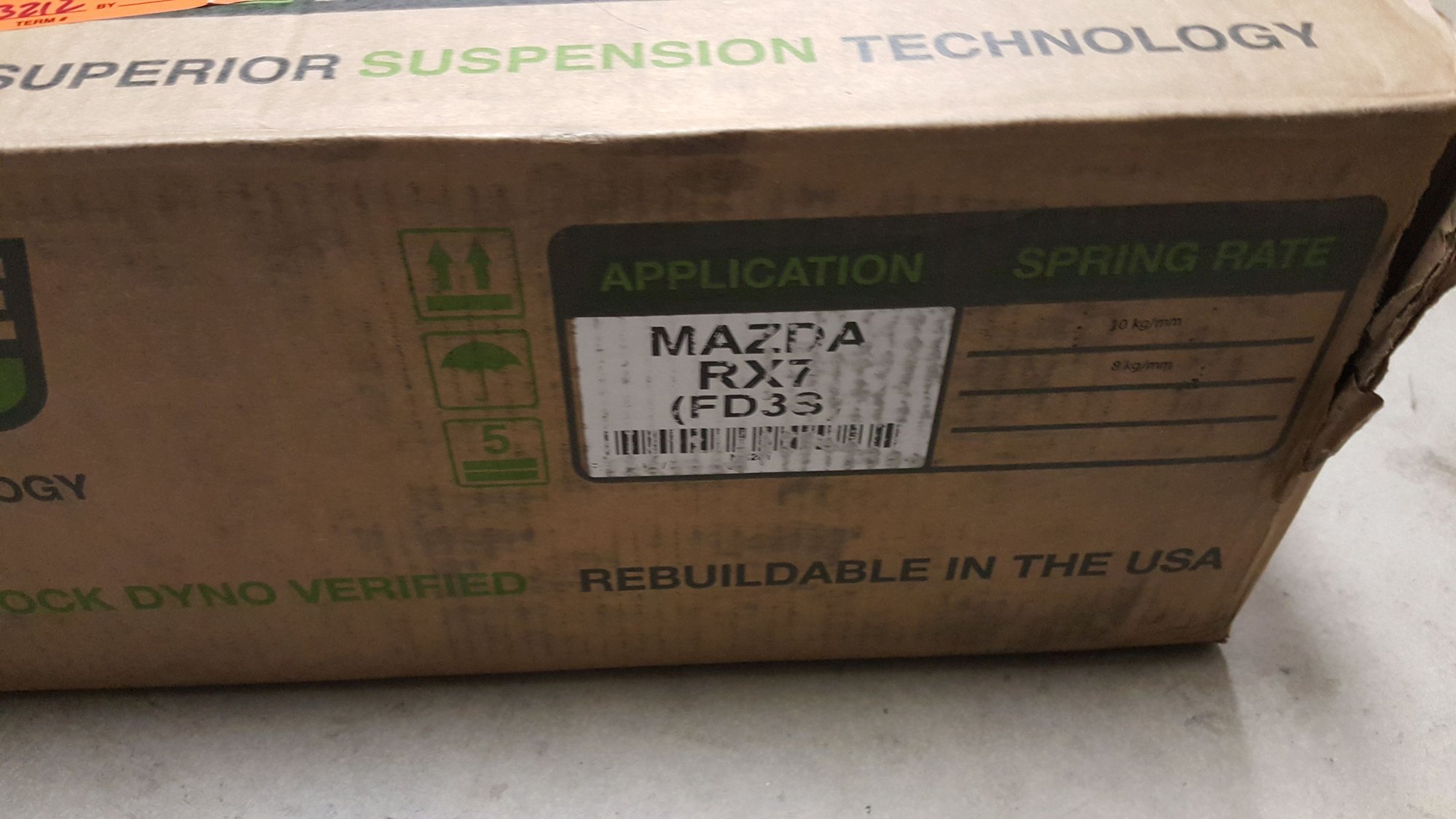

I was going to get Ohlins but because of this review I bit the bullet and bought my set. I'll have to start a new thread for my review once I install them to see how they are in northern California roads. I went with the same spring rates 10kg/8kg on FA springs. They look like they're good quality.









latinFD is offline
Reply With Quote
