Coilovers

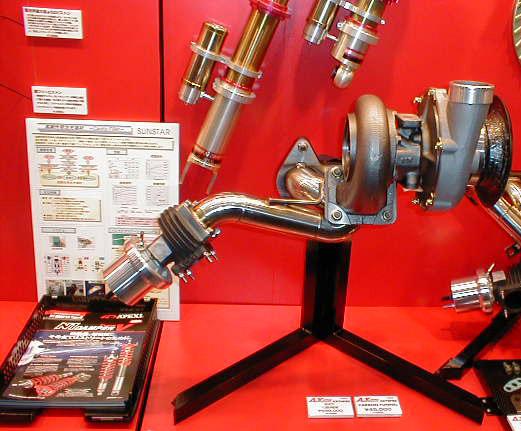

Does anyone make a set of coilovers that have a external reservoir I have a pic of a apex turbo and behind the turbo is a coilover with a reservoir I want a set already setup for a fd3s.I am using my car for autocross.I dont know if anyone has messed with penski shocks.They are nice.But I dont know what spring rates to use.
#2
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
If you have to ask, you probably aren't a good enough driver to need them....
If you are serious, give Tripoint Engineering a call, they are FD auto-x gurus and can help you with advanced suspension setups.
If you are serious, give Tripoint Engineering a call, they are FD auto-x gurus and can help you with advanced suspension setups.
#4
Rotary Freak
iTrader: (6)
Join Date: Jan 2002
Location: Golden, CO
Posts: 1,807
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by artowar
You could always buy the Penskes in the 3rd Gen Parts for Sale section. I believe those have remote reservoirs, and the seller sprung for triple adjustables...
#5
Senior Member
Join Date: Sep 2001
Location: Maryland
Posts: 292
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rotary rockett13
Does anyone make a set of coilovers that have a external reservoir I have a pic of a apex turbo and behind the turbo is a coilover with a reservoir I want a set already setup for a fd3s.I am using my car for autocross.I dont know if anyone has messed with penski shocks.They are nice.But I dont know what spring rates to use.
Mark
#7
Lives on the Forum
Originally Posted by ArcWelder
The main reason for having the external reservoir is for controlling the temperature of the shock oil.
The remote reservoir can be located anywhere convenient. Whether that be a canister connected by a hose to the shock body or the canister being carried right next to the shock body on a bracket.
Something like a Koni yellow or Tokico adjusts by controlling the size of the holes in the piston between the washer stacks via a rod that extends through the piston rod. The fewer the openings in the piston the stiffer the shock in both bump and rebound. The bump vs rebound rates are not adjustable though because in this case that is determined by the washer stack only and their comparitive rates are fixed (Unless you change the washers. That's how you "revalve" a shock). When you convert a Koni or the like to double adjustable you add an adjustable orifice behind the piston that allows you to adjust this valve independently of the washer stack. From there you can keep isolating more speed situations on the washer stack and running additional valves to control other aspects.
Here's a good pic that shows what is inside a typical shock. The far right shows the piston and washer stacks. As oil is forced through the piston the washers "blow off" and allow control of the restriction on the orifices in the piston. Shocks with external reservoirs are plumbing additional valves above and/or below the piston to allow even more control of damping rate vs piston speed.
Last edited by DamonB; 12-09-04 at 10:19 AM.
