i have a holset on my 350 rx would probly work very well for a rotary the ex housing is around an A/R of 1.00 o 1.15 holset has no a/r specs for the turbo they read them in CM the housing is tanged and divided the only thing is the dp outlet is 5" but would probly work well on a bridge port its off an 855 cummins

the # on the comp housing are
ASSY. 3525325
serial. 1896810
ht3b
30k9

turbine
3519355
23-41050
80
inside the housing is the number 23



holly S(*&(...

that freakin' thing is huge, hows that working out for ya?

matt



I use a SCHWITZER S300 with .83 exh a/r

here is the map




we did 490rwhp and 404torq @ 23psi on this turbo

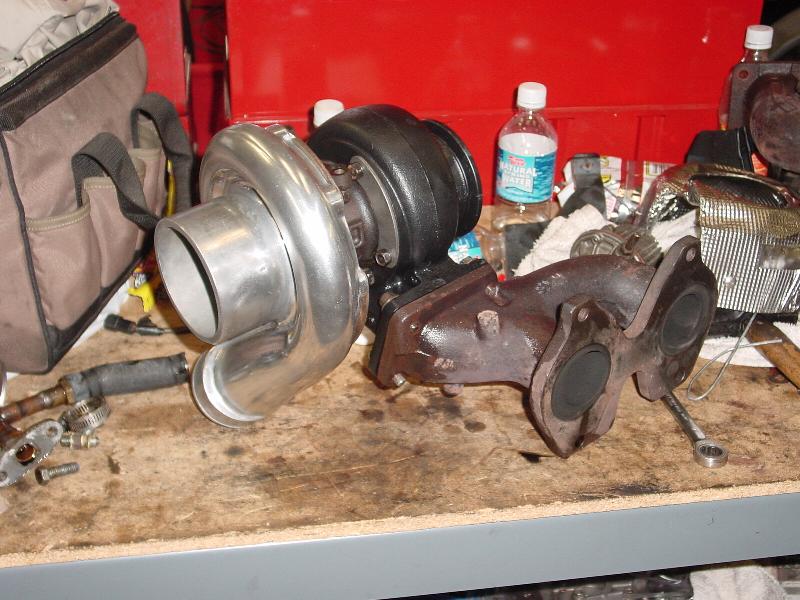

here is what it looks like

the wheels are just almost the same spec as a T51.
I can wait till I turn the wick up and bring it up to 2bar
if a few weeks



What manifold is that?



HKS cast for FC



any new info for this thread?



I had a turbo from the 7.3l powerstroke a year or so ago, but could find little info on it cause Garrett doesn't release specs in a timely manner, and the engine was brand new. I ditched the idea of trying to fit this on my FD cause it looked like a big project with questionable results.



Have used the GT42 truck yurbo on my partners FD and a friends RX2.72 AR com cover with 1.22 AR exhaust
makes about 320hp at wheels at 1bar.
