Single turbo oil drain fittings.
Hey guys, I've had my oil drain for my turbo...not up to par. I have a precision turbo that has a -10 oil outlet. Right now there is a fitting with a barbed end for a hose to clamp onto. Id like to replace this flange with another one with a/n fittings (unless the turbo has threads under the flange). If anyone knows what the flange on our fd block is and where to get it with the turbo drain flange, and or the distance between the block and the turbo so i can order the line, it would save me lots and lots of time. Thanks everyone
I know its dirty :/

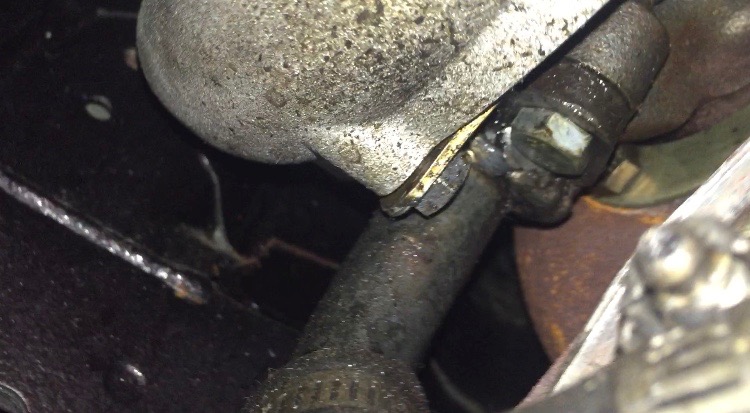

turbo flange

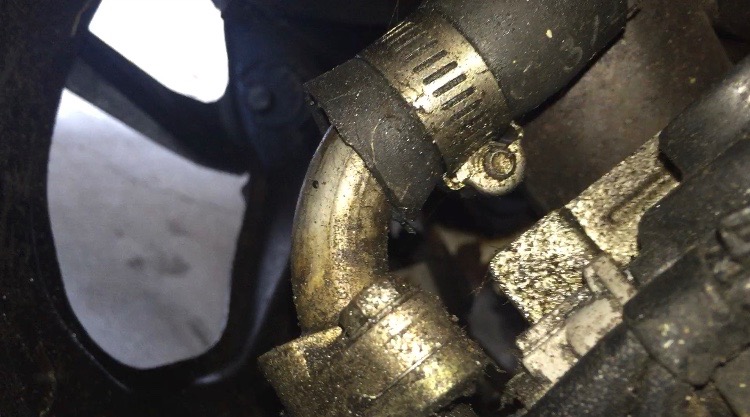

Flange on block
I know its dirty :/
turbo flange
Flange on block
#3
Rotary Enthusiast
When I did my conversion, I removed the oil drain hard line you have pictured, then chopped off the tube, leaving just the flange.
Then welded (well my friend welded) some tube bend on there at the correct angle with a -10 fitting on the end. You can see it in this picture.
The hose is really short. Maybe only 1.5 " of braided hose on my setup.
If you just get a foot or two it should be heaps for most any setup.
Then welded (well my friend welded) some tube bend on there at the correct angle with a -10 fitting on the end. You can see it in this picture.
The hose is really short. Maybe only 1.5 " of braided hose on my setup.
If you just get a foot or two it should be heaps for most any setup.
