rollcoal

iTrader: (5)

I started working on the single turbo harness with my girlfriend and i noticed the brown/white wire got cut off the tps somehow.. anyways can someone tell me which pin it goes to because there are 2 brown/white on the ecu connector side. Nothing had been depinned just cut and brought all the way down to the end and left stranded. Also there were 3 connectors that are attached with the fuel temp sensor... can anyone name all 3? because i have 1 left on that loop and can't identify it. thanks

c00lduke

If your doing rewiring of any sort you'll want to reference the wiring diagram like one found at the URL below:

http://www.rotaryheads.com/PDF/3rd_gen/

rollcoal

iTrader: (5)

Yea i figured out which connector it was for my tps.. im just unsure about that one connector.. ill have to look more into it tonight.. i was getting tired yesterday.. thanks

mannykiller

iTrader: (93)

send me a picture. I know every plug on that harness by heart..even the ones that are exactly the same.... just based of their position on the harness. I used to re-furbish these for people.... still do every once in a while just for fun =-)

rollcoal

iTrader: (5)

Text me at 587 343 6453

mannykiller

iTrader: (93)

pm me
^

Prôdigy2nd

iTrader: (3)

Hyper linking didn't work...

See post below

J.

Prôdigy2nd

iTrader: (3)

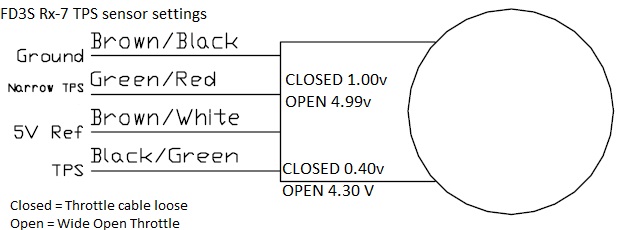

Sorry... This one should work..


J.
