May 18, 2012 | 08:44 PM

#26

Jason

The one

iTrader: (5)

Joined: Jul 2001

Posts: 3,862

Likes: 5

From: Fort Worth, TX

Quote:

Originally Posted by antony920

so finally got around to finish this single turbo project... Jason from RX7store.net did redo my manifold and now i have 1 inch on each side... i do give them prob for always picking up my calls and taking care of the issue.

new issue that i have... the turbo drain can't sit straight down because it hit the turbo housing... as you can see in the picture the oil feed is about 50 degree... do you guys think that this is ok ? will it hurt the turbo?

thanks for your input...

From looking at your pics you have a lot of room to clock the turbo. Does the drain flange have an angle on it?

if you go here http://www.rx7store.net/category_s/425.htm
There are some pictures of how we have installed them.

Jason

Last edited by Jason; May 18, 2012 at 08:57 PM.

May 18, 2012 | 10:06 PM

#27

antony920

Thread Starter

Full Member

iTrader: (3)

Joined: Apr 2009

Posts: 55

Likes: 0

From: Houston

the drain flange doesn't fit straighter than the picture i posted...

seem like you install this turbo at 40 degree the same way i have...

http://www.rx7store.net/PhotoDetails...ctCode=Photo48

Quote:

Originally Posted by Jason

Mar 17, 2013 | 11:23 PM

#28

rexset

Racing Mechanic

Joined: Oct 2002

Posts: 539

Likes: 2

From: Santiago, Chile, South America

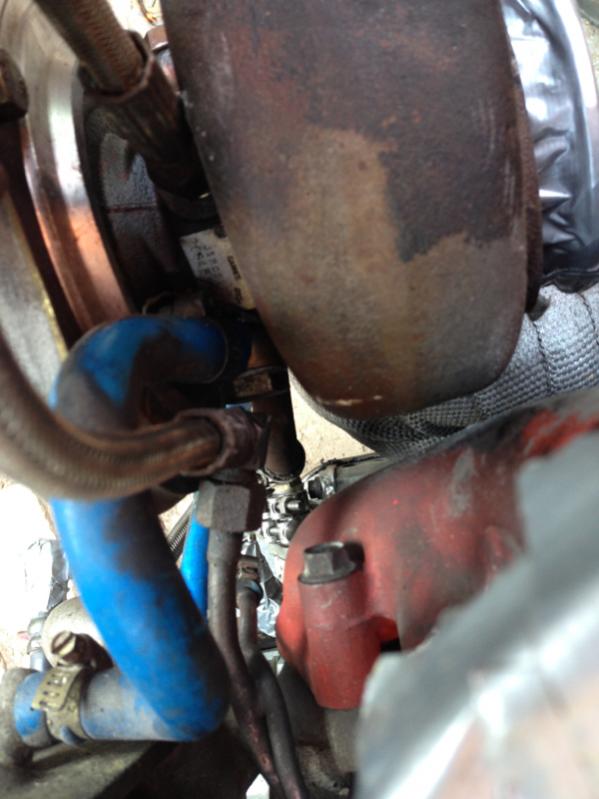

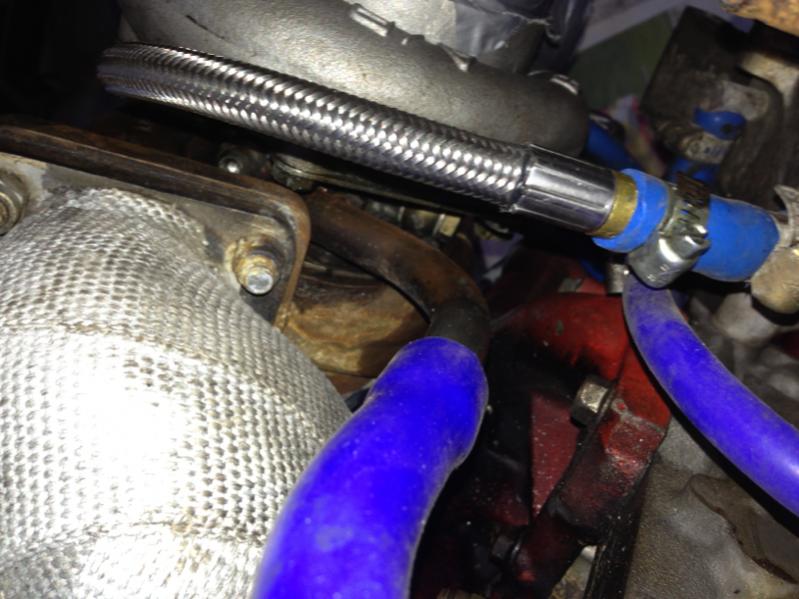

This is how i solve mine

It was a problem really hard to solve
But i ended up installing the turbo almost straigt
One Allen and the other 10mm
It is possible to install it properly
