RX6B efficiency map
07-16-05, 09:34 PM
#1
Rotary Enthusiast
Thread Starter
RX6B efficiency map
Does anyone know the max boost level for the RX6B or have a link to it's efficiency map? I tried searching the internet and came up with nothing for the RX6B. TIA
07-17-05, 03:04 AM
#2

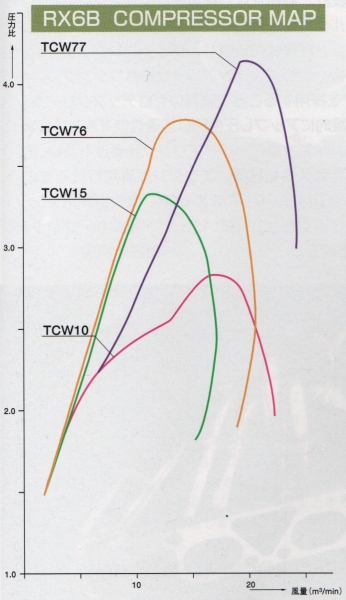

Here's the map from the 2000-2001 APEX'i catalog. I realize that it is missing efficiency lands and the units on the x axis are not what we're used to, but it's all I've got.
Last edited by maxcooper; 07-17-05 at 03:09 AM.
07-17-05, 10:46 PM
#4
Rotary Enthusiast
Thread Starter

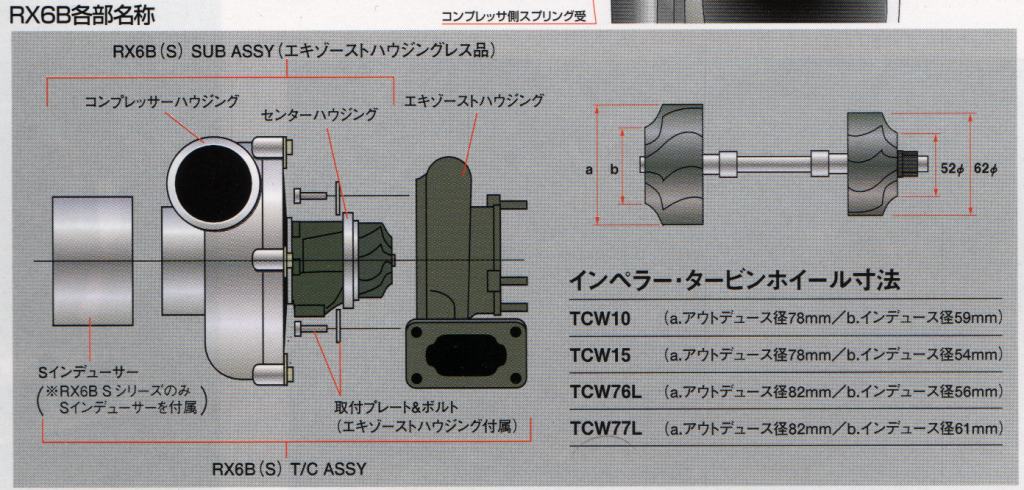

Thanks Max, you wouldn't happen to know which compressor is used for the 7?
Never mind, I just found the compressor info (TCW76).
If I'm reading the map correctly, the maximum flow (in cubic meters per min) is achieved at a pressure ratio of around 3.7 which translates to more than 39 psi. That just doesn't seem right for a small turbo??
Never mind, I just found the compressor info (TCW76).
If I'm reading the map correctly, the maximum flow (in cubic meters per min) is achieved at a pressure ratio of around 3.7 which translates to more than 39 psi. That just doesn't seem right for a small turbo??
Last edited by Trexthe3rd; 07-17-05 at 10:57 PM.
07-17-05, 11:39 PM
#5
You read it right, it's just that the 13B will flow a lot more than that at 39 psi. Figure out what your PR is, how much the engine is going to flow at that pressure, and see where it lands on the map.
-Max
-Max
