Was thinking about fitting a regulator to the surge tank over flow, thus pressurising the surge tank and giving the main pump a bit of a head start?

Has it been done before? Any reason why not? Seems like a good idea to me, but i cant find any info on it, so there must to be a reason it isnt a common place thing...


Im thinking a Carter Black (or similar) lift pump, dead head reg on the overflow (or bypass style??), adjusted to maybe somewhere under a bar surge tank pressure?

Main pump is a bosch 044

WANKfactor

iTrader: (1)

Please feel free to tell me what is wrong with this idea

WANKfactor

iTrader: (1)

.

WANKfactor

iTrader: (1)

https://www.google.com.au/url?sa=t&r...64542518,d.dGI

If i used this^ at the surge tank over flow (as per diagram post 1), and connected the vacuum/boost port to the intake

manifold, adjusted it for maybe a couple of psi above atmosphere, then at intake vacuum

conditions it will be pretty much wide open, so the lift pump isnt getting overworked and at

boost it will be a couple of psi above my boost pressure, effectively giving the EFI pump a quite a decent head start

Please feel free to pick this idea to bits. It seems so simple, yet no one seems to be doing it, I'm sure i'm missing something here..

WANKfactor

iTrader: (1)

*light bulb* would having the extra regulator in the system make it impossible to adjust or create weird pressure fluctuations or something?
because it is essentially pressurising the return line too.

**** it, think im just going to swap the 044 for one of these mother-huggers http://www.injectorsonline.com/images/products/50.jpg
350lph@5bar, out flows 044, built in suction pump, quiet, AMG mercedes spec, ra ra ra

valley

iTrader: (1)

Pressurizing the fuel going into the pump could (very unlikely though) damage the pump if it's too high a pressure. A fuel pump can only create so much pressure and is designed to do so with unpressurized fuel. If you're having pressure/flow issues then you should look into upgrading your fuel pump(s). While a clever idea, you're adding complexity to a system which doesn't need it, with added cost, and time to tune it. As all surge tanks I have seen have the return at the top (thus ensuring a full surge tank) having some amount of pressure before the fuel can escape is redundant.

A surge tank is designed to ensure that your engine has fuel during high G maneuvers that might cause fuel starvation if one only had a fuel tank and it was less than full. Each one should be designed for the car it will be in and take into consideration things such as maximum fuel requires (over some short time interval) and longest time interval where the surge tank will not be able to be fed by the tank.

Vicoor

Absolutely unnecessary complexity with no benefit.

The purpose of the surge tank is to eliminate the possibility of fuel starvation from slosh.

If you need to "boost" your main pump then maybe it needs an upgrade.

There are several pumps available that will flow enough for really high (600+) whp levels. If you need more maybe you should be looking at dual pumps.

Neutron

iTrader: (10)

If you need more pump there is a partially submerged dual bosch 044 surge tank avaliable. I've been using 1 for almost 2 years with great success.

Turbo II Rotor

iTrader: (2)

You usually plumb your FPR return back to your surge tank. Pressurizing it would just increase the load on the pump with no gain in this configuration since you are now venting to an area with higher than atmospheric pressure. You are better off up sizing your surge tank outlets or increasing the height of the tank to increase head pressure.

WANKfactor

iTrader: (1)

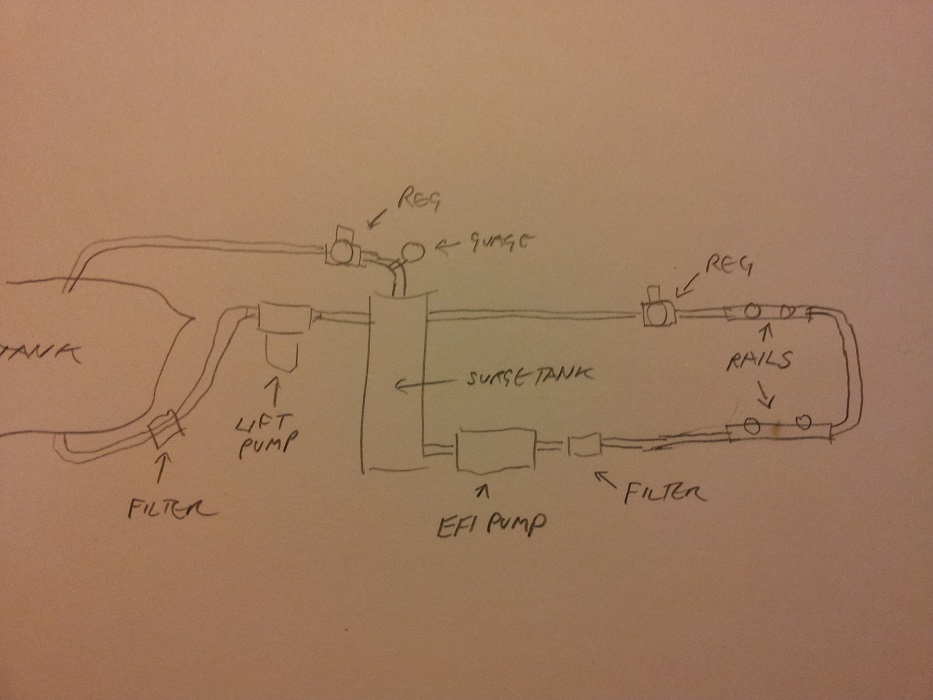

Yeah, I might review the surge tank outlets size, thanks for the heads up. Re; plumbing fpr to surge, did you check the diagram in the original post? - it is plumbed that way - it is exactly the same as a conventional external pump surge tank set up, except with another regulator on the surge tank overflow, the idea being to get some extra money's worth out of the lift pump by creating some head pressure feeding the efi pump.
