Pic. Request: Fabricated 4" tubing for mounting Air Filter to turbo on FD.
#1
Pimpin Rotors...and Hoes
Thread Starter
Join Date: Feb 2001
Location: New Orleans, LA
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Pic. Request: Fabricated 4" tubing for mounting Air Filter to turbo on FD.
Hey guys, I have limited space with a SMIC and my single turbo setup so I will be fabbing a 4" pipe to mount my air filter to the turbo. Any tips on angle of piping is appreciated. I wanted to see if anyone had pics. of a similar setup. Also, what's the best place to get a silicon coupling to connect the pipe to the turbo ? Thank you.
If you'd rather email the pics. pleaese send to Onebadd7@cs.com
If you'd rather email the pics. pleaese send to Onebadd7@cs.com
#3
Senior Member
Join Date: Aug 2001
Location: Tampa, Florida
Posts: 576
Likes: 0
Received 0 Likes
on
0 Posts
Badass7: I just had this done. I really had no room for an air filter coming straight out but I got a kit from K&N (Don't know which kit) that is a 90 degree turn 4" thick plastic with a monster filter on it. I'll try to take some pics tommorrow or over the weekend and post them.
#5
Rotary Enthusiast
Join Date: Nov 2003
Location: Canada
Posts: 814
Likes: 0
Received 0 Likes
on
0 Posts
The bend angle of the piping between your turbochargers inlet and the air filter doesn't have much (if any) of effect on power production.
Basically just angle it to get your air filter away from warm components and closer to a flowing air source if you can.
Basically just angle it to get your air filter away from warm components and closer to a flowing air source if you can.
#6
Pimpin Rotors...and Hoes
Thread Starter
Join Date: Feb 2001
Location: New Orleans, LA
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by rx7superman
Badass7: I just had this done. I really had no room for an air filter coming straight out but I got a kit from K&N (Don't know which kit) that is a 90 degree turn 4" thick plastic with a monster filter on it. I'll try to take some pics tommorrow or over the weekend and post them.
Badass7: I just had this done. I really had no room for an air filter coming straight out but I got a kit from K&N (Don't know which kit) that is a 90 degree turn 4" thick plastic with a monster filter on it. I'll try to take some pics tommorrow or over the weekend and post them.
#7
Need more sleep
iTrader: (1)
I used a 45 deg silicone coupler, tough to find in 4 inch but they are out there. I recall turbohoses gave me a good discount off the list price.
http://www.turbohoses.com/45%20Degree.htm
http://www.samcosport.com/elbows.asp
http://www.turbohoses.com/45%20Degree.htm
http://www.samcosport.com/elbows.asp
Trending Topics
#8
Pimpin Rotors...and Hoes
Thread Starter
Join Date: Feb 2001
Location: New Orleans, LA
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by twokrx7
I used a 45 deg silicone coupler, tough to find in 4 inch but they are out there. I recall turbohoses gave me a good discount off the list price.
http://www.turbohoses.com/45%20Degree.htm
http://www.samcosport.com/elbows.asp
I used a 45 deg silicone coupler, tough to find in 4 inch but they are out there. I recall turbohoses gave me a good discount off the list price.
http://www.turbohoses.com/45%20Degree.htm
http://www.samcosport.com/elbows.asp
#9
Pimpin Rotors...and Hoes
Thread Starter
Join Date: Feb 2001
Location: New Orleans, LA
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by NewbernD

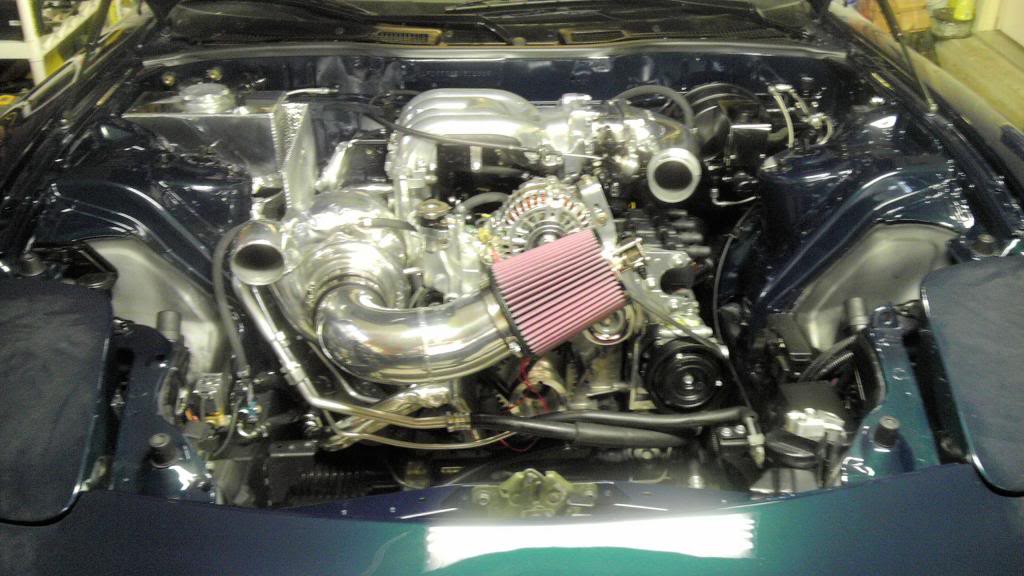

Here's Mine

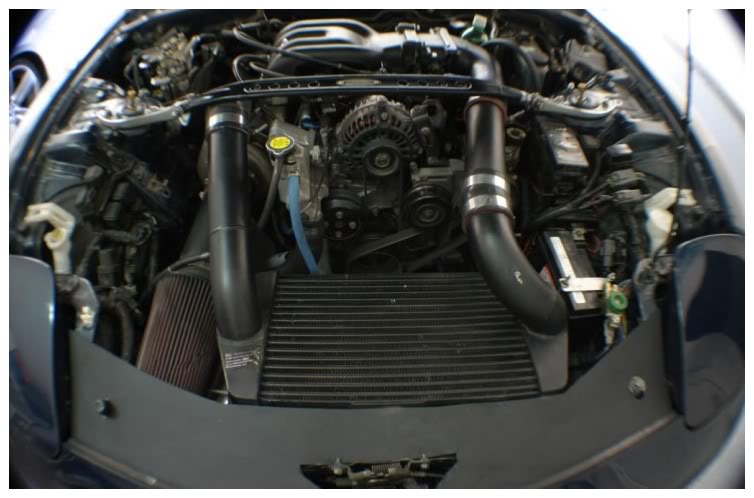

I ordered a 45* bend and used about 30* of it. T04s on HKS tubular manifold.
Here's Mine
I ordered a 45* bend and used about 30* of it. T04s on HKS tubular manifold.
#13
sdrawkcab
iTrader: (1)
Originally posted by 93redFD
anybody know the air flow loss in a 90* bend?
anybody know the air flow loss in a 90* bend?
Basically if you can avoid a bend or at least smooth it out it is in your intrest to do so, but the small amount that it restricts flow is nominal.
#14
Rotary Freak
Join Date: Feb 2001
Location: fort worth, tx, usa
Posts: 1,926
Likes: 0
Received 0 Likes
on
0 Posts
I think in theory, you lose 1/2 of velocity on every 90 degree bend. I don't remembered if I remembered correctly but I think it is.
Originally posted by rotarypower101
To get a theoretical number it depends on the diameter, velocity of air and the centerline radius of the 90* bend and to some extent the surface in which you are talking about, whether it is a silicone coupler or polished aluminum.
Basically if you can avoid a bend or at least smooth it out it is in your intrest to do so, but the small amount that it restricts flow is nominal.
To get a theoretical number it depends on the diameter, velocity of air and the centerline radius of the 90* bend and to some extent the surface in which you are talking about, whether it is a silicone coupler or polished aluminum.
Basically if you can avoid a bend or at least smooth it out it is in your intrest to do so, but the small amount that it restricts flow is nominal.
#16
Eats, Sleeps, Dreams Rotary
iTrader: (52)
Obviously this thread is quite old....
Bumping this because I am fabricating an intake tube as well. My Vmount is being re-angled so I will have more room, but I want to get a good size filter on there. I am also running pre-turbo WI, so having a little more time for water atomization is desirable.
I will be using 4" aluminum pipe to fabricate.
Post them if you got em
Bumping this because I am fabricating an intake tube as well. My Vmount is being re-angled so I will have more room, but I want to get a good size filter on there. I am also running pre-turbo WI, so having a little more time for water atomization is desirable.
I will be using 4" aluminum pipe to fabricate.
Post them if you got em
#17
Senior Member
iTrader: (10)
Obviously this thread is quite old....
Bumping this because I am fabricating an intake tube as well. My Vmount is being re-angled so I will have more room, but I want to get a good size filter on there. I am also running pre-turbo WI, so having a little more time for water atomization is desirable.
I will be using 4" aluminum pipe to fabricate.
Post them if you got em
Bumping this because I am fabricating an intake tube as well. My Vmount is being re-angled so I will have more room, but I want to get a good size filter on there. I am also running pre-turbo WI, so having a little more time for water atomization is desirable.
I will be using 4" aluminum pipe to fabricate.
Post them if you got em

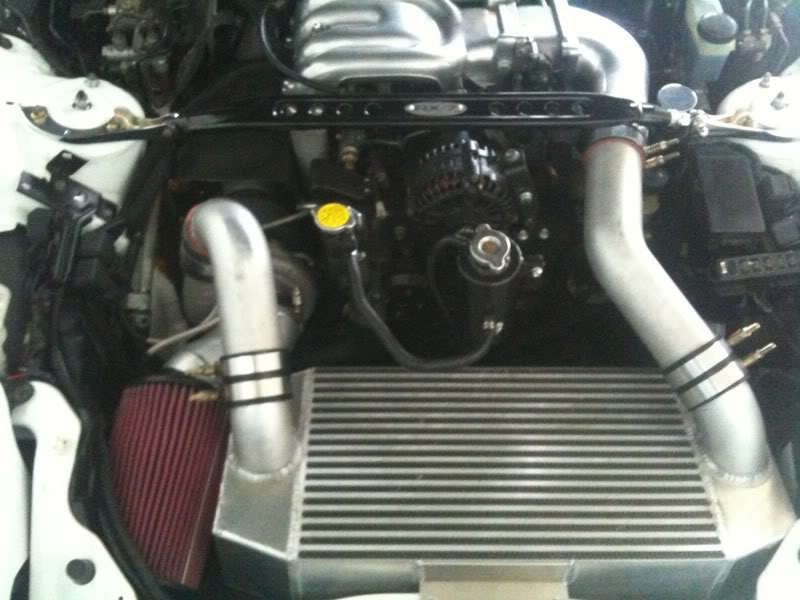

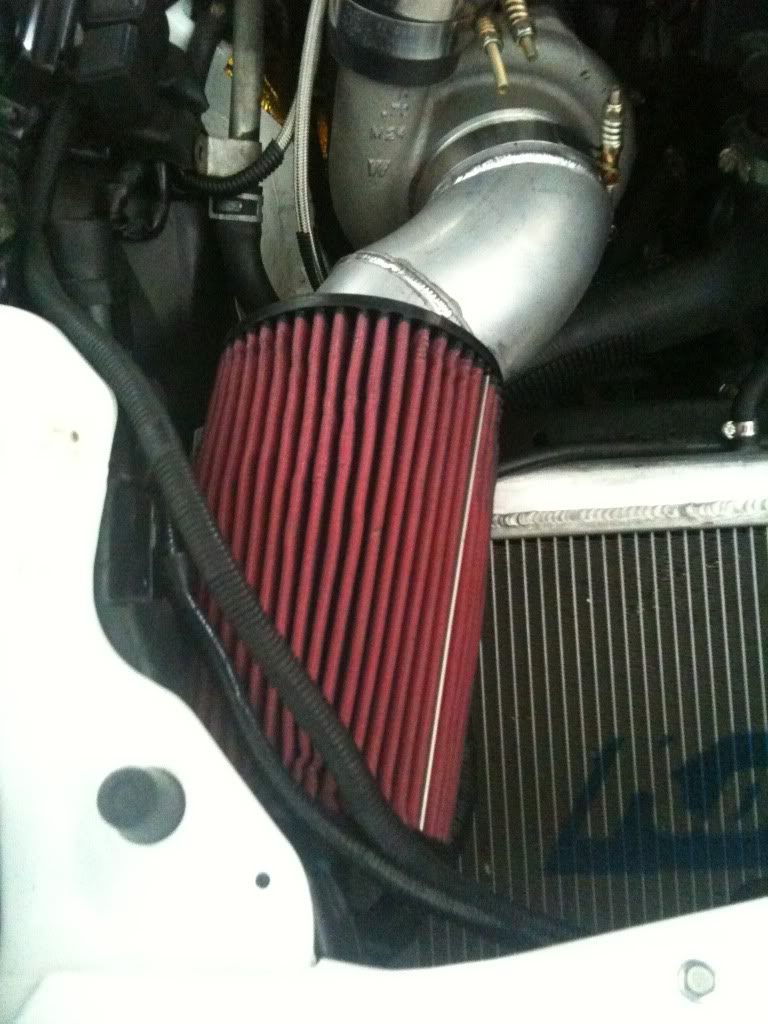

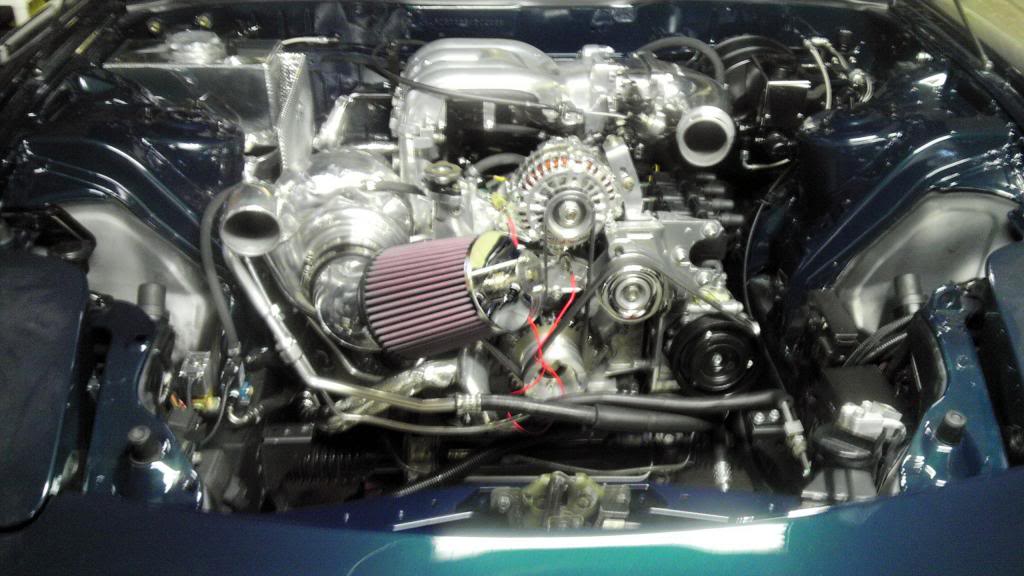

My previous set up had the compressor low mounted near the shock tower. I was able to use a short 45 degree 4 ply silicone hoes angled slightly upward. This placed the filter towards the passenger head light.

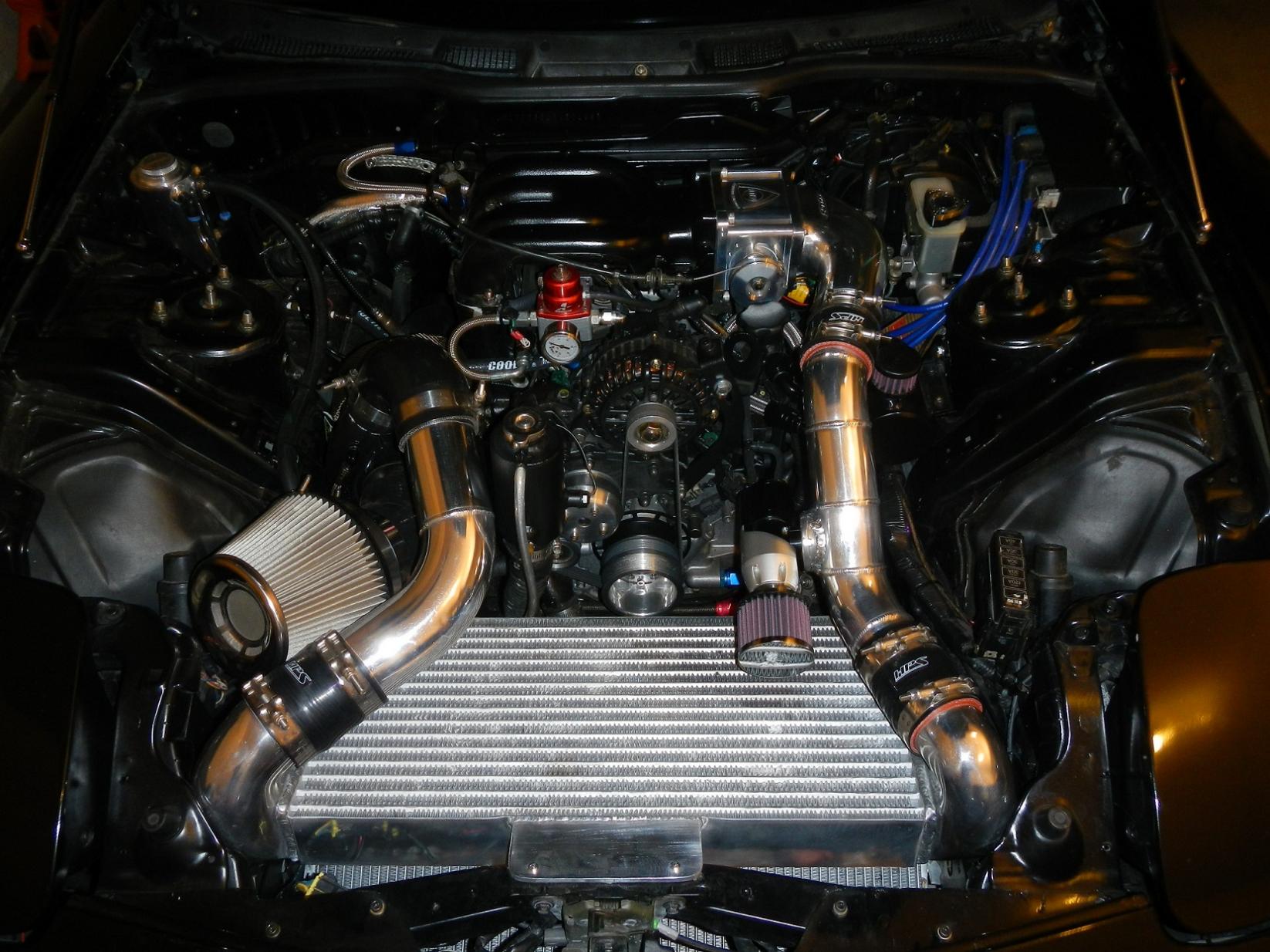

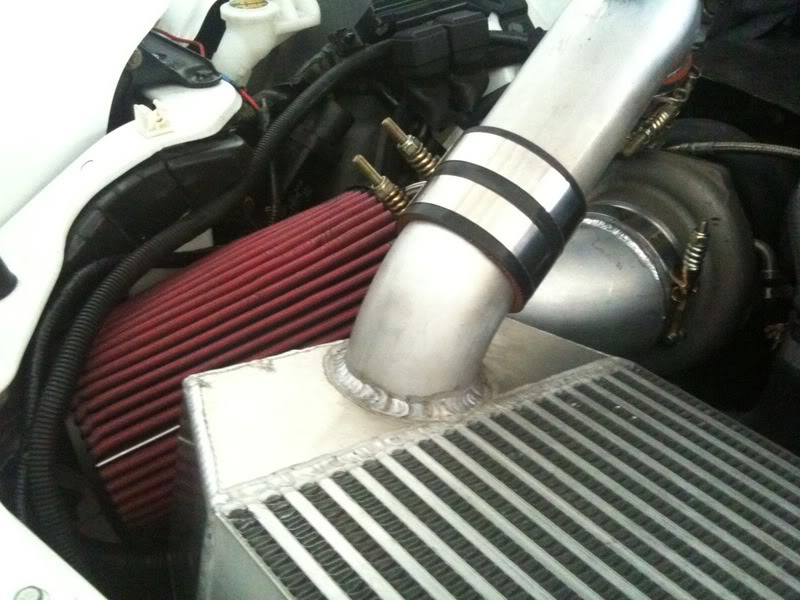

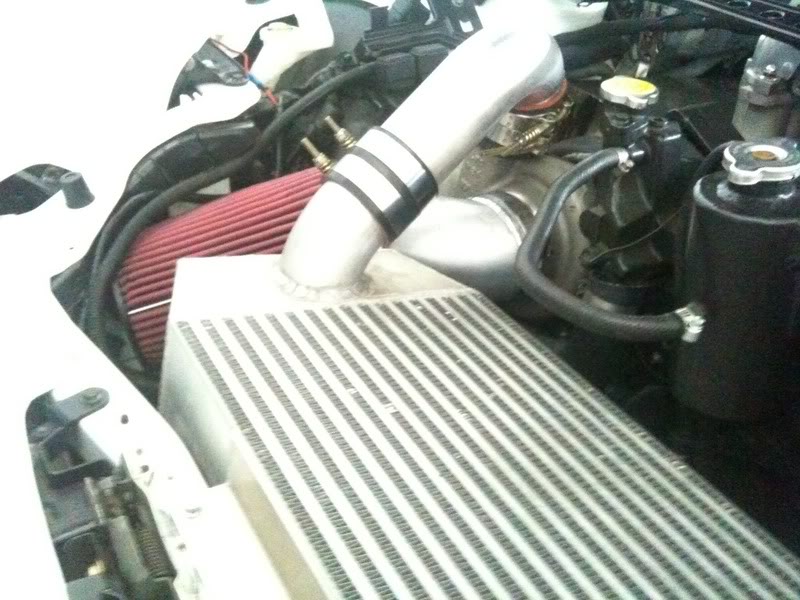

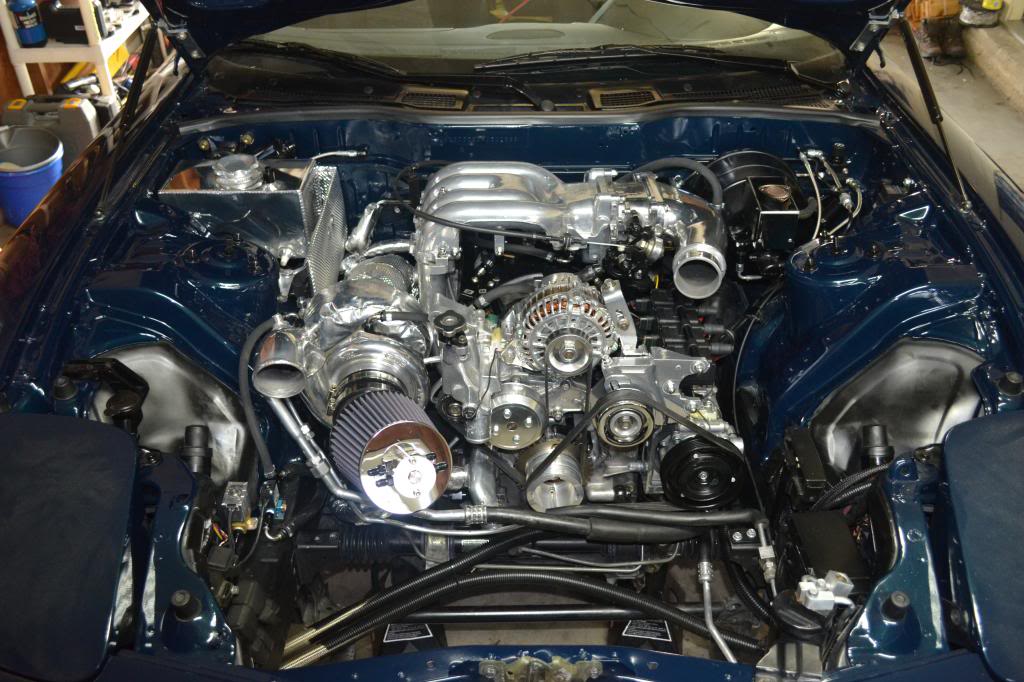

New set up places the compressor higher and farther forward. I had to use a 90 degree aluminum pipe to place the filter directly over the IC.
#18
Eats, Sleeps, Dreams Rotary
iTrader: (52)
Thanks for the pics. My setup is more like your second revision.
Did you notice any loss with the 90?
I'm looking to hit close to 500whp @ 25psi on my TD61, so I'm worried a 90 will cause a loss in power.
I have a 40, 60, and 90/22 "S" coming. I like the 90/22 "S", as it will angle to the drivers side, then up. We'll see how tight it all is.
Did you notice any loss with the 90?
I'm looking to hit close to 500whp @ 25psi on my TD61, so I'm worried a 90 will cause a loss in power.
I have a 40, 60, and 90/22 "S" coming. I like the 90/22 "S", as it will angle to the drivers side, then up. We'll see how tight it all is.
#19
Senior Member
iTrader: (10)
Thanks for the pics. My setup is more like your second revision.
Did you notice any loss with the 90?
I'm looking to hit close to 500whp @ 25psi on my TD61, so I'm worried a 90 will cause a loss in power.
I have a 40, 60, and 90/22 "S" coming. I like the 90/22 "S", as it will angle to the drivers side, then up. We'll see how tight it all is.
Did you notice any loss with the 90?
I'm looking to hit close to 500whp @ 25psi on my TD61, so I'm worried a 90 will cause a loss in power.
I have a 40, 60, and 90/22 "S" coming. I like the 90/22 "S", as it will angle to the drivers side, then up. We'll see how tight it all is.
#20
Eats, Sleeps, Dreams Rotary
iTrader: (52)
Roger that. I'm going to make it fit, and see how she goes. I picked up two different size filters and a few different elbows. I'll post pics when its together.
I see your power level in your signature and the 90 elbow in your pics. I can see why you feel it won't affect it much.
Thanks for the input
I see your power level in your signature and the 90 elbow in your pics. I can see why you feel it won't affect it much.
Thanks for the input
#21
Fast + Reliable = $$$$$
iTrader: (18)

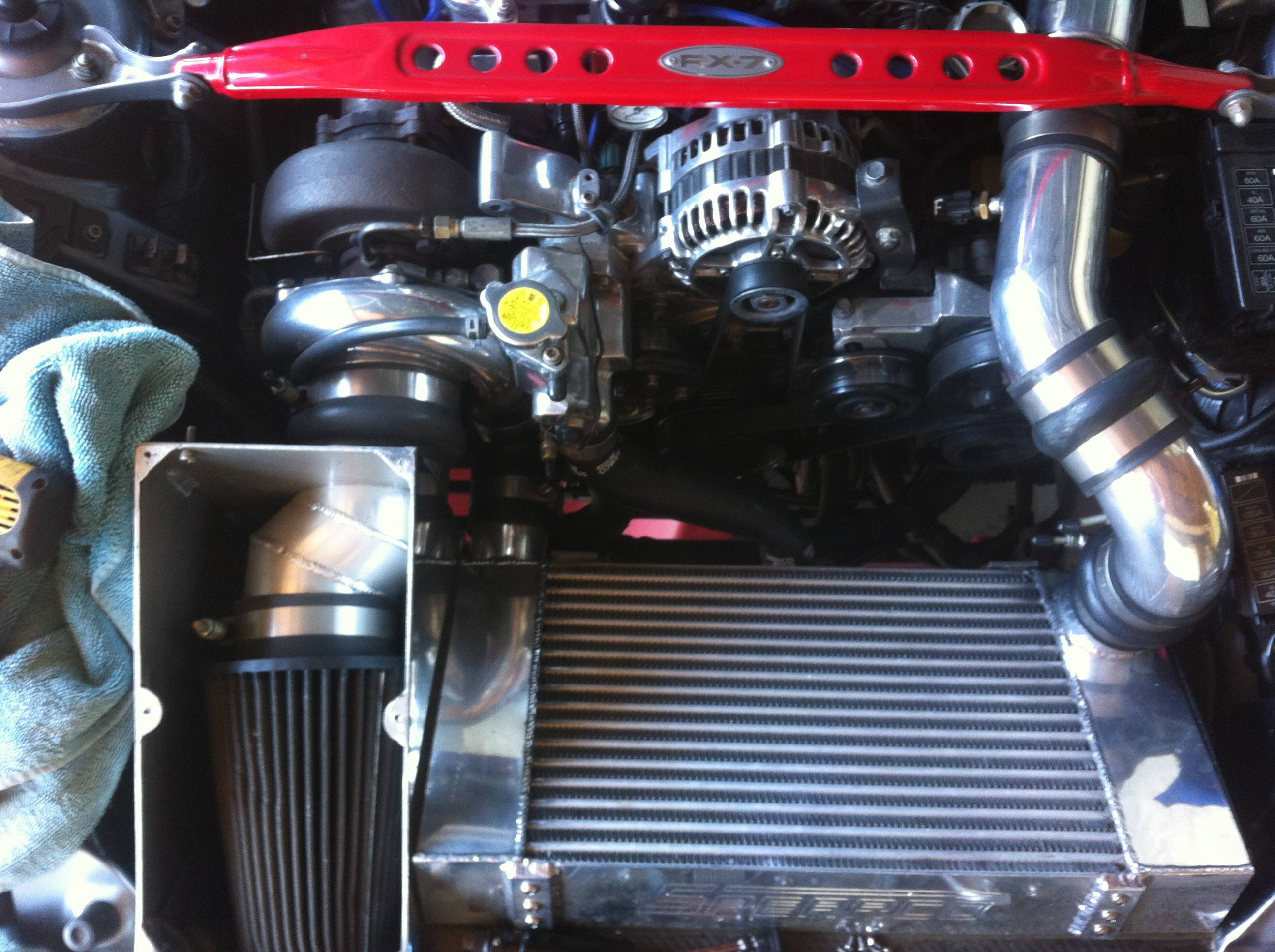

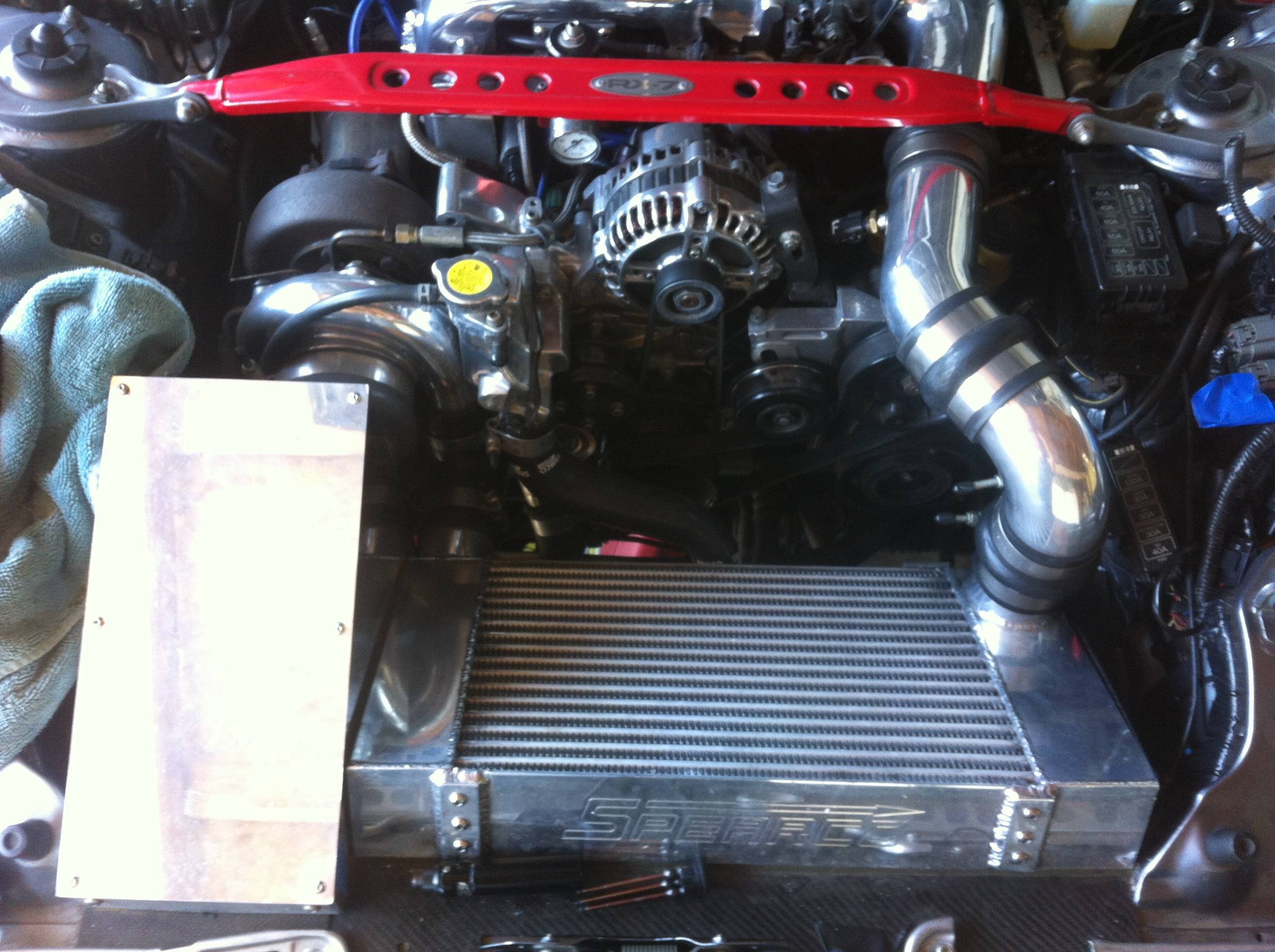

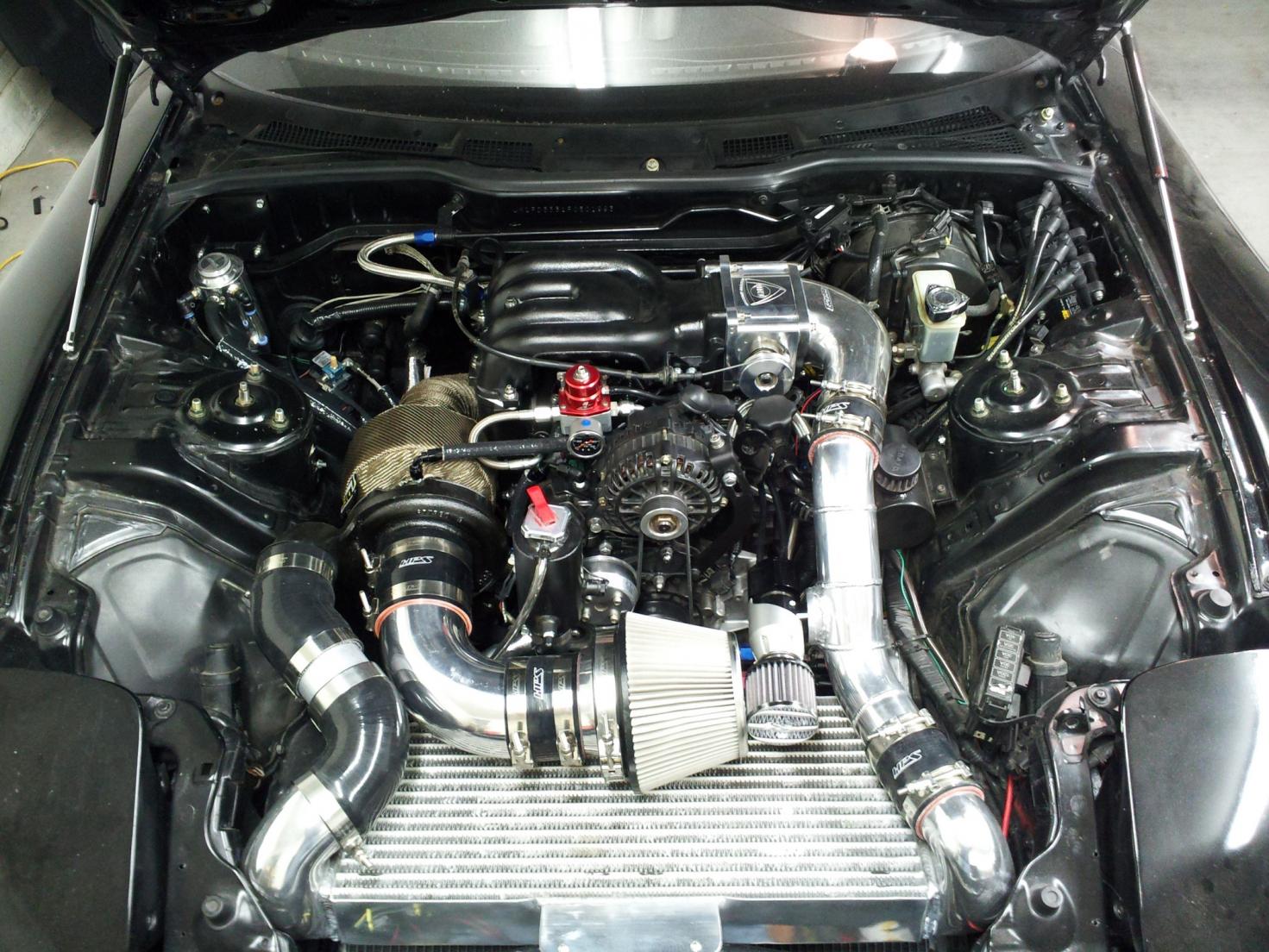

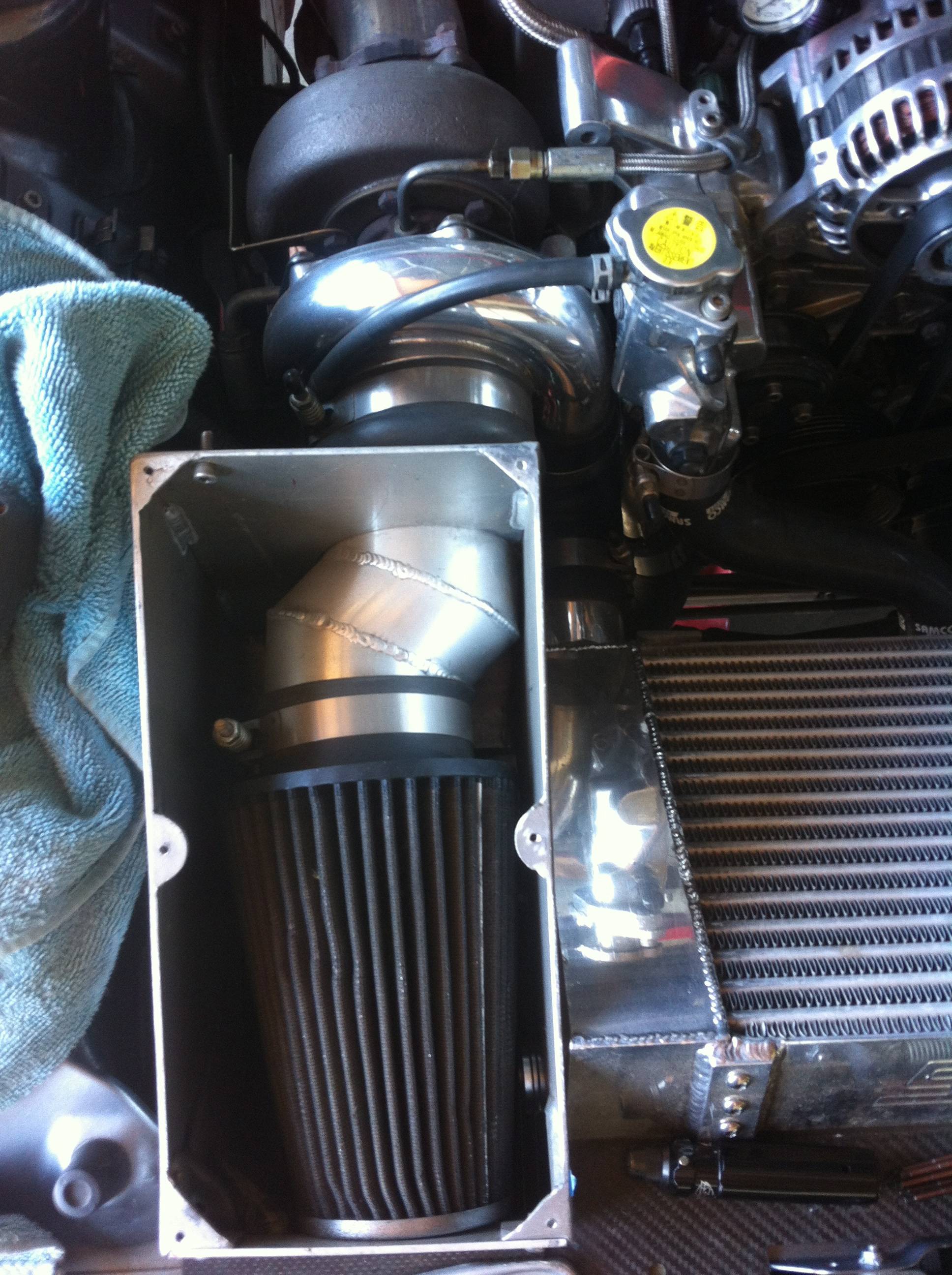

On my old set up I pushed my intercooler all the way over and had just enough space for a 9" filter... The hard pipe we made has slits on the edge to allow just enough flexibility for it to very tightly slip on the compressor inlet (no coupler), then a hose clamp tightens the slits and seals the whole the thing down.
#24
Eats, Sleeps, Dreams Rotary
iTrader: (52)
I see the theme. Most people shift the core over, or have a small enough core to fit the filter on that passenger side. Great looking setups guys!
I unfortunately, don't have that option.
My Rotary Extreme Vmount will arrive soon, and the core stretches most of the way across. With this, I'm looking at options. Much of this is going to depend on the actual intercooler placement angle.
I am injecting 50/50 water meth preturbo. With this what is the real trade-off, and what is it worth? Is the small amount of cooler air from being away from the vmount core worth more bends to restrict flow?
However, these are some options...
35 degree
60 degree
90/22 "S" pipe
I unfortunately, don't have that option.
My Rotary Extreme Vmount will arrive soon, and the core stretches most of the way across. With this, I'm looking at options. Much of this is going to depend on the actual intercooler placement angle.
I am injecting 50/50 water meth preturbo. With this what is the real trade-off, and what is it worth? Is the small amount of cooler air from being away from the vmount core worth more bends to restrict flow?
However, these are some options...
35 degree
60 degree
90/22 "S" pipe
