My new Peashooter!!
Hey guys. Santa brought me my Christmas present a couple days early. Check it out.
Its the new GT4208 80mm. The exhaust is all stainless. It weighs half of what my current turbo does and its bigger! Big thanks goes to Enzo Racing for jumping hoops to get it for me.
Its the new GT4208 80mm. The exhaust is all stainless. It weighs half of what my current turbo does and its bigger! Big thanks goes to Enzo Racing for jumping hoops to get it for me.
Trending Topics
LOL, I have something very similar on my car. Though I'm running the larger turbine wheel. I'm betting you'll be surprised at your results.

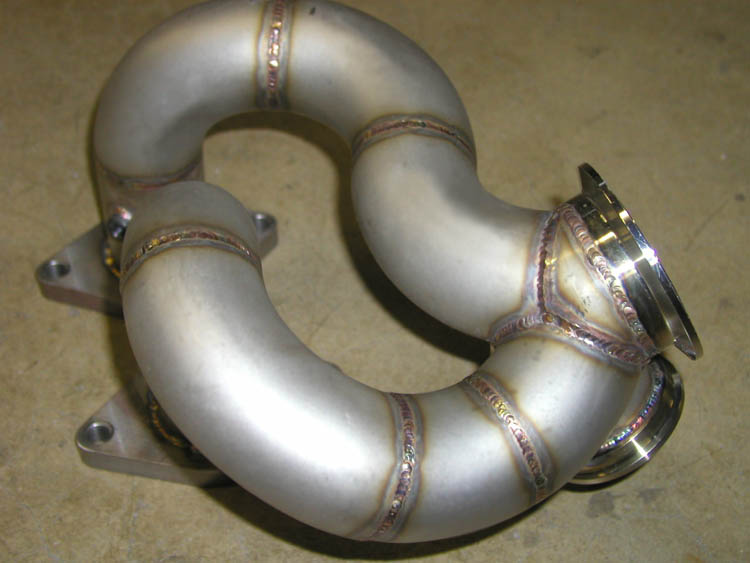

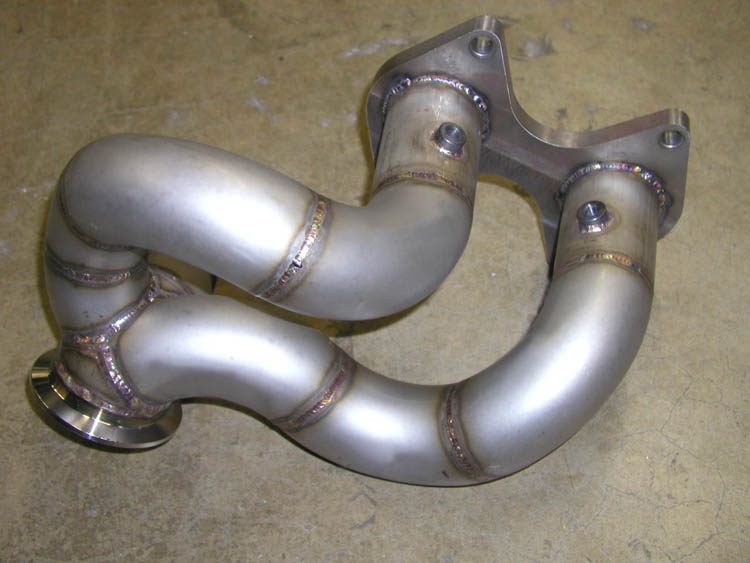

Here's the mani I made for it
Here's the mani I made for it
There's the rub, this one will definitely give better response than your T6, but if memory serves correct it's volume is smaller. Same goes with the compressor side. By stuffing the larger wheel in the smaller housing it effectively drop's the A/r down. Usually you'll see gains at lower levels, but lose up top (apples to apples) by running the tighter A/r. Another words you may see more power at say 20psi but you will see less overall power at max. Again this is apples to apples.
All that aside, I assume you had the BP replaced with the lighter one? If so how does your turbo feel now? Nice having a 42-45R that weighs the same as your off shelf 35R
All that aside, I assume you had the BP replaced with the lighter one? If so how does your turbo feel now? Nice having a 42-45R that weighs the same as your off shelf 35R
Last edited by Zero R; Dec 19, 2008 at 09:32 PM.
Thread Starter
Joined: Feb 2001
Posts: 6,541
Likes: 0
From: Abingdon, Md
There's the rub, this one will definitely give better response than your T6, but if memory serves correct it's volume is smaller. Same goes with the compressor side. By stuffing the larger wheel in the smaller housing it effectively drop's the A/r down. Usually you'll see gains at lower levels, but lose up top (apples to apples) by running the tighter A/r. Another words you may see more power at say 20psi but you will see less overall power at max. Again this is apples to apples.
All that aside, I assume you had the BP replaced with the lighter one? If so how does your turbo feel now? Nice having a 42-45R that weighs the same as your off shelf 35R
All that aside, I assume you had the BP replaced with the lighter one? If so how does your turbo feel now? Nice having a 42-45R that weighs the same as your off shelf 35R
The weight saving alone is incredible.. I have the tial SS exhaust housing on the way too.. Greg told me my T6 housing is close to 3 times heavier than what I have on the way. I recently held a GT35R with the tial housing in my hands and was SHOCKED how light that turbo felt...Talk about weight savings...was almost unreal....
Back Plate. I can't tell in your pics, but I think I see the aluminum one peeking out. I made mine here. I wanna say my turbo weighed in at 26lbs, not bad since it started at 48lbs. The cast iron BP weighs a ton, get rid of that, and the T6 housing for the TiAL and you've shaved a ton of weight off it. It's hard for people to believe when they pick them up. Though I started with a 45R I'm sure it's still a big savings with the 42R.
Last edited by Zero R; Dec 20, 2008 at 01:14 PM.
Back Plate. I can't tell in your pics, but I think I see the aluminum one peeking out. I made mine here. I wanna say my turbo weighed in at 26lbs, not bad since it started at 48lbs. The cast iron BP weighs a ton, get rid of that, and the T6 housing for the TiAL and you've shaved a ton of weight of it. It's hard for people to believe when they pick them up. Though I started with a 45R I'm sure it's still a big savings with the 42R.
I have the GT45 too.. I want to swap out the cast iron back plate for the aluminum..You got an extra one? How much?
do you mean gt4508? if you are in ny anytime soon i would love to see how is the spooling of that turbo as im planning to upgrade my t-78
(if u want ofcourse )
(if u want ofcourse
)
Last edited by R-R-Rx7; Dec 20, 2008 at 02:13 PM.
