Hot new RX7 for Racing
Our Team aquired a 93 RX7 Project coming to a finish for testing.
Hope it is fun in here.
I was told to contact you regarding our find in a West coast garage. We recently added new parts and improvments and now only needs carbon fiber finder flares for larger tires so we are ready to meet the compatition.
For the final touch we need to brighten up the old paint and carbon fiber.
It is good but oxidized and faded. Any ideas.

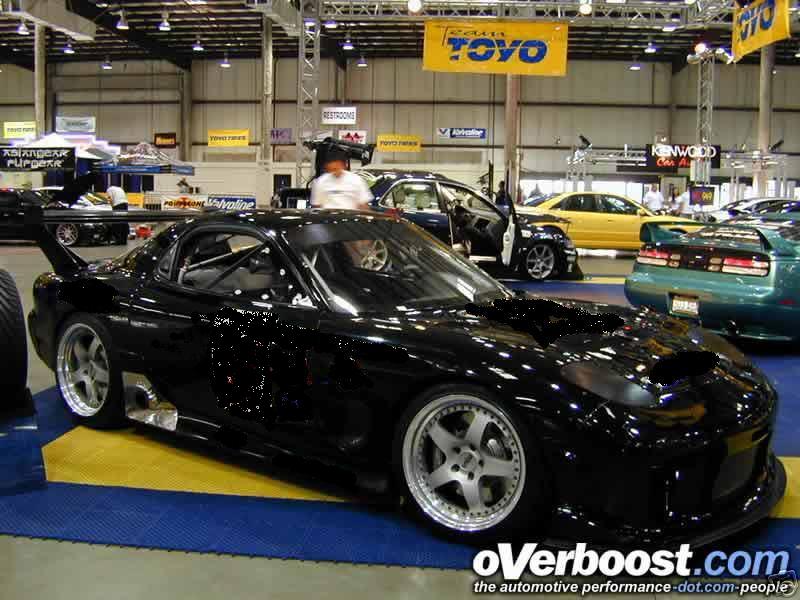

1993 RX7 550 horse power weight 2450 LBS
Most of the components listed below are brand new:
Body:
Reworked Rear Fenders For Tire Clearance
Reworked Front Fenders For Tire Clearance
Fully Lightened Stock Doors W Safety Pins, Szues Mounted Lexan Quarter Windows, and Jack Pin Openings
Fully Lightened Deck Lid w/ Scratch Resistant Lexan Window, Safety Straps, and Remote Cable Release
Scratch Resistant Lexan Windshield with Inner Support Brace and Aluminum Safety Tabs
M2 Carbon Fiber Hood W/ Large Main Cooling Vent, Rear Louvers, and Captive Safety Pins
Modified Genuine Mazdaspeed GTC Front Nose w/ Removable Custom Stainless Grill
Custom Carbon Fiber Front Splitter / Undertray

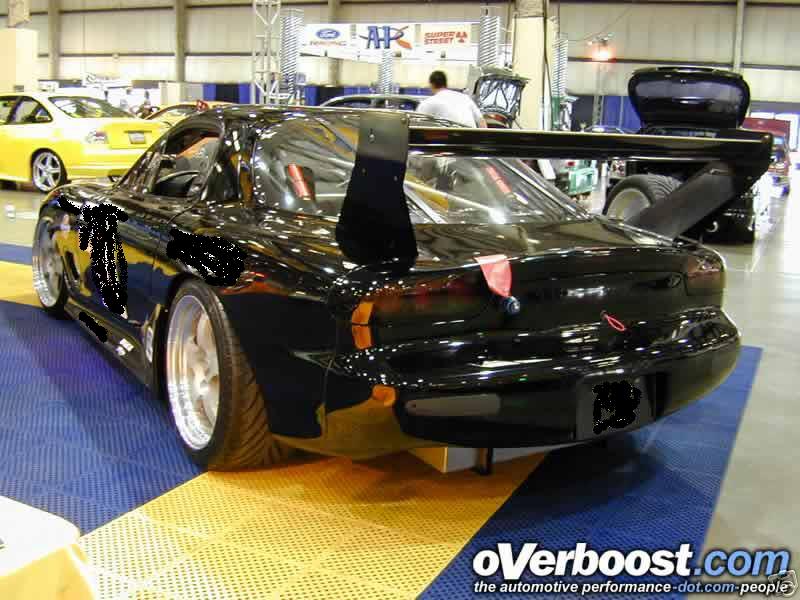

Custom Dual Element Multi-Adjustable Carbon Fiber Rear Wing W/ Aluminum End Plate Mounts
Modified Mazdaspeed Side Skirts w/ Polished Titanium Exhaust Shield and Exhaust Turbulence Wicker
Custom Ultra-Light Carbon Fiber Headlight Buckets W/ Removable Lexan Lenses
Carbon Fiber Front Fender Vents
SPA Carbon Fiber Race Mirrors – Cage Mounted
’99 Rear Tail Light Assemblies
Custom Cage Mounted, Through Roof, Billet Tow Hook
Chassis:
Completely Stripped, Lightened, and Sealed Tub

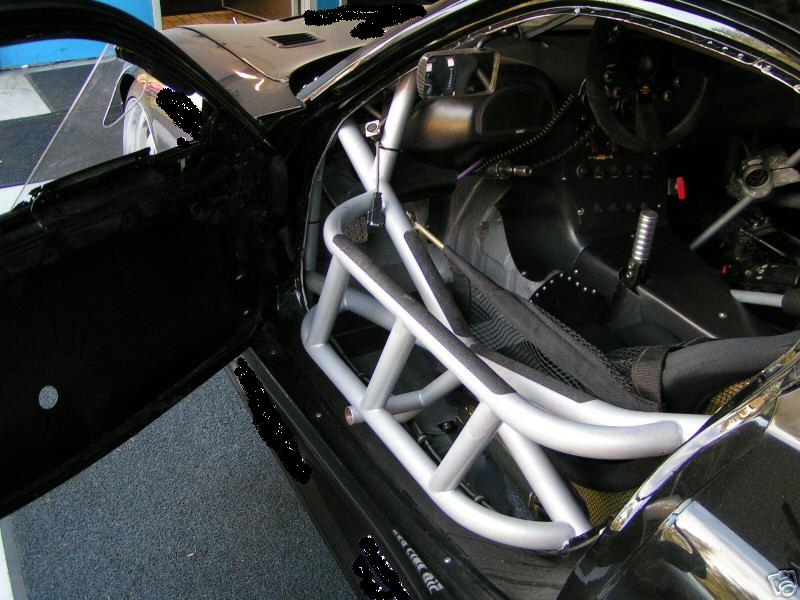

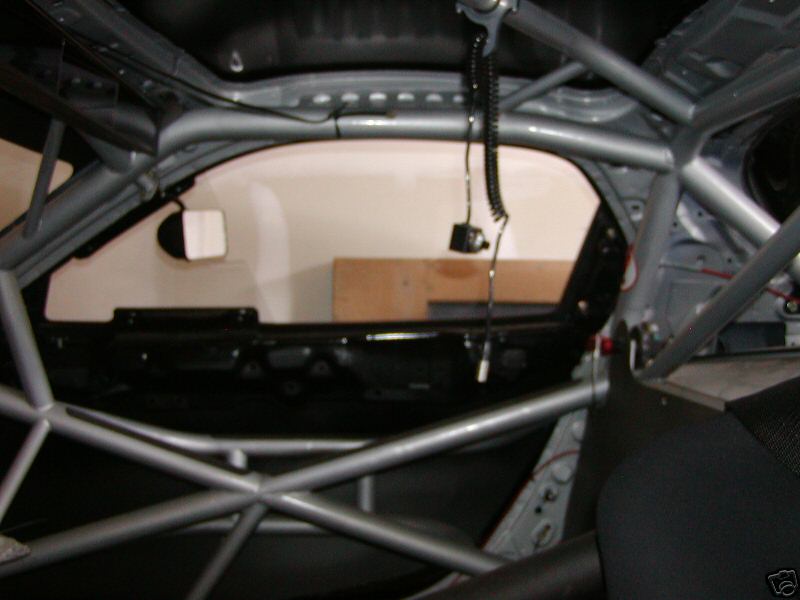

Extensively Engineered Chromoly Roll Cage w/Approx. 22 Chassis/Body Points
X and Nascar Style Door Bars w/Jack Tube Receptacles
Roush Trans Am Style Windshield Triangulation
Gusseted and Triangulated Canopy
Front Strut Towers Triangulated Through Firewall to Center Dash
Side Mirror Mounting Flanges
Boxed Rear Tower Reinforcement/ Bulkhead w/ Carbon Fiber Center Panel
Custom Chromoly Front Strut Tower Brace Triangulated To Front Rails / Upper Suspension Points
Custom Chromoly Lower Rear Subframe / Diff Support Completely Triangulates Rear Lower Suspension
Custom HD Front Bumper / Nose Support Bar
Custom Passenger Floor and Rear Rocker Panel Exhaust Tunnel
Raised Rear Wheel Arches For Tire Clearance
Extensive Heat Insulation Inc. Firewall, Main Tunnel, Exhaust Tunnels, Strut Towers, Chassis Rails, and Floors
Interior:
Complete Custom Carbon Fiber Dash, Two Piece Design W/ Szues For Quick Access to Electrical Systems
Integated Pod For Electronic Dash Logger Motec Dash
Three Large Integrated Warning Lights
Custom Center Switch Panel w/ Aircraft Switches And Brake Balance Control

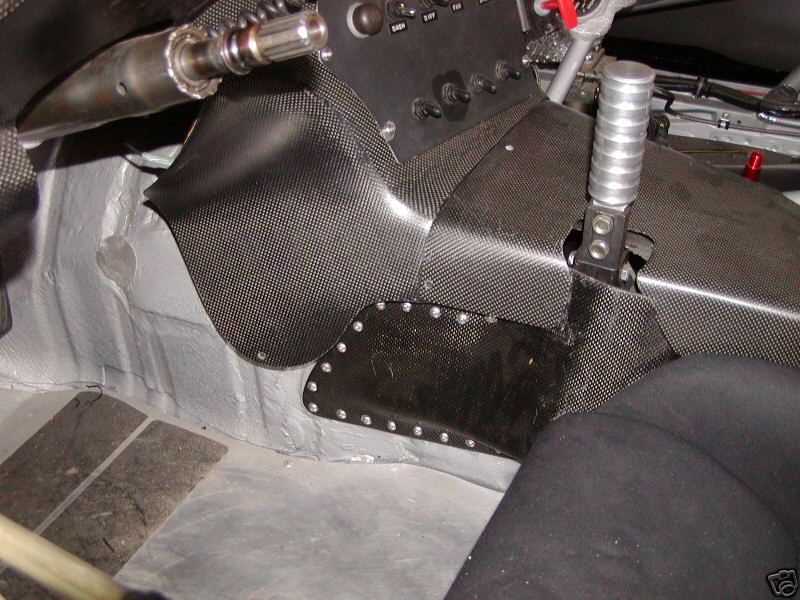

Custom Full Length Carbon Fiber Tunnel Cover
Complete Aluminum and Carbon Fiber Rear Bulkhead w/ Hinged Fuel System Cover and Shock Can Doors
Carbon Fiber Passenger Floor
Custom Aluminum Drivers Floor w/ Non Slip Heal Strips
Custom Passenger Floor ABS Pump Mount
Stand 21 Carbon/ Kevlar Race Seat W/ Custom Extra Low Mount and Adjustable Rear Support
Willans 6-Point Harness
SPA Fire Sytem with Multiple Nozzles for Cockpit, Driver, Fuel System, Engine, Turbo Driver and Remote Fire System Activation
Externally / Internally Accessable Electrical Master Switch
330mm Personal Steering Wheel w/ Custom Adapter to SPA Quick Release Hub
Custom Steering Wheel Switch Pate w/ 6 Buttons for Dash, Radio, Drink, and Dash Display Functions
Lightweight Rear Mounted Dry Cell
On Board Mounted Battery Trickle Charger
Remotely Accessible Jump Plug Connector and Male Jump Battery Connector with Leads
Billet Helmet Hook
Billet Steering Wheel Hook
5 Panel Wink Mirror
Cage Mounted Mesh Style Window Net
Metallic Silver Paint Throughout
Engine:
Intake/ Exhaust Porting
Oil Passage Modifications
-10 Oil Cooler Fittings
Black Anodized Aluminum Pulleys
AN Turbo Oil and Cooling Fittings and SS Hoses
Ianetti Ceramic Apex Seals
Fresh Garrett Indy Car Race Turbo w/ New Mar M Exhaust Wheel and Hi Temp Nicosil Race Exhaust Housing.
Polished SS Exhaust Manifold w/ Tial Wastegate
Polished SS Downpipe and Waste Gate Dump Tube
Custom Aluminum Full Engine Heat Shield w/Hi temp Blanket
Modified Intake Manifold and Throttle Body
Modified Fuel Rails w/ 850x4 injectors and AN fittings
Custom additional fuel rail w/2x550 injectors
Custom engine harness w/ Single Mil Spec Connector to firewall
Motec M4 Pro Management System w/ full Lambda, Logging, and Advanced Tuning enabled
Custom Aluminum Motec ECU Mount
Custom ECU harness w/ 1 & 3 bar Map Sensors and Single Mil Spec Firewall Connector
Motec rs232 Dongle and Software Update Unit
Tilton Race Flywheel W/ Precision Machined Lightening Holes
Tilton Twin Disk 7.25 in Clutch Assembly
Engine Mounted Remote Oil Breather/ Catch Tank
Custom Billet Aluminum Engine Mounts
Redline Synthetic Oil
Redline Water Wetter
Cooling:
Custom 2" Full Height Griffin Radiator
Fully Sealed Composite/ Aluminum Radiator Shrouding to Nose
Quick Change Radiator Mounting System w/ Szues Mounted Aluminum Top Plate
Powder Coated Alum Rad Tubes w/ Quick Release Wiggins Clamps @ Rad and Engine
Lightweight Electric Radiator Cooling Fan
Custom Front Mounted Intercooler w/ Composite Duct to Nose
Powder Coated Alum I/C Tubes W/ Quick Release Wiggins Clamps @ I/C, Turbo, Engine
Tial Billet Blow-off Valve Mounted To I/C Plumbing
Twin Front Mounted Engine Oil Coolers w/ all -10 AN Lines and Fittings
Front (nose) Mounted Intake System W/ 4”mandrel Aluminum Plumbing To Turbo
Fuel System:
29+- Gallon Custom Fuel Safe Fuel Cell W/Aluminum Housing
1.5+- Gallon Custom Remote Aluminum Surge Tank System
Low Pressure Surge Feed Pump
Twin Bosch High Volume/ High Pressure Main Fuel Pumps
Twin Remote Billet Aluminum Fuel Filters w/ Custom Carbon Fiber Mounts
Twin Feed Billet Fuel Pressure Regulator
Stainless Steel/ AN Feed and Return Lines Throughout Fuel System
Exhaust:
3” Side Exit Mandrel Stainless Steel Exhaust System w/V-Band Flanges
Custom Stainless Steel Muffler w / In-Tunnel Spring and Cradle Mounting System
Polished Titanium Rocker Shield w/ Anti-Turbulence Wicker
Gearbox:
Custom G-Force Magnesium GF-5R Transmission w/ Computer Optimized Ratios and Custom Overdrive 5th
Custom Long Shifter w/ Custom Billet **** and Removable Carbon Fiber Tunnel Panel
Custom Driveshaft w/ Mark Williams Hardened Yoke and HD U-Joints
Custom G Force Transmission Adapter
Custom Transmission Mount Tied to Roll Cage
Tilton Hydraulic Throw Out Bearing w/ SS Lines and Fittings
Redline Shockproof Synthetic Gear Oil
Motul Clutch Fluid
Differential:
Solid Mounted to Custom Lower Subframe
4:3 Ring and Pinion
Custom Cooling System w/ Tilton Electric Oil Pump, Remote Cooler, Stainless Steel Lines, AN Fittings
Redline Shockproof “Heavy” Gear Oil
Suspension:
JRZ Triple Adjustable Coil Over Shocks w/ Custom Carbon Fiber Remote Reservoir Mounts
Custom Carbon Fiber Remote Reservoir Compartments Under Hood Vents For Cooling
Custom Shock Reservoir Body Pass Through System For Quick Shock Removal
Spherical Control Arm Bushings
M2 Trailing Links w/ Modified Pickup Points
M2 Toe Links
M2 Tubular Adjustable Front Sway Bar w/ Custom Mounts and Solid Bushings
Custom Rear Sway Bar Links
Brakes:
14.5" 2 Piece Slotted Front Rotors W/ 6 Piston Calipers
13.5" 2 Piece Slotted RR Rotors w/4 Piston Calipers
Tilton Twin Brake Master Cylinder Assembly w/ Cockpit Adjustable Ballance Bar
Passenger Floor Mounted ABS Pump for Optimum Weight Distribution and Cooling
All Stainless Brake Lines Throughout
Front Cockpit Mounted ABS Controller
Wheels/ Tire:
Custom Kenisis 18x10, 18x11
Custom Lightened by Kenisis
Hoosier 285/30/18 and 305/30-18
