HKS T04R Kit Spare Parts HEEEEELLLPP!!!
#1
HKS T04R Kit Spare Parts HEEEEELLLPP!!!
Hey guys, i need your help, i am getting an HKS T04R Kit, but i will be missing the follwing parts...
Secondary Turbo Drain Block Off Plate...
Primary Turbo Drain Single Adapter Plate/pipe...

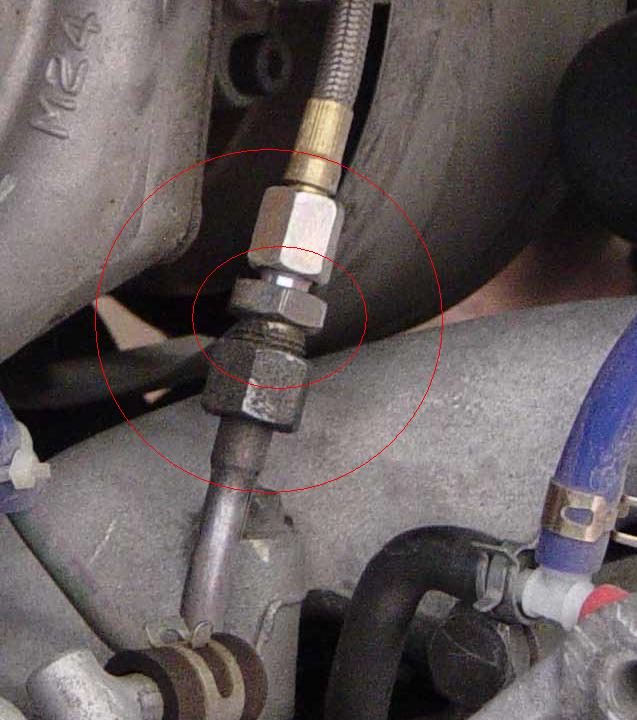

Turbo Oil Feed Pill flare that goes into the stock oil supply line by the watter fill neck and connects with the braided line to the turbo...What I need is to find out since this is HKS T04R Oil Cooled Only Turbo, what size restrictor pill needs to be used and also what are the measurments for both inlet and outlet, I can't get ahold of HKS to help me out and I know some of you who have these kits from HKS could help me out...

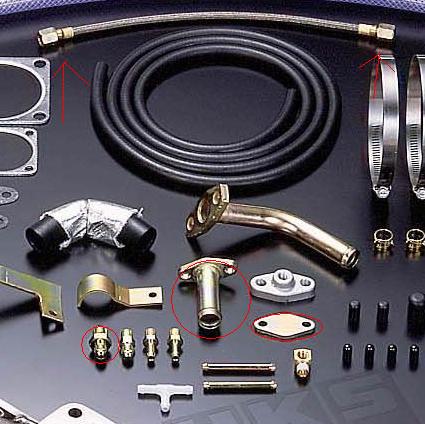

I attached a pic of the parts i am missing...
Thanks in advance for the help...also i did call a few rotary places and the one thing i need to find out is the info on Oil Feed Restrictor pill/flare...
Secondary Turbo Drain Block Off Plate...
Primary Turbo Drain Single Adapter Plate/pipe...
Turbo Oil Feed Pill flare that goes into the stock oil supply line by the watter fill neck and connects with the braided line to the turbo...What I need is to find out since this is HKS T04R Oil Cooled Only Turbo, what size restrictor pill needs to be used and also what are the measurments for both inlet and outlet, I can't get ahold of HKS to help me out and I know some of you who have these kits from HKS could help me out...
I attached a pic of the parts i am missing...
Thanks in advance for the help...also i did call a few rotary places and the one thing i need to find out is the info on Oil Feed Restrictor pill/flare...
#3
I just made my own, I used the front oil pipe from the twin setup and cut the flange off, got a braided pipe made up which is from the turbo to the bango bolt on the front iron, used an oil resrictor from ebay that bolts to the turbo bentre that has a 2mm restrictor hole in it.
Made a block off plate for the rear oil return on the twins.
http://cgi.ebay.com/ebaymotors/OIL-L...61148204QQrdZ1
This has the restrictor in, I re-drilled the hole to 3mm (think it is 2mm as standard)
Made a block off plate for the rear oil return on the twins.
http://cgi.ebay.com/ebaymotors/OIL-L...61148204QQrdZ1
This has the restrictor in, I re-drilled the hole to 3mm (think it is 2mm as standard)
Last edited by BuckyFD3; 12-18-06 at 04:17 PM.
#4
Thanks for the input, but i dont mind spending a little $$, the first 2 parts are only ~$30 and the pill is like $15-$25, its jsut the matter of getting the right one for my application, the inlet and outlet thread size and pill restrictor center diameter...
Ughhhhhh, this should not be this difficult...lol
Ughhhhhh, this should not be this difficult...lol
